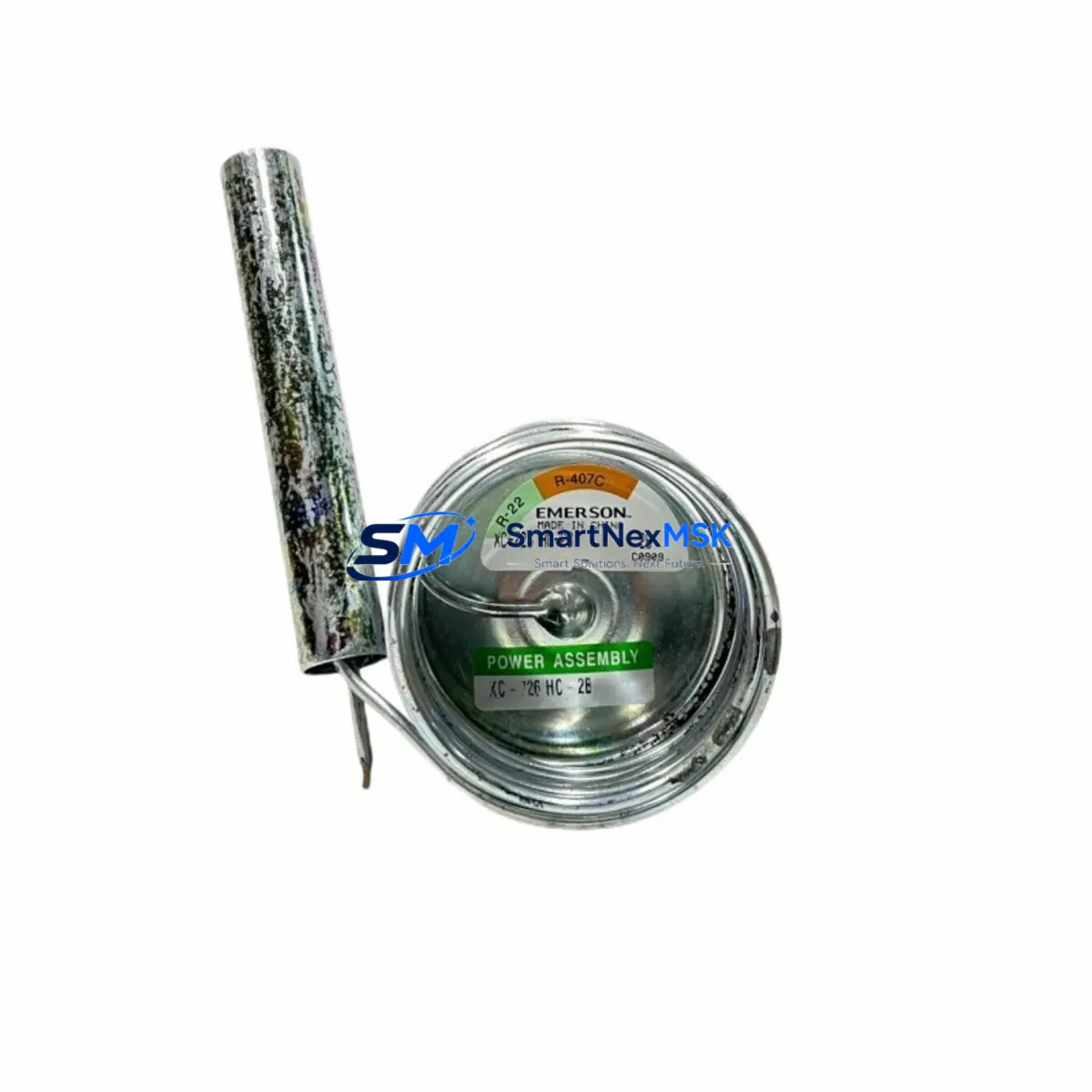

Emerson XC-726HC-2B Retrofit-Ready TXV for Sporlan Control Systems: Compatible Upgrade for Legacy Refrigeration Systems
The Emerson XC-726HC-2B is a Sporlan-series thermostatic expansion valve (TXV) engineered for direct retrofit into existing refrigeration and HVAC control systems where the original XC-726HC-2B or functionally equivalent predecessors have reached end-of-life or been discontinued. Whether you are managing a cold-storage facility, a commercial refrigeration rack, or an industrial process-cooling loop, this valve delivers the same metering performance as the original while meeting current system integration requirements.
Procurement teams and field engineers sourcing replacement valves for aging Sporlan-equipped systems will find the XC-726HC-2B immediately familiar: the external equalizer port, the same nominal capacity rating, and the standard flare or solder connection options allow drop-in substitution without reworking the surrounding pipework. Before installation, engineers should verify the existing power element charge type against the target refrigerant — systems originally charged for R-22 that have been converted to R-407C or R-404A require a matched power element to maintain accurate superheat control. Emerson’s Sporlan product line covers a broad range of charge types, and the XC-726HC-2B is available in configurations suited to the most common retrofit refrigerants in active service today.
Upgrade Compatibility Table
| Parameter | Detail |
|---|---|
| SKU / Part Number | XC-726HC-2B |
| Brand / Series | Emerson / Sporlan |
| Valve Type | Thermostatic Expansion Valve (TXV / TEV) |
| Connection Type | Flare or solder (confirm existing line set before ordering) |
| Equalizer | External equalizer port — required for systems with distributor or long suction lines |
| Refrigerant Compatibility | Confirm power element charge type: R-22, R-404A, R-407C, R-134a (specify at order) |
| Replacement / Supersedes | Direct replacement for discontinued XC-726HC-2B; compatible upgrade path from older Sporlan C and XC series valves |
| Installation Requirement | Verify superheat setting, bulb mounting orientation, and equalizer line routing before commissioning |
| Communication / Control | Mechanical TXV — no electronic controller required; compatible with Sporlan EVBQ electronic valve bodies if upgrading to EEV |
| Commissioning Focus | Superheat adjustment, bulb clamp torque, leak test at high-side pressure, system pull-down verification |
| Warranty | 12 months from date of shipment |
Retrofit Planning for Existing Automation Systems
A successful XC-726HC-2B retrofit begins well before the valve arrives on site. Start by pulling the original system drawings to confirm the existing valve’s capacity rating in tons or kW, the distributor model (commonly a Sporlan D or SD series distributor nozzle assembly), and the suction line diameter feeding the evaporator coil. If the system uses a Sporlan catch-all filter drier — such as a C-100-S or C-164-S shell — inspect and replace the drier core at the same time as the valve; moisture contamination is the leading cause of premature TXV failure after a refrigerant-side repair.
On rack refrigeration systems, the XC-726HC-2B typically feeds one evaporator circuit among several. Confirm that the Sporlan solenoid valve upstream of the TXV — often an ODF or ODFM series — is functioning correctly before commissioning the new expansion valve. A leaking solenoid will flood the evaporator during off-cycle and mask the TXV’s superheat performance during pull-down. Similarly, if the system uses a Sporlan headmaster or back-pressure regulator on the suction side, verify its set point has not drifted; an incorrect suction pressure will produce misleading superheat readings during initial commissioning.
For systems that are being upgraded from a mechanical TXV to an electronic expansion valve (EEV) platform, the XC-726HC-2B can serve as an interim replacement while the control upgrade is planned. The Emerson Sporlan EVBQ or SEI electronic valve body, paired with a Sporlan SEER or SEEC controller, represents the most common upgrade path for facilities moving toward centralized superheat management and remote monitoring. During the transition period, the mechanical XC-726HC-2B maintains refrigerant metering without requiring any changes to the existing Emerson Alco or Sporlan pressure controls, low-pressure cutouts, or high-pressure safety switches already wired into the control panel.
Wiring and terminal adaptation are not required for a mechanical TXV replacement, but if the retrofit is part of a broader control panel upgrade — for example, migrating from a legacy Sporlan DISC or older Emerson Climate Technologies controller to a current-generation Emerson E2 or Lumismart building automation interface — coordinate the valve replacement with the controller changeover to minimize the number of system shutdowns. Confirm that the new controller’s sensor inputs are compatible with the existing Sporlan pressure transducers and suction/discharge temperature sensors before closing the panel.
Downtime Control During System Migration
Minimizing refrigeration system downtime during a TXV replacement requires a structured pre-work checklist. Before isolating the circuit, recover refrigerant from the affected evaporator circuit only — not the entire rack — using a dedicated recovery machine connected at the liquid line service valve and suction service valve. Tag and lock out the solenoid valve and any associated Sporlan pressure regulators to prevent refrigerant migration from adjacent circuits during the repair window.
With the circuit isolated, the XC-726HC-2B can typically be replaced within 60 to 90 minutes by an experienced refrigeration technician: remove the old valve body, install the new valve with fresh flare nuts or re-solder the connections using nitrogen purge, mount the sensing bulb in the original orientation on the suction line (insulate the bulb clamp), reconnect the external equalizer line, and pressure-test the circuit to the system’s high-side design pressure before pulling a deep vacuum. A vacuum below 300 microns held for 30 minutes confirms the circuit is leak-free and dry before refrigerant recharge.
After recharge, allow the system to stabilize for 20 to 30 minutes at normal operating conditions before measuring superheat at the suction line. Target superheat should match the original system design — typically 8°F to 12°F (4°C to 7°C) for most medium-temperature applications. Adjust the XC-726HC-2B’s superheat spring only after the system has reached steady-state; premature adjustment during pull-down will result in an incorrect final setting. Document the final superheat reading, suction pressure, discharge pressure, and ambient temperature in the service record to establish a baseline for future maintenance visits.
Retrofit Support FAQ
Q1: Is the XC-726HC-2B a direct drop-in replacement for the original Sporlan XC-726HC-2B?
Yes. The XC-726HC-2B is produced to the same dimensional and capacity specifications as the original Sporlan part. Connection sizes, equalizer port location, and valve body envelope are identical, allowing installation without modifying existing pipework or mounting brackets. Confirm the power element charge type matches your system refrigerant before ordering.
Q2: What commissioning checks are required after installation?
After recharging the circuit, verify suction superheat at steady-state operating conditions, confirm the external equalizer line is connected and unobstructed, and check for refrigerant leaks at all brazed or flared joints. If superheat is outside the design range, adjust the valve’s superheat spring in small increments (one full turn at a time) and allow 10 minutes for the system to stabilize between adjustments.
Q3: Can this valve be used after a refrigerant conversion from R-22 to R-404A or R-407C?
The valve body is compatible with HFC refrigerants, but the power element charge type must match the new refrigerant. A power element charged for R-22 will not control superheat accurately on R-404A or R-407C. Specify the target refrigerant when ordering to ensure the correct power element is supplied. Emerson Sporlan offers matched power elements for all common retrofit refrigerants.
Q4: What does the 12-month warranty cover?
All XC-726HC-2B units supplied by SMARTNEXMSK carry a 12-month warranty from the date of shipment, covering manufacturing defects in materials and workmanship. Each unit undergoes pre-shipment functional inspection. Warranty claims require the original invoice and a description of the failure mode. Units damaged by incorrect refrigerant, contaminated systems, or improper installation are not covered under the manufacturing warranty.
