GE DS200TCQCG1BJF Spare for Mark V Speedtronic Automation

GE DS200TCQCG1BJF Maintenance-Ready Spare for Mark V Speedtronic Automation

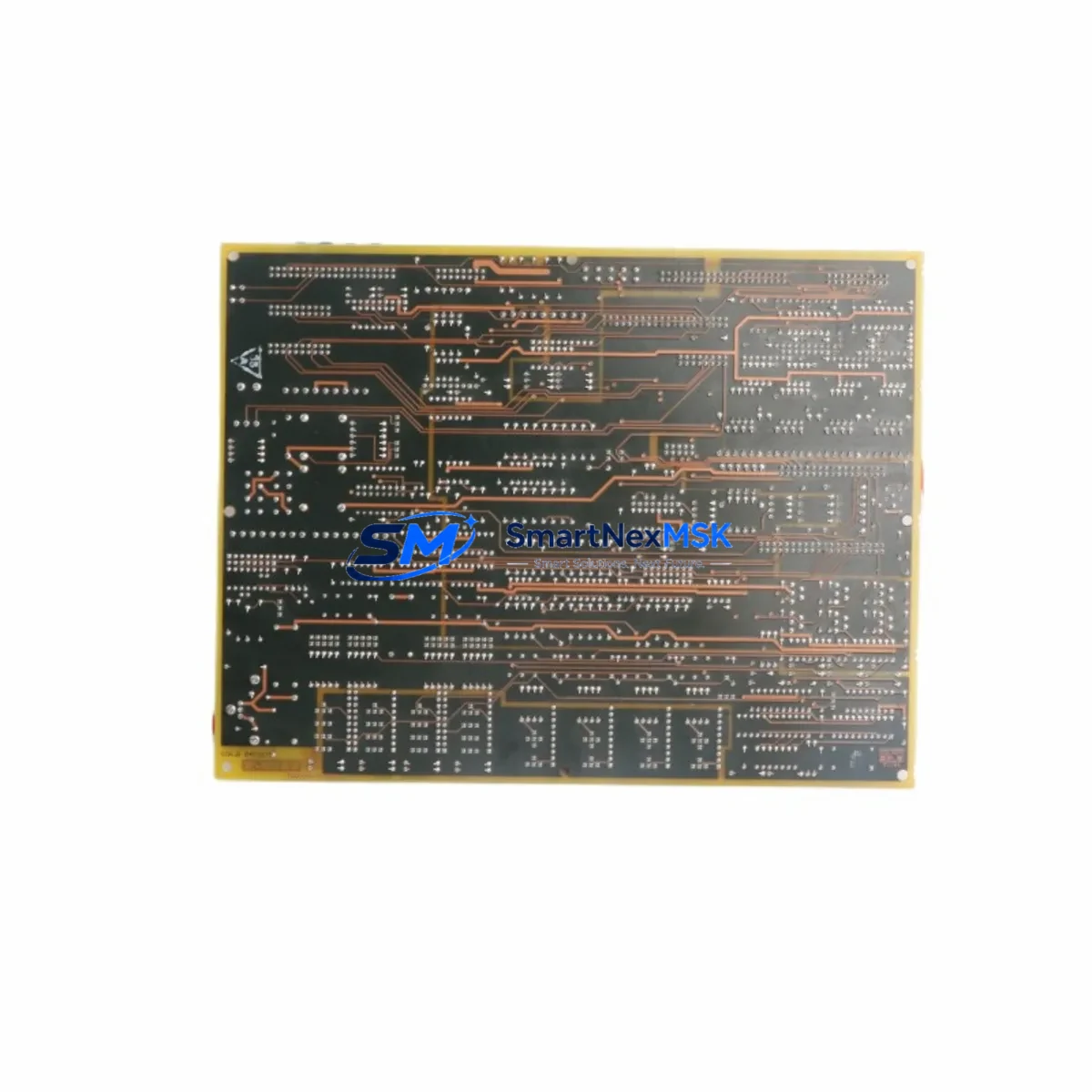

The GE DS200TCQCG1BJF is an original RST Overflow Board engineered for the GE Mark V Speedtronic turbine control system — one of the most widely deployed gas and steam turbine control platforms in power generation, oil & gas, and heavy industrial facilities worldwide. As a maintenance-ready spare, the DS200TCQCG1BJF manages RST (Reference, Speed, and Temperature) signal overflow processing within the Mark V control cabinet, making it a critical component for sustaining continuous turbine availability and preventing unplanned shutdowns.

For maintenance engineers responsible for aging Mark V installations, sourcing a verified original DS200TCQCG1BJF is often the fastest path to restoring turbine availability after an unplanned trip or board-level fault. Every unit supplied by SMARTNEXMSK is pre-tested prior to shipment, backed by a 12-month warranty, and confirmed compatible with Mark V Speedtronic panel configurations before dispatch. Long-term supply continuity is supported for facilities managing multi-turbine fleets or extended asset life programs.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a DS200TCQCG1BJF fault is identified during a turbine trip investigation or scheduled outage, experienced maintenance engineers know that a single board replacement rarely tells the complete story. The RST Overflow Board operates as part of an interconnected signal chain within the Mark V Speedtronic cabinet, and adjacent components should be inspected simultaneously to prevent repeat failures and reduce future downtime.

Begin with the DS200TCQEG1BHF TCQE Exciter Board, which works in close coordination with the TCQC board family to manage excitation reference signals — a fault here can mimic or trigger RST overflow conditions. Inspect the DS200TCEAG1BDD TCEA Analog I/O Board for signal integrity issues on the analog input channels feeding RST data. The DS200TCDAG1BHF TCDA Analog Output Board should also be checked, as degraded output drive capability can cause downstream overflow events.

On the power supply side, verify the DS200TCPSG1A TCPS Power Supply Board is delivering stable regulated voltages to the card cage — voltage ripple or sag is a common root cause of intermittent board faults across the Mark V platform. The DS200DSPCH1A DSP Communication Board should be inspected for communication integrity between the R, S, and T redundant cores, as communication errors can mask or compound RST signal faults.

For terminal and wiring integrity, inspect the DS200TCTSG1A TCTS Terminal Board and associated field wiring terminations for corrosion, loose connections, or insulation breakdown — particularly in high-vibration or high-humidity turbine hall environments. If the installation includes signal isolation between field instruments and the Mark V I/O, verify that any signal isolator modules in the RST input loop are functioning within specification.

Review the DS200TCRAG1BHF TCRA Relay Output Board for relay contact wear that could affect protective trip logic associated with RST overflow alarms. Confirm that the Mark V HMI workstation (typically running CIMPLICITY or GE Toolbox) is correctly logging fault codes and alarm history to support root cause analysis. Maintaining a minimum stock of two DS200TCQCG1BJF boards per turbine unit is recommended for facilities operating multiple GE Mark V-controlled turbines.

Site Replacement Workflow

Step 1 — Fault Confirmation: Use GE Toolbox or the Mark V diagnostic display to confirm a DS200TCQCG1BJF board fault code. Document the alarm history and any associated RST overflow trip events before proceeding.

Step 2 — Safe Isolation: Follow site-specific LOTO (Lockout/Tagout) procedures. The Mark V panel must be in a safe state before any board removal. Confirm with the control room that the turbine is secured and the relevant core (R, S, or T) is isolated.

Step 3 — Board Removal: Note the exact slot position and connector orientation of the DS200TCQCG1BJF before extraction. Use an ESD wrist strap. Inspect the backplane connector pins for damage or contamination during removal.

Step 4 — Compatibility Verification: Confirm the replacement DS200TCQCG1BJF firmware revision and hardware suffix (G1BJF) matches the installed base. If the existing board carries a different suffix, consult GE documentation or contact your spare parts supplier to confirm cross-compatibility before installation.

Step 5 — Installation & Power-Up: Seat the replacement board firmly into the backplane slot. Restore power to the core and monitor the Mark V diagnostic display for successful board initialization. Confirm RST signal readings return to normal operating range.

Step 6 — Functional Test: Run a controlled turbine start sequence (or simulate RST inputs if offline testing is possible) to verify the replacement board is processing signals correctly. Log the successful replacement in the site CMMS.

Step 7 — Spare Stock Update: Replenish the consumed DS200TCQCG1BJF spare immediately. For facilities with multiple Mark V turbines, a minimum of two boards per site is recommended to maintain operational resilience.

Spare Parts Support FAQ

Q1: Is the DS200TCQCG1BJF a new original or refurbished board?
All DS200TCQCG1BJF units supplied are original GE-manufactured boards. Each unit undergoes functional testing prior to shipment. Condition (new surplus or refurbished-to-original-spec) is confirmed at the time of order. A 12-month warranty applies to all units regardless of condition grade.

Q2: How do I verify compatibility with my specific Mark V panel configuration?
The DS200TCQCG1BJF is designed for GE Mark V Speedtronic turbine control systems. Compatibility depends on your panel’s core configuration (R, S, T) and the board slot assignment. Provide your panel serial number or existing board suffix when ordering to allow pre-shipment compatibility confirmation.

Q3: What is included in the pre-shipment testing process?
Each DS200TCQCG1BJF is powered up and functionally tested on a Mark V-compatible test bench prior to dispatch. Key RST signal processing functions, overflow detection logic, and backplane communication are verified. A test report is available upon request.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers board-level functional failure under normal operating conditions consistent with GE Mark V Speedtronic specifications. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. Warranty claims are supported with direct technical assistance and priority replacement dispatch.
