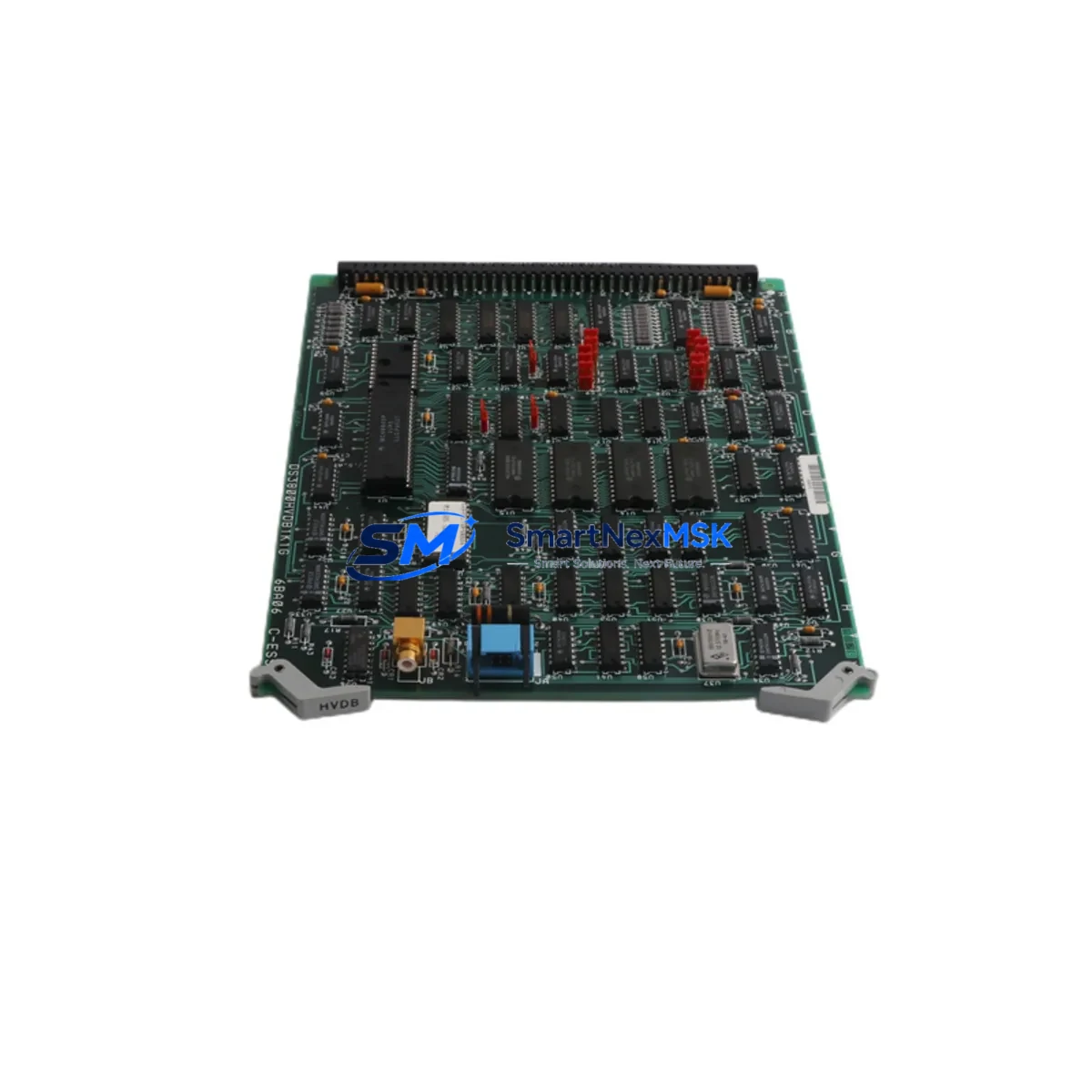

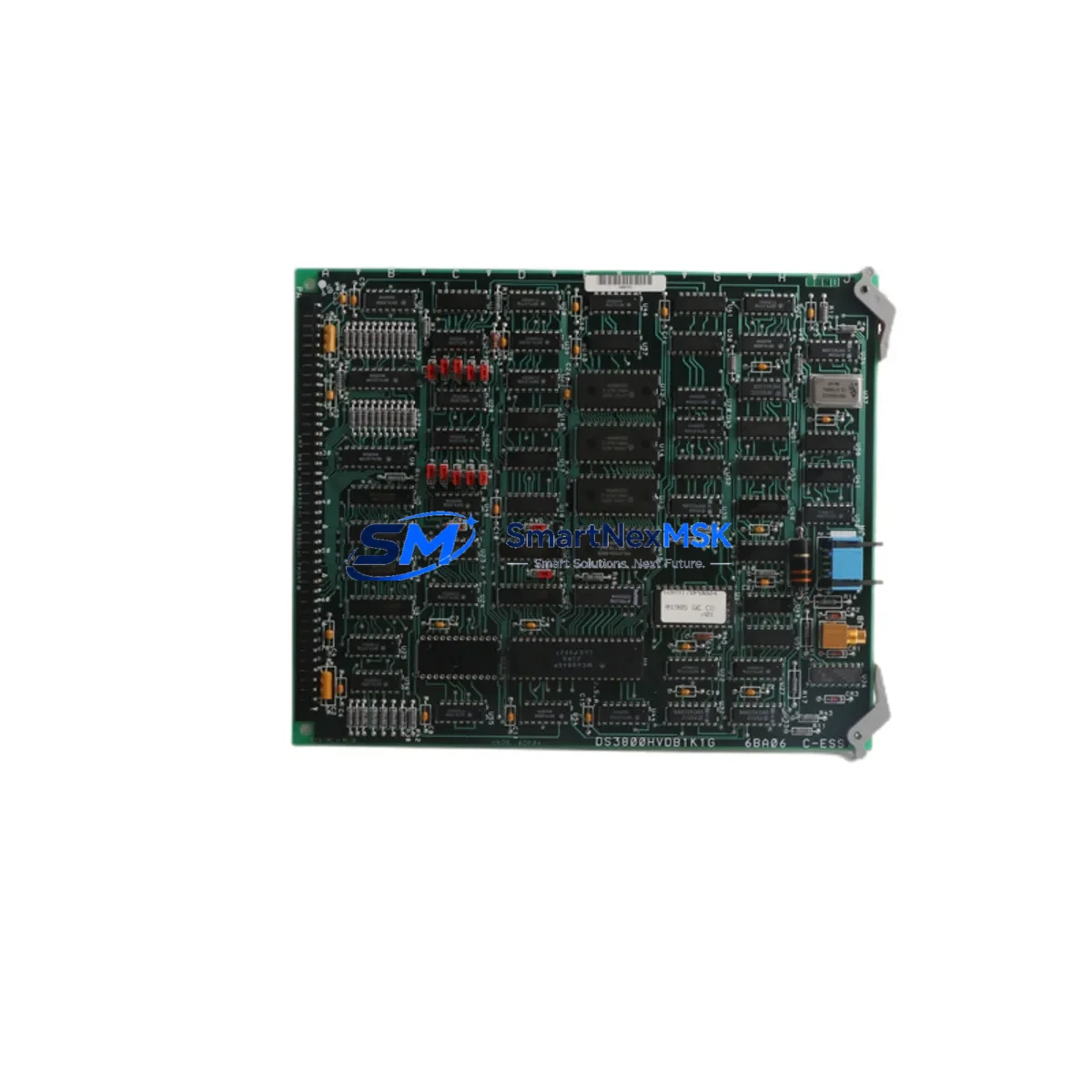

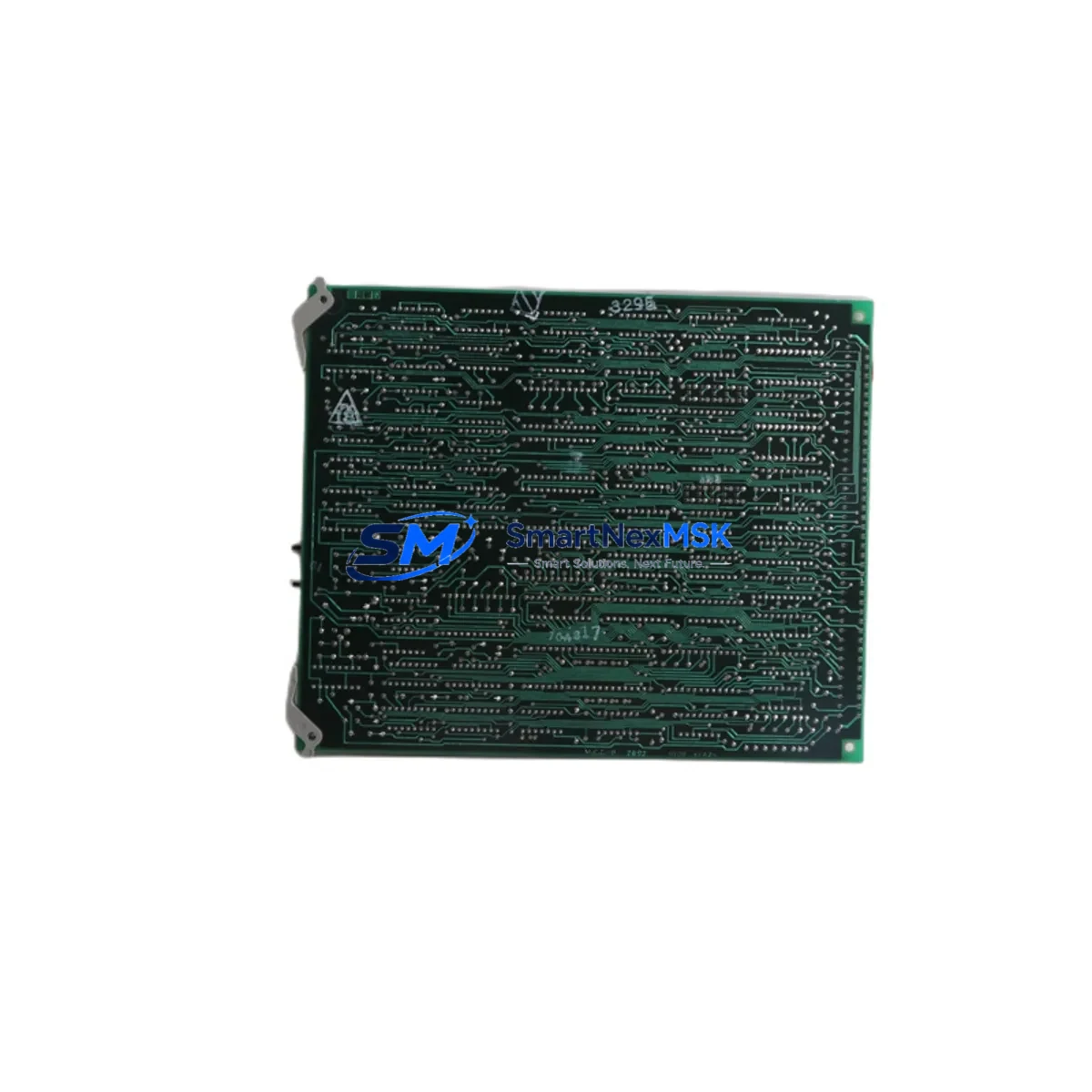

GE DS3800HVDB1K1G Retrofit-Ready Video Driver for Mark IV Control Systems
The GE DS3800HVDB1K1G is a Video Driver Board engineered for the GE Mark IV Speedtronic turbine control platform — one of the most widely deployed gas turbine control systems in power generation, oil & gas, and industrial process facilities worldwide. As the Mark IV platform approaches end-of-life and OEM support becomes increasingly limited, the DS3800HVDB1K1G has become a critical retrofit component for facilities seeking to extend operational life, reduce unplanned downtime, and defer full DCS migration costs.
This board interfaces directly with the Mark IV’s video and display subsystem, providing the signal conditioning and driver output required for operator interface panels and HMI screens. When the original DS3800HVDB1K1G fails or becomes unavailable through OEM channels, sourcing a verified replacement is essential to restoring turbine supervisory control without disrupting the broader control architecture.
SMARTNEXMSK maintains in-stock inventory of the DS3800HVDB1K1G, fully tested and backed by a 12-month warranty. Each unit undergoes functional verification prior to shipment to ensure drop-in compatibility with existing Mark IV panel configurations.
Upgrade Compatibility Table
| Parameter | Details |
|---|---|
| Compatible Platform | GE Mark IV Speedtronic Turbine Control System |
| Module Function | Video Driver Board — HMI/Operator Display Signal Output |
| Form Factor | Standard Mark IV card rack (R, S, T panel compatible) |
| Backplane Interface | Mark IV card edge connector — direct slot replacement |
| Communication Compatibility | Compatible with Mark IV serial data bus; no protocol conversion required |
| Replacement Recommendation | Direct drop-in for failed or degraded DS3800HVDB1K1G units |
| Commissioning Notes | Verify module address jumper settings match original board configuration before power-up |
| Warranty | 12 Months — covers functional failure under normal operating conditions |
Retrofit Planning for Existing Automation Systems
Replacing the DS3800HVDB1K1G within a live Mark IV Speedtronic environment requires careful pre-outage planning. The Mark IV system is typically housed in a multi-panel control cabinet containing the R panel (protection), S panel (control), and T panel (I/O termination). Before removing the failed video driver board, engineers should document the existing jumper configuration, verify the card slot address, and confirm that the replacement unit carries identical firmware revision markings where applicable.
In many retrofit scenarios, the DS3800HVDB1K1G replacement is performed alongside related board-level repairs. Facilities frequently address adjacent modules during the same maintenance window to maximize uptime efficiency. Common companion components in the same Mark IV rack include the DS3800HMPG (Mark IV processor board), DS3800HRCA (relay output card), DS3800HSIA (serial interface adapter), and DS3800HPID (PID control card). Power supply modules such as the DS3800DPCA should also be inspected, as degraded power rail voltage is a frequent root cause of video driver board failure.
For facilities migrating from Mark IV to a newer platform such as the GE Mark VIe or a third-party DCS, the DS3800HVDB1K1G serves as a bridge component — maintaining operator display continuity while the migration is staged across multiple outage windows. During this transition, I/O termination panels, existing DS3800HUMB (universal module boards), and communication interface cards must be mapped carefully to ensure that HMI screen data, alarm annunciation, and trend displays remain functional throughout the cutover period.
Terminal wiring on the T panel should be photographed and documented before any board swap. The DS3800HVDB1K1G connects to the video bus through the card edge; no field wiring is directly terminated on this board, which simplifies the physical replacement. However, the associated DS3800HCMA (communication adapter) and any connected DS3800HXXX-series I/O expansion boards must remain undisturbed during the swap to avoid triggering protection trips or loss of I/O scan continuity.
Where the control system includes a GE Cimplicity HMI or a legacy operator workstation running Mark IV display software, the video driver board replacement should be followed by a display refresh cycle to confirm that all process variables, setpoints, and alarm states are rendering correctly. If the facility uses a DS3800HPGB (programming interface board) for offline configuration backup, a configuration read-back is recommended post-replacement to verify that no address or parameter drift has occurred.
Downtime Control During System Migration
Minimizing turbine downtime during a DS3800HVDB1K1G replacement is achievable with disciplined pre-outage preparation. The recommended approach is to pre-stage the replacement board at the site, confirm jumper settings against the original board’s documentation, and prepare a rollback plan in case the replacement reveals a secondary fault in the video bus or backplane connector.
For facilities operating in continuous-process environments — such as combined-cycle power plants or compressor stations — a cold-swap procedure should be coordinated with the operations team to align with a scheduled maintenance window or a natural load reduction period. The Mark IV’s protection logic should be placed in manual bypass (where permitted by site safety procedures) only for the minimum duration required to complete the board swap and verify display restoration.
Original ladder logic, function block programs, and sequence-of-events configurations stored in the Mark IV processor are not affected by a video driver board replacement, as the DS3800HVDB1K1G does not hold application program memory. This significantly reduces commissioning risk — the primary post-swap verification steps are display functionality, alarm annunciation, and communication link status between the video driver and the operator workstation.
SMARTNEXMSK ships the DS3800HVDB1K1G with full functional test documentation, reducing on-site verification time. For international customers, expedited freight options are available to minimize the gap between fault identification and part-in-hand availability. All units are packaged in anti-static ESD-safe materials with shock-absorbing outer cartons suitable for air freight.
Retrofit Support FAQ
Q1: Is the DS3800HVDB1K1G a direct replacement for the original GE part?
Yes. The DS3800HVDB1K1G supplied by SMARTNEXMSK is sourced from verified channels and is functionally equivalent to the original GE Mark IV video driver board. Each unit is tested for signal output integrity and backplane interface compatibility before shipment. No firmware modification or hardware adaptation is required for standard Mark IV installations.
Q2: What commissioning steps are required after installation?
After seating the replacement board in the correct card slot, verify that the module address jumpers match the original board’s configuration. Power up the panel and confirm that the operator display initializes correctly and that all process variable screens render without error. Check communication link status between the video driver and any connected HMI workstation. A full alarm acknowledgment cycle is recommended to confirm annunciation continuity.
Q3: How do I confirm wiring and terminal compatibility before ordering?
The DS3800HVDB1K1G does not have direct field wiring terminations — it interfaces via the Mark IV card edge backplane. Confirm that your existing card rack slot is mechanically undamaged and that the backplane connector pins are clean and free of corrosion. If the card rack itself has been damaged, the associated backplane board may also require inspection or replacement.
Q4: What does the 12-month warranty cover?
The 12-month warranty covers functional failure of the DS3800HVDB1K1G under normal operating conditions, including signal output failure, backplane interface faults, and component-level defects. Warranty claims are supported by SMARTNEXMSK’s technical team with a target response time of one business day. Replacement or repair options are available depending on fault diagnosis. The warranty does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling.
