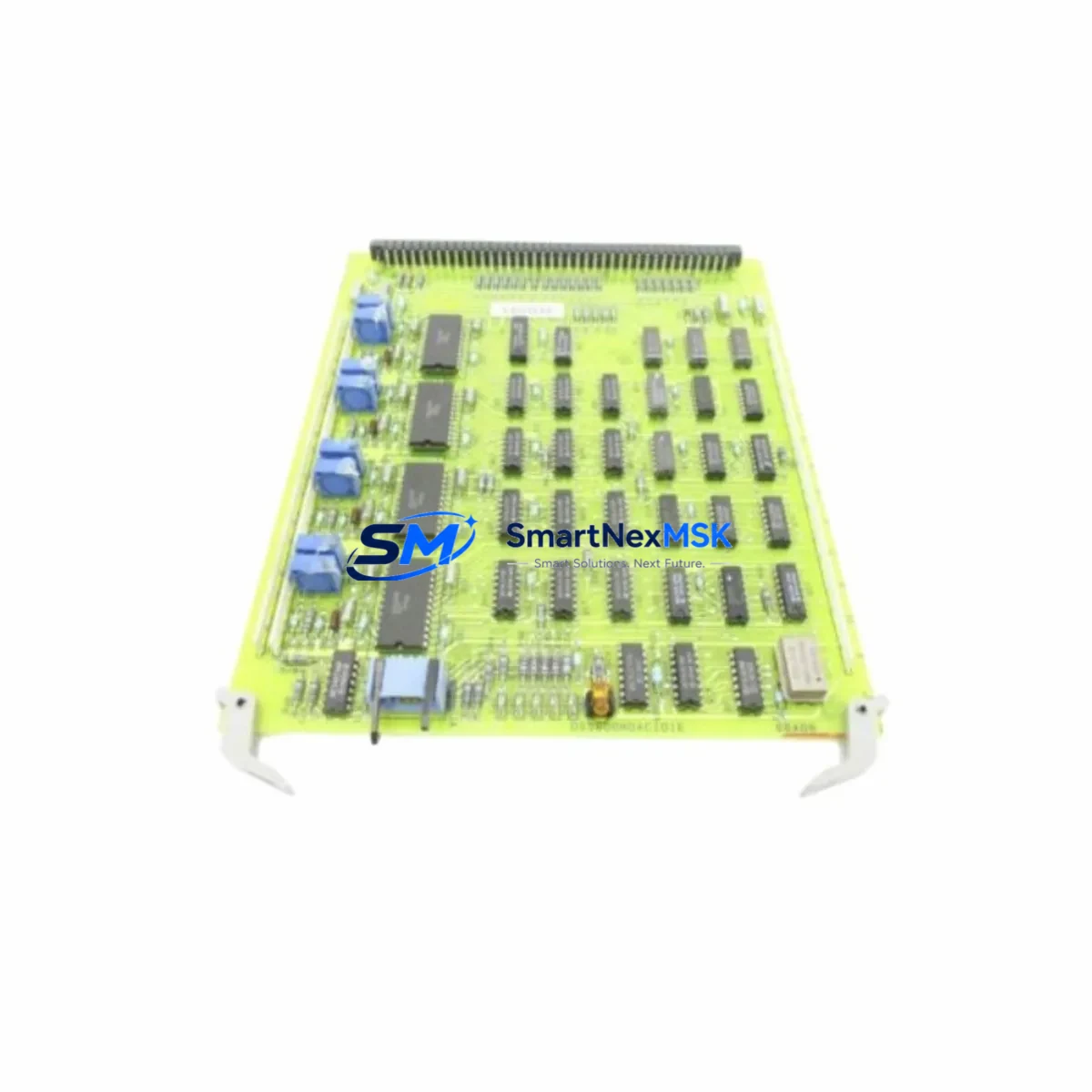

GE DS3800NDAC1D1E Safety-Enhanced Analog Output for Mark IV
In high-stakes turbine control environments, a single failed analog output channel can cascade into a full unit trip, unplanned shutdown, or — in the worst case — a safety interlock failure. The GE DS3800NDAC1D1E is a ruggedized analog output module engineered for the Mark IV Speedtronic turbine control system, one of GE’s most widely deployed gas turbine automation platforms across power generation, oil & gas, and petrochemical industries. This module delivers stable, high-resolution 4–20 mA analog output signals to actuators, valve positioners, and speed control loops, maintaining precise command authority even under harsh electrical and environmental conditions.
Maintenance engineers working on GE Mark IV panels understand that the DS3800NDAC1D1E sits at the heart of the turbine’s closed-loop control architecture. It interfaces directly with the turbine’s fuel control valves, inlet guide vane actuators, and exhaust temperature regulation circuits. Any degradation in output signal accuracy — whether caused by aging components, surge damage, or thermal stress — directly threatens the turbine’s ability to maintain safe operating parameters. Sourcing a verified original replacement with pre-shipment functional testing is not optional; it is a fundamental requirement for safe restart.
Safety Reliability Table
| Parameter | Specification |
|---|---|
| SKU / Part Number | DS3800NDAC1D1E |
| Brand / OEM | General Electric (GE) |
| Compatible System | Mark IV Speedtronic Gas Turbine Control |
| Module Function | Analog Output (4–20 mA) |
| Output Channels | Multi-channel analog output |
| Signal Type | 4–20 mA current loop |
| Operating Voltage | +5 VDC / ±15 VDC (backplane supplied) |
| Operating Temperature | 0°C to +60°C |
| Isolation / Protection | Optical isolation, surge-protected outputs |
| EMI/RFI Resistance | Designed for high-noise industrial environments |
| Mounting | Mark IV backplane card slot |
| Origin | United States |
| Condition | Original, tested before shipment |
| Warranty | 12-Month Warranty |
Control Cabinet Protection Strategy
When replacing the DS3800NDAC1D1E in a Mark IV Speedtronic control cabinet, a disciplined protection strategy extends well beyond the module itself. The Mark IV panel is a tightly integrated system where the analog output module shares backplane power with the DS3800NPPC processor card, the DS3800NPSB power supply board, and the DS3800NDAI analog input module. Before installing the replacement DS3800NDAC1D1E, maintenance engineers should verify the integrity of the backplane bus voltage rails — typically +5 VDC and ±15 VDC — using a calibrated multimeter, as a degraded DS3800NPSB power supply is a common root cause of premature analog module failure.
The DS3800NANA and DS3800NANA1A1A analog input modules that feed process feedback signals into the same control loop should be inspected for signal drift or channel faults, since a faulty input module can mask the true cause of output anomalies. The DS3800HPPC or DS3800NPPC processor cards should be checked for active fault codes via the Mark IV operator interface before and after module replacement to confirm the control loop has returned to normal operation.
In the field wiring compartment, inspect the terminal blocks and shielded cable runs connecting the DS3800NDAC1D1E outputs to the fuel control valve positioners and IGV actuators. Corroded terminals or damaged cable shields are a frequent source of signal noise that can be misdiagnosed as module failure. Additionally, the DS3800NREG voltage regulator card and any associated fuse blocks in the power distribution section of the Mark IV panel should be verified as part of a complete cabinet health check. For panels operating in high-vibration environments — such as offshore platforms or heavy industrial sites — the DS3800NBUS backplane connector integrity should be confirmed before powering up the replacement module.
Critical Industrial Safety Applications
The DS3800NDAC1D1E is deployed across some of the most demanding industrial environments where control reliability is directly linked to personnel safety and asset protection. In combined-cycle power plants, this module governs the analog command signals to fuel gas control valves and steam bypass valves, where a loss of output signal can trigger an emergency turbine trip and force a costly cold restart. In LNG terminals and petrochemical complexes, the Mark IV Speedtronic system — with the DS3800NDAC1D1E at its core — controls compressor drive turbines that must maintain continuous, stable operation to prevent process upsets and flare events.
In mining and mineral processing operations, gas turbine generators equipped with Mark IV controls provide critical power to ore processing lines. A failed analog output module in this context can halt conveyor systems, crushers, and flotation circuits simultaneously, resulting in significant production loss. Water treatment facilities using turbine-driven pumping stations rely on the DS3800NDAC1D1E to maintain precise flow control, where output signal instability can compromise dosing accuracy and regulatory compliance. In steel mills and aluminum smelters, where continuous furnace operation is essential, the Mark IV system’s analog output integrity directly supports temperature regulation and combustion control — both of which have direct safety implications for plant personnel.
Port and terminal operators running turbine-driven cargo handling equipment also depend on the reliability of the DS3800NDAC1D1E to maintain smooth speed control of cranes and conveyor drives. In all of these applications, maintaining a verified spare DS3800NDAC1D1E in the site’s critical spare parts inventory is a recognized best practice for minimizing mean time to repair (MTTR) and protecting against extended unplanned downtime.
Safety and Quality FAQ
Q1: What does the 12-month warranty cover for the DS3800NDAC1D1E?
The 12-month warranty covers all functional defects in the DS3800NDAC1D1E module from the date of shipment. If the module fails under normal operating conditions within the warranty period, we provide a replacement or full refund. The warranty applies to the module’s analog output channels, backplane interface, and internal signal conditioning circuitry.
Q2: How is the DS3800NDAC1D1E tested before shipment?
Every DS3800NDAC1D1E unit undergoes functional verification prior to dispatch. Testing includes power-up checks, analog output channel verification across the 4–20 mA range, backplane connector inspection, and visual examination for component damage or corrosion. A test report is available upon request for critical applications.
Q3: How do I confirm compatibility with my specific Mark IV Speedtronic panel revision?
The DS3800NDAC1D1E is compatible with standard GE Mark IV Speedtronic control panels. To confirm compatibility with your specific panel revision, provide your panel serial number or the existing module’s full part number including suffix. Our technical team will verify the fit before shipment to prevent installation issues.
Q4: Can you support long-term supply for DS3800NDAC1D1E as part of an ongoing spare parts program?
Yes. We maintain ongoing inventory of DS3800NDAC1D1E and related Mark IV Speedtronic modules to support planned maintenance schedules, annual outage kits, and emergency replacement programs. Long-term supply agreements are available for power generation operators and EPC contractors managing multiple turbine units.
