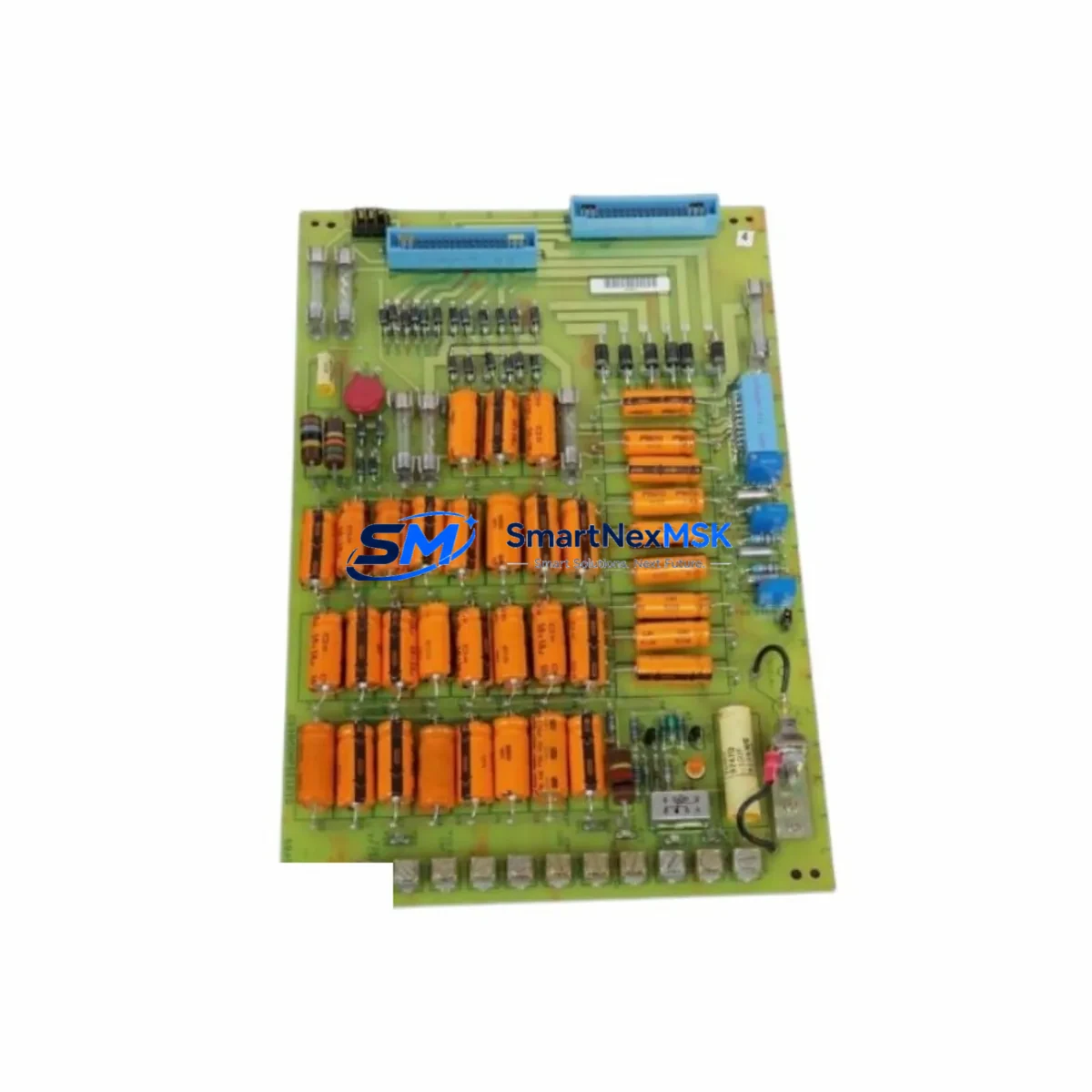

The GE DS3800NPSE1E1G is an original power supply board engineered for the GE Mark V turbine control system and the broader DS3800 series automation platform. In industrial facilities where gas turbines, steam turbines, and compressor trains operate continuously, an unplanned power supply failure can cascade into full unit shutdown, production loss, and costly emergency maintenance windows. Stocking a verified, tested DS3800NPSE1E1G spare is the single most effective measure a maintenance team can take to compress mean-time-to-repair (MTTR) and restore turbine control within a single shift.

This board provides regulated DC power to the Mark V controller backplane, supporting the processor cards, I/O modules, and communication interfaces that govern turbine sequencing, protection logic, and operator HMI displays. Because the DS3800NPSE1E1G sits at the heart of the power distribution architecture, its condition directly affects the reliability of every downstream card in the control cabinet. Maintenance engineers performing quarterly cabinet inspections should treat this board as a Tier-1 critical spare — one that must be on-hand before any planned outage, not sourced reactively after a fault.

Each unit shipped by SMARTNEXMSK undergoes functional bench testing, visual inspection for capacitor bulge, trace corrosion, and connector integrity, and is packed in anti-static ESD shielding with full documentation. A 12-month warranty covers all units against manufacturing defects and latent failures, giving procurement engineers the confidence to approve the purchase without extended supplier qualification cycles.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A DS3800NPSE1E1G replacement should never be performed in isolation. Experienced maintenance engineers know that a power supply failure in a Mark V cabinet is rarely a single-component event — it is often preceded or accompanied by stress on adjacent boards and wiring. When scheduling a planned replacement or responding to an unplanned fault, the following components in the same control cabinet and electrical circuit should be inspected or staged as secondary spares:

• DS3800NPSC Power Supply Card — the companion supply card that shares backplane power distribution; inspect for output voltage drift and capacitor aging simultaneously.
• DS3800HPIB / DS3800HPIA I/O Interface Boards — downstream I/O cards that depend on stable regulated voltage; verify signal integrity after any power supply swap.
• DS3800DMPG / DS3800DMPA Digital Output Modules — digital output boards driving relay coils and solenoid valves; check for latched fault states after power restoration.
• DS3800NPSB Backplane Assembly — inspect backplane connector pins for arcing damage or oxidation that may have contributed to the supply failure.
• Mark V TCCA / TCCB Processor Cards — the turbine control processor cards that receive power from this supply; confirm no memory corruption or watchdog faults after the outage.
• DS3800HMPG HMI Interface Card — the operator interface link card; verify communication re-establishment with the operator workstation after power restoration.
• 24 VDC Panel Power Supply (external DIN-rail unit) — the upstream panel supply feeding the Mark V cabinet; measure output under load to rule out upstream voltage sag as root cause.
• Terminal Block Assemblies and Wiring Harnesses — inspect field wiring terminal blocks for loose connections, insulation breakdown, or moisture ingress that may have caused overcurrent events.
• Fuse and Circuit Breaker Assembly — replace any blown fuses in the power distribution rail and test breaker trip characteristics before re-energizing.
• Signal Isolators on Analog I/O Loops — 4–20 mA signal isolators connected to turbine sensors; verify isolation integrity was not compromised during the power event.

Staging these components as a coordinated spare kit — rather than sourcing them individually after each failure — is the hallmark of a mature predictive maintenance program. SMARTNEXMSK maintains ongoing stock of DS3800 series boards and Mark V system components to support exactly this kind of kit-based procurement strategy.

Site Replacement Workflow

Replacing the DS3800NPSE1E1G on-site is a straightforward card-swap procedure when performed by a qualified controls technician, but the sequence matters for minimizing downtime and avoiding secondary damage:

1. Pre-outage preparation: Confirm the replacement board’s part number and revision suffix match the installed unit. Download or print the current Mark V configuration backup before initiating any shutdown. Notify the operations team of the planned outage window.
2. Safe de-energization: Follow site LOTO (Lockout/Tagout) procedures. De-energize the Mark V cabinet via the upstream breaker. Allow capacitors to discharge for a minimum of 60 seconds before opening the cabinet door.
3. Board extraction: Release the card ejector levers, slide the DS3800NPSE1E1G out of its backplane slot, and place it immediately in an ESD bag. Inspect the vacated slot and backplane connector for damage.
4. Replacement installation: Insert the new DS3800NPSE1E1G, seat firmly until ejector levers latch. Verify no adjacent cards were disturbed during the swap.
5. Re-energization and verification: Restore cabinet power. Monitor the Mark V startup sequence on the operator HMI. Confirm all I/O modules report healthy status and no new fault codes are present. Verify turbine protection logic is armed before returning the unit to service.
6. Documentation: Record the replacement in the site maintenance log with date, technician name, old board serial number, and new board serial number. Retain the failed board for root-cause analysis or return-to-vendor evaluation.

This workflow applies equally to emergency replacements during unplanned outages and to scheduled swap-outs during planned maintenance windows. The key difference is preparation time — a pre-staged spare eliminates the sourcing delay that typically accounts for 60–80% of total downtime in legacy Mark V fleet incidents.

Spare Parts Support FAQ

Q1: Is the DS3800NPSE1E1G compatible with all Mark V cabinet configurations?
The DS3800NPSE1E1G is designed for the GE Mark V turbine control platform using the DS3800 series backplane architecture. Compatibility depends on the specific cabinet revision and backplane assembly installed at your site. We recommend confirming the part number suffix (E1G) matches your installed revision before ordering. Our technical team can assist with cross-reference verification if you provide your cabinet drawing number or existing board label photograph.

Q2: What does the 12-month warranty cover, and how is a warranty claim processed?
The 12-month warranty covers functional failures and latent manufacturing defects under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage events, or physical mishandling. To initiate a warranty claim, contact [email protected] with your order number, a description of the failure symptom, and photographs of the board. We will arrange return shipping and provide a replacement or refund within the agreed resolution timeline.

Q3: How is each board tested before shipment?
Every DS3800NPSE1E1G unit undergoes a multi-point pre-shipment inspection: functional bench test under simulated backplane load, visual inspection for capacitor condition, solder joint integrity, connector pin straightness, and trace corrosion. Units that do not pass all inspection criteria are quarantined and not shipped. The board is then packed in anti-static ESD shielding with desiccant and shipped in a rigid outer carton to prevent transit damage.

Q4: Can SMARTNEXMSK support long-term or blanket-order procurement for Mark V fleet maintenance programs?
Yes. We maintain ongoing inventory of DS3800 series boards and Mark V system components specifically to support fleet operators managing multiple turbine units or aging control systems. Long-term supply agreements, blanket purchase orders, and consignment stock arrangements are available. Contact [email protected] or call +86 18259474341 to discuss your fleet’s annual spare parts requirements and establish a supply framework that eliminates emergency sourcing delays.
