GE F31X139APMALG2FR01 Spare for Mark Series Automation

GE F31X139APMALG2FR01 Spare for Mark Series Automation

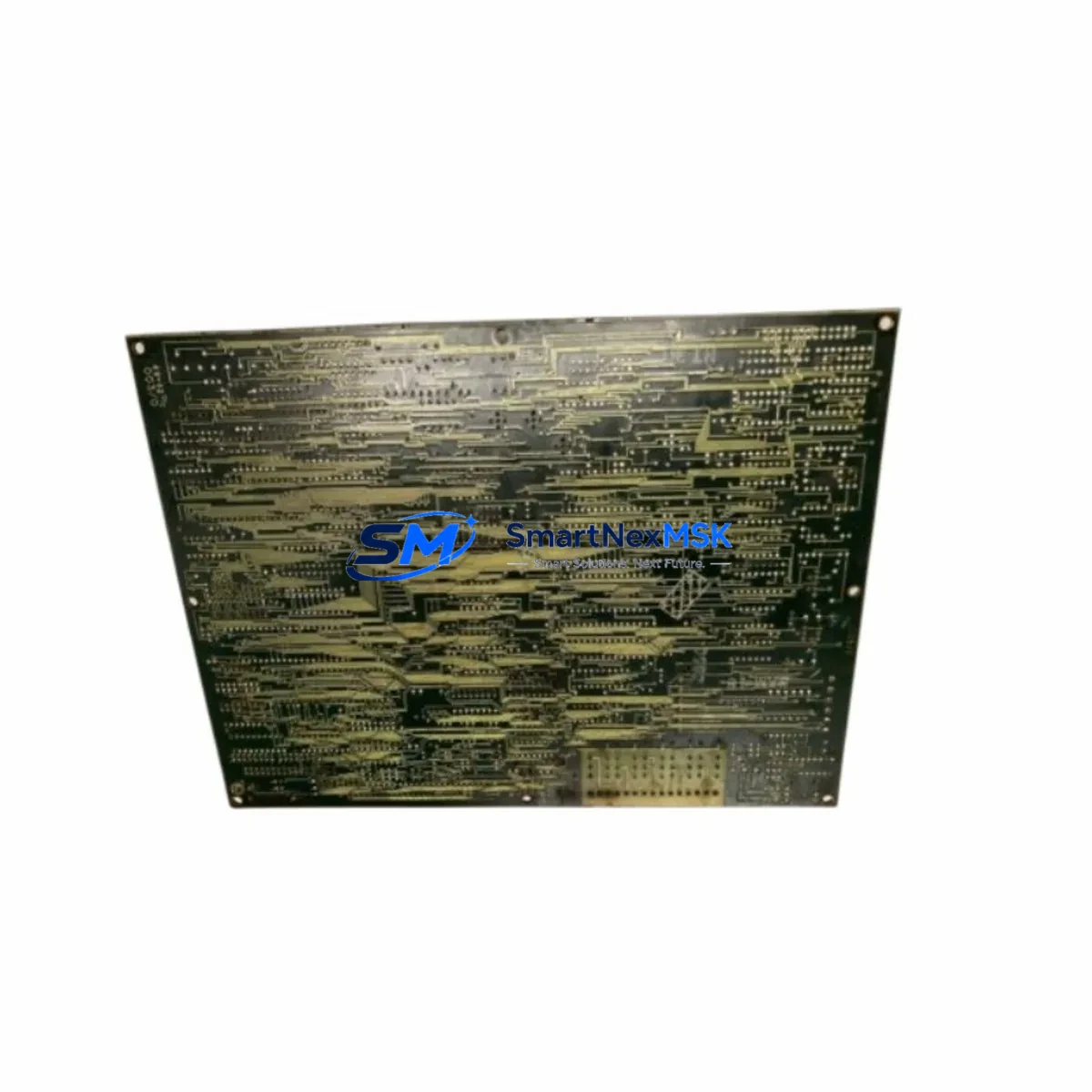

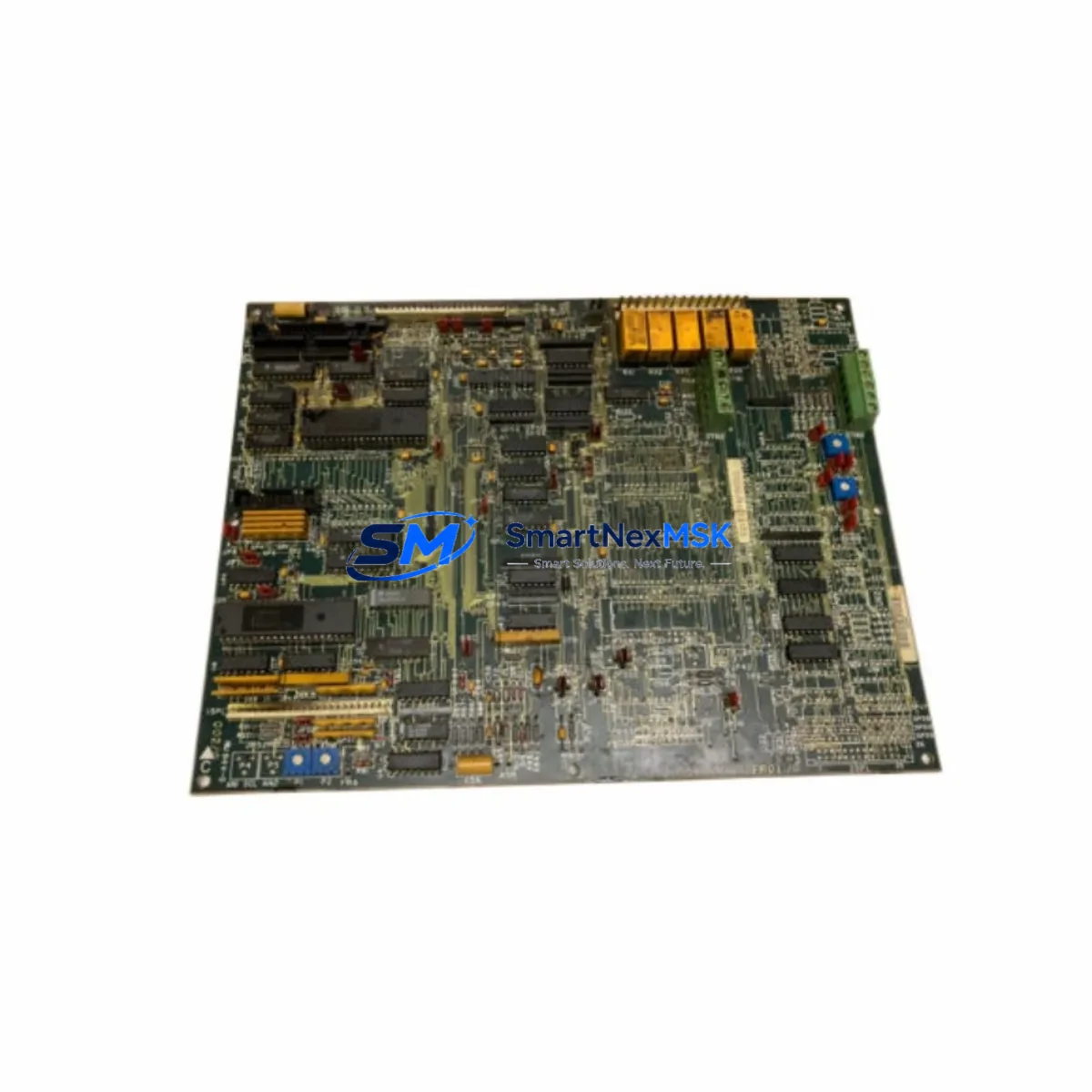

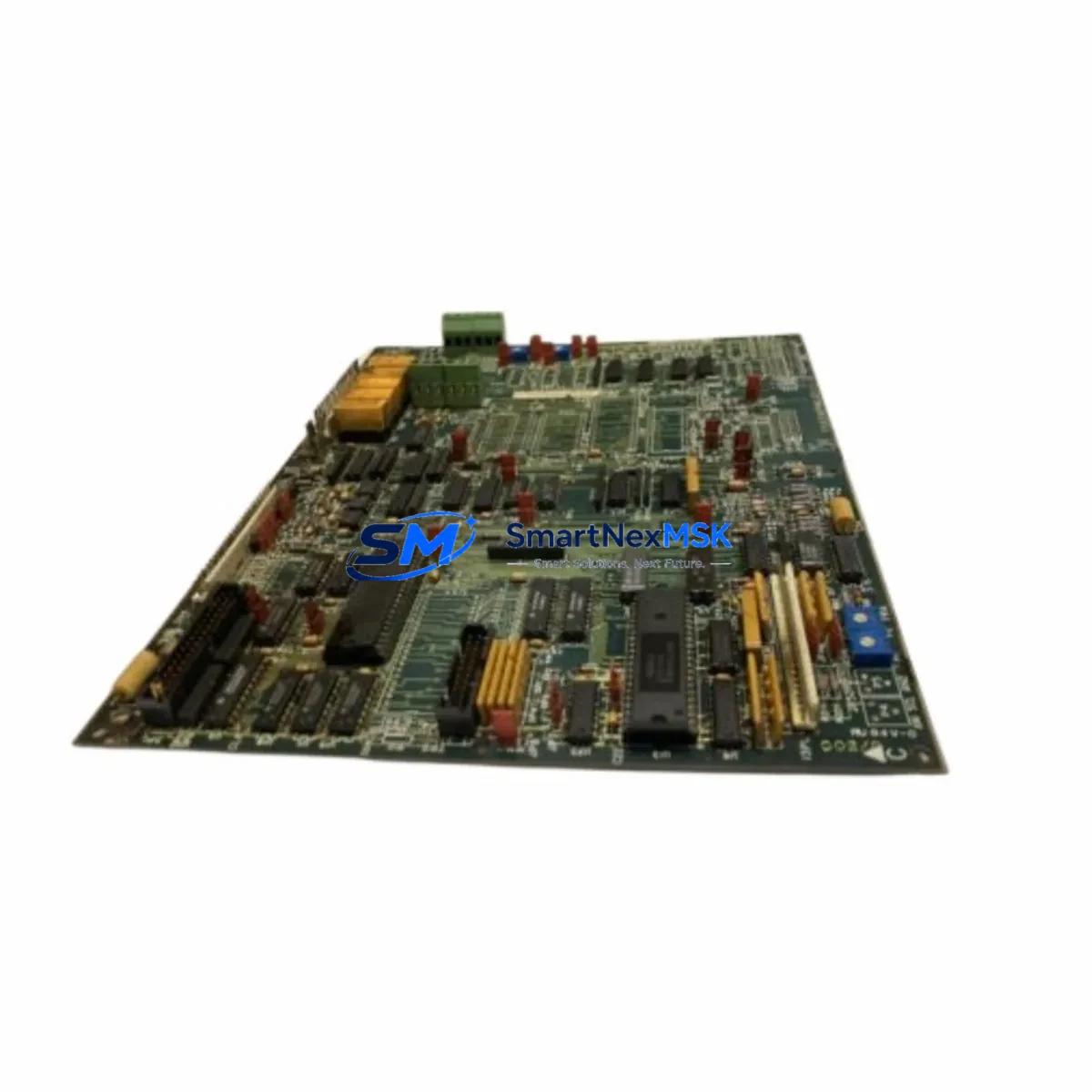

The GE F31X139APMALG2FR01 is a Micro Application Board designed for General Electric’s Mark Series turbine control systems — one of the most widely deployed automation platforms in power generation, oil & gas, and heavy industrial facilities worldwide. When this board fails or degrades, the consequences extend far beyond a single module: the entire turbine control loop is at risk, and unplanned downtime can cost thousands of dollars per hour. Sourcing a verified, tested replacement is the fastest path to restoring safe, continuous operation.

At SMARTNEXMSK, every F31X139APMALG2FR01 unit is inspected, functionally tested, and shipped with a 12-month warranty. Our inventory is maintained specifically to support maintenance engineers and procurement teams who cannot afford extended lead times on critical spare parts. Whether you are executing a planned outage, responding to an emergency fault, or building a strategic spare parts buffer, we provide reliable supply with documented traceability.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the F31X139APMALG2FR01 in a Mark Series control panel is rarely an isolated task. Experienced maintenance engineers know that a board-level failure often signals stress across adjacent components in the same control cabinet. A thorough inspection and planned replacement strategy should address the full electrical environment surrounding this module.

Begin with the power supply module feeding the Mark Series rack — voltage ripple or transient spikes are a leading cause of premature application board failure. Verify that the IS200 series power distribution board (such as the IS200EPCTG1A) is delivering clean, regulated DC to all slots. Next, inspect the I/O terminal boards connected to this application board; loose or corroded terminal connections on components like the IS200TBCIH1C or equivalent I/O interface boards can introduce signal noise that degrades board performance over time.

Check the communication interface modules within the same rack — the Mark Series relies on internal serial and Ethernet communication between boards, and a degraded UCVEH or UCVEG communication card can cause intermittent faults that are misdiagnosed as application board failures. Similarly, inspect relay output modules such as the IS200TRLYH1C for contact wear, particularly on high-cycle trip circuits.

For systems with signal isolation requirements, verify that any signal isolators or barriers in the 4–20 mA loops connected to this board are within calibration. Aging isolators can introduce offset errors that appear as sensor faults. Also review the condition of fuse blocks and circuit protection on the 24 VDC and 125 VDC distribution rails — a blown or weakened fuse is often the first indicator of an upstream fault that caused the board failure.

If the facility operates a Mark Series HMI workstation (such as a GE Cimplicity or ToolboxST-based operator interface), confirm that the HMI communication link to the controller is stable after board replacement. Finally, document the firmware and software revision of the replacement F31X139APMALG2FR01 against the existing system configuration to prevent compatibility mismatches during commissioning.

Proactive spare parts stocking for the Mark Series should also include the IS200VCRCH1B VME communication card, IS200DSPXH1D digital signal processor board, and IS200TTURH1C turbine protection board — all of which share the same maintenance cycle and failure modes in high-hour turbine control applications.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Before removing the F31X139APMALG2FR01, capture a full system snapshot using ToolboxST or the applicable Mark Series configuration tool. Record all active alarms, I/O states, and communication status. This baseline is essential for post-replacement validation.

Step 2 — Safe Isolation: Follow the site-specific lockout/tagout (LOTO) procedure for the turbine control panel. Confirm that the turbine is in a safe, shutdown state before opening the control cabinet. Discharge any residual capacitive energy in the power supply rails before handling boards.

Step 3 — Board Removal and Inspection: Remove the failed F31X139APMALG2FR01 using proper ESD-safe handling. Inspect the board slot, backplane connector, and adjacent boards for signs of heat damage, contamination, or mechanical stress. Clean the slot if necessary before installing the replacement.

Step 4 — Replacement Installation: Install the replacement F31X139APMALG2FR01, ensuring full seating in the backplane connector. Verify that the firmware revision matches the system requirements. If a firmware update is required, perform it before powering the rack.

Step 5 — System Restoration and Testing: Power up the rack and monitor the system startup sequence. Confirm that all I/O channels are reading correctly, communication links are established, and no new alarms are present. Perform a functional test of the turbine control loop before returning the unit to service.

Step 6 — Documentation: Record the replacement in the site maintenance log, including the part number, serial number, installation date, and technician name. Update the spare parts inventory to trigger reorder of a replacement buffer unit.

Spare Parts Support FAQ

Q1: What is the warranty coverage for the F31X139APMALG2FR01?
Every unit supplied by SMARTNEXMSK carries a 12-month warranty covering functional failure and manufacturing defects under normal operating conditions. If a unit fails within the warranty period, we provide a replacement or full refund. Warranty claims are processed within 5 business days of receiving the returned unit.

Q2: How do I verify compatibility before ordering?
Compatibility is confirmed by matching the full part number (F31X139APMALG2FR01), the Mark Series panel model, and the firmware revision required by your system. Our technical team can assist with compatibility verification — contact us with your panel model and existing board revision before placing your order.

Q3: Can this board replace older or superseded GE Mark Series application boards?
The F31X139APMALG2FR01 is designed for direct replacement within compatible Mark Series architectures. For legacy systems running older firmware or hardware revisions, our team will confirm cross-compatibility and advise on any firmware alignment steps required to ensure seamless integration without system reconfiguration.

Q4: What is your inventory and lead time policy for critical spare orders?
We maintain buffer stock of high-demand Mark Series modules specifically to support emergency and planned maintenance scenarios. In-stock units ship within 1–3 business days. For customers managing multi-site turbine fleets, we offer reserved inventory agreements to guarantee availability during scheduled outage windows. Contact our team to discuss long-term supply arrangements.
