GE HE693ADC415E Safety-Enhanced Digital Input for Series 90-30

GE HE693ADC415E Safety-Enhanced Digital Input for Series 90-30 Control Systems

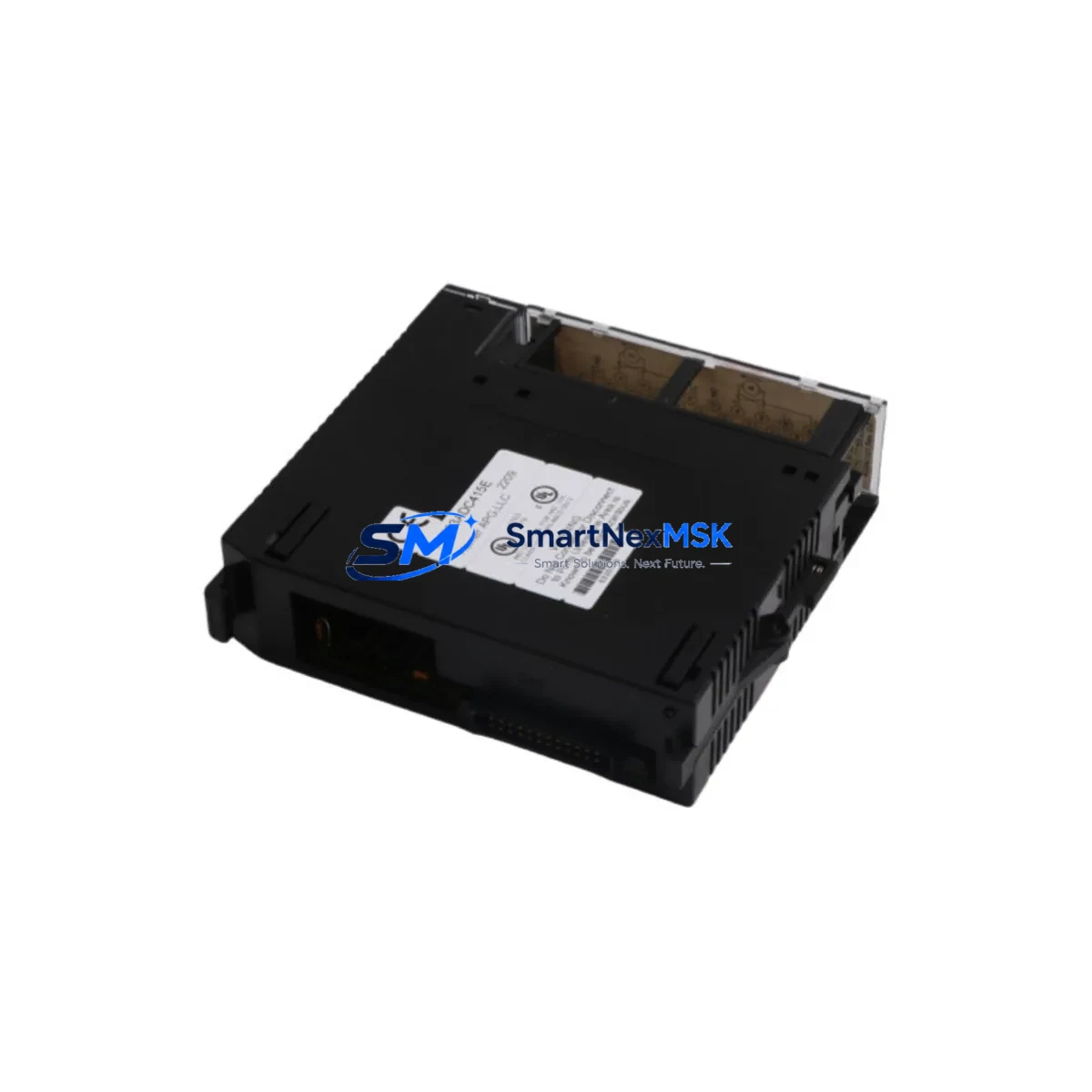

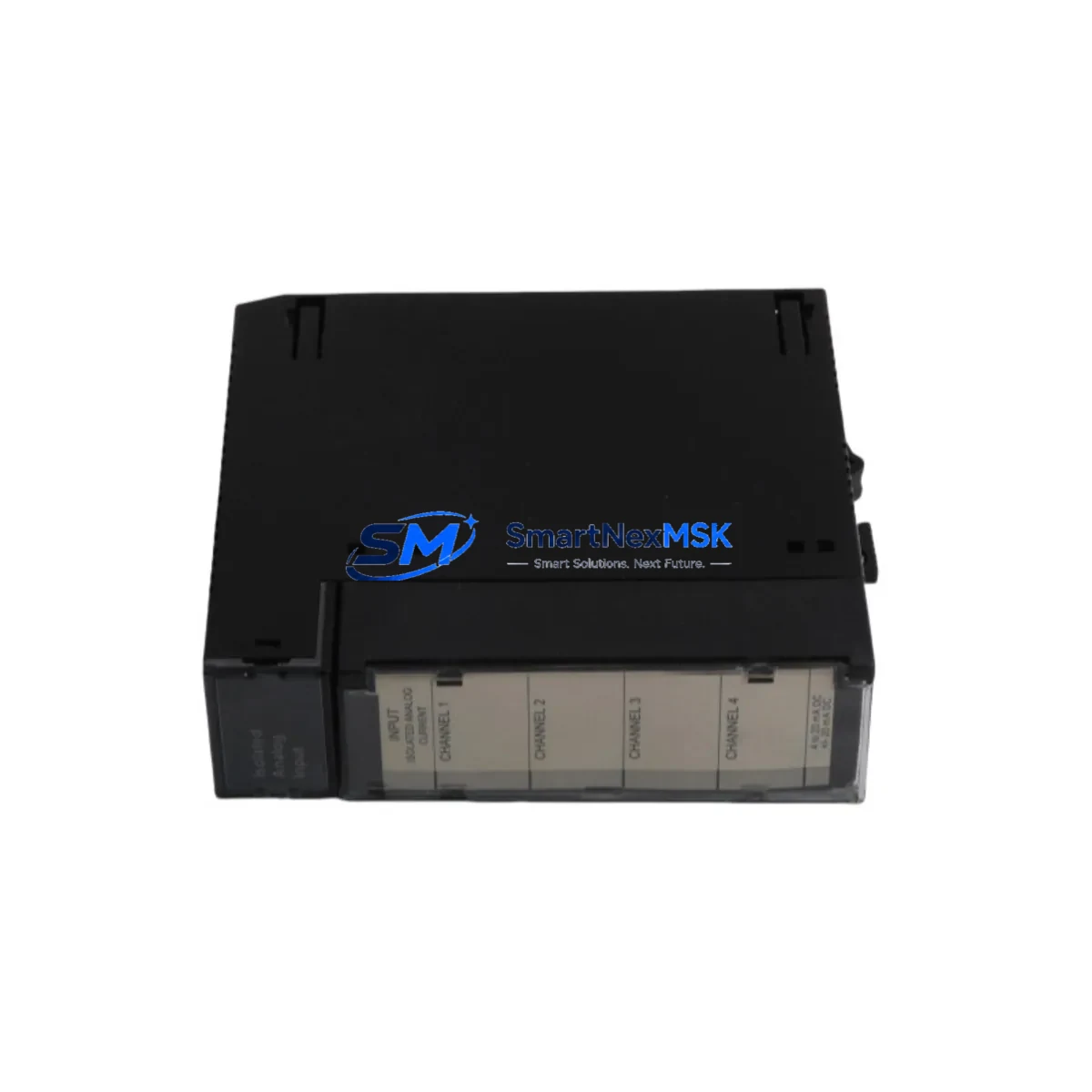

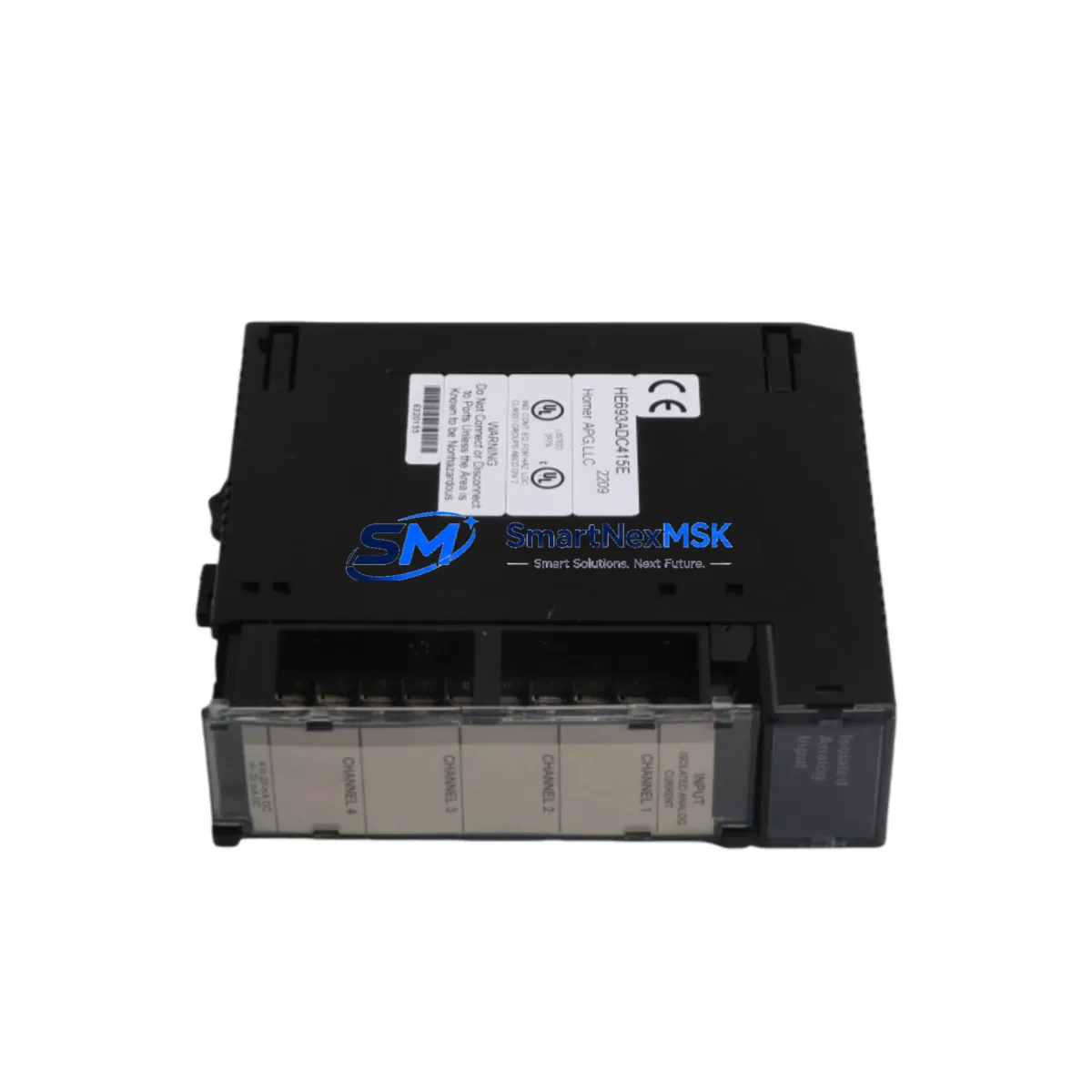

The GE HE693ADC415E is a 16-point discrete digital input module engineered for the GE Series 90-30 rack-based PLC platform, widely deployed across petrochemical plants, power generation facilities, water treatment stations, mining operations, and continuous manufacturing lines. Designed to operate reliably in high-noise, high-vibration, and electrically harsh industrial environments, this module provides the critical signal acquisition layer that underpins safe and uninterrupted process control. As a direct replacement for aging or failed input modules in existing Series 90-30 installations, the HE693ADC415E allows maintenance teams to restore full I/O functionality without modifying the rack, backplane wiring, or control program.

In safety-critical control architectures, the integrity of digital input signals directly determines the reliability of interlock logic, emergency shutdown sequences, and process alarm responses. The HE693ADC415E delivers stable 24VDC discrete input acquisition with built-in optical isolation on each channel, preventing ground loops and transient voltage spikes from propagating into the CPU backplane. This isolation characteristic is especially important in heavy industrial environments where welding equipment, variable frequency drives, and large motor starters generate significant conducted and radiated EMI that can corrupt unprotected I/O signals.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust Series 90-30 control cabinet relies on the coordinated performance of multiple modules working in concert. The HE693ADC415E digital input module sits at the field signal entry point, and its reliability directly affects every downstream control decision made by the CPU. In a typical protection-oriented cabinet design, the input module works alongside the IC693MDL940 or IC693MDL741 discrete output modules, which drive field devices such as solenoid valves, motor contactors, and safety relays based on the input states acquired by the HE693ADC415E.

Power supply stability is foundational to safe I/O operation. The IC693PWR321 or IC693PWR331 rack power supply modules must deliver clean, regulated 5VDC and 24VDC rails to the backplane. A degraded power supply can cause intermittent input state errors — a particularly dangerous condition in interlock circuits where a false “off” reading on a safety sensor could prevent an emergency shutdown from executing correctly. When replacing the HE693ADC415E, always verify power supply output voltages under load before energizing the new module.

For analog process variables that accompany discrete safety signals — such as pressure, temperature, or flow measurements used in trip logic — the IC693ALG221 or IC693ALG222 analog input modules provide the complementary signal acquisition layer. In many petrochemical and power plant installations, discrete and analog inputs are cross-validated in the CPU logic to confirm that field conditions are consistent before allowing process state changes, adding an additional layer of protection against sensor failures or wiring faults.

Communication integrity between the Series 90-30 CPU and supervisory systems is maintained through modules such as the IC693CMM321 Communications Control Module or the IC693CMM311 Ethernet Interface Module. In safety-sensitive applications, loss of communication between the PLC and the SCADA or DCS layer can trigger fail-safe responses — making it essential that communication modules are functioning correctly when I/O modules are replaced or the rack is powered down for maintenance.

For installations where the Series 90-30 rack is mounted in a remote field enclosure and communicates back to a central control room via a Genius Bus or DeviceNet network, the IC693BEM331 Bus Controller Module manages the network interface. Ensuring this module is operational before and after an I/O replacement confirms that the remote rack remains visible to the host system and that no I/O points are lost from the control network during the maintenance window.

Critical Industrial Safety Applications

The HE693ADC415E is deployed across a wide range of safety-critical industrial sectors where control system reliability is non-negotiable.

In petrochemical and refinery operations, discrete input modules monitor emergency shutdown (ESD) pushbuttons, high-level switches, pressure switches, and flame detector outputs. The optical isolation of the HE693ADC415E prevents the high-voltage transients common in hazardous area wiring from reaching the CPU backplane, protecting the integrity of the ESD logic that prevents catastrophic process upsets.

In power generation facilities — including coal, gas, and hydroelectric plants — Series 90-30 systems control auxiliary equipment such as cooling water pumps, fuel handling conveyors, and turbine lube oil systems. The HE693ADC415E acquires status signals from motor protection relays, limit switches, and flow switches, feeding the CPU with the real-time field data needed to maintain safe auxiliary system operation during both normal running and emergency conditions.

In mining and mineral processing environments, control systems face extreme vibration, dust ingress, and wide temperature swings. The HE693ADC415E’s rugged construction and optical isolation make it well-suited for conveyor belt control, crusher interlock monitoring, and ventilation fan status acquisition in underground and surface mining applications where control system failures can create immediate safety hazards.

In water and wastewater treatment plants, the module monitors pump run/fail status, valve position feedback, and level switch states across distributed pump stations and treatment process areas. Reliable discrete input acquisition is essential for maintaining regulatory compliance and preventing overflow or treatment failure events.

In metallurgical and steel production facilities, the HE693ADC415E supports interlock monitoring for furnace safety doors, cooling system status, and rolling mill emergency stops — applications where a missed or delayed input signal can result in equipment damage or personnel injury.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the HE693ADC415E?
The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions from the date of delivery. If the module fails to perform its specified discrete input acquisition function within the warranty period, SMARTNEXMSK will provide a replacement unit at no additional cost. The warranty does not cover damage resulting from incorrect installation, overvoltage conditions beyond the module’s rated input range, or physical damage caused by improper handling.

Q2: What pre-shipment testing is performed before the HE693ADC415E is dispatched?
Each unit undergoes functional I/O channel verification, optical isolation integrity testing, backplane connector inspection, and visual examination for physical damage before shipment. A test record is maintained for each unit. Units that do not pass all functional checks are not dispatched. This process ensures that every HE693ADC415E delivered to site is ready for immediate installation and commissioning.

Q3: Is the HE693ADC415E compatible with all Series 90-30 CPU and rack configurations?
Yes. The HE693ADC415E is compatible with the full range of GE Series 90-30 (IC693 family) racks and CPUs, including the IC693CHS391, IC693CHS392, and IC693CHS393 rack chassis, and all standard Series 90-30 CPU modules from the IC693CPU311 through the IC693CPU374. No rack modification, firmware update, or program change is required for a direct replacement installation. The module occupies a standard I/O slot and is automatically recognized by the CPU during the rack configuration scan.

Q4: Can SMARTNEXMSK support long-term supply of the HE693ADC415E for ongoing maintenance programs?
Yes. SMARTNEXMSK maintains stock of the HE693ADC415E and related Series 90-30 I/O modules to support planned maintenance programs, emergency breakdown replacements, and multi-unit procurement for spare parts inventories. For customers managing aging Series 90-30 installations where OEM supply has become unreliable or lead times are extended, we offer priority stock reservation and expedited shipping to minimize the risk of extended downtime due to parts unavailability. Contact our technical sales team to discuss your ongoing supply requirements.
