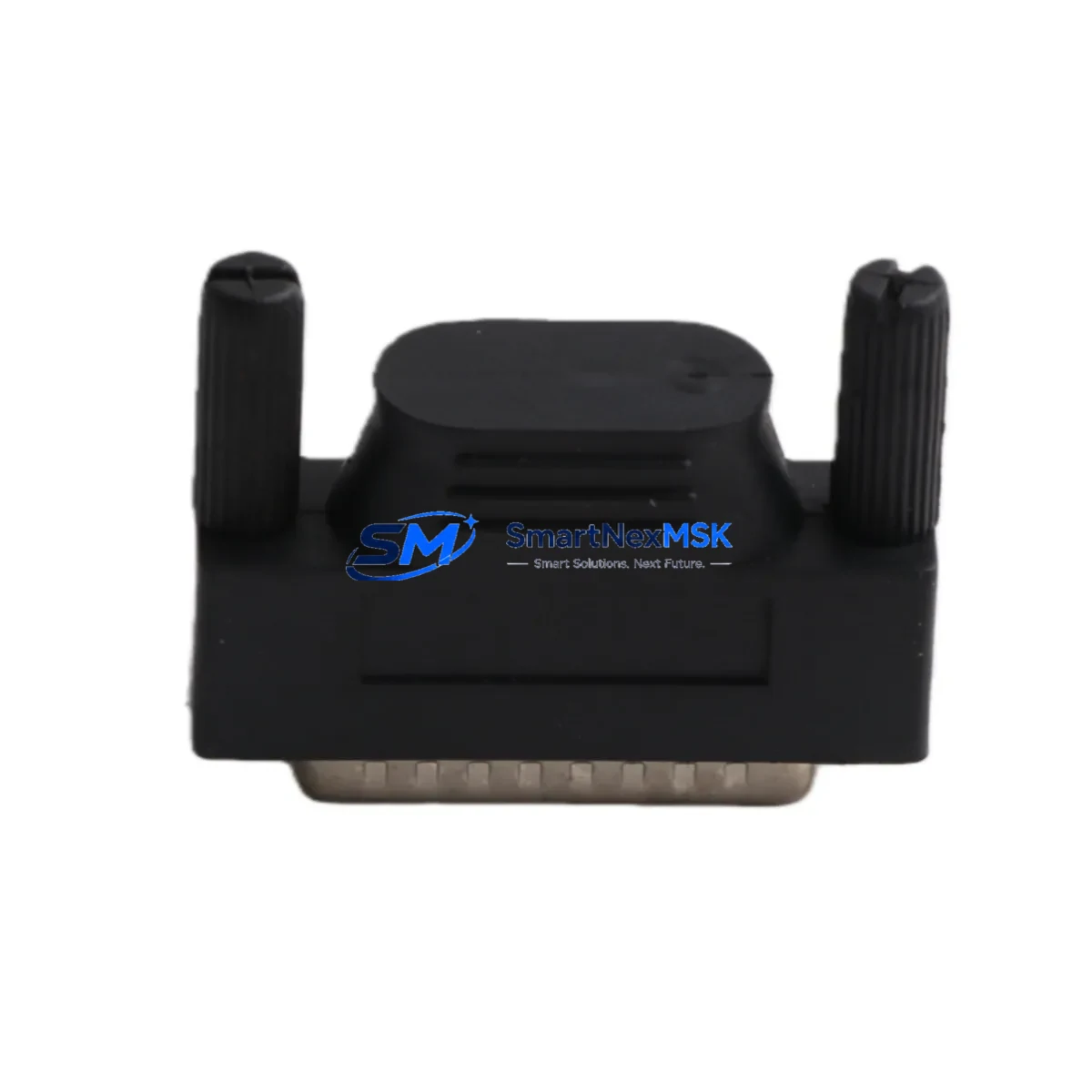

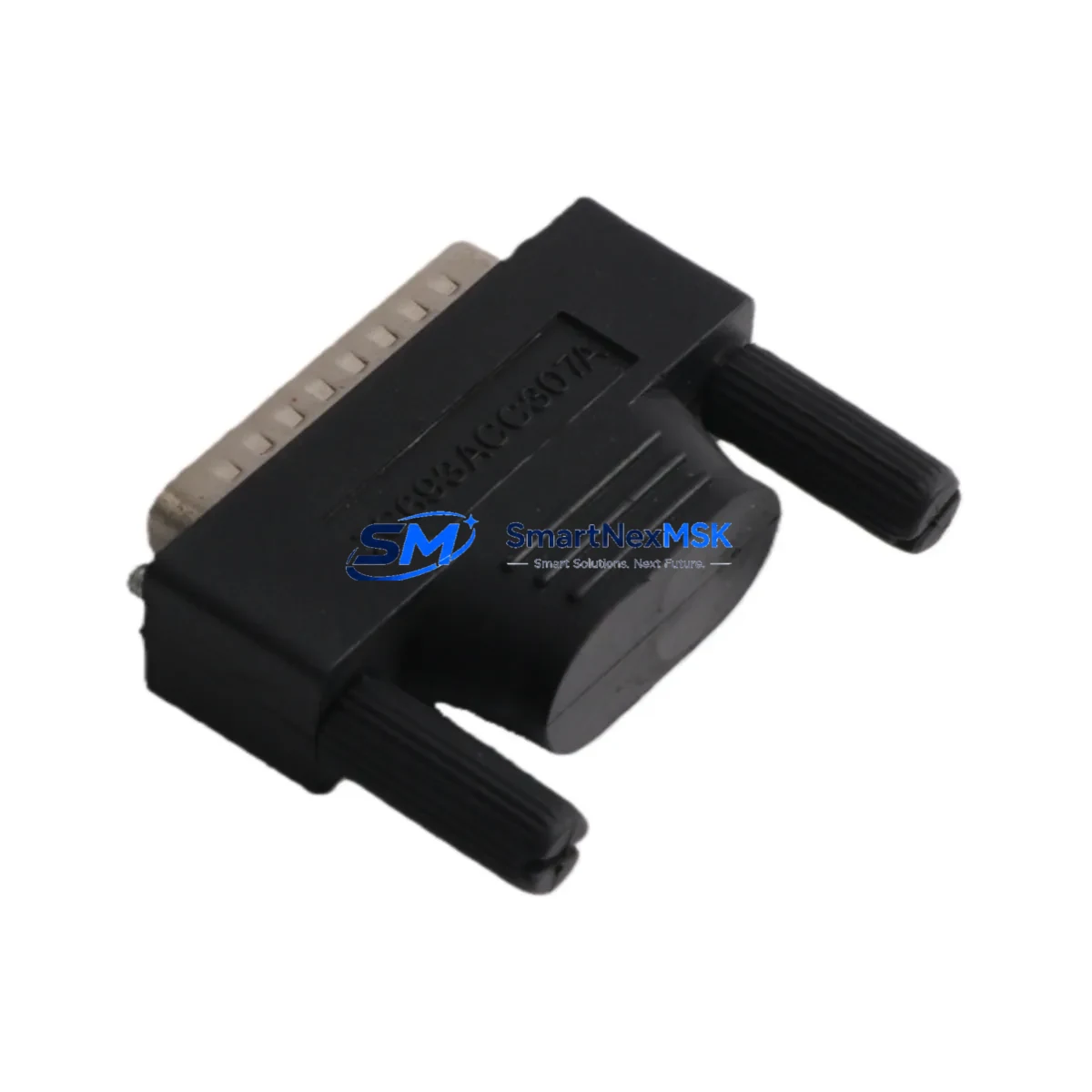

The GE Fanuc IC693ACC307 is an original I/O expansion bus terminator plug designed for the Series 90-30 programmable logic controller platform — one of the most widely deployed modular PLC architectures in discrete manufacturing, process control, and utility automation. In active production environments, a missing or damaged bus terminator can cause intermittent I/O communication faults, unexpected module dropouts, or full rack communication failure. Stocking the IC693ACC307 as a verified maintenance spare is a low-cost, high-impact strategy for protecting system uptime and reducing mean time to repair (MTTR) during both planned and emergency maintenance events.

This unit ships as an original GE Fanuc component, individually inspected and function-verified prior to dispatch. Each IC693ACC307 is covered by a 12-month warranty against manufacturing defects and is packaged to prevent ESD damage during transit. Lead time from order confirmation to dispatch is typically 1–3 business days, with express options available for critical downtime situations.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When performing a scheduled inspection or emergency replacement of the IC693ACC307 bus terminator, maintenance engineers should treat the event as an opportunity to audit the broader Series 90-30 rack assembly. The bus terminator is the final component in the I/O expansion chain; any upstream fault — whether in the backplane, the expansion cable, or a connected I/O module — can produce symptoms that mimic a terminator failure.

Begin by verifying the integrity of the IC693CBL300 or IC693CBL301 I/O expansion cable connecting the base rack to the expansion chassis. Cable connector pins are a common wear point in high-vibration environments. Next, inspect the IC693PWR321 or IC693PWR330 power supply module in the expansion chassis — an under-voltage condition on the 5 VDC backplane rail will cause bus communication errors that are frequently misdiagnosed as terminator faults.

Check all IC693MDL series digital input and output modules seated in the expansion rack for secure backplane engagement. Loose module seating is a leading cause of intermittent I/O faults in aging 90-30 installations. If the rack includes analog I/O, inspect the IC693ALG series analog input/output modules for signal drift or calibration alarms, which can indicate power quality issues affecting the entire rack.

For systems using inter-rack communications, verify the IC693CMM302 or IC693CMM311 communications module configuration and cable routing. Communication modules are sensitive to ground loops introduced by improper cable shielding. If the control cabinet includes a GE Fanuc QuickPanel or Cimplicity HMI terminal, confirm that the HMI communication link to the CPU remains stable after bus terminator replacement — a rack power cycle can occasionally reset HMI communication parameters.

Finally, inspect the IC693ACC300 series terminal blocks and wiring connectors on all I/O modules in the expansion rack. Loose field wiring terminations are frequently disturbed during rack access and should be re-torqued to manufacturer specification before returning the system to service. Document all findings in the maintenance log and update the spare parts inventory to reflect the consumed IC693ACC307 unit.

Site Replacement Workflow

Replacing the IC693ACC307 in a live Series 90-30 installation requires minimal downtime when the correct spare is on hand. Follow this sequence to ensure a safe, compatible, and efficient replacement:

1. Confirm compatibility. Verify that the replacement IC693ACC307 matches the original part number exactly. The Series 90-30 expansion bus terminator is not interchangeable with terminators from the Series 90-70 or VersaMax product families. Cross-reference the chassis model number (visible on the rack label) against the GE Fanuc Series 90-30 Hardware Installation Manual (GFK-0356) to confirm correct terminator specification.

2. Isolate the expansion chassis. Where process conditions permit, place the CPU in STOP mode before accessing the expansion rack. This prevents spurious output activations during module handling. If a hot-swap procedure is required, consult the site-specific safety plan and confirm that the CPU firmware version supports online rack access.

3. Remove the faulty terminator. The IC693ACC307 is a plug-in component with no fasteners. Pull the terminator straight out from the expansion bus connector on the right end of the chassis. Inspect the connector receptacle for bent pins or debris before installing the replacement.

4. Install the replacement unit. Align the IC693ACC307 with the bus connector and press firmly until fully seated. No configuration or parameter setting is required — the terminator is a passive component.

5. Restore and verify. Return the CPU to RUN mode and monitor the I/O fault table for 5–10 minutes. Confirm that all expansion rack modules report normal status and that no bus communication alarms are active. Update the maintenance record and reorder a replacement spare to restore inventory buffer.

Spare Parts Support FAQ

Q1: What is the recommended spare parts lifecycle strategy for the IC693ACC307?
The IC693ACC307 is a passive plug-in component with no active electronics, so it does not have a defined MTBF in the traditional sense. However, GE Fanuc Series 90-30 hardware is a mature platform, and sourcing original components is becoming increasingly time-sensitive as the product line approaches end-of-life. We recommend maintaining a minimum stock of 2–3 units per site for every expansion chassis in service, and reviewing stock levels annually as part of the site’s spare parts lifecycle audit.

Q2: How do I verify compatibility before installation?
Confirm the chassis model number from the rack label and cross-reference with the GE Fanuc Series 90-30 Hardware Installation Manual (GFK-0356). The IC693ACC307 is compatible with all standard 5-slot and 10-slot Series 90-30 expansion chassis models. If you are unsure, contact our technical team with the chassis model number and CPU firmware version before ordering.

Q3: What pre-shipment testing is performed on each unit?
Every IC693ACC307 unit undergoes visual inspection for connector pin integrity, mechanical completeness, and ESD packaging compliance before dispatch. Units sourced from original GE Fanuc supply channels are verified against manufacturer part number documentation. A test report is available upon request for critical infrastructure procurement.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects, connector pin failures, and mechanical faults present at the time of shipment. It does not cover damage resulting from incorrect installation, electrical overstress, or physical mishandling on site. Warranty claims are processed within 5 business days of receipt of the returned unit, with replacement dispatch on the next available shipping day.
