GE IC694MDL930 Safety-Enhanced Discrete Output Module

GE IC694MDL930 Safety-Enhanced Discrete Output Module: Reliable Control for Harsh Industrial Sites

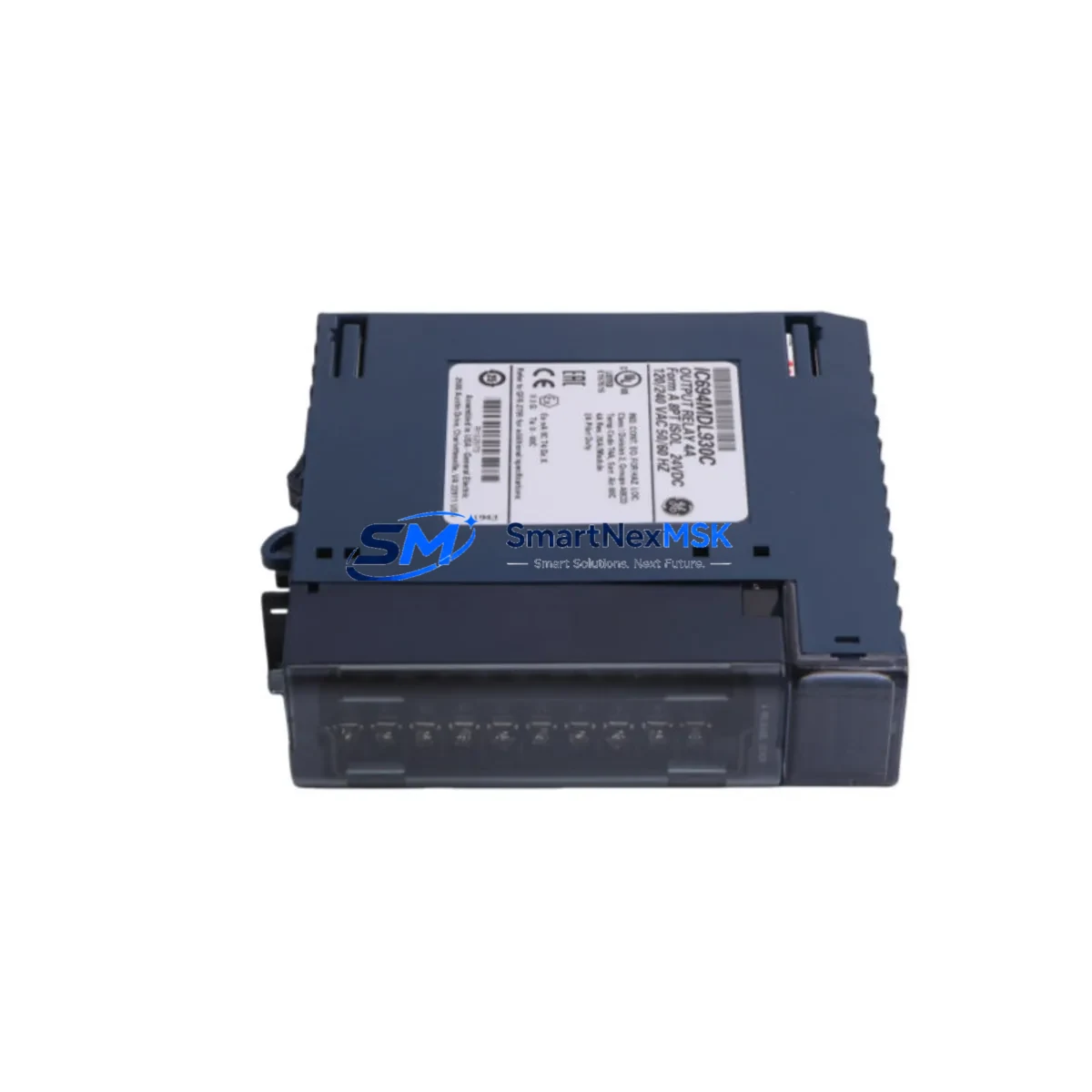

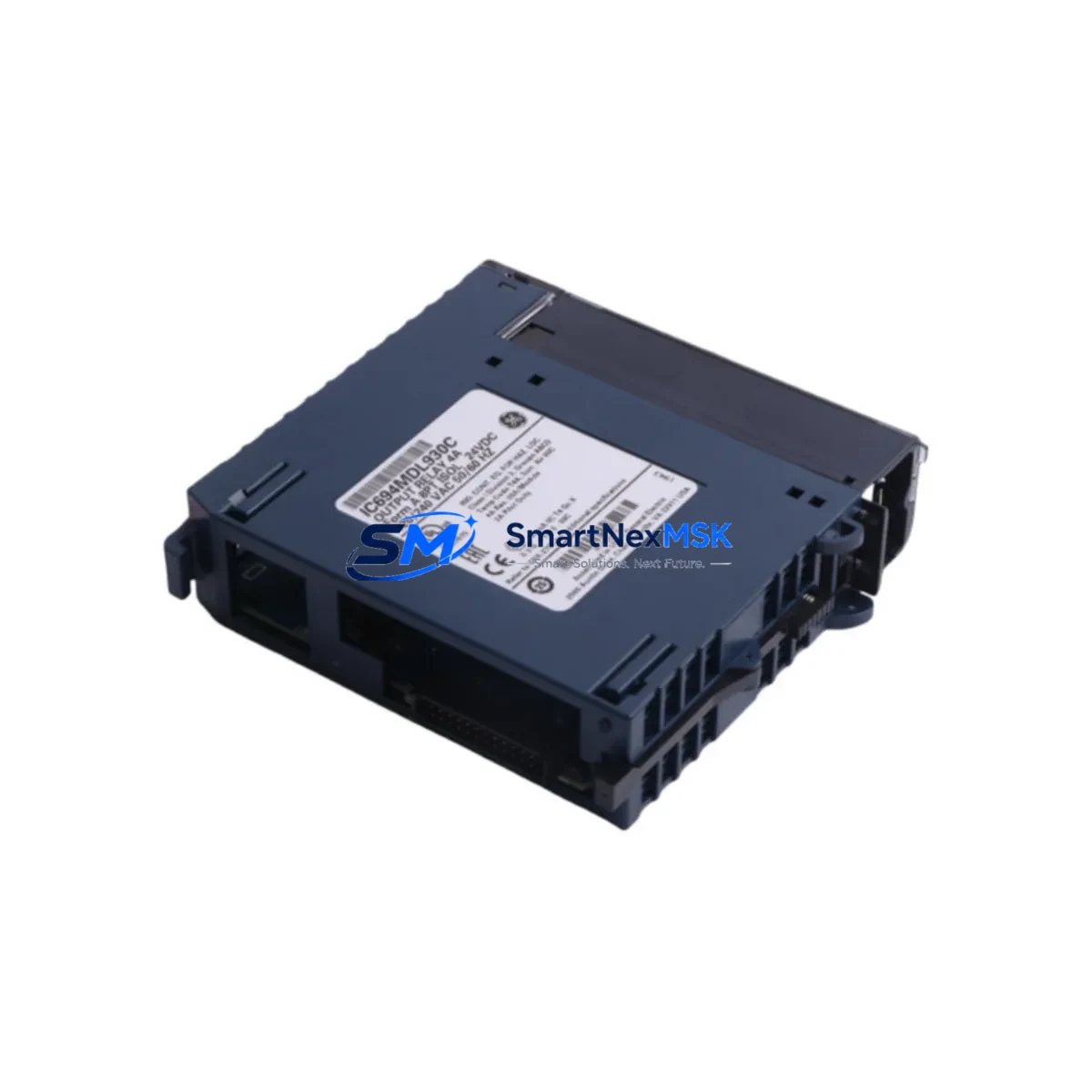

The GE Fanuc IC694MDL930 is a 16-point, 120VAC discrete output module engineered for the GE Series 90-30 PLC platform — one of the most widely deployed programmable logic controller families in continuous process industries. Designed to operate reliably in high-load, high-interference industrial environments, the IC694MDL930 delivers consistent switching performance across demanding applications including petrochemical plants, power generation facilities, mining operations, water treatment systems, metallurgical processing lines, and port automation infrastructure.

In critical control cabinet architectures, discrete output modules are the final command interface between the controller and field actuators. Any instability in this layer — whether caused by voltage transients, ground loops, electromagnetic interference, or thermal stress — can propagate directly into process upsets, unplanned shutdowns, or safety interlock failures. The IC694MDL930 addresses these risks through robust optoisolated output circuitry, solid-state switching elements, and a thermally stable backplane interface that maintains signal integrity even under sustained full-load conditions.

Safety Reliability Table

Control Cabinet Protection Strategy

In a well-engineered Series 90-30 control cabinet, the IC694MDL930 operates as part of a layered protection architecture. The module slots into the same rack alongside the GE IC693CPU374 or IC694CPU310 central processing unit, sharing a common backplane bus that distributes both power and communications. To ensure stable 5VDC and 24VDC logic supply to the rack, engineers typically pair the system with a GE IC693PWR321 or IC694PWR330 power supply module — units specifically rated for industrial duty cycles and capable of sustaining output under line voltage fluctuations common in heavy manufacturing environments.

On the input side, the GE IC694MDL660 16-point 120VAC discrete input module mirrors the IC694MDL930’s field voltage class, enabling a consistent AC I/O architecture that simplifies wiring, reduces termination errors, and supports symmetrical safety interlock design. For mixed-signal applications where analog process variables must be monitored alongside discrete control, the GE IC694ALG220 analog input module integrates seamlessly into the same rack, providing 4–20mA or 0–10VDC signal acquisition without requiring additional communication infrastructure.

Where communication integrity is critical — particularly in distributed control architectures spanning multiple field panels — the GE IC693CMM321 communications coprocessor module provides Genius Bus or serial communication redundancy, ensuring that a single communication fault does not cascade into a loss of output control. In safety-critical interlock loops, this communication resilience is essential for maintaining the integrity of emergency shutdown sequences and permissive logic chains.

Surge protection at the field terminal level is equally important. Pairing the IC694MDL930 with Phoenix Contact PTME or Weidmüller VSSC series surge protective devices on AC output terminals guards against lightning-induced transients and switching surges from large inductive loads such as motor contactors, solenoid valves, and relay coils. This combination significantly reduces the risk of output transistor degradation and premature module failure in outdoor or exposed field junction boxes.

For applications requiring functional safety compliance, the IC694MDL930 is frequently deployed alongside GE RX3i safety-rated I/O modules in hybrid architectures where standard control and safety instrumented system (SIS) layers share a common physical cabinet but maintain logical separation. This design approach supports IEC 61511 lifecycle requirements while preserving the cost efficiency of the Series 90-30 platform for non-safety-rated control loops.

Critical Industrial Safety Applications

Petrochemical and Refinery Operations: In continuous process plants, the IC694MDL930 controls solenoid-operated valves, motor starters, and alarm annunciators within hazardous area control panels. Its optoisolated outputs prevent ground fault currents from propagating into the PLC logic bus — a critical safety requirement in environments where flammable vapors may be present and where a spurious output actuation could trigger a process safety event.

Power Generation and Substation Automation: Utility-grade power plants rely on Series 90-30 systems for auxiliary equipment control, including cooling water pumps, fuel handling conveyors, and breaker control circuits. The IC694MDL930’s ability to switch 120VAC loads directly — without intermediate relay amplification — reduces the number of electromechanical components in the control loop, improving mean time between failures (MTBF) and simplifying preventive maintenance schedules.

Mining and Mineral Processing: Underground and surface mining operations subject control equipment to extreme vibration, dust ingress, and wide ambient temperature swings. The IC694MDL930’s solid-state output design eliminates mechanical contact wear, making it significantly more reliable than relay-based output alternatives in conveyor drive control, crusher sequencing, and ventilation fan management applications.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities use the IC694MDL930 to control pump motor starters, UV disinfection systems, and chemical dosing solenoids. In these applications, continuous 24/7 operation is the norm, and any unplanned output module failure can result in regulatory non-compliance or public health risk. The module’s diagnostic LED indicators allow maintenance technicians to identify faulted output points rapidly without requiring laptop-based diagnostics.

Metallurgical and Steel Processing: Rolling mills, electric arc furnaces, and continuous casting lines generate severe electromagnetic interference from high-current switching equipment. The IC694MDL930’s optoisolated architecture provides the necessary common-mode noise rejection to maintain reliable output switching in these electromagnetically hostile environments, protecting both the control system and downstream field devices from interference-induced misoperation.

Safety and Quality FAQ

Q: What warranty coverage is provided with the IC694MDL930?
A: Every IC694MDL930 unit shipped by SMARTNEXMSK carries a 12-month warranty from the date of shipment. This covers manufacturing defects, functional failures under normal operating conditions, and DOA (dead on arrival) units. Warranty claims are processed with priority turnaround to minimize your site downtime.

Q: What pre-shipment testing is performed on each module?
A: Each IC694MDL930 undergoes functional verification testing prior to dispatch, including backplane communication handshake verification, per-point output switching confirmation, and visual inspection for physical damage or connector contamination. Modules are shipped in anti-static packaging with protective rail covers to prevent transit damage.

Q: Is the IC694MDL930 compatible with all GE Series 90-30 racks and CPU versions?
A: Yes. The IC694MDL930 is compatible with all standard GE Series 90-30 5-slot, 10-slot, and expansion rack configurations. It is supported by all Series 90-30 CPU firmware versions and is fully interchangeable with earlier IC693MDL930 variants in most rack configurations. For specific firmware compatibility questions, our technical team can advise based on your existing system configuration.

Q: Can SMARTNEXMSK support long-term supply for ongoing maintenance and spare parts programs?
A: Yes. We maintain dedicated inventory of IC694MDL930 and related Series 90-30 I/O modules to support planned maintenance programs, emergency spare parts requirements, and capital project builds. We can provide scheduled delivery agreements and reserve stock allocations for customers with high-volume or time-critical replacement needs. Contact our sales team to discuss a supply arrangement tailored to your site’s maintenance strategy.
