GE IC693ALG221 Safety-Enhanced Analog Input for Harsh Sites

GE IC693ALG221 Safety-Enhanced Analog Input Module: Reliable Control for Harsh Industrial Sites

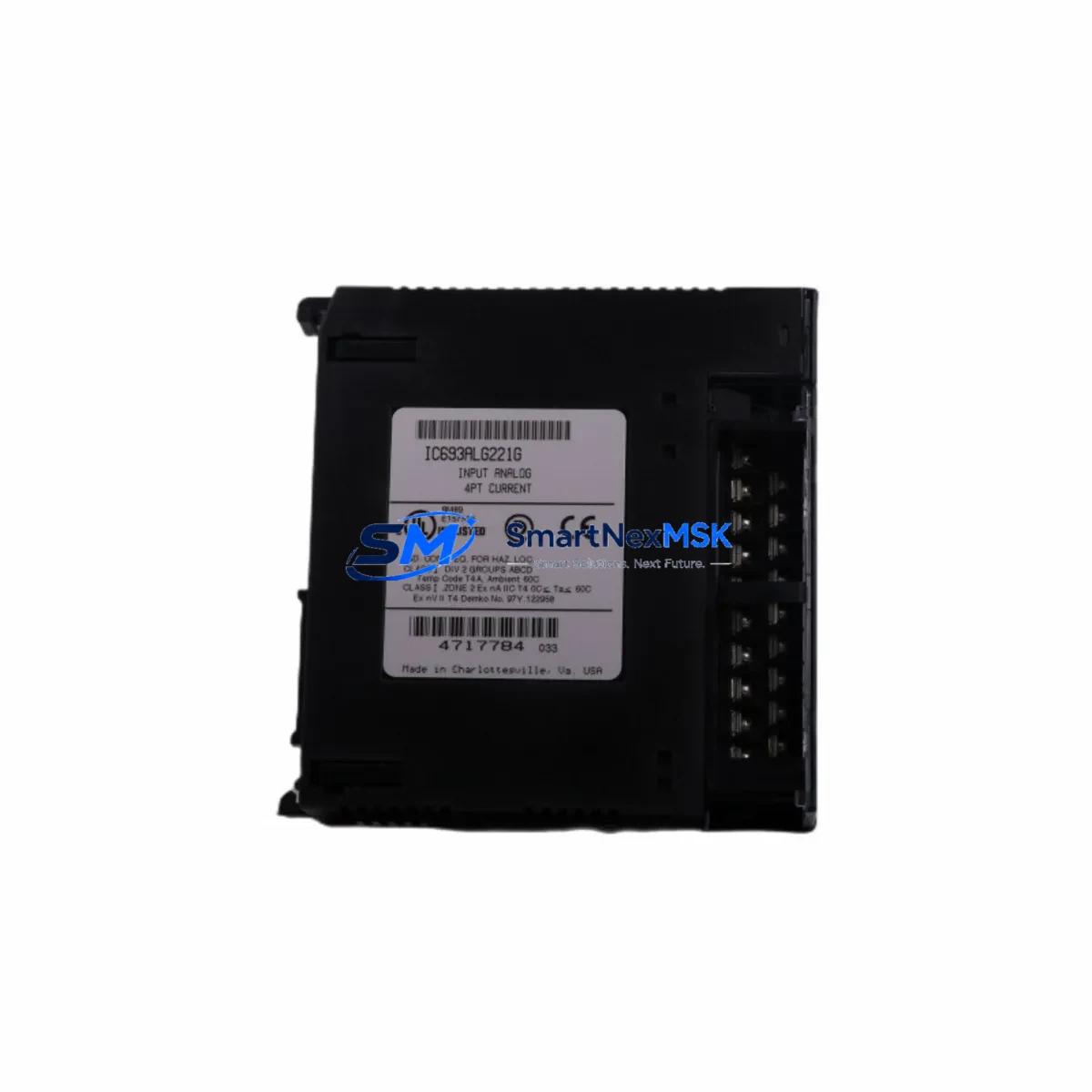

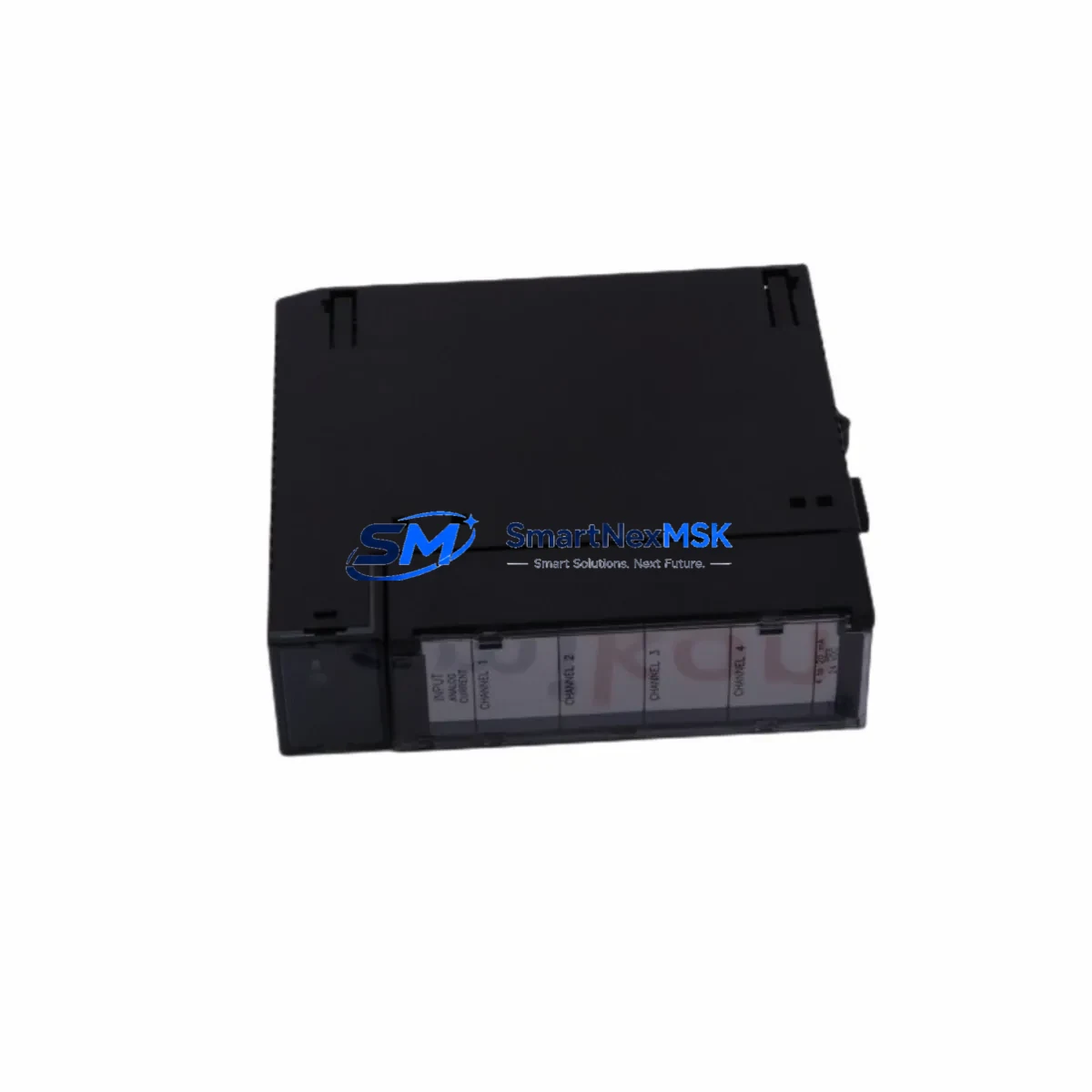

The GE IC693ALG221 is a 4-channel analog current input module engineered for the GE Series 90-30 PLC platform — one of the most widely deployed programmable logic controller families in continuous process industries. Designed to operate reliably in high-noise, high-vibration, and thermally demanding environments, the IC693ALG221 delivers stable 4–20 mA signal acquisition critical to safety-critical control loops in petrochemical plants, power generation facilities, mining operations, water treatment systems, metallurgical processes, and port automation infrastructure.

In industrial control cabinets where uptime is non-negotiable, analog input integrity is the foundation of every process safety function. Signal drift, electromagnetic interference, and power transients are among the leading causes of spurious trips, unplanned shutdowns, and hazardous process deviations. The IC693ALG221 addresses these risks through its robust hardware architecture, tight input resolution, and proven compatibility with the GE Series 90-30 backplane — ensuring that field transmitter signals are accurately digitized and delivered to the CPU without corruption or delay.

Safety Reliability Table

Control Cabinet Protection Strategy

In a properly engineered Series 90-30 control cabinet, the IC693ALG221 operates as part of a layered protection architecture. The module slots into the IC693CHS391 or IC693CHS398 chassis alongside the CPU — typically an IC693CPU364 or IC693CPU374 for high-throughput process applications — and draws regulated power from the IC693PWR330 or IC693PWR331 power supply module. These power supply units provide the stable 5 VDC backplane voltage that the IC693ALG221 requires for consistent ADC performance; any ripple or sag in backplane power directly degrades analog accuracy and can trigger nuisance alarms in safety instrumented systems.

On the digital side, the IC693ALG221 is commonly deployed alongside discrete I/O modules such as the IC693MDL645 (24 VDC input) and IC693MDL741 (relay output) to form complete process interlocks. When a field transmitter — pressure, flow, temperature, or level — reports a value outside safe operating limits, the analog input module’s digitized reading triggers the CPU logic, which then actuates the appropriate discrete output to isolate the hazard. This closed-loop safety response depends entirely on the IC693ALG221 delivering accurate, low-latency signal data without dropout.

For applications requiring communications redundancy or remote I/O expansion, the IC693ALG221 is frequently paired with the IC693CMM321 communications coprocessor or the IC693BEM331 bus expansion module. In distributed control architectures, the IC693CMM302 Genius Bus Controller enables the Series 90-30 rack to participate in plant-wide Genius fieldbus networks, allowing the analog input data from IC693ALG221 to be shared across multiple control nodes without introducing additional scan-cycle latency. Surge protection devices and shielded twisted-pair field wiring are strongly recommended on all 4–20 mA loops connected to this module to prevent common-mode noise from corrupting the digitized signal.

Critical Industrial Safety Applications

Petrochemical & Refinery: In hydrocarbon processing units, the IC693ALG221 monitors pressure transmitters and flow meters on reactor feed lines. Accurate analog input is essential for detecting over-pressure conditions before they escalate to safety relief valve actuation or emergency shutdown system (ESD) activation. The module’s channel isolation prevents a fault on one transmitter loop from propagating to adjacent measurement channels — a critical requirement in SIL-rated interlock loops.

Power Generation: Thermal and hydroelectric power plants use the IC693ALG221 to monitor turbine bearing temperatures, generator excitation currents, and cooling water flow rates. In these applications, signal continuity is directly linked to equipment protection: a missed over-temperature reading can result in catastrophic bearing failure or forced outage. The module’s robust backplane interface ensures that analog data reaches the CPU even during grid disturbances that cause significant electrical noise on control cabinet wiring.

Mining & Mineral Processing: Underground and surface mining operations subject control equipment to extreme vibration, dust ingress, and wide temperature swings. The IC693ALG221’s industrial-grade construction allows it to maintain calibration accuracy in these conditions, supporting reliable monitoring of conveyor belt load cells, crusher motor currents, and slurry pump pressures. Unplanned downtime in mining is extraordinarily costly; having a tested, in-stock replacement module available is a key element of any site’s spare parts strategy.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities rely on continuous analog monitoring of pH, dissolved oxygen, chlorine dosing rates, and pump discharge pressures. The IC693ALG221 provides the stable, repeatable signal acquisition needed to maintain regulatory compliance and prevent treatment process upsets. Its compatibility with the full Series 90-30 ecosystem means it can be integrated into existing SCADA architectures without requiring CPU firmware changes.

Metallurgy & Steel: In electric arc furnaces, rolling mills, and continuous casting lines, the IC693ALG221 monitors electrode current, hydraulic pressure, and cooling water temperature. These are high-consequence measurements where signal errors translate directly into product defects or equipment damage. The module’s 12-bit resolution provides the measurement granularity needed for tight process control in these demanding applications.

Safety and Quality FAQ

Q: What warranty does the IC693ALG221 come with?
A: Every IC693ALG221 unit supplied by SMARTNEXMSK carries a 12-month full replacement warranty from the date of shipment. If the module fails under normal operating conditions within the warranty period, we will replace it at no charge. This warranty applies to both new and refurbished-tested units.

Q: How is the IC693ALG221 tested before shipment?
A: All units undergo a full functional verification test prior to dispatch. This includes backplane communication checks, channel-by-channel analog input accuracy verification across the 4–20 mA range, and visual inspection for physical damage. Test records are retained and can be provided upon request for quality-critical applications.

Q: Is the IC693ALG221 compatible with my existing Series 90-30 system?
A: Yes. The IC693ALG221 is fully compatible with all standard GE Series 90-30 chassis and CPU combinations, including the IC693CHS391, IC693CHS397, and IC693CHS398 chassis, and all IC693CPU3xx and IC693CPU3x4 series processors. No firmware modifications are required for drop-in replacement of a failed module.

Q: Can SMARTNEXMSK support long-term supply for ongoing maintenance programs?
A: Yes. We maintain standing inventory of the IC693ALG221 and related Series 90-30 components to support planned maintenance shutdowns, emergency replacements, and multi-year spare parts programs. Contact our team to discuss volume pricing, reserved stock agreements, and expedited shipping options for critical site requirements.
