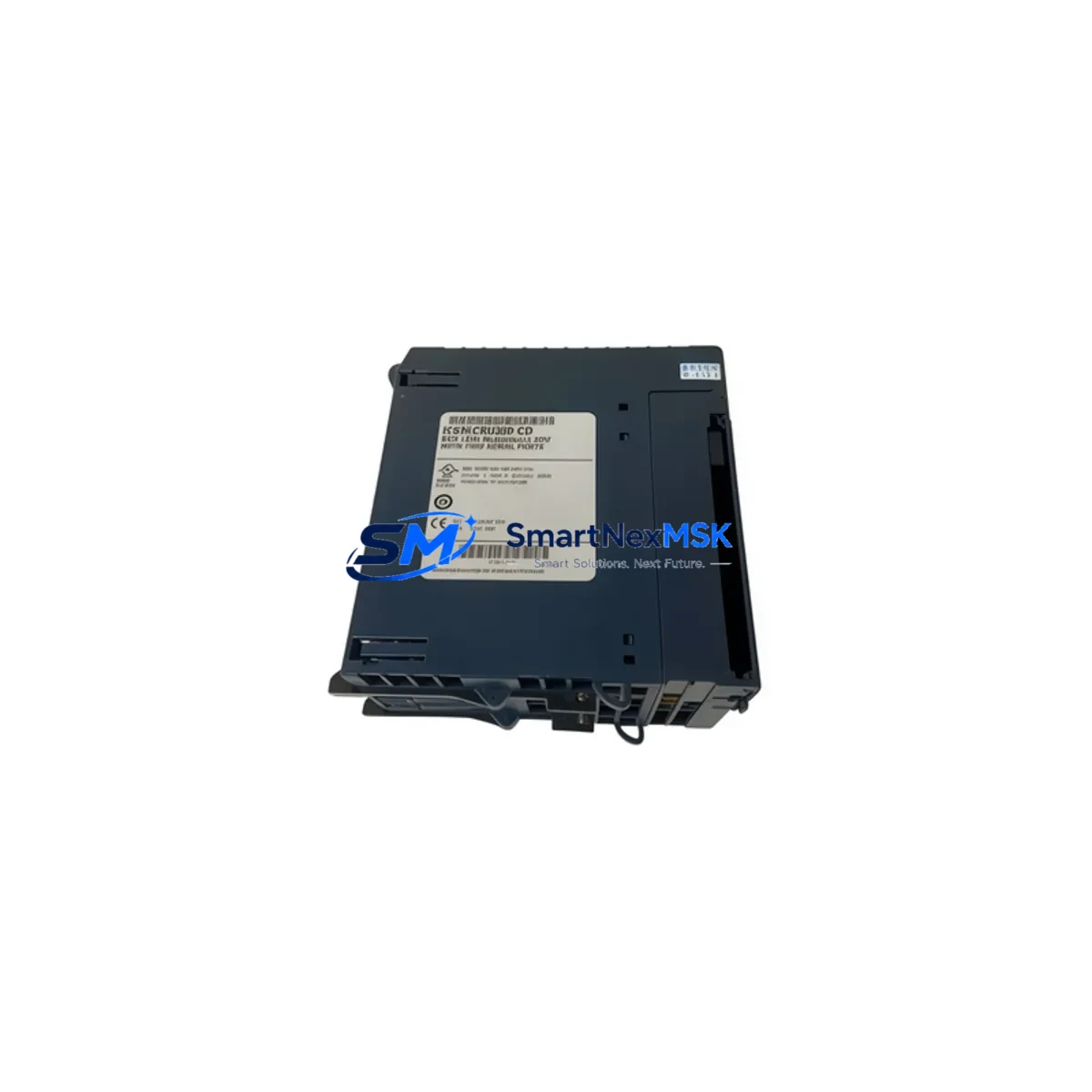

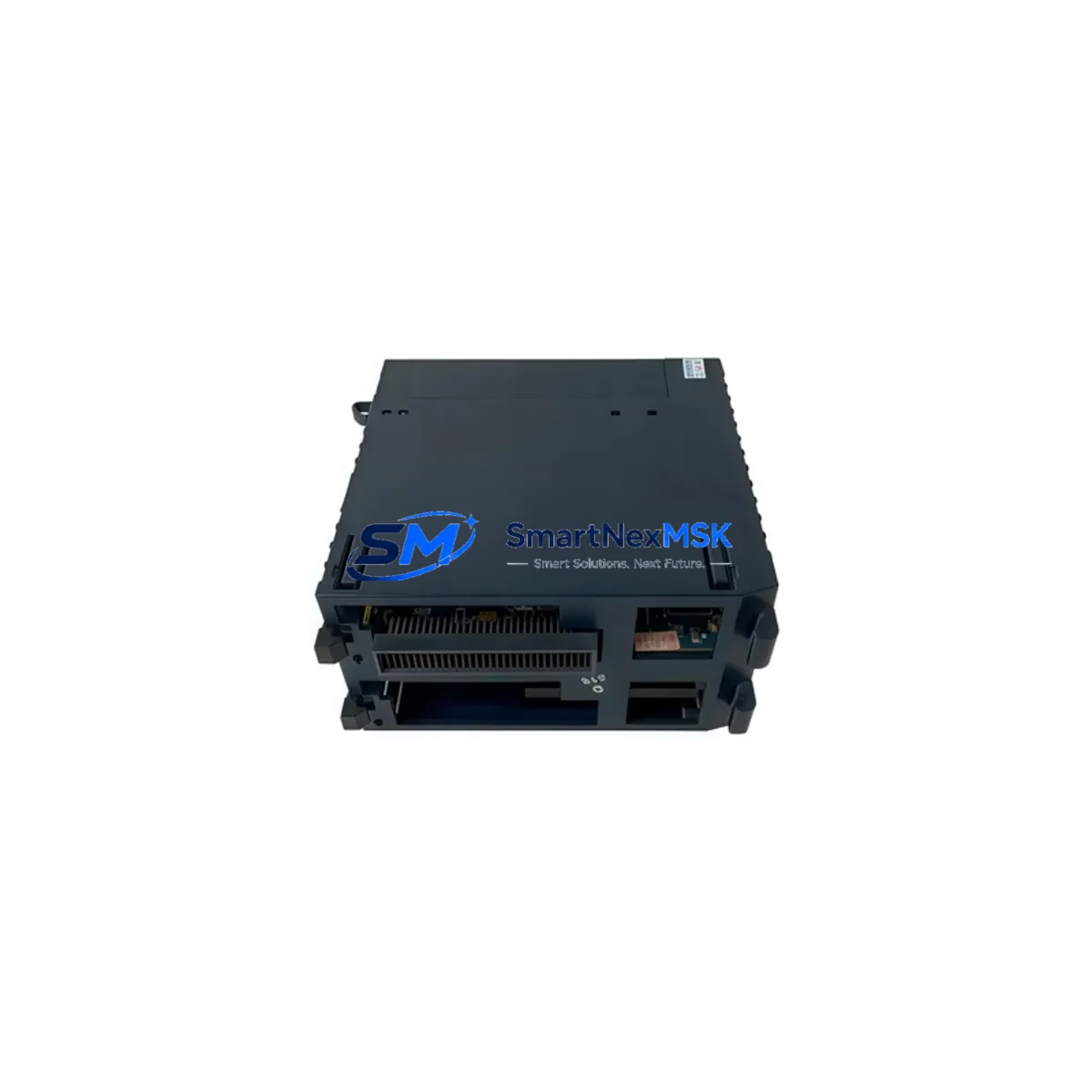

GE IC695CRU320QP Maintenance-Ready Spare for RX3i Automation
The GE IC695CRU320QP is a PACSystems RX3i Redundant CPU Module engineered for mission-critical industrial automation environments where unplanned downtime carries significant operational and financial consequences. As a direct original spare, this module supports hot-standby redundancy configurations, enabling seamless switchover between primary and backup CPUs without process interruption. For maintenance engineers managing aging RX3i control systems, stocking a verified IC695CRU320QP is one of the most effective strategies for protecting continuous operation across manufacturing lines, utilities, oil and gas facilities, and process automation plants.
This unit ships fully tested and inspected, backed by a 12-month warranty, and is sourced to meet the original GE Fanuc specification. Whether you are executing a planned replacement during a scheduled maintenance window or responding to an unplanned CPU fault, the IC695CRU320QP is ready for immediate installation into your existing RX3i backplane without firmware reconfiguration in most standard redundancy topologies.
Spare Maintenance Table
| Parameter | Specification |
|---|---|
| Part Number | IC695CRU320QP |
| Brand | GE / GE Fanuc |
| Series | PACSystems RX3i |
| Module Type | Redundant CPU Module |
| Redundancy Mode | Hot-Standby (Primary / Secondary) |
| Backplane Compatibility | IC695 Series RX3i Universal Backplane |
| Program Memory | 32 MB (user program) |
| Communication Ports | Ethernet (dual), Serial RS-232/RS-485 |
| Operating Voltage | 3.3 V / 5 V (backplane supplied) |
| Operating Temperature | 0°C to 60°C |
| Mounting | RX3i Universal Backplane slot (CPU slot) |
| Origin | United States |
| Condition | Original, Tested & Inspected |
| Warranty | 12 Months |
| Shipping | Worldwide, Fast Dispatch |
Maintenance Planning for Continuous Operation
When replacing or inspecting the IC695CRU320QP in a live RX3i redundancy system, a disciplined maintenance approach requires evaluating the entire control cabinet ecosystem — not just the CPU module itself. Maintenance engineers should simultaneously inspect the IC695PSA140 or IC695PSD040 power supply modules to confirm stable backplane voltage, as CPU faults are frequently triggered by marginal power delivery rather than CPU hardware failure. The IC695RMX128 redundancy memory xchange module should be checked for synchronization errors, since a degraded RMX link can cause false CPU switchovers and complicate fault isolation.
I/O integrity is equally critical during a CPU replacement event. Verify that IC694MDL754 discrete output modules and IC694ALG220 analog input modules are reporting correctly after switchover, as I/O module firmware mismatches can surface only when the secondary CPU assumes control. The IC695ETM001 Ethernet communication module should be tested for network continuity, particularly in PROFINET or EGD-based architectures where CPU redundancy depends on deterministic Ethernet timing.
For serial-connected field devices, inspect the IC695CMM002 serial communications module to confirm that RS-232 and RS-485 links remain stable post-switchover. Terminal blocks and wiring harnesses on the backplane should be torqued to specification and inspected for oxidation, especially in high-humidity or coastal industrial environments. Signal isolators on analog loops connected to the RX3i system should be verified for drift, as aging isolators can introduce offset errors that appear as process anomalies after a CPU swap.
Where HMI integration is present, confirm that the QuickPanel+ HMI or third-party SCADA system re-establishes its OPC or Ethernet/IP connection to the new primary CPU within the expected timeout window. Fuse ratings on the power distribution rail feeding the RX3i cabinet should be documented and verified against the current draw of the installed module set, including the IC695CRU320QP and any expansion backplanes connected via IC695CBL001 or IC695CBL003 fiber-optic expansion cables.
Site Replacement Workflow
Before removing the IC695CRU320QP from service, confirm that the secondary CPU has achieved full synchronization status (SYNCHRONIZED state in the redundancy status display). Initiate a controlled switchover to promote the secondary CPU to primary, then power down only the primary CPU slot. Remove the IC695CRU320QP by releasing the module latch and sliding it clear of the backplane connector — avoid rocking the module laterally to protect the high-density backplane pins.
Install the replacement IC695CRU320QP into the same slot, ensuring the module seats fully and the latch engages. Power the slot and allow the new module to complete its self-diagnostic sequence. The redundancy system will automatically negotiate secondary status for the newly installed CPU and begin memory synchronization from the active primary. Monitor the SYNC LED and redundancy status register in the programming software (Proficy Machine Edition or equivalent) until SYNCHRONIZED state is confirmed — typically within 30 to 90 seconds depending on program size.
This workflow eliminates the need for a full system shutdown, preserving process continuity and reducing mean time to recovery (MTTR) to under 15 minutes for experienced maintenance teams. Document the replacement in the site maintenance log, record the new module serial number, and update the spare parts inventory to trigger reorder of a replacement IC695CRU320QP for the next maintenance cycle.
Spare Parts Support FAQ
Q: Is the IC695CRU320QP compatible with all PACSystems RX3i backplanes?
A: The IC695CRU320QP is designed for the IC695 series RX3i Universal Backplane. It occupies the dedicated CPU slot and is compatible with standard RX3i rack configurations including 7-slot, 12-slot, and 16-slot backplanes. Confirm your backplane model number before ordering if your system uses an older IC693 or IC694 series rack, as those require a different CPU family.
Q: What pre-shipment testing is performed on this spare?
A: Each IC695CRU320QP unit undergoes power-on functional testing, communication port verification, and visual inspection for connector integrity and board condition before dispatch. Units are shipped with anti-static packaging and include a test report upon request. The 12-month warranty covers hardware defects identified under normal operating conditions.
Q: How should I manage IC695CRU320QP inventory for long-term system support?
A: For critical redundant systems, best practice is to maintain at least one cold-spare IC695CRU320QP on-site at all times. Given that GE Fanuc RX3i systems are widely deployed in long-lifecycle industries such as power generation, water treatment, and petrochemicals, securing spare inventory now protects against future availability constraints as the product matures in its lifecycle. We offer long-term supply agreements for customers requiring guaranteed stock over multi-year maintenance contracts.
Q: Can the IC695CRU320QP replace an IC695CPU320 in a non-redundant system?
A: The IC695CRU320QP is the redundancy-capable variant of the RX3i CPU320 family. It can operate in a non-redundant single-CPU configuration, though its redundancy features will remain inactive. This makes it a flexible spare that can serve both redundant and standard RX3i installations, simplifying spare parts inventory management across mixed-configuration sites.
