GE IC697MDL653 Maintenance-Ready Spare for Series 90-70

GE IC697MDL653 Maintenance-Ready Spare for Series 90-70 Automation

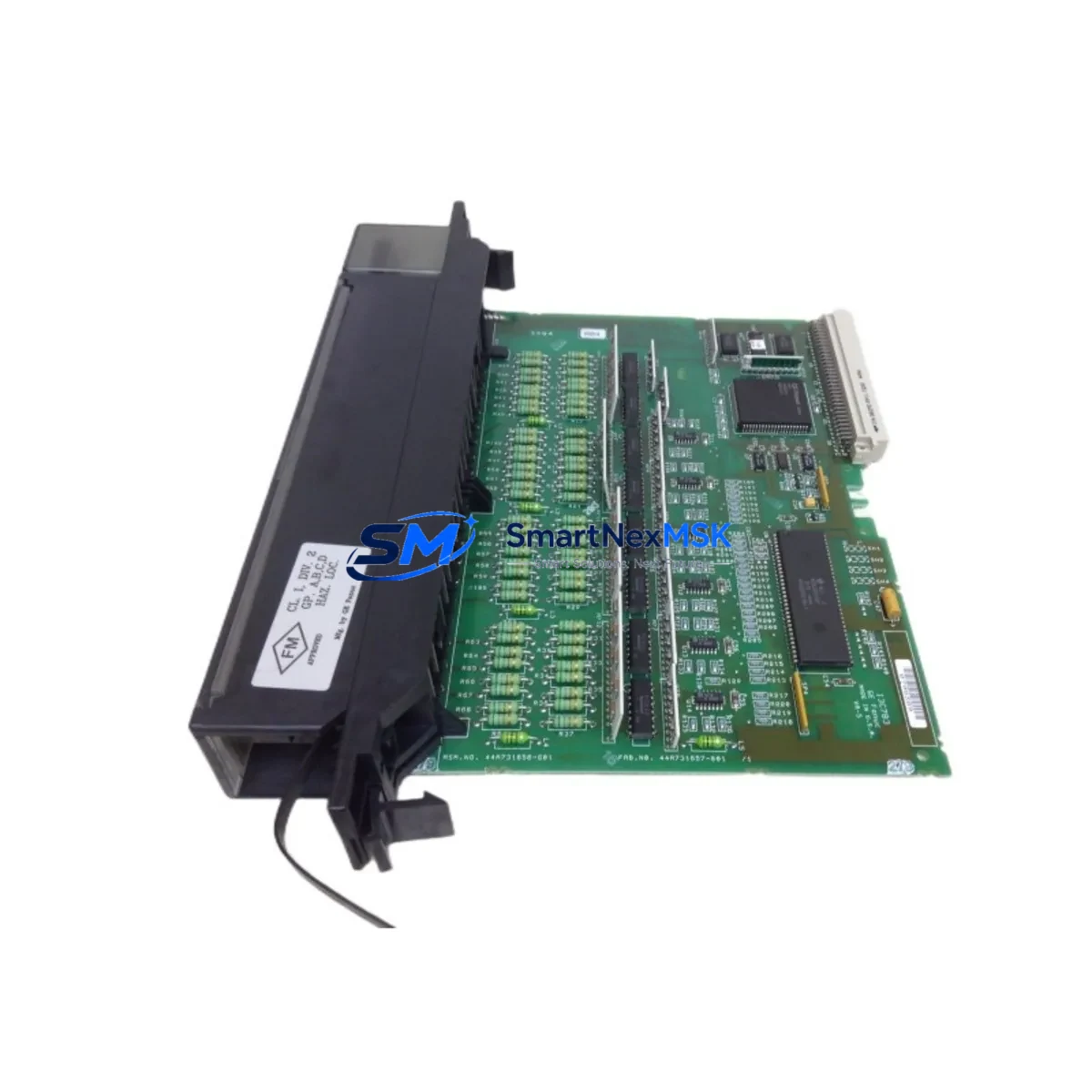

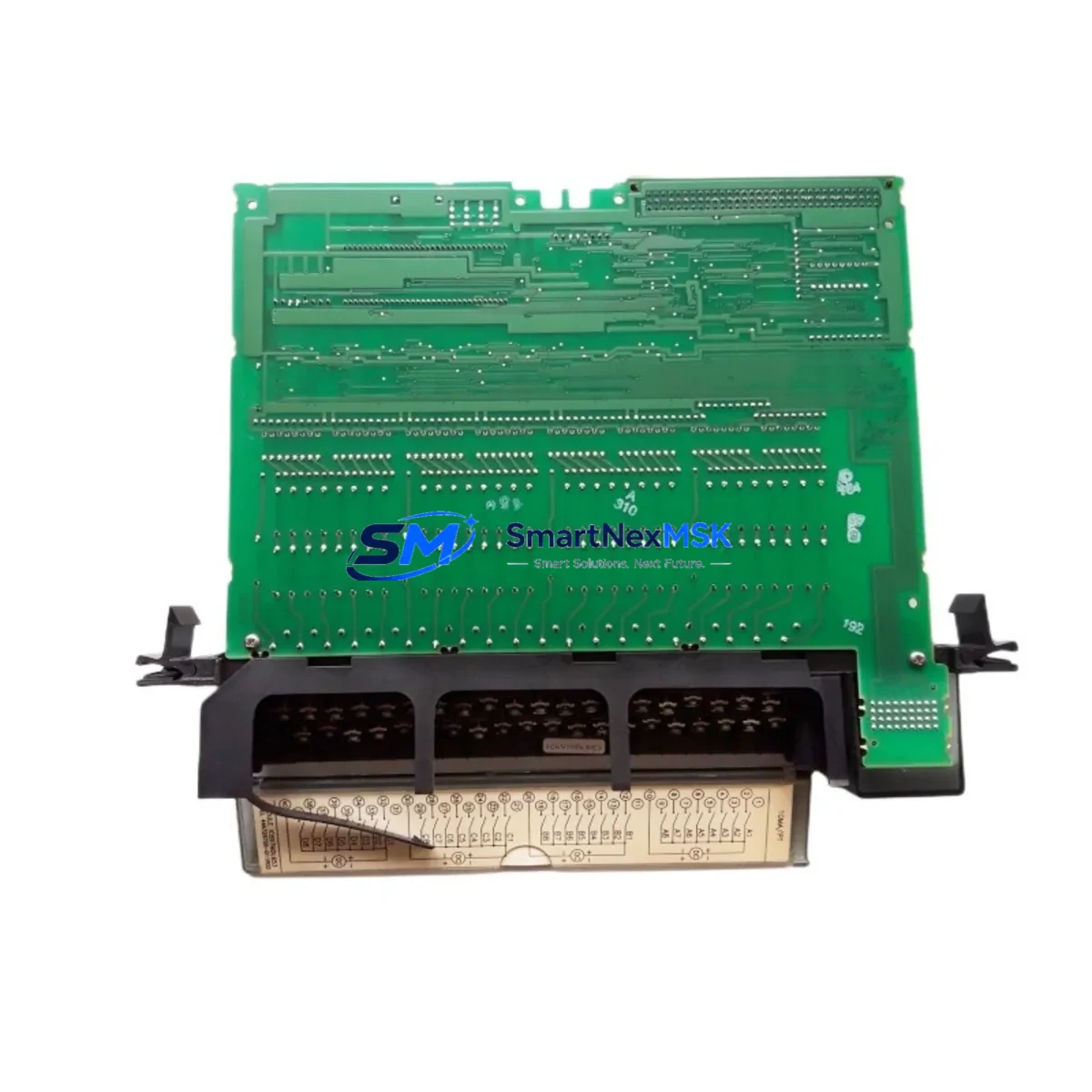

The GE IC697MDL653 is a 32-channel discrete input module designed for the GE Series 90-70 PLC platform — one of the most widely deployed programmable logic controller architectures in heavy industry, power generation, water treatment, and process manufacturing. As original production of this module has been discontinued, maintaining a verified spare in your parts inventory is a critical element of any proactive maintenance strategy. Unplanned downtime caused by a failed input module can halt an entire production line within minutes. Having a tested, ready-to-install IC697MDL653 on the shelf is the most direct way to reduce mean time to repair (MTTR) and protect operational continuity.

This unit is sourced as an original GE spare, fully inspected and function-tested prior to shipment. It is compatible with the IC697 backplane architecture and integrates directly with Series 90-70 CPU modules including the IC697CPU772, IC697CPU781, and IC697CPU788. Each unit ships with a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or procurement engineer schedules a planned inspection or responds to an unplanned fault on a Series 90-70 rack, replacing the IC697MDL653 is rarely an isolated task. A thorough site assessment should include a review of the entire I/O subsystem and power distribution chain to prevent repeat failures and ensure the restored system operates reliably.

Begin with the IC697PWR711 or IC697PWR724 power supply module — a degraded power supply is one of the most common root causes of intermittent discrete input faults. Verify output voltage stability under load before re-energizing the replaced input module. Next, inspect the IC697BEM711 bus expansion module if the rack is part of a multi-rack configuration; a loose or corroded bus connector can cause false input states across multiple modules simultaneously.

For signal integrity, check the field wiring terminations at the IC697MDL340 or IC697MDL341 output modules in the same control loop — a shorted output driving an input can damage the input module over time. If the system uses IC697CMM742 or IC697CMM711 communications modules for remote I/O or network connectivity, confirm that communication health indicators are normal after the module swap, as a rack reset can temporarily disrupt network registration.

In systems with analog signal conditioning, inspect any IC697ALG320 or IC697ALG440 analog input modules sharing the same rack for signs of electrical noise or ground loop issues — these can induce false transitions on adjacent discrete input channels. Terminal blocks and field wiring connectors should be torqued to specification and inspected for oxidation, particularly in humid or coastal environments.

For facilities running legacy HMI systems connected to the Series 90-70 CPU, verify that the IC697CMM741 or equivalent SNP/SNPX communication module is functioning correctly after the rack power cycle. A module replacement that triggers a CPU restart may require the HMI to re-establish its communication session. Finally, review the fuse ratings on the field-side terminal strips — undersized or degraded fuses are a frequent cause of nuisance input faults that are misdiagnosed as module failures.

Maintaining a minimum spare inventory of one IC697MDL653 per active Series 90-70 rack, alongside a spare power supply and at least one communications module, is a widely adopted best practice in facilities where this platform supports critical process control.

Site Replacement Workflow

Step 1 — Fault Isolation: Use the Series 90-70 programmer software (Logicmaster 90-70 or Proficy Machine Edition) to confirm the fault is isolated to the IC697MDL653 slot. Check the module status LED and the I/O fault table in the CPU before pulling the module.

Step 2 — Safe De-energization: Follow your site LOTO (Lockout/Tagout) procedure. De-energize the rack power supply and disconnect field wiring connectors from the module faceplate. Label all connectors before removal to ensure correct re-termination.

Step 3 — Module Swap: Slide the IC697MDL653 out of the backplane slot. Inspect the backplane connector pins for damage or contamination. Insert the replacement module firmly until the backplane connector is fully seated. Re-attach field wiring connectors in the correct orientation.

Step 4 — Power-Up and Verification: Re-energize the rack. Confirm the module status LED transitions to a healthy state. Use the programmer to force individual input channels and verify correct state reporting in the I/O table. Check for any new fault entries in the CPU diagnostic log.

Step 5 — System Handover: Document the replacement in your maintenance management system (CMMS), including the date, replaced part number, and post-replacement test results. Update your spare parts inventory record to trigger a reorder for the consumed spare.

This workflow is applicable whether replacing a failed module in an emergency shutdown scenario or performing a scheduled swap during a planned maintenance window. The IC697MDL653 is a direct slot-for-slot replacement — no CPU configuration changes are required when replacing with an identical module type.

Spare Parts Support FAQ

Q: Is the IC697MDL653 still in production, and how long can I expect supply availability?
A: GE has discontinued active production of the IC697MDL653 as part of the broader Series 90-70 end-of-life transition. However, original surplus stock remains available through authorized industrial spare parts suppliers. SMARTNEXMSK maintains verified inventory of this module and can support long-term procurement planning for facilities that intend to operate Series 90-70 systems beyond the OEM support window.

Q: How is the IC697MDL653 tested before shipment?
A: Each unit undergoes functional verification prior to shipment, including backplane communication checks and discrete input channel response testing. Units that do not pass functional testing are not offered for sale. A 12-month warranty is included with every shipment, covering functional failure under normal operating conditions.

Q: Can the IC697MDL653 be installed in any Series 90-70 rack slot?
A: The IC697MDL653 is compatible with any I/O slot in a standard IC697 Series 90-70 rack. It is not compatible with the CPU slot or the power supply slot. After installation, the slot assignment must be confirmed in the CPU configuration using Logicmaster 90-70 or Proficy Machine Edition to ensure correct I/O mapping.

Q: What is your lead time and shipping policy for urgent replacement orders?
A: In-stock units ship within 1–3 business days. For urgent downtime recovery situations, please contact our sales team directly at [email protected] or +86 18259474341 to discuss expedited shipping options. We support international shipments with full export documentation.
