GE IS200SRTDH2A Safety-Enhanced RTD Input for Harsh Industrial Sites

GE IS200SRTDH2A Safety-Enhanced RTD Input for Harsh Industrial Sites

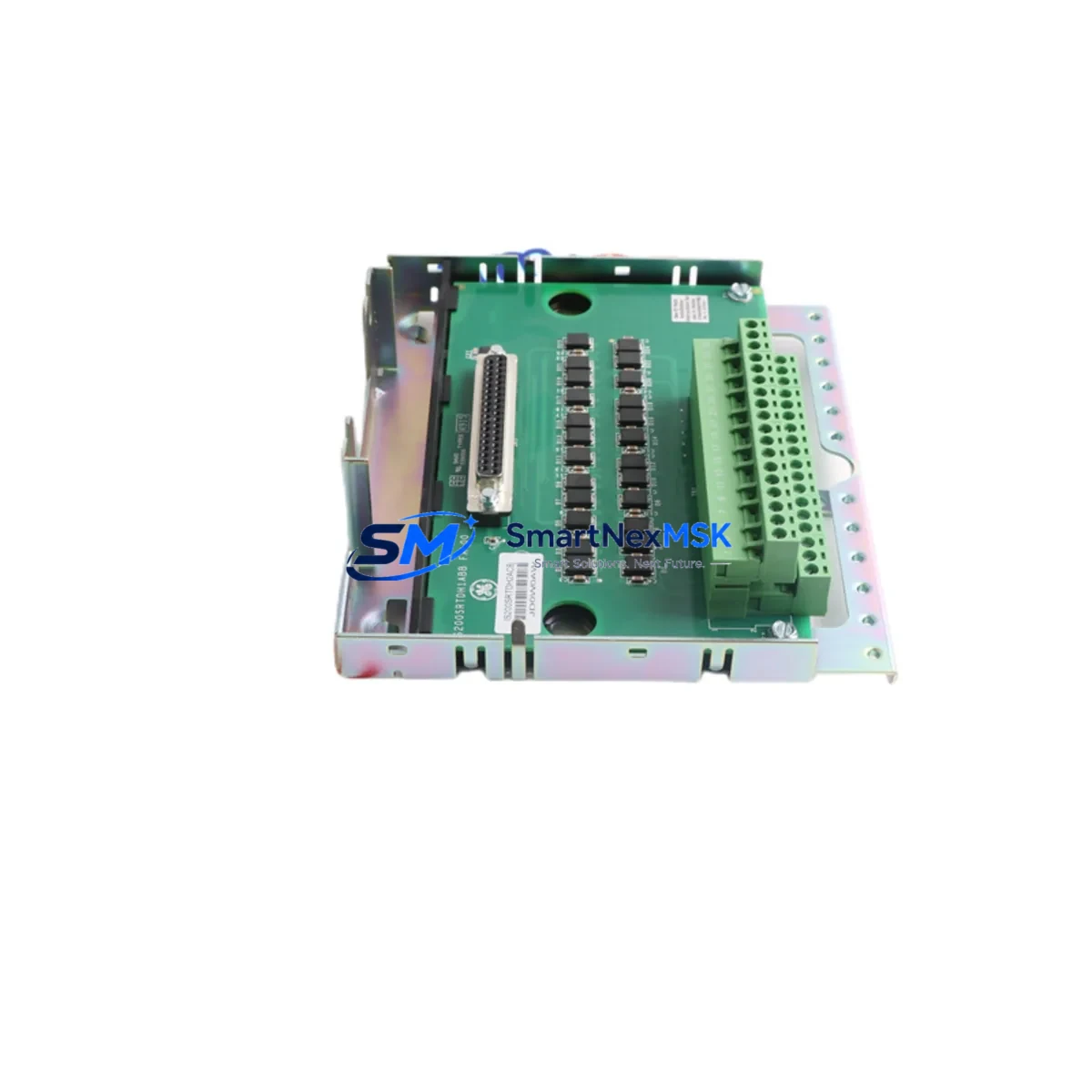

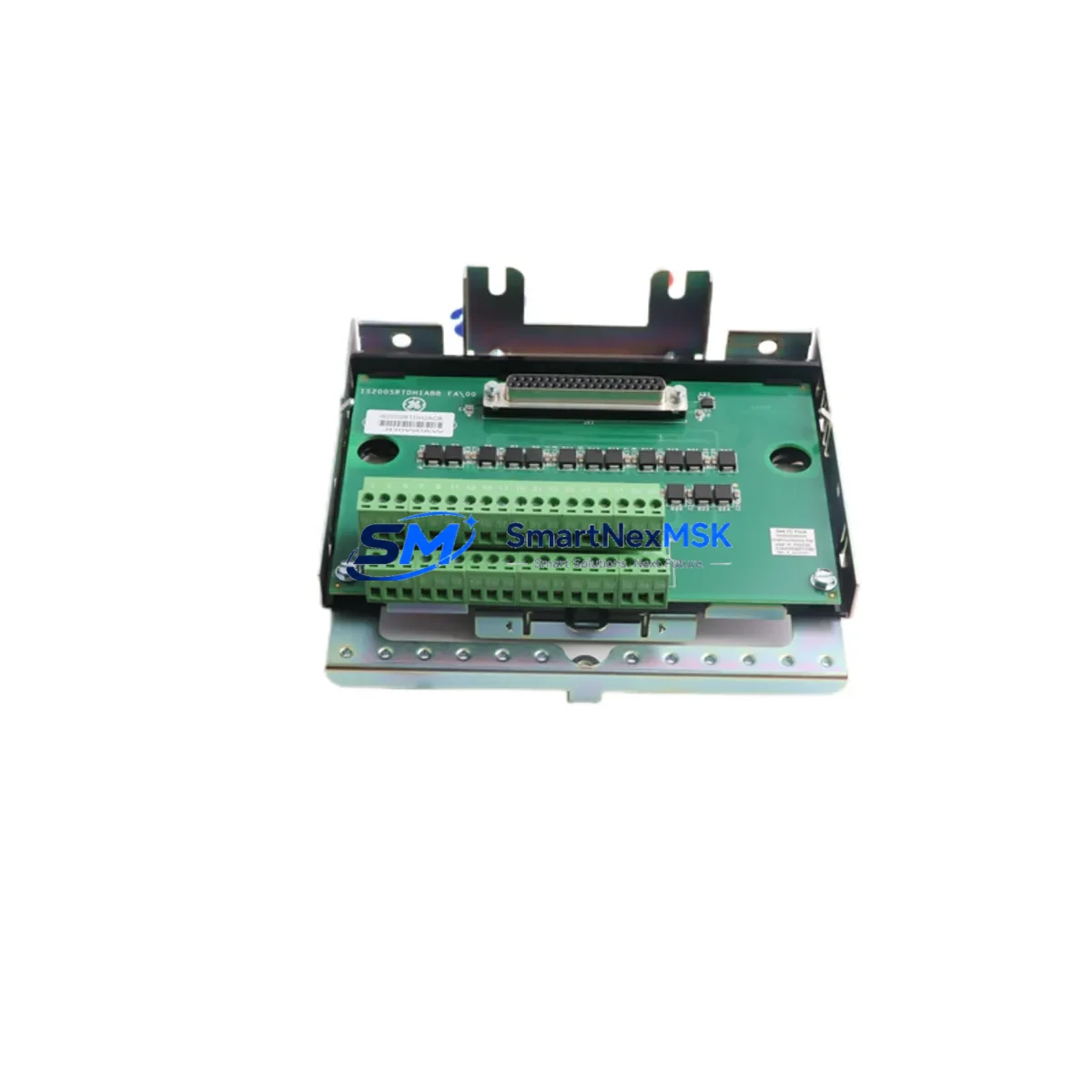

The GE IS200SRTDH2A is a ruggedized RTD (Resistance Temperature Detector) Input Module designed for the GE Mark VI Turbine Control System. Built to operate reliably in high-load, high-interference, and continuous-production industrial environments, this module serves as a critical sensing interface in safety-critical control loops — including gas turbine protection, steam turbine interlocks, compressor monitoring, and power generation safety circuits. Its robust signal conditioning architecture ensures accurate temperature measurement even under severe electromagnetic interference, ground potential fluctuations, and power supply transients that are common in heavy industrial facilities.

In demanding applications such as petrochemical plants, offshore platforms, metallurgical furnaces, coal-fired power stations, and large-scale water treatment facilities, temperature signal integrity is non-negotiable. A drifting or failed RTD input can trigger spurious trips, mask genuine overtemperature conditions, or cause delayed protective shutdowns — all of which carry significant safety and financial consequences. The IS200SRTDH2A addresses these risks through hardware-level channel isolation, differential input measurement, and onboard signal validation that continuously monitors for open-circuit, short-circuit, and out-of-range RTD faults before they propagate to the control decision layer.

Safety Reliability Table

Control Cabinet Protection Strategy

In a Mark VI turbine control cabinet, the IS200SRTDH2A does not operate in isolation — it is one node in a tightly integrated safety and control architecture. Reliable temperature measurement depends on the integrity of the entire signal chain, from field sensor to control decision. The IS200SRTDH2A interfaces directly with the IS200STCIH2A Terminal Board, which provides the physical RTD wiring termination points and surge clamping at the cabinet entry point. This terminal board acts as the first line of defense against field-side transients caused by lightning strikes, motor switching, or ground faults in the field wiring.

Upstream of the RTD module, the IS200EPCTG1A Power Distribution Board regulates and distributes backplane power across the I/O rack. Stable, clean DC power is essential for accurate analog measurement — any ripple or dropout on the supply rail directly degrades RTD measurement resolution. The IS200SRTDH2A’s onboard voltage regulation provides a secondary layer of protection, but the system-level power quality established by the EPCT board remains foundational to measurement integrity.

For turbine protection interlocks, the IS200SRTDH2A works in concert with the IS200SVPAG1A Vibration and Protection Module, which monitors shaft vibration and axial displacement. Together, these two modules feed the IS215UCVEH2A Mark VIe Controller — the central processing unit that executes the turbine protection logic. If the RTD module detects a bearing overtemperature condition while the vibration module simultaneously reports elevated shaft vibration, the controller can initiate a coordinated protective trip before catastrophic mechanical failure occurs. This multi-parameter safety logic is only possible when all input modules maintain signal fidelity under the same harsh operating conditions.

Communication reliability is maintained through the IS200IOCIH2A IONet Communication Interface Module, which manages the redundant IONET bus connecting I/O modules to the Mark VI controller. In high-EMI environments — such as those near large transformers, variable frequency drives, or high-current bus bars — the IONET bus can be susceptible to communication errors that cause module timeouts or false fault alarms. The IS200SRTDH2A’s communication stack is hardened against these conditions, but pairing it with a properly shielded and terminated IONET cable assembly and a healthy IS200IOCIH2A module ensures end-to-end communication integrity.

For facilities operating redundant Mark VI configurations, the IS200SRTDH2A supports triple-redundant (TMR) architectures alongside companion modules such as the IS200SRTDH2B variant and associated voting logic within the IS215UCVEH2A controller. In TMR configurations, three independent RTD input channels vote on the measured temperature, and the system continues to operate safely even if one channel fails — a critical capability for nuclear auxiliary systems, offshore gas compression, and other SIL-rated applications. Additionally, the IS200SHVOH1A High-Voltage Output Module and IS200SANAAH1A Analog Output Module are commonly co-located in the same I/O rack, and their correct operation depends on the same stable backplane power and communication infrastructure that the IS200SRTDH2A relies upon.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In continuous catalytic cracking units, hydrotreaters, and distillation columns, precise temperature monitoring is a process safety requirement. The IS200SRTDH2A provides the reliable RTD input needed to enforce high-temperature interlocks that prevent runaway reactions, protect heat exchangers, and ensure safe operation of fired heaters. Its resistance to hydrogen sulfide-laden atmospheres and high-humidity environments makes it suitable for installation in control rooms adjacent to process areas.

Power Generation — Gas and Steam Turbines: This is the IS200SRTDH2A’s primary design environment. In combined-cycle power plants, the module monitors bearing temperatures, exhaust gas temperatures, and cooling air temperatures across the turbine train. Accurate, fault-tolerant RTD measurement is essential for both performance optimization and protective shutdown logic. A single missed overtemperature event can result in bearing seizure, blade damage, or catastrophic turbine failure — consequences that the IS200SRTDH2A is specifically engineered to prevent.

Mining and Mineral Processing: Large grinding mills, conveyor drive motors, and crusher bearings generate significant heat under continuous heavy load. The IS200SRTDH2A, integrated into a Mark VI-based drive protection system, provides the temperature monitoring backbone for predictive maintenance programs and emergency shutdown systems in these high-availability, high-consequence environments.

Water and Wastewater Treatment: Pump motor windings, blower bearings, and UV disinfection system components all require temperature monitoring for both safety and regulatory compliance. The IS200SRTDH2A’s multi-channel capability allows a single module to monitor multiple assets simultaneously, reducing cabinet footprint while maintaining the measurement accuracy required for environmental compliance reporting.

Metallurgy and Steel Production: Electric arc furnaces, ladle furnaces, and continuous casting lines operate in extreme thermal and electromagnetic environments. The IS200SRTDH2A’s galvanic isolation and EMI filtering capabilities are particularly valuable in these settings, where high-current switching events can induce millivolt-level noise on unprotected signal cables — noise that would corrupt temperature readings and potentially mask dangerous overtemperature conditions in refractory linings or cooling water circuits.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the IS200SRTDH2A?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions. If the module fails to perform its specified RTD input functions within the warranty period, SMARTNEXMSK will provide a replacement or full refund. The warranty period begins from the date of confirmed delivery. Warranty claims are processed within 5 business days of receiving the returned unit.

Q2: What pre-shipment testing is performed on the IS200SRTDH2A?
Every IS200SRTDH2A unit undergoes a full functional test before dispatch. This includes power-on verification, channel-by-channel RTD simulation testing across the full measurement range, communication interface validation, and visual inspection for physical damage or component anomalies. A test report is available upon request for customers requiring documentation for their incoming inspection records.

Q3: Is the IS200SRTDH2A compatible with all Mark VI system configurations?
The IS200SRTDH2A is designed for use within the GE Mark VI and Mark VIe turbine control platform. It is compatible with IS200 series terminal boards, standard Mark VI I/O racks, and both simplex and TMR (Triple Modular Redundant) system architectures. Customers should verify the specific terminal board and rack revision requirements for their installation. Our technical team can assist with compatibility confirmation prior to purchase.

Q4: Can SMARTNEXMSK guarantee long-term supply and replacement support for the IS200SRTDH2A?
Yes. SMARTNEXMSK maintains dedicated inventory of Mark VI series modules, including the IS200SRTDH2A, to support both planned maintenance programs and emergency replacement requirements. We understand that unplanned downtime in turbine control systems carries significant operational and financial consequences. Our stock is continuously replenished, and we offer expedited shipping options for urgent requirements. For facilities with large Mark VI fleets, we recommend establishing a standing spare parts agreement to ensure guaranteed availability.
