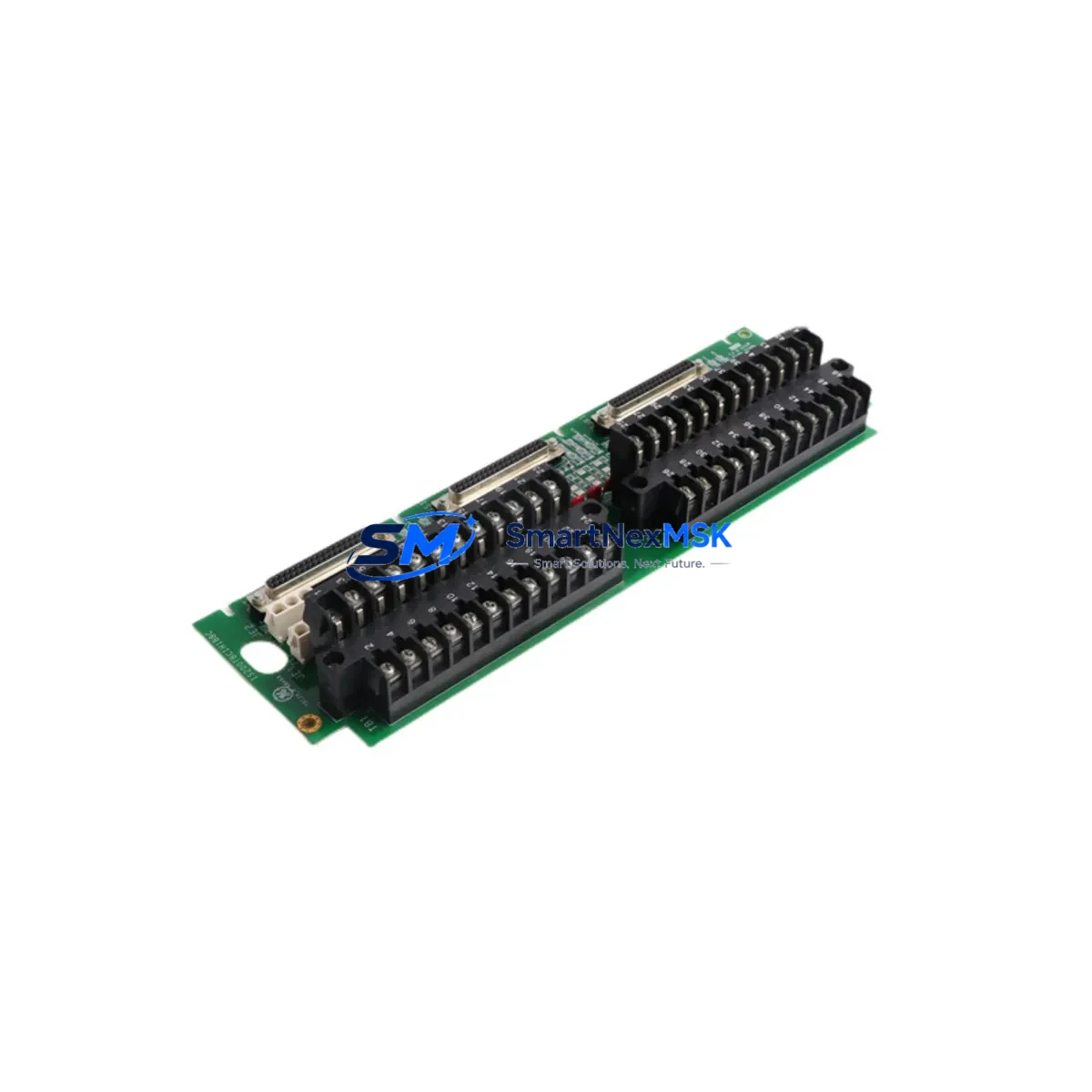

GE IS200TBCIH1BBC Maintenance-Ready Spare for Mark VI Automation
The GE IS200TBCIH1BBC is an original terminal board designed for the GE Mark VI turbine control system — one of the most widely deployed DCS/turbine control platforms in power generation, oil & gas, and heavy industrial facilities worldwide. As a maintenance-ready spare, the IS200TBCIH1BBC serves as a critical interface component between the Mark VI controller backplane and field I/O wiring, enabling fast, reliable restoration of turbine control loops during both planned outages and emergency shutdowns.
For maintenance engineers managing aging Mark VI cabinets, having a verified IS200TBCIH1BBC on the shelf is not optional — it is a fundamental element of any credible spare parts strategy. Terminal board failures are among the most common causes of unplanned turbine trips, and the IS200TBCIH1BBC is a high-wear component subject to thermal cycling, vibration, and connector fatigue over years of continuous operation. A pre-tested replacement unit eliminates the diagnostic uncertainty that extends downtime and increases recovery costs.
Spare Maintenance Table
| Parameter | Specification / Detail |
|---|---|
| Part Number | IS200TBCIH1BBC |
| Alternate Revision | IS200TBCIH1B |
| Manufacturer | General Electric (GE) |
| Series | Mark VI Turbine Control System |
| Component Type | Terminal Board / I/O Interface Board |
| Application | Gas turbine, steam turbine, combined-cycle plant control |
| Compatibility | GE Mark VI, Mark VIe control cabinets; compatible with VCMI, VTUR, VGEN I/O packs |
| Mounting | DIN rail / cabinet backplane mount |
| Operating Temperature | 0°C to 60°C (standard industrial enclosure) |
| Weight | Approx. 540 g |
| Origin | United States |
| Condition | Original, tested, ready-to-ship |
| Warranty | 12 Months — covers functional failure under normal operating conditions |
| Lead Time | In stock — ships within 1–3 business days |
| Inspection | Pre-shipment functional verification and visual inspection |
Maintenance Planning for Continuous Operation
When a maintenance or procurement engineer schedules replacement of the IS200TBCIH1BBC, the terminal board should never be treated in isolation. The Mark VI control cabinet is an integrated system, and a terminal board swap is the ideal opportunity to audit the health of surrounding components that share the same electrical loop, backplane, or wiring harness.
Begin with the I/O pack modules connected to this terminal board — units such as the IS200VTURH1B (turbine I/O pack) or IS200VCMIH2C (communication interface module) should be inspected for connector wear, firmware currency, and thermal discoloration. A degraded I/O pack will cause recurring faults even after a clean terminal board replacement.
Next, verify the 24 VDC power supply rails feeding the Mark VI cabinet. GE Mark VI systems typically rely on redundant power supply modules such as the IS200EPCTG1A or equivalent; confirm output voltage stability and check for capacitor bulge or ripple noise that could corrupt I/O signal integrity. Alongside power, inspect the terminal block assemblies and field wiring terminations — corroded or loose terminals on the IS200TBCIH1BBC connector rows are a leading cause of intermittent sensor faults that are frequently misdiagnosed as controller failures.
For sites running redundant Mark VI controllers, also check the IS200DSPXH1D DSP controller board and the associated IS200TRLYH1B relay output terminal board for contact wear and coil resistance drift. Relay output boards in turbine trip circuits are safety-critical and should be tested under load during any planned outage window. If the cabinet includes a Mark VI HMI interface or Cimplicity workstation link, verify the RS-232/RS-485 communication cables and IS200ECTBG1A Ethernet communication terminal board for signal continuity.
Finally, review the fuse holders and miniature circuit breakers within the control cabinet. Blown or weakened fuses are often overlooked during terminal board replacements and can cause the new board to appear faulty on first power-up. A complete cabinet inspection — covering the IS200TBCIH1BBC, associated I/O packs, power modules, relay boards, communication interfaces, and protective devices — transforms a reactive repair into a proactive maintenance event that extends system life and reduces the probability of the next unplanned trip.
Site Replacement Workflow
Step 1 — Pre-replacement verification: Confirm the IS200TBCIH1BBC part number and revision against the cabinet wiring diagram and GE Mark VI BOM. Cross-check IS200TBCIH1B revision compatibility if the original unit is an earlier build. Document all field wiring terminal assignments before disconnection.
Step 2 — Safe isolation: Follow site LOTO (Lockout/Tagout) procedures. De-energize the affected I/O loop. For redundant Mark VI systems, confirm the standby controller has assumed control before removing the active terminal board.
Step 3 — Physical swap: Remove the failed IS200TBCIH1BBC by releasing the backplane connector and field wiring terminal blocks. Install the replacement unit, ensuring the backplane connector seats fully and all terminal block screws are torqued to specification. Avoid over-tightening, which can crack the PCB mounting points.
Step 4 — Wiring restoration and continuity check: Reconnect field wiring per the documented terminal assignments. Perform a point-to-point continuity check before energizing. Verify shield grounding is intact on all analog signal cables.
Step 5 — Power-up and functional test: Re-energize the cabinet and observe the Mark VI diagnostic display for fault codes. Confirm all I/O points associated with the IS200TBCIH1BBC return to healthy status. Run a loop test on critical sensors (speed, temperature, pressure) before returning the turbine to service.
Step 6 — Documentation and spare replenishment: Log the replacement in the site CMMS. Immediately initiate a purchase order for a replacement IS200TBCIH1BBC to restore your on-hand spare inventory. Downtime risk resets to zero only when the shelf spare is back in place.
Spare Parts Support FAQ
Q1: Is the IS200TBCIH1BBC compatible with both Mark VI and Mark VIe systems?
The IS200TBCIH1BBC is primarily designed for the GE Mark VI platform. Compatibility with Mark VIe cabinets depends on the specific I/O pack and backplane configuration. We recommend confirming the cabinet BOM and I/O pack model (e.g., VCMI, VTUR) before ordering. Our technical team can assist with cross-reference verification prior to shipment.
Q2: What does the 12-month warranty cover?
The 12-month warranty covers functional failure of the IS200TBCIH1BBC under normal operating conditions — including I/O signal faults, connector failures, and board-level component defects. It does not cover damage caused by incorrect installation, overvoltage events, or physical impact. All units are pre-tested before shipment to confirm baseline functionality.
Q3: How quickly can the IS200TBCIH1BBC be shipped for an emergency outage?
Units in stock ship within 1–3 business days via express international freight. For critical emergency situations, contact our sales team directly at [email protected] or +86 18259474341 to arrange priority dispatch. We maintain stock specifically to support unplanned outage recovery scenarios.
Q4: Can I return a failed IS200TBCIH1BBC for exchange or repair credit?
Yes. We accept returns of failed units within the warranty period for evaluation. If the failure is confirmed as a manufacturing or component defect, we will provide a replacement unit or repair credit. Please contact our support team with the unit serial number and a description of the fault symptoms before returning the item.
