GE IS200VAICH1DAA Retrofit-Ready Analog I/O for Mark VI

GE IS200VAICH1DAA Retrofit-Ready Analog I/O for Mark VI Control Systems

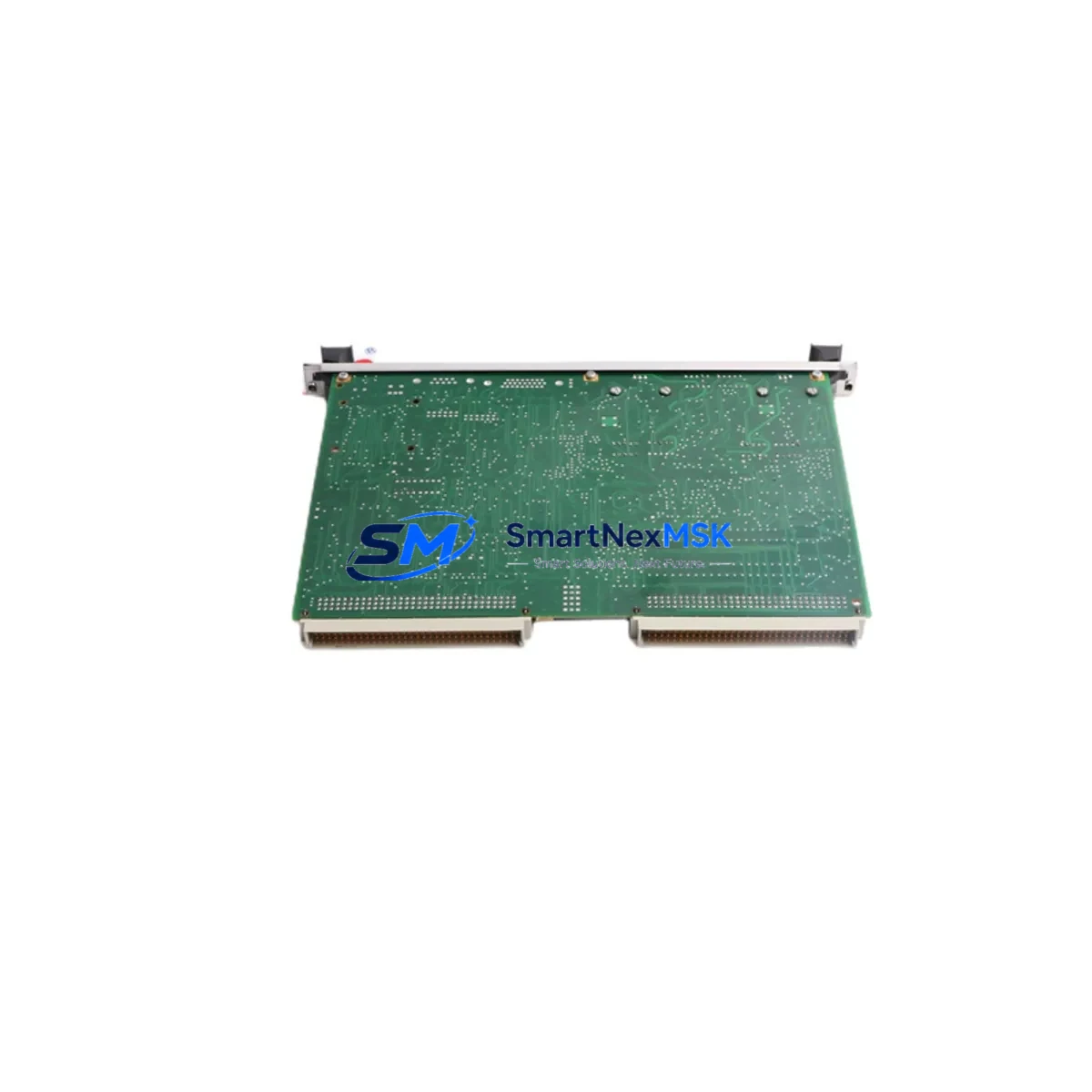

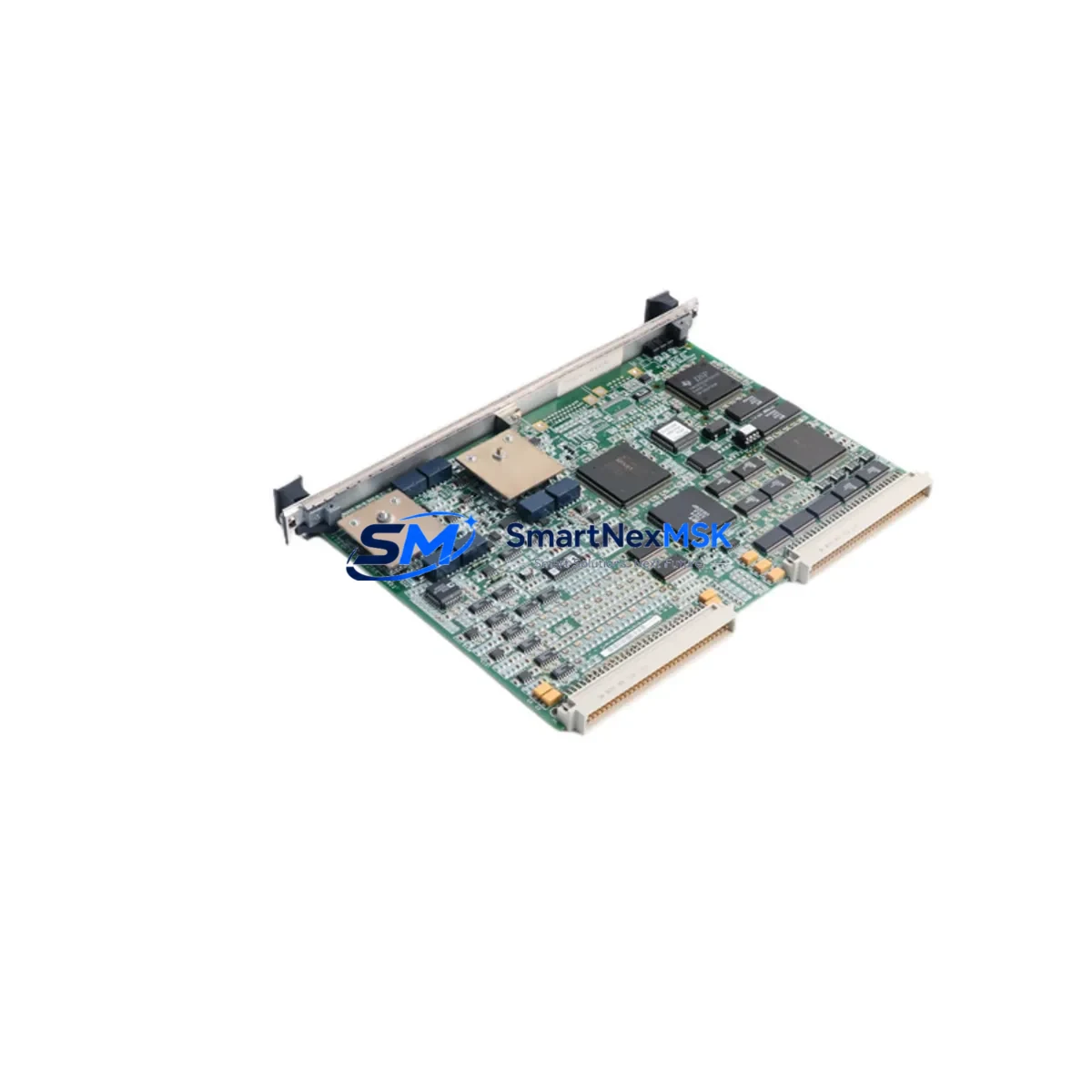

The GE IS200VAICH1DAA is a high-reliability analog input and contact handler board engineered for seamless integration into GE Mark VI Distributed Control System (DCS) architectures. As legacy Mark V and early Mark VI installations approach end-of-life, plant engineers and system integrators increasingly rely on the IS200VAICH1DAA as a verified drop-in replacement that preserves existing wiring infrastructure, backplane compatibility, and control logic continuity — minimizing retrofit risk and unplanned downtime.

Sourced from certified supply channels and subject to full functional verification prior to shipment, every IS200VAICH1DAA unit supplied by SMARTNEXMSK undergoes bench-level testing against GE’s original performance specifications. Our 12-month warranty covers all supplied modules against manufacturing defects and functional failure under normal operating conditions.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful IS200VAICH1DAA retrofit begins well before the module arrives on-site. During the planning phase, engineers should pull the existing rack layout drawing to confirm the slot position of the failed or aging board within the Mark VI I/O rack. The IS200VAICH1DAA occupies a standard VME slot and interfaces with the system through a passive backplane — the same architecture used by companion modules such as the IS200VCRCH1B (contact input module) and the IS200VSVOH1B (servo output module), which may also require attention during a broader control cabinet upgrade.

Power budget verification is a critical pre-installation step. The IS200VAICH1DAA draws regulated voltage from the rack’s power distribution board — typically an IS200EPCTG1A or IS200EPCTG1B — and any degraded or undersized power supply will cause intermittent faults even with a new module installed. Confirm that the power supply’s total load capacity accommodates all populated slots before proceeding.

Terminal wiring is handled through a dedicated I/O terminal board, most commonly the IS200TBCIH1C or IS200TBCIH1D, which connects to the IS200VAICH1DAA via a ribbon cable assembly. In most retrofit scenarios, the terminal board and field wiring remain completely undisturbed — only the module itself is swapped. This dramatically reduces the risk of wiring errors and shortens the commissioning window.

For plants running Mark VI controllers such as the IS215UCVEH2A or IS215UCVEH2B, the I/O configuration for the IS200VAICH1DAA is stored in the controller’s ToolboxST project file. After physical installation, the engineer must re-download the I/O configuration to re-establish the module’s channel assignments, scaling parameters, and alarm limits. No hardware address changes are required when replacing a module in the same slot with the same revision family.

In systems where the Mark VI DCS interfaces with a GE HMI platform — such as a Cimplicity-based operator workstation or a legacy IFIX display node — the analog input tags mapped to IS200VAICH1DAA channels will resume normal data acquisition automatically once the module is online and the I/O download is complete. No HMI screen modifications are required for a same-slot, same-revision replacement.

For plants considering a broader migration from Mark VI to Mark VIe, the IS200VAICH1DAA can serve as an interim solution within legacy I/O expansion racks while the migration is staged across multiple outage windows. This phased approach allows production to continue on the existing control platform while new Mark VIe controllers and IS200ECTBG1A Ethernet communication modules are commissioned in parallel.

Downtime Control During System Migration

Minimizing control system downtime during an IS200VAICH1DAA replacement requires a structured hot-swap protocol. Begin by placing the affected I/O group in a safe hold state through the Mark VI controller — most analog input groups can be forced to last-known-good values while the physical swap is performed, preserving downstream control loop stability and preventing spurious trips on interlock logic.

Before removing the failed module, photograph the existing terminal board connections and record the ribbon cable orientation. Although the IS200TBCIH1C terminal board remains in place, confirming cable seating after module installation prevents signal loss caused by partially engaged connectors. The physical swap itself typically takes under five minutes; the majority of the maintenance window is consumed by pre-swap verification and post-swap functional testing.

After installing the IS200VAICH1DAA and re-downloading the ToolboxST I/O configuration, perform a channel-by-channel signal verification using a calibrated loop calibrator or signal simulator. Confirm that each analog input channel reads within the expected engineering unit range before releasing the control group from hold state. For contact input channels, verify discrete state transitions against the field device to confirm wiring continuity through the terminal board.

Document the completed replacement in the plant’s maintenance management system, including the module serial number, slot position, firmware revision, and the date of the ToolboxST configuration download. This record supports future troubleshooting and satisfies audit requirements for safety-instrumented systems operating under IEC 61511 or similar functional safety standards.

Retrofit Support FAQ

Q1: Is the IS200VAICH1DAA a direct drop-in replacement for the IS200VAICH1CAA and IS200VAICH1BAA?
Yes. The DAA revision is backward-compatible with earlier CAA and BAA revisions within the same slot and rack configuration. No wiring changes, address jumper modifications, or ToolboxST project edits are required — only a re-download of the existing I/O configuration after installation.

Q2: What pre-shipment testing does SMARTNEXMSK perform on the IS200VAICH1DAA?
Every unit undergoes functional bench testing prior to dispatch, verifying analog input channel response, contact input state detection, backplane communication integrity, and power rail stability. A test report is available upon request. All units are covered by a 12-month warranty against functional failure under normal operating conditions.

Q3: Can the IS200VAICH1DAA be used in a Mark VIe system?
The IS200VAICH1DAA is natively designed for Mark VI I/O racks. In Mark VIe installations, it can be used within legacy I/O expansion racks that retain the VME-style backplane architecture. Confirm rack type and I/O bus compatibility with your ToolboxST project configuration before ordering for a Mark VIe application.

Q4: What is the lead time and how is the module packaged for shipment?
In-stock units ship within 1–3 business days. Each IS200VAICH1DAA is packaged in anti-static ESD shielding with foam cushioning to prevent transit damage. Export documentation, including commercial invoice and packing list, is provided for international shipments. Contact [email protected] for expedited shipping options.
