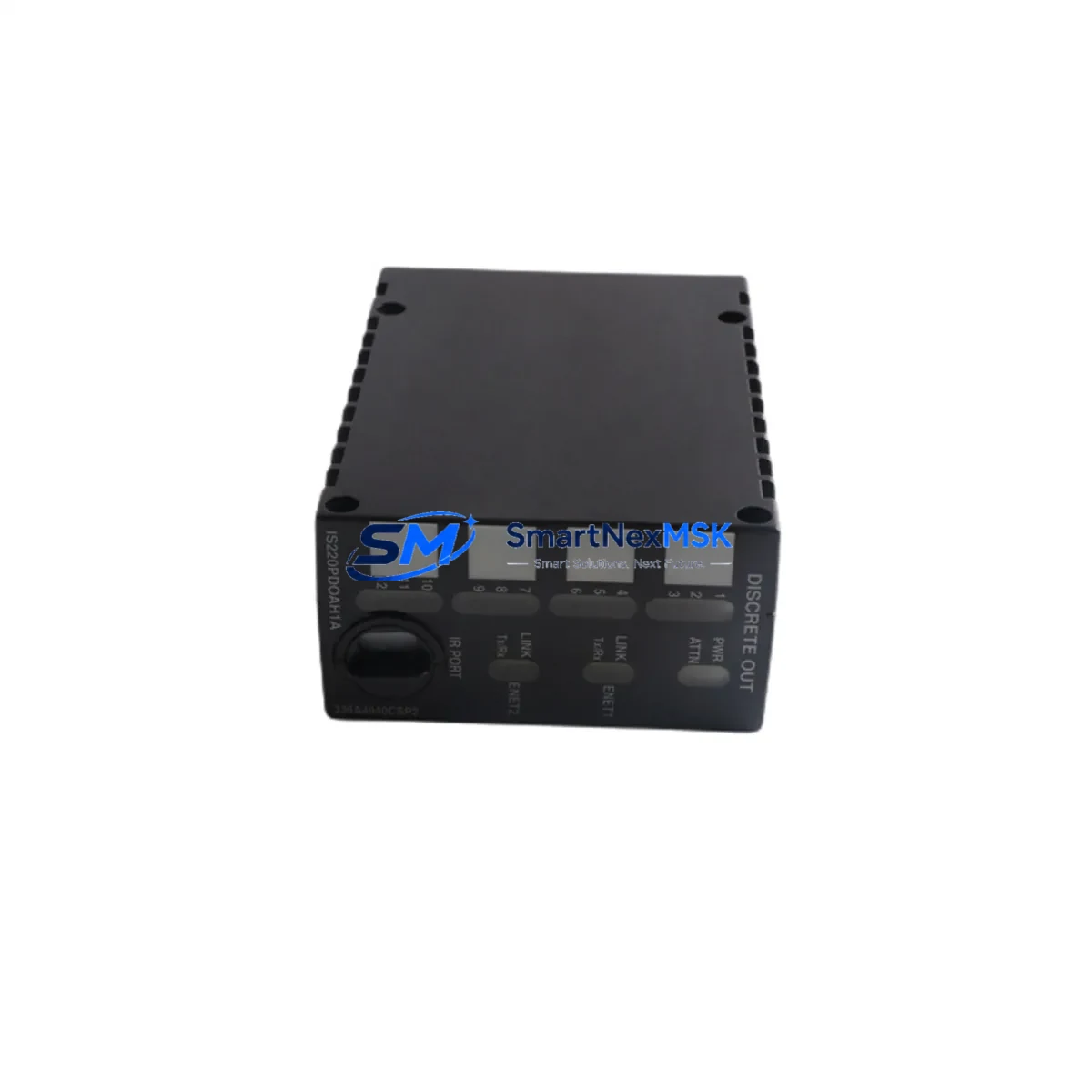

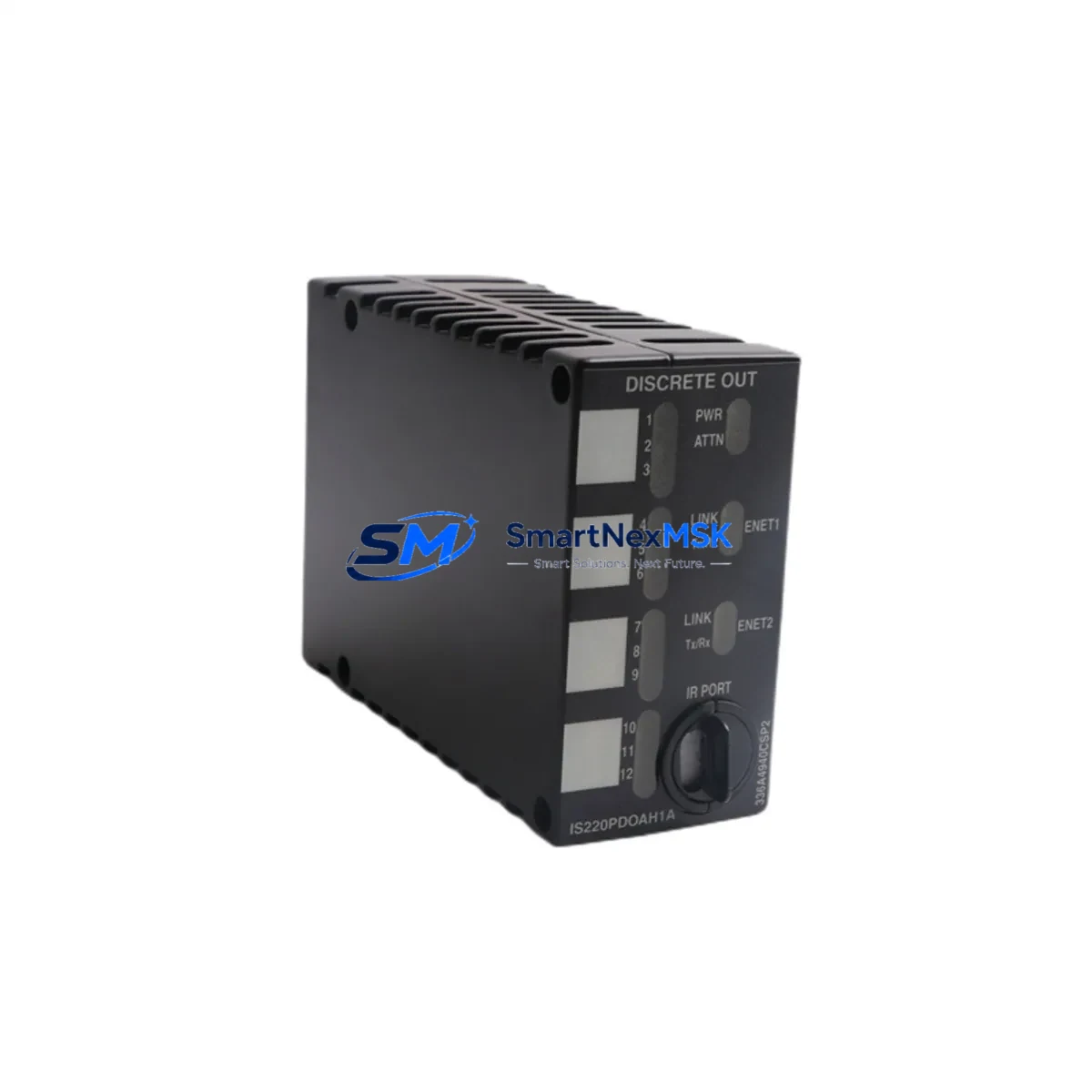

GE IS220PDOAH1A Safety-Enhanced Discrete Output Module: Reliable Control for Harsh Industrial Sites
The GE IS220PDOAH1A is a high-integrity discrete output module engineered for the GE Mark VIe distributed control system platform. Designed to operate reliably in high-load, high-interference, and continuous-production environments, this module delivers deterministic output switching for critical control loops in power generation, petrochemical processing, metallurgical operations, and heavy industrial automation. Its ruggedized architecture ensures stable field performance where control interruption, signal drift, or module misfiring can result in costly downtime or safety incidents.
In demanding industrial control cabinets — where voltage transients, ground loops, and electromagnetic interference are constant threats — the IS220PDOAH1A maintains output integrity through robust isolation and surge suppression circuitry. Whether deployed in turbine control panels, compressor safety interlocks, or boiler management systems, this module provides the output switching reliability that critical process safety demands.
Safety Reliability Table
| Parameter | Specification |
|---|---|
| Part Number | IS220PDOAH1A |
| Platform | GE Mark VIe DCS |
| Module Type | Discrete Output Module |
| Output Channels | 24 VDC / 120 VAC discrete outputs (solid-state) |
| Output Protection | Surge suppression, short-circuit protection, over-current protection |
| Isolation | Optical isolation per channel group |
| EMI/RFI Resistance | Designed to IEC 61000 industrial EMC standards |
| Operating Temperature | 0°C to +60°C (32°F to 140°F) |
| Humidity | 5% to 95% non-condensing |
| Mounting | Mark VIe I/O terminal board (PDOA series) |
| Communication | IONet Ethernet backbone (Mark VIe architecture) |
| Safety Compliance | Suitable for SIL-rated interlock applications (system-level) |
| Country of Origin | United States |
| Warranty | 12 Months — covers manufacturing defects and functional failure |
| Pre-shipment Testing | Full functional and output channel verification before dispatch |
Control Cabinet Protection Strategy
In a well-engineered Mark VIe control cabinet, the IS220PDOAH1A operates as part of a layered protection architecture. Its discrete outputs drive field devices — solenoid valves, motor starters, relay coils, and actuator pilots — that form the backbone of process safety and sequencing logic. To ensure uninterrupted operation, the module is typically paired with the IS220PDIAH1A discrete input module, which monitors field feedback signals and closes the control loop. Together, they provide the input-output symmetry required for reliable interlock verification.
Power integrity is equally critical. The IS220PDOAH1A relies on stable 28 VDC I/O power supplied through the IS220PPDAH1A power distribution module, which conditions and distributes regulated voltage across the I/O terminal board assembly. Upstream, the IS200EPCTG1A controller card coordinates output commands via the IONet Ethernet backbone, ensuring deterministic scan-cycle execution even under high-load conditions.
For applications requiring redundant output capability, the module integrates with the IS220PDOAH1B variant or operates within a TMR (Triple Modular Redundancy) configuration using the IS215VCMIH2C VME communication module to maintain output availability during single-point failures. Surge events from inductive field loads — motor contactors, solenoids, and relay coils — are managed through proper snubber circuits and the IS200TREGH1B terminal board’s built-in transient suppression features.
Communication health across the IONet network is monitored by the IS220PSCAH1A system controller, which detects module faults, communication timeouts, and output discrepancies in real time. For installations in hazardous classified areas or near high-voltage switchgear, the IS220PDOAH1A’s optical isolation ensures that field-side transients do not propagate into the controller backplane — a critical safeguard against cascade failures in safety-critical control loops.
Critical Industrial Safety Applications
The GE IS220PDOAH1A is deployed across a wide range of heavy industrial and process-critical environments where output module reliability directly impacts operational safety:
Power Generation: In gas turbine and steam turbine control systems, the IS220PDOAH1A drives fuel valve actuators, inlet guide vane controls, and emergency trip solenoids. Its deterministic output response is essential for turbine protection systems where millisecond-level actuation delays can trigger cascade shutdowns or equipment damage.
Petrochemical & Refinery: In continuous process plants handling flammable or toxic media, discrete output modules control emergency shutdown (ESD) valves, blowdown systems, and fire and gas suppression actuators. The IS220PDOAH1A’s surge-protected outputs maintain switching integrity even in environments with high ground noise and frequent electrical transients from large motor drives.
Mining & Mineral Processing: Conveyor interlocks, crusher sequencing, and ventilation control in underground or open-pit mining operations demand output modules that withstand vibration, dust ingress, and wide temperature swings. The IS220PDOAH1A’s robust construction supports reliable operation in these mechanically and electrically harsh conditions.
Water & Wastewater Treatment: Pump station control, chemical dosing systems, and UV disinfection sequencing rely on discrete output modules for reliable on/off switching. The IS220PDOAH1A supports 24/7 continuous operation with minimal maintenance intervention, reducing the risk of unplanned field stops in critical municipal infrastructure.
Metallurgy & Steel Production: In electric arc furnace control, rolling mill sequencing, and ladle transfer automation, the IS220PDOAH1A operates within high-EMI environments generated by large power converters and induction heating systems. Its optical isolation and EMC-rated design prevent spurious output triggering that could cause equipment damage or personnel hazards.
Port & Material Handling: Crane control systems, automated stacker-reclaimers, and ship loader sequencing use discrete output modules to command hydraulic valves, brake releases, and motion interlocks. The IS220PDOAH1A’s reliable output switching ensures safe, coordinated motion control in high-cycle-rate material handling applications.
Safety and Quality FAQ
Q1: What warranty coverage is provided for the IS220PDOAH1A?
All IS220PDOAH1A units supplied by SMARTNEXMSK carry a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. Warranty claims are processed promptly with replacement or repair support to minimize your site downtime.
Q2: How is each module tested before shipment?
Every IS220PDOAH1A undergoes a full pre-shipment functional test, including output channel verification, isolation resistance check, and communication interface validation. Only modules that pass all test criteria are released for dispatch, ensuring you receive a field-ready unit.
Q3: Is the IS220PDOAH1A compatible with existing Mark VIe systems?
Yes. The IS220PDOAH1A is a direct-fit replacement for GE Mark VIe I/O configurations using the PDOA terminal board series. It is compatible with both simplex and TMR system architectures and requires no firmware modification for standard replacement installations.
Q4: Can long-term supply and spare parts support be guaranteed?
SMARTNEXMSK maintains dedicated inventory of IS220PDOAH1A and related Mark VIe I/O modules to support ongoing spare parts programs, planned maintenance shutdowns, and emergency replacement requirements. We provide stable, long-term supply with fast international shipping to minimize your critical spare lead times.
