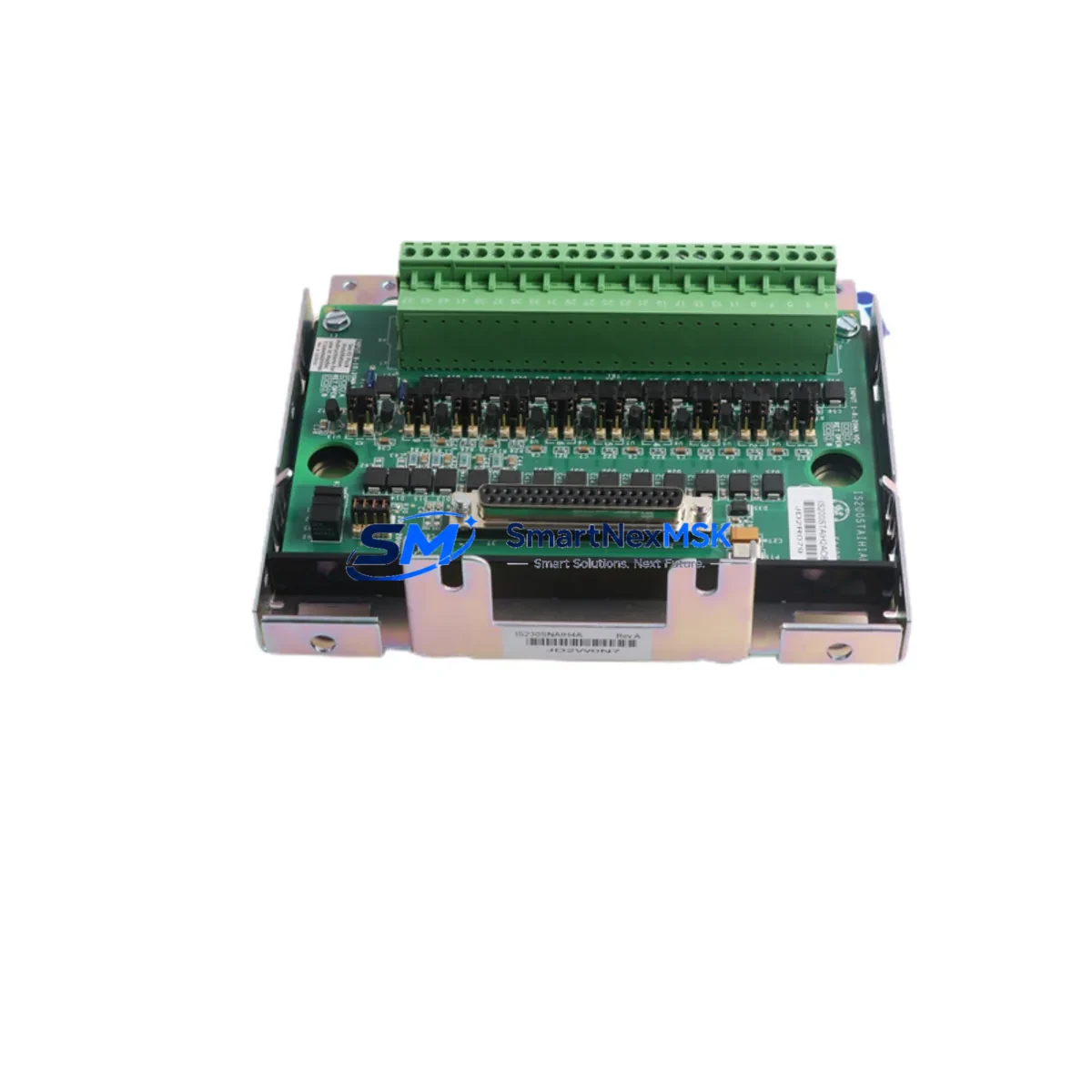

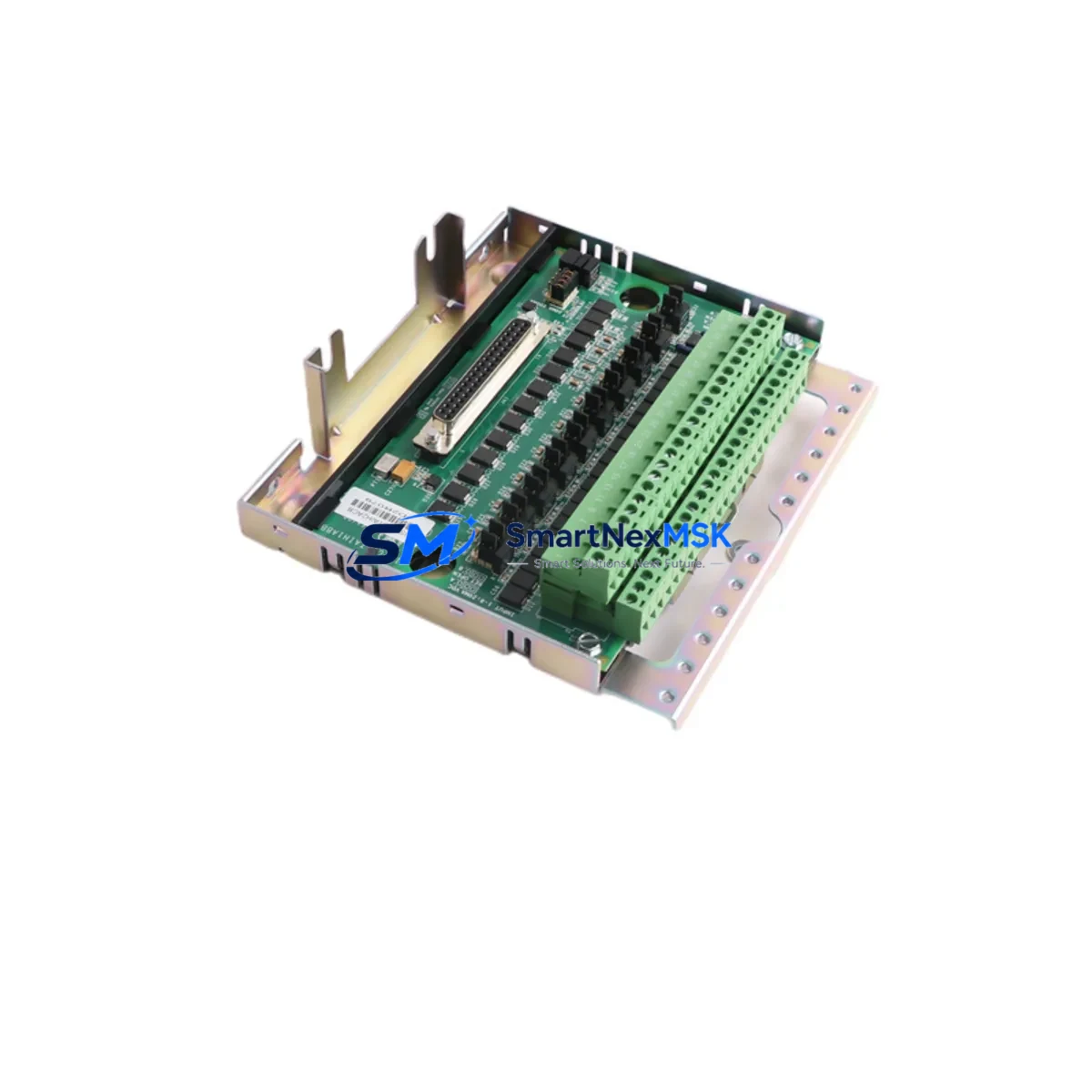

GE IS230SNAIH4A Retrofit-Ready Analog Input for Mark VI Control Systems
The GE IS230SNAIH4A is a high-reliability analog input module engineered for the GE Mark VI Speedtronic turbine control platform. Designed as a direct functional replacement for the discontinued IS200STAIH2ACB, this module supports seamless integration into existing Mark VI control cabinets without requiring structural modifications to the backplane or rack assembly. Whether you are managing a gas turbine, steam turbine, or combined-cycle plant, the IS230SNAIH4A delivers the signal conditioning, channel isolation, and I/O resolution required to maintain precise turbine control continuity during system upgrades and legacy hardware replacements.
Industrial facilities operating aging Mark VI systems frequently encounter obsolescence challenges when sourcing discontinued analog input boards. The IS230SNAIH4A addresses this directly by maintaining electrical and functional compatibility with the Mark VI I/O rack architecture, including the standard backplane connector pinout used across the IS200 and IS230 module families. Before installation, engineers should verify the power supply capacity of the existing IS200EPBAG1A power distribution board, confirm terminal block wiring assignments match the channel mapping of the original IS200STAIH2ACb, and validate that the module address configuration in the Mark VI VCMI communication interface card is correctly assigned to avoid I/O conflicts during commissioning.
The IS230SNAIH4A accepts standard 4–20 mA and 0–10 V analog input signals across its input channels, making it compatible with field instruments including pressure transmitters, flow meters, and temperature signal conditioners already wired into the existing control cabinet. No rewiring of field cables is required in most retrofit scenarios, significantly reducing installation time and minimizing exposure to unplanned downtime.
Upgrade Compatibility Table
| Parameter | IS200STAIH2ACB (Legacy) | IS230SNAIH4A (Replacement) |
|---|---|---|
| Module Family | IS200 Series | IS230 Series |
| Platform | GE Mark VI Speedtronic | GE Mark VI Speedtronic |
| Input Type | Analog Input (AI) | Analog Input (AI) |
| Signal Range | 4–20 mA / 0–10 V | 4–20 mA / 0–10 V |
| Backplane Interface | Mark VI Standard I/O Rack | Mark VI Standard I/O Rack |
| Terminal Block | Standard TB wiring | Compatible TB wiring (verify channel map) |
| Communication | IONet (Mark VI internal bus) | IONet (Mark VI internal bus) |
| Module Addressing | Set via VCMI / toolbox | Set via VCMI / toolbox (re-confirm address) |
| Installation Requirement | Rack slot insertion | Rack slot insertion (same form factor) |
| Commissioning | GE ToolboxST required | GE ToolboxST required |
| Replacement Recommendation | Discontinued — source IS230SNAIH4A | Verified drop-in functional replacement |
| Warranty | N/A (EOL) | 12-Month Warranty included |
Retrofit Planning for Existing Automation Systems
A successful retrofit of the IS230SNAIH4A into a Mark VI turbine control system requires a structured pre-installation review. Begin by auditing the existing I/O rack configuration. The Mark VI system typically uses a combination of analog input modules, digital output modules, and communication interface cards mounted in a shared IS200TRLYH1C relay output terminal board assembly or equivalent rack structure. Confirm that the target slot in the I/O rack is compatible with the IS230 module footprint before proceeding.
Next, review the power budget. The IS200EPBAG1A power distribution board supplies regulated DC power to all modules in the rack. Adding or replacing a module requires verifying that the total current draw does not exceed the board’s rated output. If the existing power board is already near capacity, consider upgrading to a higher-rated supply before installing the IS230SNAIH4A.
Terminal block wiring is a critical step. The IS230SNAIH4A uses the same standard Mark VI terminal block format as the IS200STAIH2ACB, but channel-to-terminal assignments should be cross-referenced against the original wiring diagram. Field cables connected to pressure transmitters, thermocouple signal conditioners, and flow measurement devices must be verified against the new module’s channel map. In many installations, the IS200TBCIH1C terminal board for analog inputs provides the physical connection point — confirm this board is present and undamaged before module swap.
Communication link integrity must also be confirmed. The Mark VI IONet bus, managed through the IS200VCMIH1C VCMI card, handles all I/O data exchange between the controller and field modules. After installing the IS230SNAIH4A, use GE ToolboxST to re-scan the I/O configuration and confirm the module is recognized at the correct rack address. If the system includes an IS200DSPXH1D digital signal processor board or a IS200PTURH1BEC turbine protection module in the same cabinet, ensure their configurations are not affected by the I/O address reassignment.
For facilities that also operate HMI workstations running GE Cimplicity or equivalent SCADA software, verify that the analog input tag assignments in the HMI database correspond to the updated I/O map after module replacement. Screen displays showing turbine inlet pressure, exhaust temperature, or fuel flow signals sourced from the IS230SNAIH4A channels must be validated against live process values during commissioning. If the control system includes a IS200STCIH1ACB servo control module or a IS200SRLYH1B simplex relay output module in the same rack, their operation should be monitored during the first 24 hours post-commissioning to confirm no cross-channel interference.
All units are pre-tested prior to shipment, with functional verification performed under simulated Mark VI rack conditions. In-stock inventory is maintained to support urgent replacement requirements, with typical lead times of 3–7 business days for international destinations.
Downtime Control During System Migration
Minimizing turbine downtime during an analog input module replacement is a primary concern for plant operations teams. The IS230SNAIH4A retrofit process is designed to support a controlled, single-outage replacement strategy. Before initiating the module swap, export the complete I/O configuration from GE ToolboxST and save a backup of the current Mark VI application program. This ensures that if any configuration discrepancy is detected post-installation, the original logic can be restored without requiring a full system re-engineering cycle.
Where plant operations permit, schedule the module replacement during a planned maintenance window rather than an emergency outage. Prepare the IS230SNAIH4A, the required terminal block documentation, and a calibrated signal simulator before the turbine is taken offline. A signal simulator connected to the module’s analog input channels allows functional verification of each channel before the turbine is returned to service, reducing the risk of a second outage caused by a wiring or configuration error.
For systems operating in simplex (non-redundant) control configurations, the entire analog input signal chain is interrupted during module replacement. In TMR (Triple Modular Redundant) Mark VI configurations, the remaining two control paths maintain turbine protection during the swap, allowing the replacement to be performed with the unit at reduced load rather than full shutdown. Confirm your system’s redundancy architecture with the plant control engineer before scheduling the replacement.
After installation, perform a channel-by-channel live signal verification using GE ToolboxST diagnostics. Confirm that all analog input values displayed in the controller match the field instrument readings. Document the commissioning results and retain the 12-month warranty registration for the IS230SNAIH4A unit.
Retrofit Support FAQ
Q: Is the IS230SNAIH4A a direct replacement for the IS200STAIH2ACB?
A: Yes. The IS230SNAIH4A is a functional replacement for the IS200STAIH2ACB in GE Mark VI Speedtronic turbine control systems. Both modules share the same backplane interface, signal type support, and IONet communication protocol. Terminal block wiring assignments should be verified against the original wiring diagram before installation.
Q: What commissioning tools are required after installing the IS230SNAIH4A?
A: GE ToolboxST is required to configure the module address, scan the updated I/O configuration, and verify analog input channel values. A calibrated signal simulator is recommended for pre-commissioning channel verification before the turbine is returned to service.
Q: Does the IS230SNAIH4A require any wiring changes to the existing terminal blocks?
A: In most cases, no rewiring is required. The IS230SNAIH4A uses the same terminal block format as the IS200STAIH2ACB. However, channel-to-terminal mapping should be cross-referenced against the original wiring documentation to confirm compatibility before powering the module.
Q: What warranty is included with the IS230SNAIH4A?
A: Every IS230SNAIH4A unit is covered by a 12-month warranty from the date of shipment. All units undergo functional testing under simulated Mark VI rack conditions prior to dispatch. Warranty claims are supported directly through our technical team.
