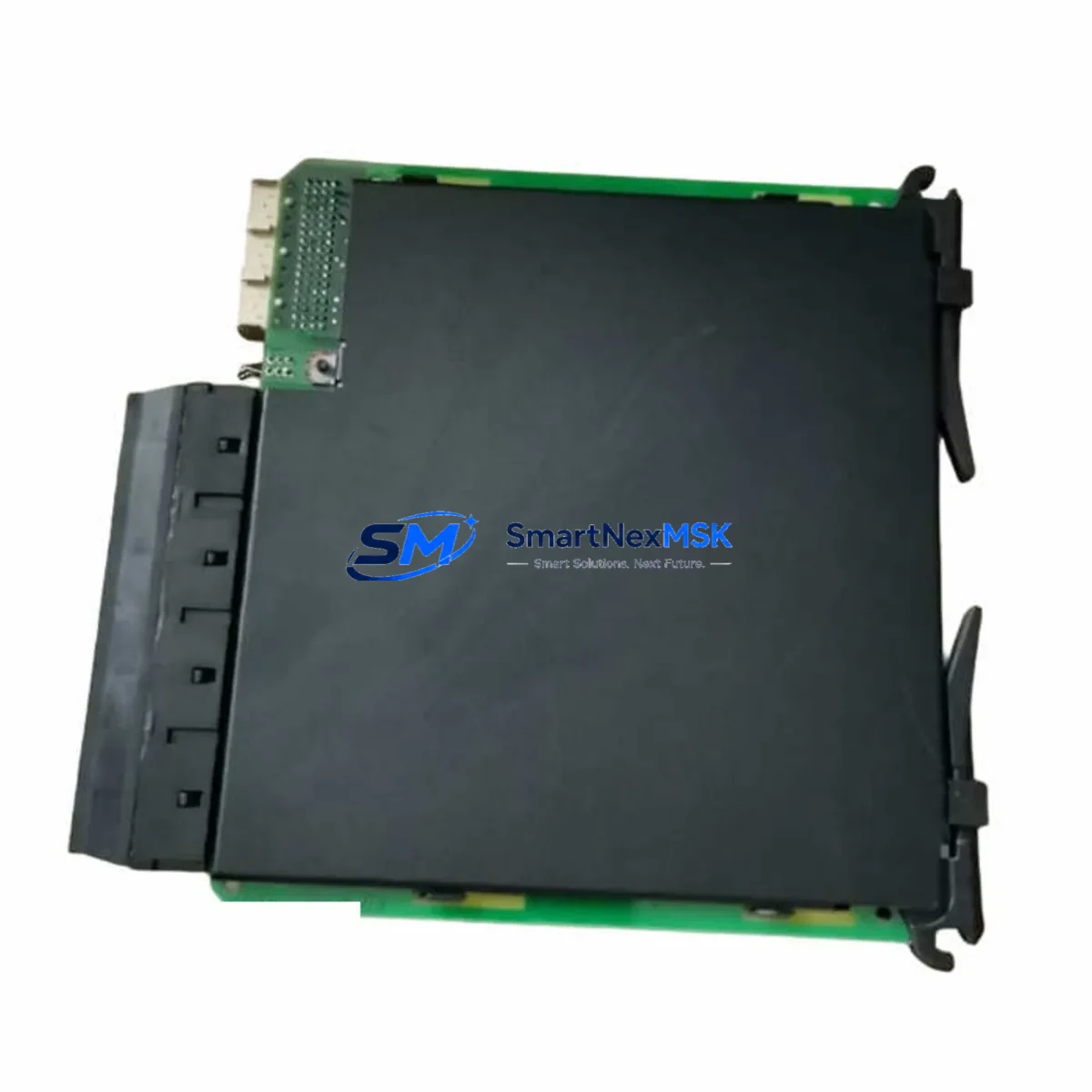

GE UR 6CH Retrofit-Ready 6-Channel Input Module for UR Series

GE UR 6CH Retrofit-Ready 6-Channel Input Module for UR Series Control Systems

The GE UR 6CH is a 6-channel analog/digital input module engineered for the GE Universal Relay (UR) platform — one of the most widely deployed protection relay architectures in transmission substations, industrial switchgear, and utility-grade power distribution systems. As aging UR-series installations approach end-of-service milestones, the UR 6CH has become a critical retrofit component for engineers managing protection system upgrades, panel refurbishments, and obsolete module replacements without full relay replacement.

Whether you are replacing a failed input card in an existing GE UR Series chassis, expanding I/O capacity in a protection relay panel, or migrating from a legacy MIFII or SR-series relay to the UR platform, the UR 6CH provides a verified, drop-in compatible solution that preserves your existing wiring topology, terminal block assignments, and protection logic without requiring a full relay re-commissioning cycle.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the GE UR 6CH into an existing protection relay panel begins with a structured pre-installation audit. Before removing the failed or obsolete module, engineers should document the current terminal block wiring layout, confirm the chassis backplane slot assignment, and capture a full settings backup using the GE UR Setup Software (EnerVista UR Setup). This backup preserves all protection element settings, I/O assignments, and communication parameters, ensuring that the replacement module can be commissioned to an identical functional state.

In panels where the UR 6CH is being installed alongside other active UR modules — such as the UR 8D digital output module, the UR 4L analog output card, or the UR CPU central processing module — slot sequencing and backplane address allocation must be verified against the existing chassis configuration. The UR platform assigns module addresses based on physical slot position; inserting the UR 6CH into a previously unoccupied slot may require updating the I/O map in the relay’s protection logic to reflect the new channel assignments.

For installations involving communication-intensive protection schemes — including GOOSE messaging over IEC 61850, DNP3 SCADA polling, or Modbus RTU integration with a GE Multilin 750/760 feeder protection relay — the UR 6CH’s input channels must be mapped to the correct logical nodes in the relay’s communication configuration. Engineers should verify that the UR Communications Module (typically a fiber or copper Ethernet card installed in the UR chassis) is operating on a compatible firmware version before completing the module swap.

In retrofit scenarios involving older switchgear panels where the original relay was a GE SR-series or GE MIFII protection relay, the migration to a UR-platform chassis requires careful attention to CT and VT secondary wiring. The UR 6CH accepts standard current transformer and voltage transformer secondary inputs, but terminal polarity, burden ratings, and grounding practices must be re-verified against the new chassis wiring diagram. In many cases, existing Phoenix Contact or Weidmuller terminal blocks can be retained, reducing rewiring time and minimizing panel downtime.

Where the retrofit involves expanding I/O capacity — for example, adding new protection zones, integrating additional breaker status inputs, or connecting new annunciator outputs — the UR 6CH can be paired with a UR 8D digital output module or a UR 4A analog input card to build a complete I/O expansion solution within the existing UR chassis. This modular approach avoids the cost and complexity of replacing the entire relay panel and allows protection engineers to implement incremental upgrades aligned with maintenance windows.

For HMI integration, engineers should verify that the existing GE Multilin HMI panel or SCADA front-end display correctly reflects the new I/O channel assignments after the UR 6CH installation. In systems using GE iFIX or third-party SCADA platforms connected via DNP3 or IEC 61850, the data object mapping may need to be updated to align with the new module’s logical node structure. This step is often overlooked during rapid replacement scenarios and can result in incorrect alarm annunciation or missing status indications at the control room level.

Downtime Control During System Migration

Minimizing protection system downtime during a UR 6CH module replacement requires a disciplined pre-outage preparation process. The most effective approach is to complete all pre-commissioning steps — settings backup, wiring documentation, firmware version check, and spare module bench testing — before the maintenance window begins. When the outage window opens, the physical module swap can typically be completed in under 30 minutes, with the remaining time allocated to settings restoration, I/O verification, and communication link confirmation.

To protect existing protection logic during the swap, engineers should use the EnerVista UR Setup software to export a full relay settings file before removing the original module. This file can be re-imported to the replacement UR 6CH after installation, restoring all protection element parameters, pickup thresholds, time delays, and I/O assignments to their pre-outage state. This approach eliminates the risk of manual re-entry errors and significantly reduces the time required to return the relay to service.

In systems where continuous monitoring is required — such as bus protection or transformer differential protection schemes — a temporary bypass arrangement using a GE UR Test Switch or portable relay test set can maintain protection coverage during the module swap interval. This is particularly important in high-availability substations where protection system availability is a contractual or regulatory requirement.

After the UR 6CH is installed and settings are restored, a structured commissioning test sequence should be performed: verify power supply voltage at the module terminals, confirm backplane communication between the UR 6CH and the UR CPU module, perform an I/O functional test on all six input channels, and confirm that SCADA and HMI displays correctly reflect the module’s status. Only after all six channels have been verified should the protection relay be returned to service and the outage window closed.

Retrofit Support FAQ

Q1: Is the GE UR 6CH a direct drop-in replacement for the original 6-channel input card in my UR Series chassis?
In most cases, yes. The UR 6CH is designed to the UR platform’s standard module form factor and backplane interface specification. However, we recommend verifying the chassis firmware version and existing module slot assignment before installation. Our technical team can assist with compatibility confirmation based on your chassis serial number and existing module configuration.

Q2: What wiring changes are required when installing the UR 6CH as a replacement module?
In direct replacement scenarios (same slot, same chassis), no wiring changes are typically required. The existing terminal block connections to CT/VT secondaries, digital inputs, and power supply remain intact. If the UR 6CH is being installed in a new slot or as part of an I/O expansion, terminal wiring should follow the UR chassis wiring diagram for the target slot position.

Q3: How is the UR 6CH tested before shipment, and what does the 12-month warranty cover?
Each UR 6CH unit undergoes functional testing prior to shipment, including backplane communication verification, channel input response testing, and power supply integrity checks. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Units that fail within the warranty period are replaced or repaired at no charge, with priority processing to minimize your system downtime.

Q4: Can the UR 6CH be used in a UR chassis running IEC 61850 GOOSE protection schemes?
Yes. The UR 6CH is compatible with UR chassis configurations running IEC 61850, including GOOSE messaging for inter-relay protection coordination. After installation, the module’s input channels must be mapped to the appropriate logical nodes in the relay’s IEC 61850 configuration using EnerVista UR Setup. We recommend performing a GOOSE subscription verification test after commissioning to confirm that all protection interlocks are functioning correctly.
