GE UR5EH Retrofit-Ready Processor Card for UR Series

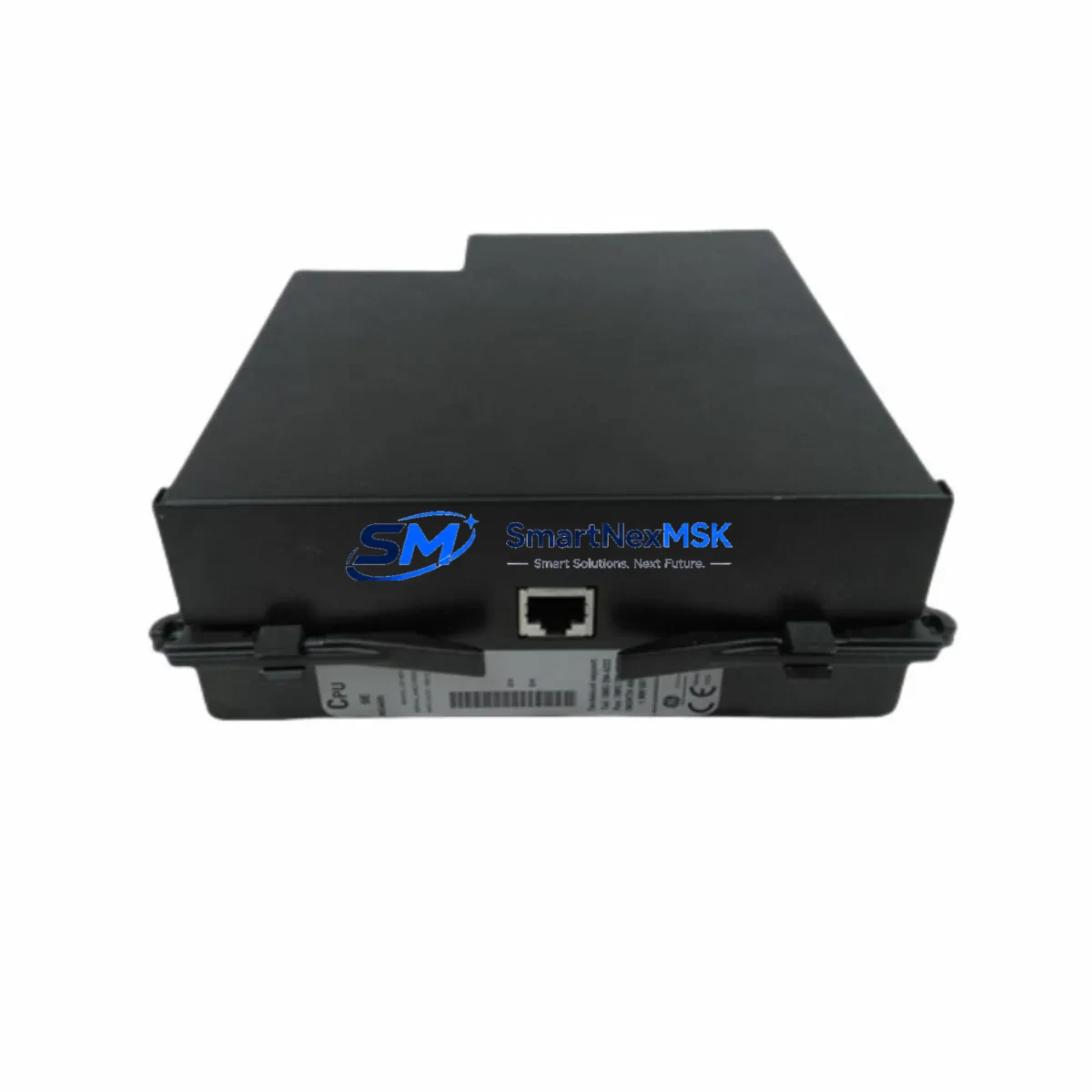

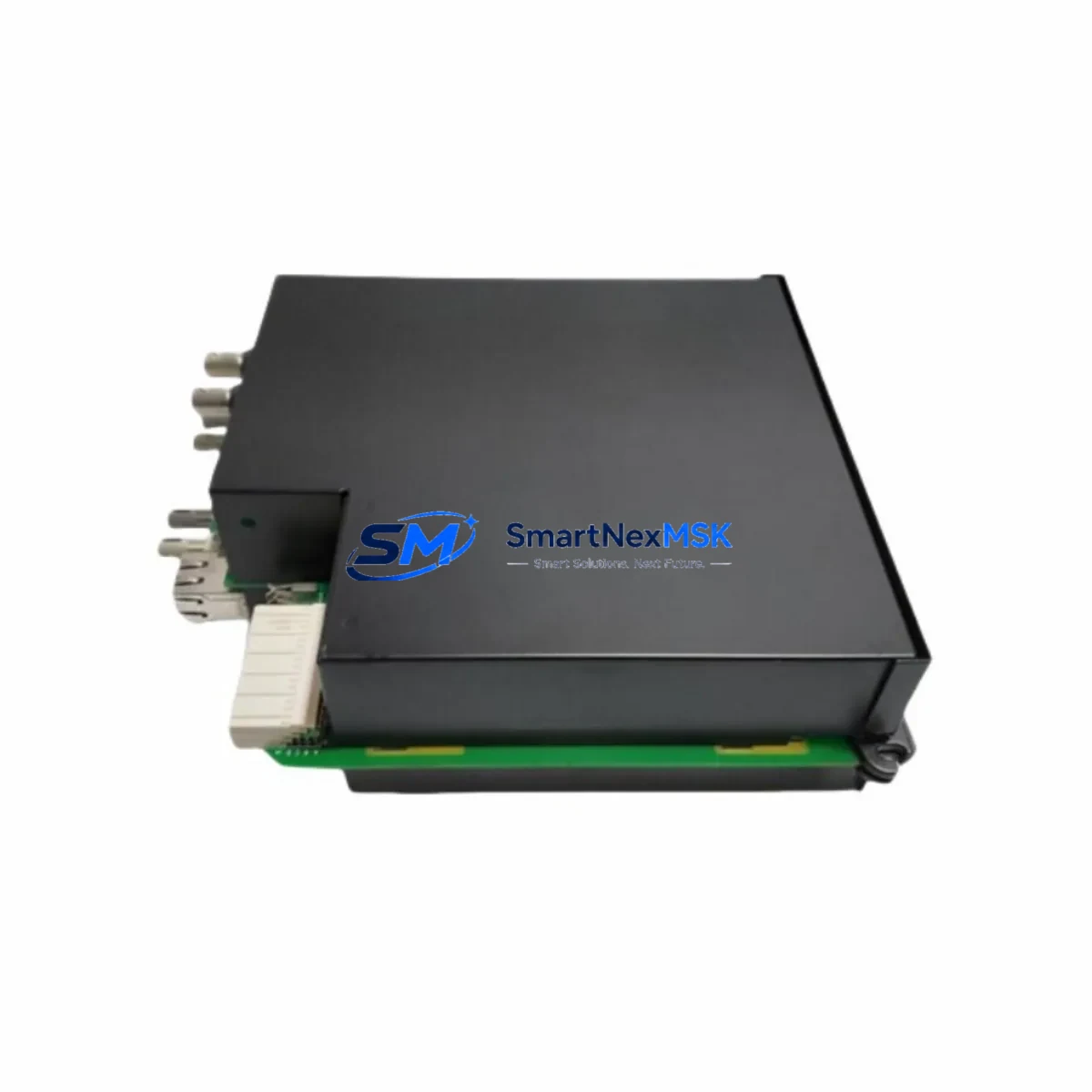

GE UR5EH Retrofit-Ready Processor Card for UR Series Control Systems

The GE UR5EH is a high-performance processor card engineered for the GE Multilin UR Series protection relay platform. Designed as a direct retrofit replacement for aging or discontinued CPU modules within the UR family, the UR5EH supports seamless integration into existing protection relay panels, switchgear cabinets, and substation automation systems without requiring chassis or wiring modifications. Whether you are managing a planned upgrade cycle or responding to an unplanned failure of a legacy processor, the UR5EH delivers the compatibility, reliability, and field-proven performance that industrial power protection engineers demand.

As substations and industrial facilities transition away from first-generation UR relay platforms, the UR5EH serves as the cornerstone of a cost-effective modernization strategy. It retains backward compatibility with the UR Series backplane architecture, allowing engineers to preserve existing I/O wiring, terminal block assignments, and inter-relay communication links while upgrading the core processing capability. This approach dramatically reduces retrofit engineering hours and minimizes the risk of introducing wiring errors during panel rework.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the UR5EH into an existing protection scheme requires careful pre-retrofit planning. Before removing the legacy processor card, engineers should document the current relay settings file using EnerVista UR Setup software and archive the active firmware version. This backup is critical for restoring protection logic, element pickup values, and communication parameters after the new processor is installed.

Power supply capacity within the relay chassis must be verified prior to installation. The UR Series PSU module — typically a UR-series power supply card such as the UR6PP or equivalent — must be confirmed to provide adequate DC rail voltage and current margin for the UR5EH processor. In multi-slot chassis configurations, the aggregate power draw of all installed modules, including CT/VT input cards, digital I/O modules, and communications cards, must remain within the chassis power budget.

Terminal block wiring and I/O assignments should be verified against the original relay order code and wiring diagrams. The UR5EH does not alter the physical I/O mapping of the chassis, but engineers should confirm that any digital input modules and digital output modules installed in adjacent slots are correctly addressed in the restored settings file. Slot-based module addressing in the UR platform is order-code dependent, and any changes to chassis slot population must be reflected in the EnerVista configuration.

For facilities running IEC 61850-based protection schemes, the GOOSE publisher and subscriber datasets configured on the legacy processor must be re-mapped after the UR5EH is installed. This includes verifying logical node references, dataset entries, and control block parameters against the substation SCD file. Where the relay communicates with a UR Series communications card — such as a fiber-optic or copper Ethernet module — the IP address, VLAN settings, and port assignments must be re-confirmed post-installation.

In systems where the UR relay interfaces with a GE Multilin HMI panel or a SCADA front-end via Modbus or DNP3, the data map and point list should be validated after firmware restoration to ensure that analog and digital point addresses remain consistent with the upstream system configuration. Any discrepancy in point mapping can cause false alarms or missed indications at the control room level.

For facilities managing multiple relay types within the same protection zone — including GE Multilin 489 motor protection relays, GE Multilin 369 motor management relays, or legacy GE SR series relays — the UR5EH retrofit should be coordinated with a broader protection coordination review to ensure that trip logic, interlock schemes, and bus differential zones remain intact throughout the upgrade window.

Downtime Control During System Migration

Minimizing protection outage duration is the primary operational constraint in any live substation or industrial plant retrofit. The UR5EH replacement procedure is designed to be executed within a planned maintenance window, typically requiring two to four hours for a single relay bay when pre-retrofit preparation has been completed thoroughly.

Prior to de-energizing the relay, the protection zone should be transferred to backup protection where available — for example, activating the backup overcurrent elements on an adjacent relay or enabling the bus protection bypass scheme. The existing settings file and firmware image must be staged on the commissioning laptop before the maintenance window begins, eliminating any dependency on network access or software downloads during the outage.

Once the UR5EH is physically installed and powered, the settings file should be loaded via EnerVista UR Setup before any protection elements are enabled. This sequence ensures that the relay does not operate with default factory settings during the commissioning phase. After settings restoration, each protection element — including overcurrent, differential, distance, and reclosing functions — should be individually verified against the original coordination study values before the relay is returned to service.

Communication links, including IEC 61850 GOOSE messaging and DNP3 polling from the SCADA system, should be verified as the final step before the protection zone is re-energized. A structured commissioning checklist, signed off by the protection engineer and the operations team, provides the audit trail required for utility and industrial compliance documentation. All units supplied by SMARTNEXMSK are pre-tested prior to shipment, reducing the risk of commissioning delays caused by hardware defects. In-stock inventory ensures same-week dispatch for urgent retrofit requirements.

Retrofit Support FAQ

Q1: Is the GE UR5EH a direct drop-in replacement for the existing processor card in my UR Series relay?
A: In most UR Series relay models, the UR5EH is a direct slot-compatible replacement. However, you should verify the relay order code and chassis slot assignment before ordering. Contact our technical team with your relay model number and we will confirm compatibility before shipment.

Q2: What firmware version does the UR5EH ship with, and will it be compatible with my existing settings file?
A: Units are supplied with the firmware version specified at the time of order. If your existing settings file was created under an earlier firmware version, EnerVista UR Setup will prompt for a settings conversion during the restore process. We recommend testing the converted settings file in offline simulation mode before applying it to the live relay.

Q3: Can the UR5EH be installed without rewiring the existing terminal blocks or I/O modules?
A: Yes. The UR5EH installs into the existing backplane slot without requiring any changes to terminal block wiring, CT/VT connections, or I/O module assignments. The physical wiring interface is determined by the I/O and CT/VT cards in the chassis, not the processor card.

Q4: What does the 12-month warranty cover, and what is the return process if a unit is found to be defective?
A: The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions. If a unit is found to be defective upon receipt or during commissioning, contact sales@smartnexmsk.com with your order number and a description of the fault. We will arrange priority replacement shipment to minimize your downtime exposure.
