GE UR6FH Safety-Enhanced Digital I/O for Harsh Sites

GE UR6FH Safety-Enhanced Digital I/O for Harsh Industrial Sites

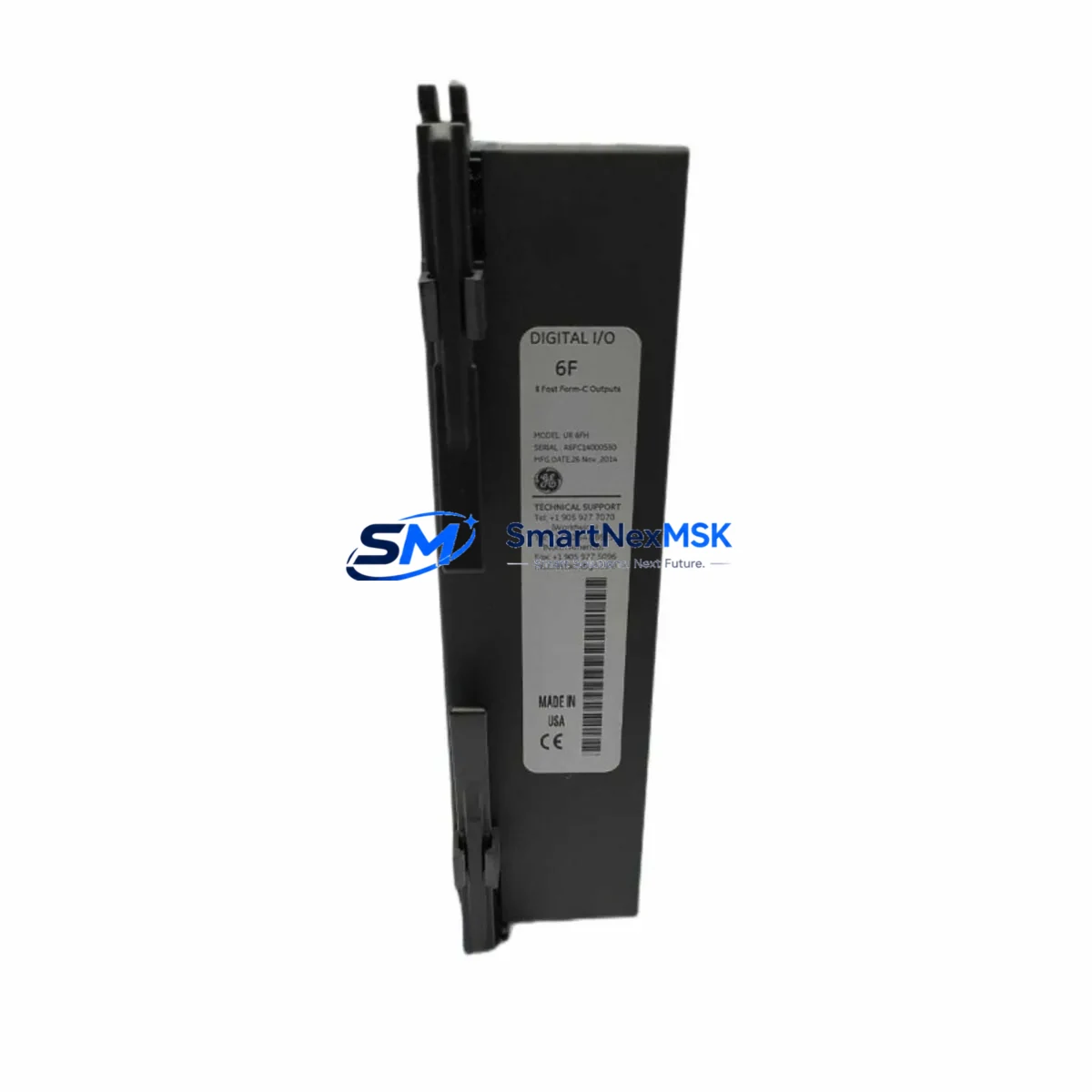

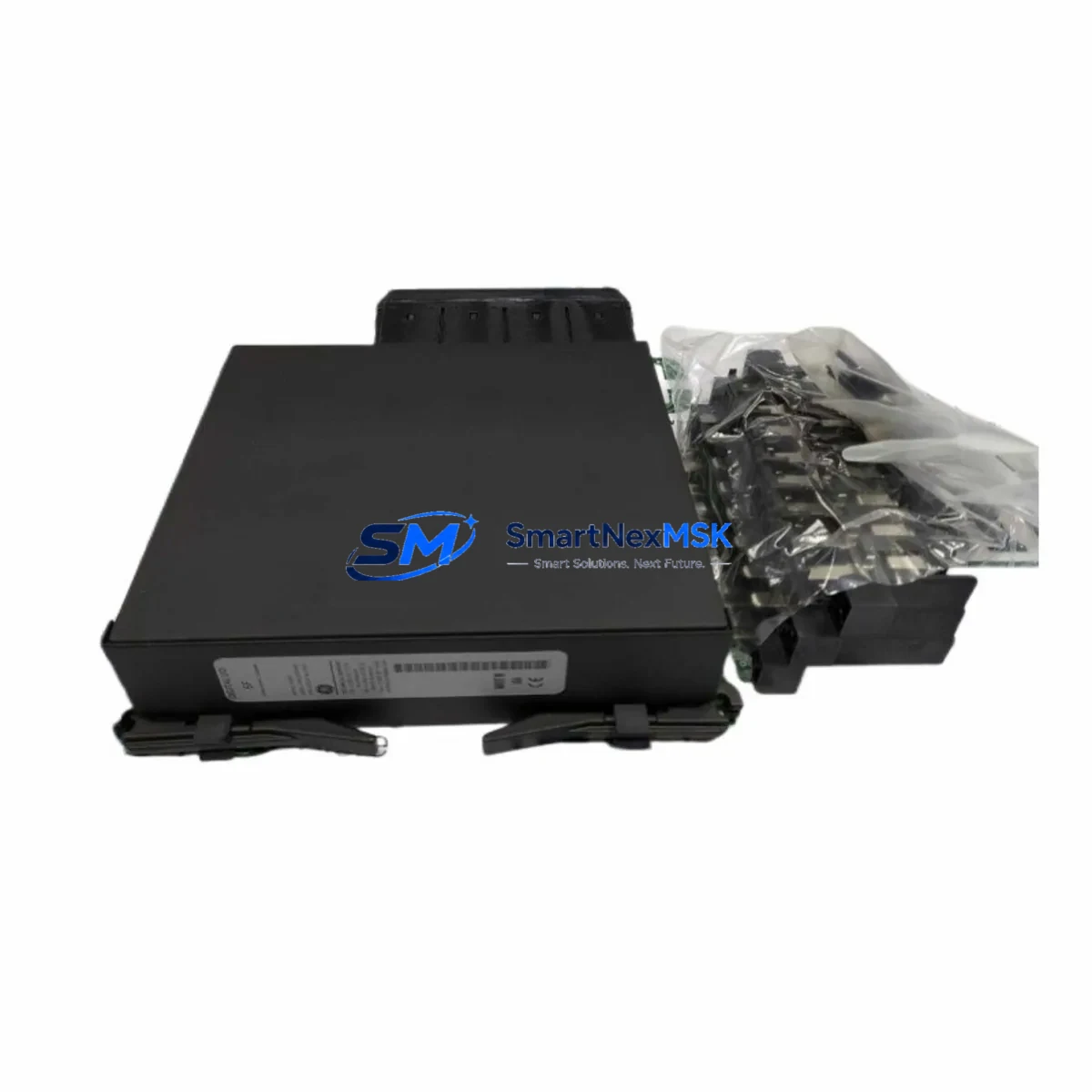

The GE UR6FH is a ruggedized digital input/output expansion module engineered for the GE Multilin UR Series protection relay platform. Designed to operate reliably in high-load, high-interference industrial environments — including petrochemical plants, power substations, mining operations, water treatment facilities, metallurgical complexes, and continuous-process manufacturing lines — the UR6FH delivers the signal integrity and operational stability that critical safety and control circuits demand.

In demanding field installations where control interruption is not an option, the UR6FH provides deterministic I/O response with robust EMI/RFI immunity, ensuring that digital status signals from field devices such as breaker auxiliary contacts, motor protection relays, and process interlock switches are accurately captured and transmitted to the UR relay’s logic engine without drift or false triggering. Its hardened design addresses the core failure modes that compromise safety in harsh environments: signal drift under thermal cycling, module misoperation from conducted or radiated interference, surge damage from switching transients, and communication anomalies caused by ground potential differences in large industrial switchgear lineups.

The UR6FH integrates seamlessly into the UR Series backplane alongside companion modules such as the UR6CT (current transformer input module), UR6VT (voltage transformer input module), and UR6PS (power supply module), forming a complete, coordinated protection and control assembly within a single relay chassis. When deployed in critical interlock loops — for example, in a turbine trip circuit or a high-voltage bus protection scheme — the UR6FH’s deterministic scan cycle ensures that trip commands and status feedback are processed within the relay’s defined protection operating time, maintaining the integrity of the overall safety function.

For installations requiring expanded I/O capacity, the UR6FH can be combined with the UR6DO digital output module and UR6DI digital input module to build out comprehensive control and monitoring architectures. In power distribution applications, it works in concert with the UR6AN analog input module to provide both discrete and analog signal processing within a unified UR chassis, reducing panel wiring complexity and eliminating the signal conversion errors that arise from external signal conditioning equipment.

The module’s surge withstand capability (SWC) compliance and optical isolation between field wiring and internal logic circuits protect the relay’s CPU and communication subsystems from the high-energy transients common in switchgear environments — including capacitor bank switching, transformer energization, and motor starting events. This isolation also prevents ground loops from corrupting digital status signals, a critical consideration in large industrial facilities where earth potential differences between remote I/O points can reach several volts.

In mining and heavy industrial control cabinets where vibration, dust ingress, and wide ambient temperature swings are routine, the UR6FH’s industrial-grade construction ensures long-term mechanical and electrical reliability without requiring frequent recalibration or preventive replacement. Its compatibility with the UR Series communication architecture — supporting DNP3, IEC 61850 GOOSE messaging, and Modbus protocols via the relay’s UR6CM communication module — means that I/O status data is available to SCADA systems and DCS platforms in real time, supporting both operational monitoring and post-event forensic analysis.

For facilities maintaining hot-standby or redundant protection schemes, the UR6FH supports rapid module replacement without relay reconfiguration, minimizing mean time to repair (MTTR) in the event of a module fault. All units supplied by SMARTNEXMSK are sourced from authorized distribution channels, subjected to pre-shipment functional verification, and covered by a 12-month warranty against manufacturing defects — providing procurement teams and maintenance engineers with the supply assurance and quality confidence required for critical infrastructure spares management.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust protection relay cabinet built around the GE Multilin UR platform requires careful coordination of every module slot to ensure system-level safety. The UR6FH digital I/O module anchors the discrete signal layer, but its effectiveness depends on the quality of the surrounding components. The UR6PS power supply module must deliver clean, regulated DC power free from ripple and transient spikes; any power quality degradation at the backplane level can manifest as spurious I/O state changes that trigger nuisance trips or, worse, mask genuine fault conditions.

On the analog measurement side, the UR6CT current input module and UR6VT voltage input module feed the relay’s metering and protection elements with the raw electrical quantities needed for overcurrent, differential, and distance protection functions. Accurate analog inputs are the foundation of correct protection decisions; the UR6FH’s digital outputs then execute those decisions by driving trip coils, alarm relays, and interlock contacts with the speed and reliability that substation and industrial protection standards require.

For installations with high digital I/O point counts — common in large motor control centers, transformer protection panels, and bus protection schemes — supplementing the UR6FH with additional UR6DO output modules and UR6DI input modules provides the I/O density needed without resorting to external marshalling panels that introduce additional wiring failure points. The UR6AN analog output module extends the cabinet’s capability to drive analog setpoint signals to field devices such as AVRs and governor controllers, completing a fully integrated protection and control solution within a single UR chassis.

Communication integrity is maintained through the UR6CM communication module, which provides the IEC 61850 GOOSE and DNP3 interfaces that modern digital substations and industrial SCADA systems require. Surge protection devices (SPDs) installed on all field wiring terminals, combined with the UR6FH’s internal optical isolation, create a multi-layer defense against the transient overvoltages that are endemic in switchgear environments. Together, these components form a control cabinet architecture that minimizes the risk of control interruption, signal drift, module misoperation, and unplanned field shutdown.

Critical Industrial Safety Applications

Petrochemical & Refinery: In continuous-process petrochemical facilities, the UR6FH supports safety instrumented system (SIS) interlock circuits by providing reliable digital status feedback from process shutdown valves, high-level switches, and emergency depressurization systems. Its surge immunity prevents false trip signals from the high-energy switching events common in large motor-driven compressor and pump installations.

Power Generation & Transmission: At power stations and grid substations, the UR6FH serves as the discrete I/O backbone for generator protection, transformer differential protection, and bus bar protection schemes. Its IEC 61850 GOOSE compatibility enables high-speed inter-relay communication for busbar protection applications where trip times must be held below 20 ms.

Mining & Mineral Processing: In underground and surface mining operations, where vibration, dust, and wide temperature swings are constant, the UR6FH’s rugged construction ensures that conveyor interlock systems, hoist protection circuits, and ventilation control logic remain operational without nuisance trips or signal integrity failures.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities rely on the UR6FH to monitor pump motor status, valve position feedback, and process interlock signals across geographically distributed pump stations, where long cable runs and ground potential differences create challenging signal integrity conditions.

Metallurgy & Steel: In electric arc furnace (EAF) and rolling mill environments — among the most electrically hostile in industry — the UR6FH’s EMI immunity and surge withstand capability protect protection relay logic from the massive electromagnetic disturbances generated by high-current furnace switching and large drive systems.

Port & Heavy Logistics: Container crane and ship-to-shore crane control systems use the UR6FH to manage motor protection interlock signals in high-cycle, high-load duty applications where control reliability directly impacts throughput and operational safety.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the GE UR6FH?
All UR6FH units supplied by SMARTNEXMSK carry a 12-month warranty covering manufacturing defects in materials and workmanship. Each unit undergoes pre-shipment functional verification to confirm correct operation before dispatch. Warranty claims are supported with direct technical assistance and replacement unit coordination.

Q2: How is the UR6FH tested before shipment?
Each module is subjected to a pre-shipment inspection protocol that includes visual inspection, backplane connector integrity verification, and functional I/O point testing. Units that do not meet acceptance criteria are quarantined and not shipped. Test records are available upon request for quality-critical procurement processes.

Q3: Is the UR6FH compatible with all GE Multilin UR Series relay chassis?
The UR6FH is designed for the GE Multilin UR Series platform and is compatible with standard UR chassis configurations including 3U, 6U, and 10U form factors. Compatibility with specific relay models (e.g., T60, L90, C60, B90, F60) depends on the firmware version and chassis slot assignment. Buyers are advised to confirm the target relay model and firmware revision prior to ordering; SMARTNEXMSK’s technical team can assist with compatibility verification.

Q4: Can long-term supply continuity be assured for ongoing maintenance programs?
SMARTNEXMSK maintains standing inventory of UR Series modules including the UR6FH to support planned maintenance, emergency replacement, and capital spares programs. For facilities managing multi-year maintenance contracts or critical infrastructure spares lists, volume reservation and scheduled delivery arrangements are available. Contact our sales team to discuss supply assurance options for your program.
