Hollysys FM910 Maintenance-Ready Spare for MACS V Automation

Hollysys FM910 Maintenance-Ready Spare for MACS V Automation

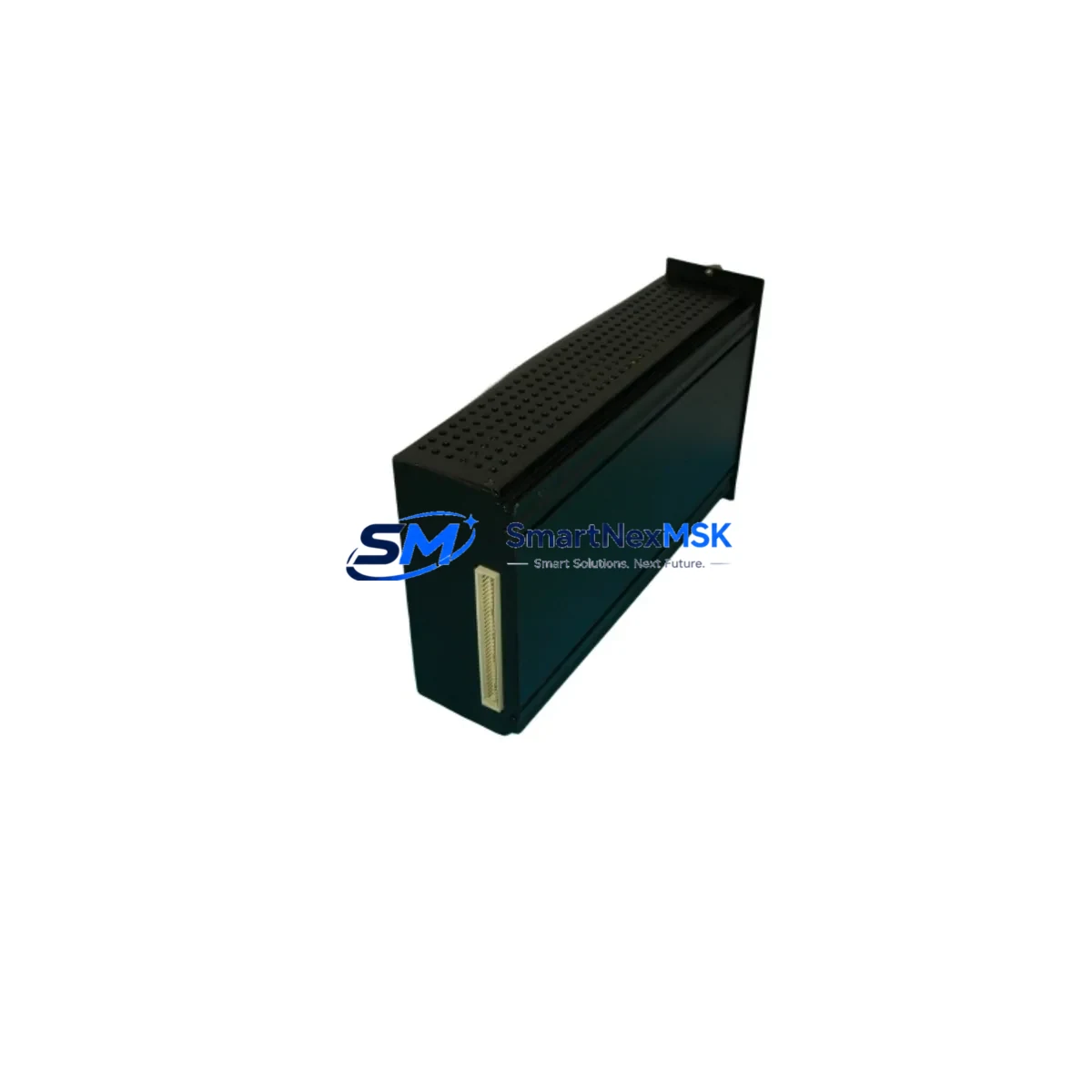

The Hollysys FM910 is an original distributed I/O field module engineered for the MACS V DCS platform — one of the most widely deployed distributed control systems in China’s process industries. For maintenance engineers managing continuous production lines in petrochemical, power generation, water treatment, or metallurgical facilities, the FM910 represents a critical spare that directly determines how quickly a control loop can be restored after an unplanned fault or scheduled inspection.

Unlike generic third-party replacements, the FM910 is manufactured to Hollysys OEM specifications, ensuring full firmware compatibility, correct I/O channel mapping, and stable signal integrity within the MACS V architecture. When a field module fails mid-shift, every minute of downtime translates to production loss and safety exposure. Having a verified, tested FM910 in your spare parts inventory eliminates the guesswork and delays associated with sourcing unverified alternatives.

This unit ships fully tested and inspected, backed by a 12-month warranty from date of delivery. Stock is maintained for fast dispatch to support both emergency replacement and planned maintenance cycles.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Effective spare parts management for a MACS V-based control system extends well beyond stocking the FM910 alone. When planning a control cabinet inspection or responding to a field module fault, maintenance engineers should simultaneously evaluate the condition of adjacent components that share the same power rail, field bus segment, or I/O backplane.

The FM910 operates within a field station that typically includes a Hollysys FM801 field station controller or equivalent station master module, which manages communication between the field I/O layer and the MACS V controller network. If the FM910 is showing intermittent faults, the FM801 or its communication link should be verified before replacement, as upstream bus errors can cause false I/O module alarms.

Power integrity is equally critical. The FM910’s field station is powered through a dedicated 24VDC power supply module — often a Hollysys or third-party DIN-rail PSU rated for industrial environments. A degraded power supply with output ripple or voltage sag can cause I/O modules to reset or report channel errors without triggering a hard fault on the PSU itself. Inspecting and if necessary replacing the power supply during the same maintenance window prevents repeat callouts.

Signal conditioning components also warrant attention. Signal isolators and loop-powered transmitter barriers installed between field instruments and the FM910’s analog input channels can drift over time, particularly in high-temperature or high-humidity environments. Replacing the FM910 without verifying isolator output accuracy may result in persistent calibration offsets after restoration.

On the digital I/O side, relay output modules and solid-state relay (SSR) cards that interface with the FM910’s discrete outputs should be checked for contact wear, especially in high-cycle applications such as pump start/stop or valve actuation. A worn relay that chatters or fails to close reliably will cause the same symptom as a failed I/O module channel.

Terminal blocks and field wiring connections — including Phoenix Contact or equivalent screw-type terminal strips — should be inspected for corrosion, loose terminations, and insulation degradation, particularly in outdoor or coastal installations. Poor terminations are a leading cause of intermittent I/O faults that are incorrectly attributed to module failure.

For systems with HART-enabled analog I/O, the FM910’s HART communication capability (where applicable) should be verified using a HART communicator during commissioning of the replacement module. This ensures that smart field instruments such as pressure transmitters and flow meters remain correctly configured and that device descriptors are intact.

Finally, if the MACS V system includes an FM900-series operator interface or engineering workstation, confirm that the I/O module address and tag assignments are correctly restored in the MACS V configuration database after replacement. Incorrect tag mapping is a common post-maintenance error that can cause control loops to reference wrong channels.

Site Replacement Workflow

Replacing the Hollysys FM910 in a live MACS V installation follows a structured workflow designed to minimize downtime and eliminate configuration errors. Before removing the faulty module, the maintenance engineer should place the affected control loops in manual mode at the DCS operator station to prevent uncontrolled process responses during the swap.

The FM910 is typically hot-swappable within the MACS V field station architecture, meaning the field station remains powered and the remaining I/O modules continue operating during replacement. However, site-specific safety procedures — particularly in SIL-rated or hazardous area installations — may require a controlled shutdown of the field station segment. Always consult the site’s maintenance procedure and the MACS V system manual before proceeding.

After installing the replacement FM910, the MACS V system will automatically detect the new module and restore its configuration from the station controller’s local memory, provided the module address (set via DIP switch or software configuration) matches the original. Verify all I/O channel statuses at the operator station before returning loops to automatic mode. Conduct a point-to-point signal check on critical channels — particularly analog inputs connected to safety-critical measurements — before signing off the maintenance record.

For aging MACS V installations where the FM910 is approaching end-of-life or where Hollysys has issued a hardware revision, this replacement also presents an opportunity to upgrade to a compatible newer revision that offers improved EMI immunity or extended temperature range, extending the operational life of the control system without requiring a full platform migration.

Spare Parts Support FAQ

Q1: Is the FM910 covered by a warranty, and what does it include?
Yes. Every FM910 unit supplied by SMARTNEXMSK carries a 12-month warranty from the date of delivery. The warranty covers manufacturing defects and functional failures under normal operating conditions. Each unit undergoes a full functional test prior to shipment, and a test report is available upon request.

Q2: How do I confirm compatibility before ordering?
The FM910 is designed exclusively for the Hollysys MACS V DCS platform. To confirm compatibility, provide your MACS V system version, field station model, and existing I/O module configuration. Our technical team will verify compatibility and advise on any firmware or hardware revision considerations before the order is confirmed.

Q3: What is the typical lead time, and can you support emergency orders?
The FM910 is maintained in stock for immediate dispatch. Standard orders ship within 1–3 business days. For emergency maintenance situations requiring same-day or next-day dispatch, contact our sales team directly at sales@smartnexmsk.com or +86 18259474341 to arrange expedited handling.

Q4: Can SMARTNEXMSK support long-term supply for ongoing maintenance programs?
Yes. We support planned maintenance programs with scheduled supply agreements, ensuring that critical spares such as the FM910 are available when needed without relying on spot-market sourcing. We maintain long-term supplier relationships for Hollysys MACS V components and can advise on recommended stock levels based on your installed base and maintenance cycle frequency.
