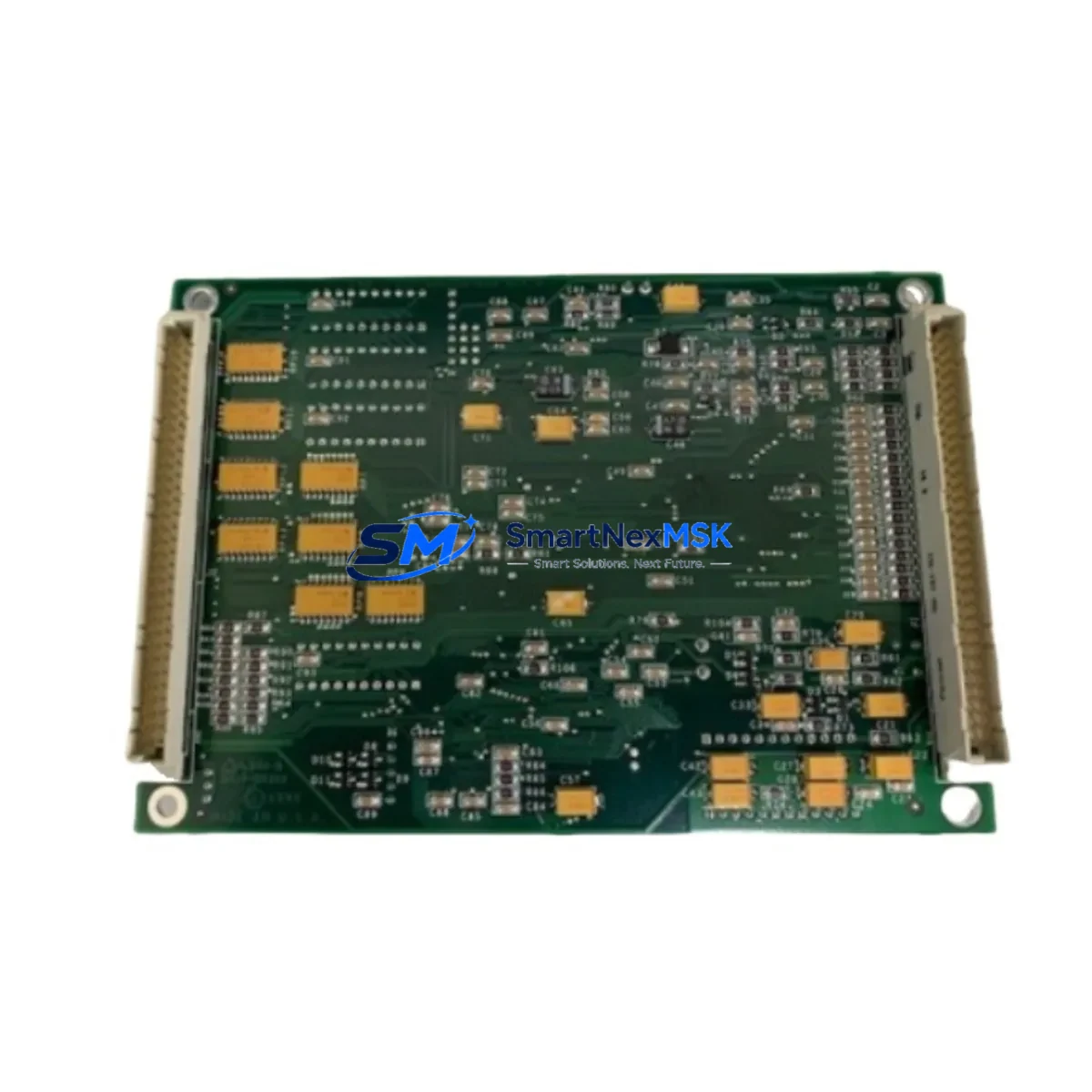

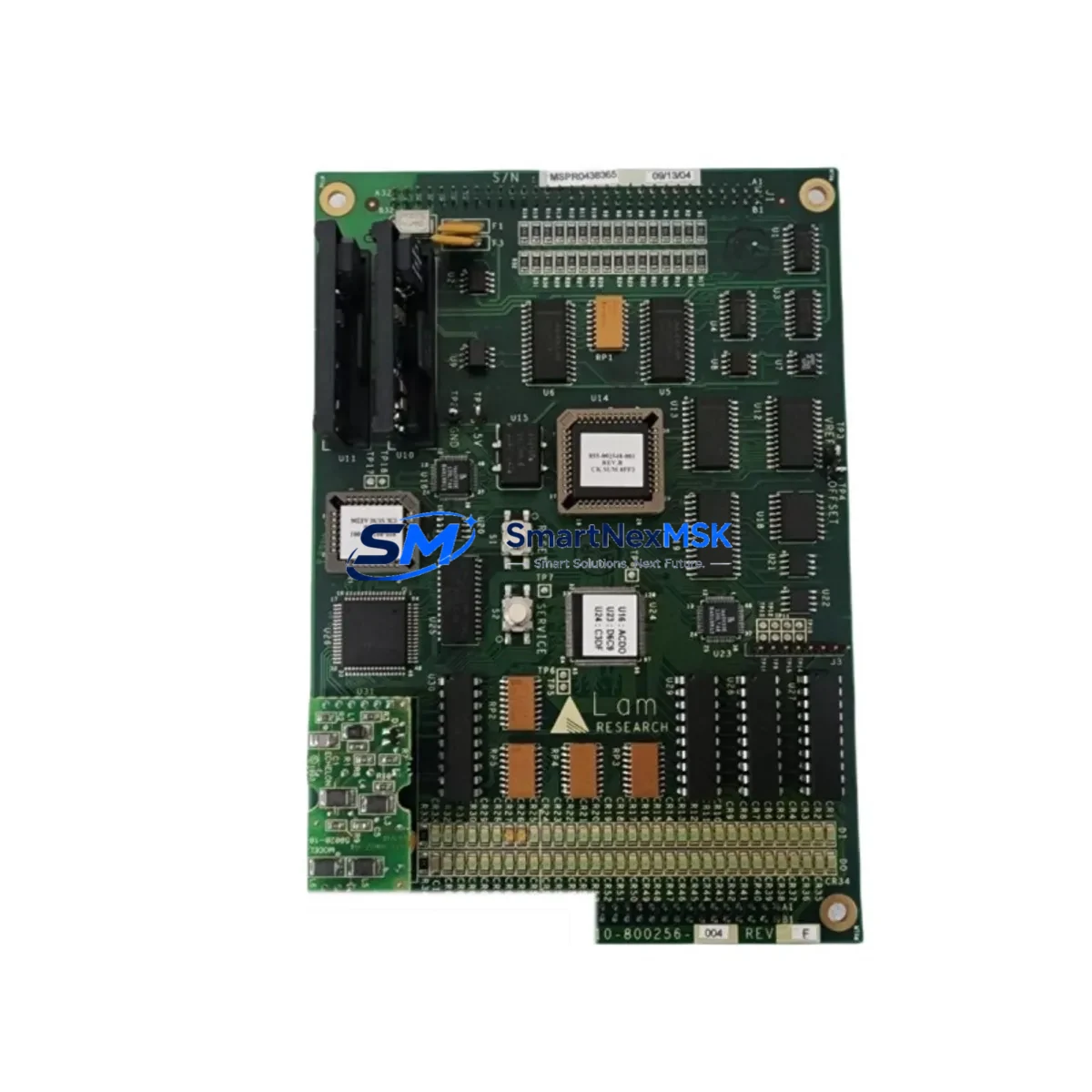

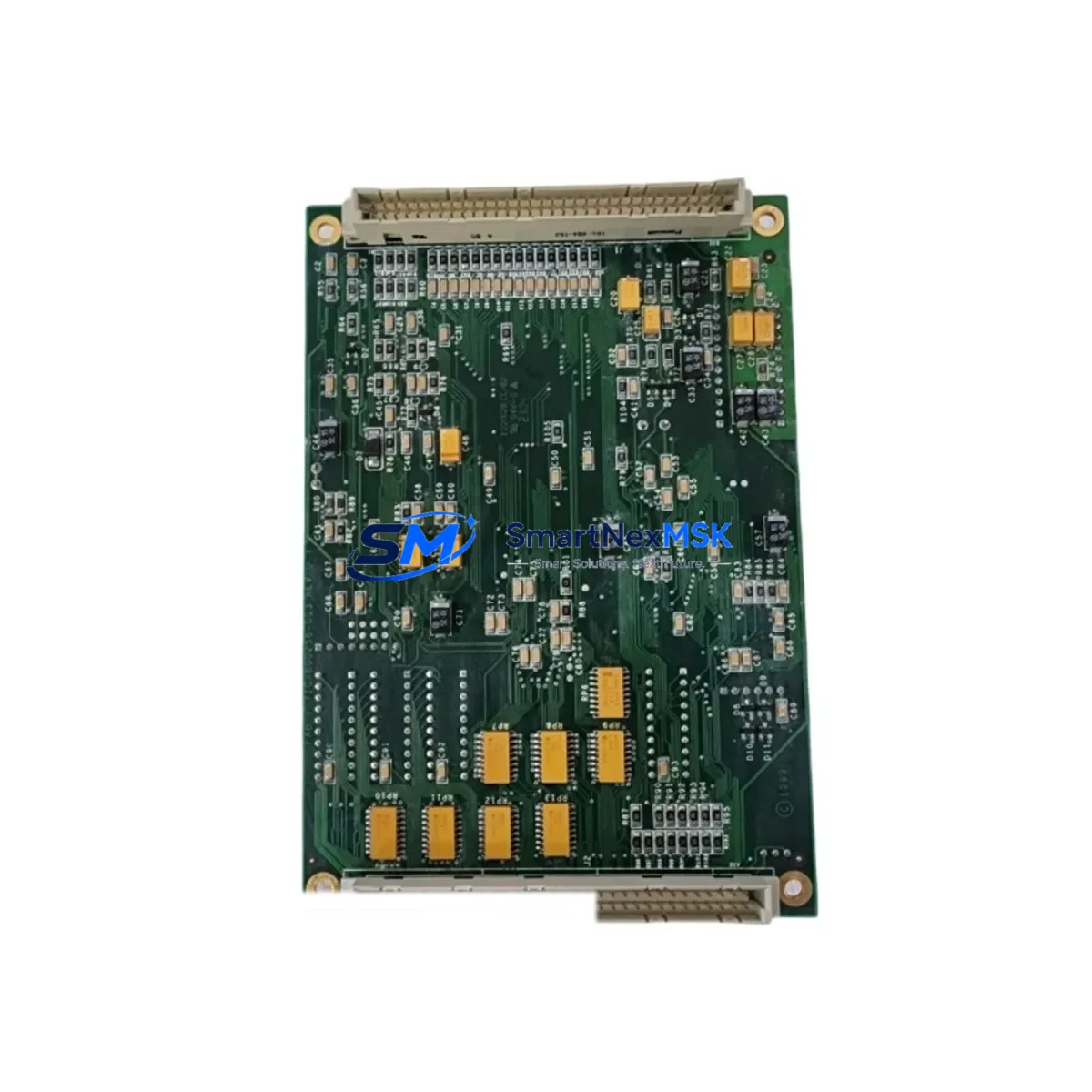

LAM Research 810-800256-004 Retrofit-Ready Control Module for 810 Series

LAM Research 810-800256-004 Retrofit-Ready Control Module for 810 Series Control Systems

The LAM Research 810-800256-004 is a retrofit-ready control module card engineered for seamless integration into LAM Research 810 Series semiconductor process control systems. As legacy 810 Series platforms approach end-of-life and OEM support windows close, facilities engineering teams and process control engineers increasingly rely on verified replacement units like the 810-800256-004 to sustain uptime, avoid costly platform migrations, and extend the operational life of existing control architectures.

This module serves as a direct functional replacement for discontinued or degraded 810-800256-004 cards within the 810 Series control cabinet. Whether you are managing a scheduled preventive maintenance swap, responding to an unplanned card failure, or executing a phased system modernization, the 810-800256-004 provides the electrical and logical compatibility required to restore full system operation with minimal engineering intervention.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 810-800256-004 into an existing 810 Series control cabinet requires a structured pre-installation review. Before removing the failed or degraded card, engineers should document the current module address settings, terminal wiring assignments, and backplane slot position. The 810 Series chassis typically houses multiple functional cards — including dedicated I/O expansion modules, analog input cards, digital output modules, and the central process controller board — all of which must remain undisturbed during a single-card swap.

Power supply capacity is a critical verification point. The 810 Series internal power distribution module must be confirmed to provide adequate current headroom for the replacement 810-800256-004 card. In aging systems, the 810 Series power supply module may itself be approaching end-of-life, and a simultaneous power supply inspection is recommended to prevent secondary failures post-retrofit.

Terminal wiring on the 810 Series I/O terminal blocks should be photographed and labeled before disconnection. Field wiring connected to the original 810-800256-004 card — including sensor inputs, actuator outputs, and interlock signal lines — must be reconnected to the identical terminal positions on the replacement card. Any deviation in wiring will result in incorrect process behavior and may trigger safety interlocks.

For systems utilizing the 810 Series communication interface module to exchange data with a supervisory SCADA system or DCS host, the communication link should be verified after card replacement. The 810 Series communication module typically manages protocol translation between the local control bus and the plant-level network; a card swap should not affect this link, but a communication health check is standard practice.

In facilities where the 810 Series HMI panel displays process variables sourced from the control module, operators should verify that all HMI screen tags continue to resolve correctly after the swap. The 810 Series operator interface typically reads process data via the internal bus, and tag mapping is preserved as long as the replacement card occupies the same backplane slot with the same module address as the original 810-800256-004.

For larger modernization projects involving multiple 810 Series chassis, engineers may also need to coordinate replacement of the 810 Series rack backplane assembly, particularly if backplane connector wear is contributing to intermittent card communication errors. In such cases, the 810-800256-004 replacement should be sequenced after backplane inspection and, if necessary, backplane replacement.

Programming cable compatibility should also be confirmed for any post-installation parameter verification. The 810 Series programming interface typically uses a dedicated serial or USB programming cable to connect a laptop running the LAM Research configuration utility to the control module for diagnostics and parameter review.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational concern when replacing a control module in an active semiconductor process environment. For the 810-800256-004, the recommended approach is a hot-standby preparation strategy: the replacement card should be bench-tested and address-configured before the maintenance window opens, so that the actual in-cabinet swap time is reduced to the minimum possible duration.

Prior to the maintenance window, the existing 810 Series process recipe and parameter set should be exported and archived using the LAM Research configuration utility. This ensures that if any parameter loss occurs during the card swap — which is uncommon in a direct replacement scenario but possible in systems with battery-backed memory — the process configuration can be restored immediately without requiring a full re-commissioning cycle.

During the swap, the 810 Series control system should be placed in a safe hold state, with all process gases isolated, chamber pressure vented to atmosphere, and all actuator outputs de-energized. The 810 Series safety interlock module should be confirmed in the safe state before any card removal begins. This protects both personnel and the process chamber from uncontrolled state changes during the maintenance interval.

After the replacement 810-800256-004 is installed and wiring is verified, a controlled power-on sequence should be followed: apply control power first, verify module initialization on the 810 Series diagnostic display, then confirm I/O status before resuming process operations. A short functional test run — typically a dry cycle without process gases — is recommended before returning the system to full production. This approach consistently achieves return-to-production in under four hours for a single-card swap on the 810 Series platform.

Retrofit Support FAQ

Q1: Is the 810-800256-004 a direct drop-in replacement for the original LAM Research card?
Yes. The 810-800256-004 is a verified functional replacement for the original LAM Research 810-800256-004 control module card. It is designed to occupy the same backplane slot, use the same terminal wiring configuration, and operate within the same 810 Series control architecture without requiring software modifications in standard replacement scenarios.

Q2: What commissioning steps are required after installing the replacement card?
After installation, verify module address settings match the original card, confirm all field wiring is correctly reconnected to the terminal blocks, perform an I/O status check via the 810 Series diagnostic interface, and execute a dry functional test cycle before resuming production. If the system uses a communication interface module for SCADA or DCS integration, verify the communication link is active and data is being received correctly at the supervisory level.

Q3: How is the 810-800256-004 tested before shipment?
Each 810-800256-004 unit undergoes functional verification testing prior to shipment, including power-on initialization checks, I/O channel verification, and communication bus response testing. Units are shipped with a test report confirming functional status. All units are covered by a 12-month warranty against manufacturing defects and functional failure under normal operating conditions.

Q4: What if my 810 Series system has additional compatibility concerns, such as backplane wear or power supply degradation?
If your 810 Series system is exhibiting intermittent card communication errors or power instability in addition to the control module failure, we recommend a system-level inspection before completing the card swap. Our technical support team can assist with compatibility verification, wiring documentation review, and commissioning guidance. Contact us at sales@smartnexmsk.com or +86 18259474341 to discuss your specific retrofit requirements.
