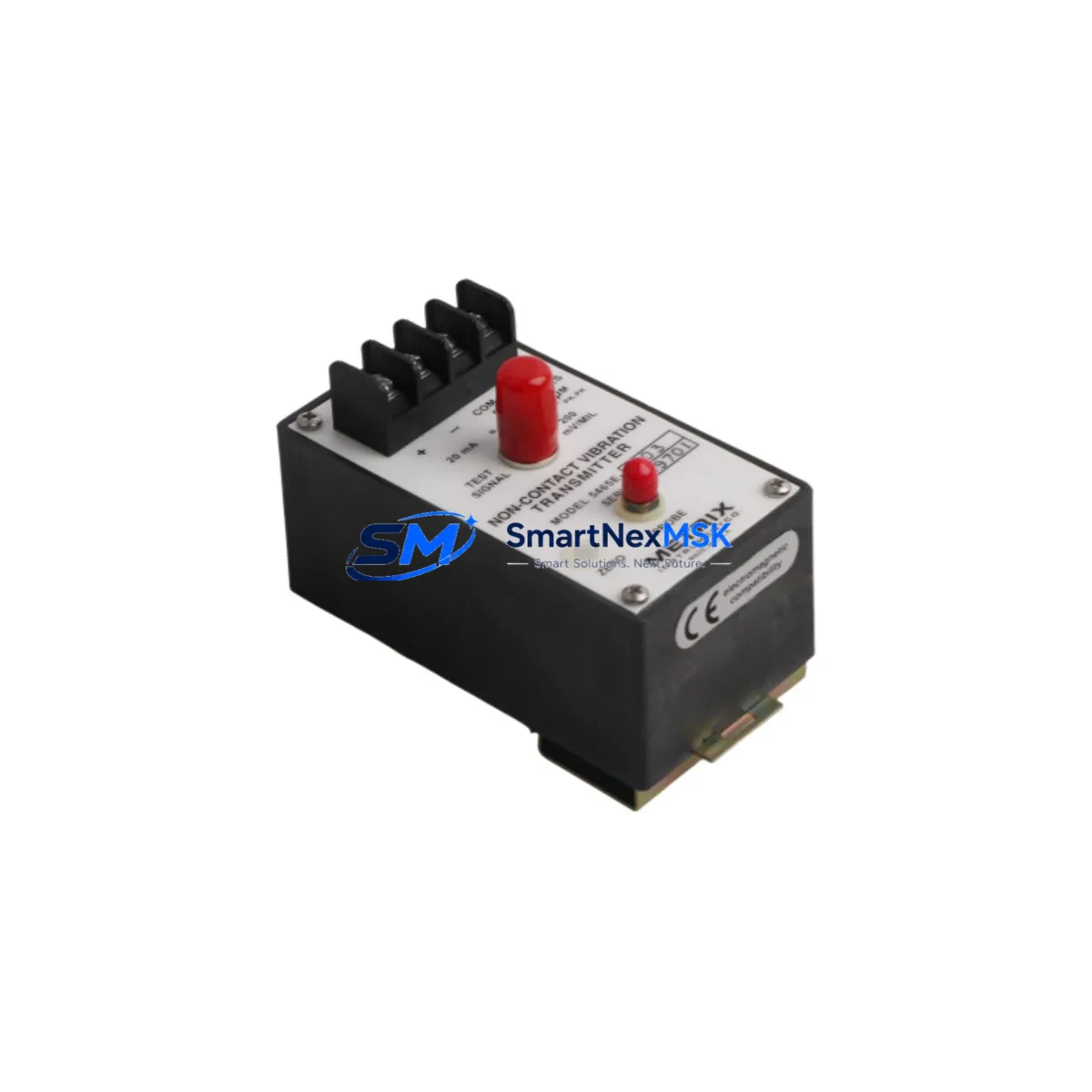

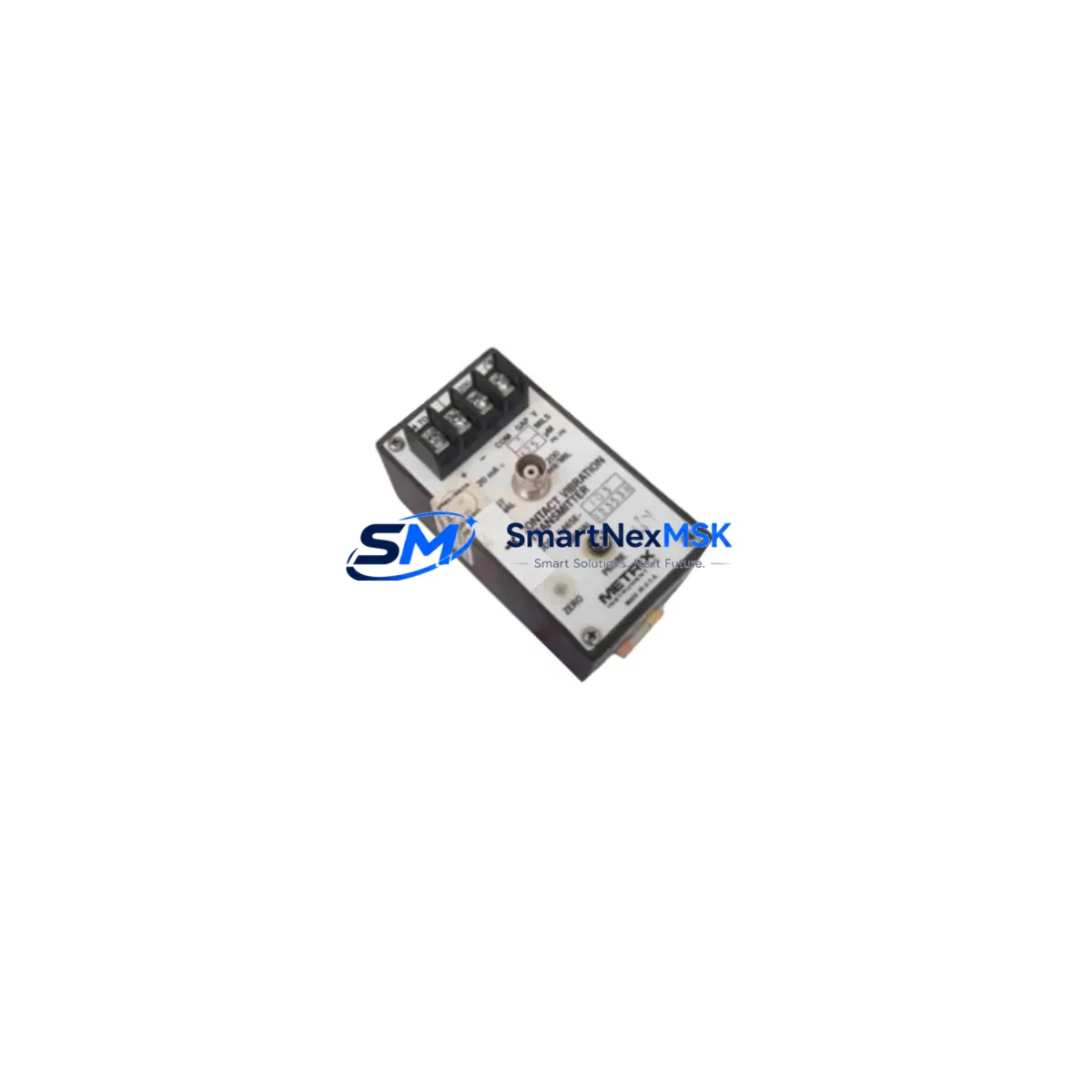

The Metrix 5465E-103 is an original-specification vibration transmitter engineered for continuous-duty industrial monitoring in rotating machinery applications. Designed for the 5465E series platform, this unit delivers a precision 4–20 mA output signal proportional to vibration velocity, making it a direct, drop-in replacement for aging or failed transmitters in turbines, compressors, pumps, fans, and gearboxes. For maintenance engineers managing aging control systems or executing planned overhauls, having a verified, tested spare on the shelf is the single most effective strategy to minimize unplanned downtime and protect production continuity.

At SMARTNEXMSK, every 5465E-103 unit is sourced from authorized supply chains, subjected to pre-shipment functional verification, and backed by a 12-month warranty. We support both emergency replacement orders and long-term blanket spare parts programs for facilities operating Metrix-based condition monitoring systems.

Whether you are responding to a vibration alarm, executing a scheduled turnaround, or building out your critical spare inventory, the 5465E-103 is a proven, field-ready solution that restores system integrity without requiring reconfiguration of your existing DCS or PLC infrastructure.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 5465E-103 vibration transmitter is flagged for replacement during a routine inspection or following a high-vibration trip event, experienced maintenance engineers know that the transmitter itself is rarely the only component that warrants attention. A thorough site assessment should encompass the full signal chain and power distribution architecture of the monitoring loop.

Begin by inspecting the 24 VDC loop power supply feeding the transmitter circuit — a degraded or undersized supply is a common root cause of erratic 4–20 mA readings that are misdiagnosed as transmitter failure. Verify the analog input card on your DCS or PLC (such as a Metrix MX2033 monitor or equivalent signal conditioning module) for correct channel scaling and input impedance. Check the field junction box terminal strips and cable glands for moisture ingress, corrosion, or loose terminations that can introduce signal noise or ground loops.

If the 5465E-103 is part of a multi-channel vibration monitoring panel, also inspect adjacent Metrix 5465E-series transmitters on the same machinery train — bearing housing, drive end, and non-drive end channels — since mechanical wear events rarely affect only one measurement point. Review the Metrix ST5484E or ST5491E signal conditioner modules if your system uses external signal processing before the DCS input.

For facilities running older Bently Nevada 3300 or 3500 series monitors alongside Metrix hardware, confirm that proximity probe driver modules, Keyphasor signal conditioners, and barrier isolators (such as MTL or P+F Zener barriers) are within calibration and free of drift. These components share the same control cabinet environment and are subject to the same thermal cycling and vibration stress as the transmitter itself.

On the PLC or DCS side, verify that the analog input module channel assigned to the 5465E-103 loop is reading correctly after replacement, and confirm that HART communication (if applicable) is re-established and the device tag is correctly mapped. For systems using signal isolators (e.g., Phoenix Contact MINI Analog or equivalent DIN-rail isolators) between the field device and the control system, test isolation integrity and output accuracy post-replacement.

Finally, update your CMMS (Computerized Maintenance Management System) record with the replacement date, new unit serial number, and next scheduled inspection interval. A well-maintained spare parts register — including at least one 5465E-103 on the shelf — is the foundation of a zero-unplanned-downtime maintenance strategy.

Site Replacement Workflow

Step 1 — Isolation and Safety: Follow your site LOTO (Lockout/Tagout) procedure. De-energize the 24 VDC loop supply to the transmitter circuit. Confirm zero energy state with a calibrated multimeter before disconnecting field wiring.

Step 2 — Documentation: Photograph existing wiring terminations and record the cable tag numbers before removal. Note the transmitter orientation and mounting torque if specified in your OEM documentation.

Step 3 — Removal: Disconnect the 2-wire loop cable from the transmitter terminals. Unthread the unit from its stud mount. Inspect the mounting surface for corrosion or thread damage and address before installing the replacement.

Step 4 — Installation of 5465E-103: Apply appropriate thread sealant if required. Torque to OEM specification. Reconnect the loop cable, observing correct polarity (+/−). The 5465E-103 is a direct form-fit-function replacement — no recalibration of the transmitter itself is required for standard velocity measurement ranges.

Step 5 — Loop Verification: Re-energize the loop supply. Confirm the DCS or PLC analog input channel reads a valid 4–20 mA signal (typically 4 mA at rest / no vibration). Use a loop calibrator to simulate full-scale output and verify end-to-end signal integrity.

Step 6 — Functional Test: With the machine running at normal operating speed, confirm that the vibration reading is within expected baseline range. Compare against historical trend data in your condition monitoring system. Clear any latched alarms and return the loop to normal monitoring mode.

Step 7 — Record Keeping: Update your spare parts inventory, CMMS work order, and equipment history file. Replenish your on-shelf 5465E-103 spare to maintain minimum stock levels.

Spare Parts Support FAQ

Q1: Is the Metrix 5465E-103 a direct replacement for older 5465E-series units without system reconfiguration?
Yes. The 5465E-103 maintains the same 4–20 mA output interface and mechanical mounting as the 5465E series standard, making it a drop-in replacement in most installations. No DCS or PLC reconfiguration is required for standard velocity measurement applications. Always verify your specific loop scaling and alarm setpoints after replacement as a best practice.

Q2: What is included in the 12-month warranty and pre-shipment testing?
Every 5465E-103 unit shipped by SMARTNEXMSK undergoes functional output verification prior to dispatch. The 12-month warranty covers manufacturing defects and verified functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage, or mechanical impact. Warranty claims are supported with a straightforward RMA process.

Q3: Can you supply multiple units for a blanket spare parts program or scheduled turnaround?
Yes. We support both single-unit emergency orders and multi-unit blanket purchase agreements for planned maintenance outages and annual turnarounds. Long-term supply commitments can be arranged with agreed lead times and pricing. Contact our technical sales team to discuss your facility’s spare parts strategy.

Q4: How do I confirm compatibility if my existing unit has a different suffix or revision code?
Send us your existing unit’s nameplate data, including the full model number, serial number, and any revision suffix. Our technical team will cross-reference against the 5465E series compatibility matrix and confirm whether the 5465E-103 is a verified replacement. We do not ship unconfirmed substitutions — compatibility is validated before order fulfillment.
