METRIX MX8030-080-00-05 Safety-Enhanced Proximity Cable

METRIX MX8030-080-00-05 Safety-Enhanced Proximity Extension Cable for Harsh Industrial Sites

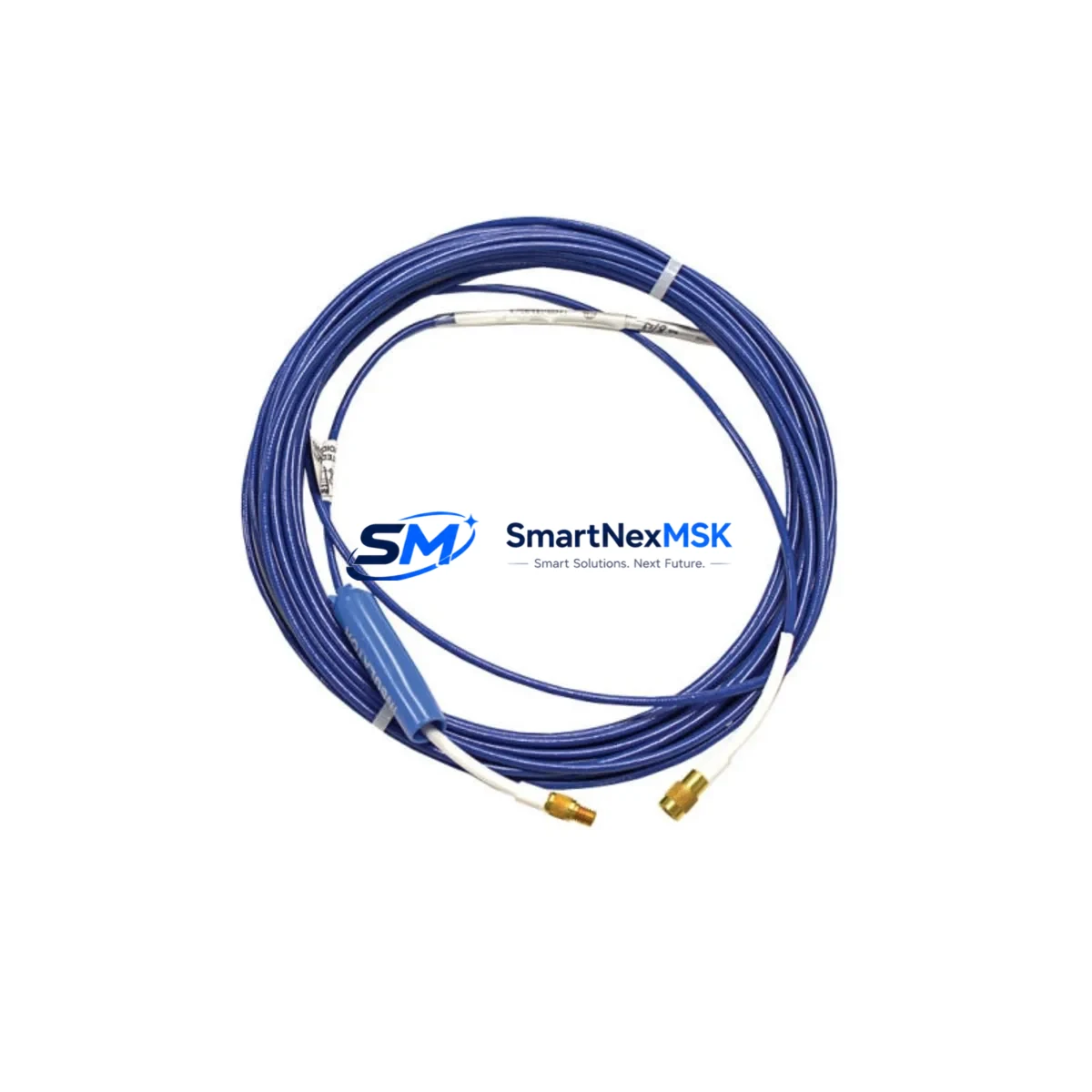

The METRIX MX8030-080-00-05 (also catalogued as MX8031-080-00-05) is a ruggedized 5-metre proximity probe extension cable engineered for continuous, safety-critical vibration monitoring in the most demanding industrial environments. Designed to integrate seamlessly with METRIX 5000 Series proximity probes and compatible eddy-current driver/oscillator modules, this cable forms a vital link in rotating machinery protection systems where signal integrity directly determines whether a turbine, compressor, or pump trips safely — or fails catastrophically.

In high-load, high-interference production facilities — petrochemical columns, power-generation turbine halls, mining hoists, water-treatment pump stations, and continuous steel-rolling mills — the extension cable is the most mechanically stressed component in the proximity measurement chain. Signal drift caused by cable damage, connector corrosion, or electromagnetic interference can mask genuine shaft displacement events, delay protective relay action, and ultimately result in unplanned shutdowns or equipment destruction. The MX8030-080-00-05 addresses each of these failure modes through its ruggedized construction, double-shielded coaxial geometry, and precision-matched impedance that preserves the linear output of the METRIX proximity system across the full –50 °C to +120 °C operating range.

Safety Reliability Table

Control Cabinet Protection Strategy

A proximity measurement loop is only as reliable as its weakest interconnect. In a typical API 670-compliant machinery protection cabinet, the MX8030-080-00-05 extension cable routes the raw eddy-current signal from the probe tip — mounted millimetres from a rotating shaft — back to the METRIX MX8031 driver/oscillator module housed in the control rack. From there, the conditioned 4–20 mA or voltage output feeds into a METRIX 5500 Series vibration monitor or a third-party safety PLC input card, where trip and alarm setpoints are enforced.

To protect this signal path against the surge voltages and ground-loop currents common in heavy industrial switchgear rooms, engineers frequently install METRIX MX2034 proximity probes at the machine end and pair them with dedicated galvanic isolation barriers — such as the MTL7706+ or P+F KFD2-series — between the field junction box and the control cabinet. The extension cable’s double-braid shield must be grounded at a single point (typically the driver chassis) to prevent circulating shield currents that introduce 50/60 Hz noise into the gap-voltage signal.

Within the same protection cabinet, METRIX 5500 Series dual-channel vibration monitors process radial shaft vibration, axial thrust position, and differential expansion simultaneously. These monitors communicate trip status to the plant DCS — often a Honeywell Experion PKS C300 controller or Emerson DeltaV SIS logic solver — via hardwired relay contacts or FOUNDATION Fieldbus. Redundant 24 VDC SITOP PSU8200 power supply modules ensure that the monitoring loop remains energised even during main-bus switching events, preventing nuisance trips caused by power dips rather than genuine machinery faults.

For installations in classified hazardous areas (Zone 1 / Division 1), the extension cable is routed through Ex-rated conduit systems and terminated at Zener barrier assemblies or galvanically isolated HART barriers before entering the safe-area cabinet. This architecture ensures that a cable insulation fault in the hazardous zone cannot propagate ignition energy back through the measurement loop. Periodic insulation-resistance testing of the MX8030-080-00-05 — using a 500 V Megger at scheduled maintenance intervals — is recommended to detect jacket degradation before it compromises signal quality or safety integrity.

Critical Industrial Safety Applications

Petrochemical & Refinery: Centrifugal compressor trains in ethylene crackers and hydrocracker units operate continuously for 3–5 year turnaround cycles. The MX8030-080-00-05 extension cable withstands the hydrogen-rich, high-temperature atmosphere of these machines while delivering the sub-micron displacement resolution required to detect early-stage rotor instability — the precursor to a destructive surge event. Reliable proximity measurement in this context is not a performance metric; it is a process safety requirement under IEC 61511.

Power Generation: Steam turbine-generator sets in coal, gas, and nuclear power plants rely on API 670 proximity systems to monitor shaft eccentricity, differential expansion, and thrust position. A degraded extension cable that introduces signal noise can cause false high-vibration trips, forcing an unplanned unit outage that costs tens of thousands of dollars per hour. The ruggedised construction of the MX8030-080-00-05 minimises this risk in the high-temperature, high-humidity turbine hall environment.

Mining & Mineral Processing: Ball mills, SAG mills, and large slurry pumps in copper, gold, and iron-ore concentrators subject proximity cables to severe mechanical vibration, abrasive dust, and aggressive chemical wash-down. The stainless-steel overbraid option of the MX8030-080-00-05 provides the mechanical protection needed to survive these conditions without compromising the coaxial signal geometry.

Water & Wastewater Treatment: High-speed centrifugal pumps and blowers in municipal water-treatment plants operate in humid, corrosive environments where cable jacket degradation is accelerated. The IP67-rated connectors of the MX8030-080-00-05 prevent moisture ingress at the most vulnerable points of the measurement loop, ensuring continuous bearing-condition monitoring without manual intervention between scheduled maintenance windows.

Metallurgy & Steel: Rolling mill drive motors and continuous caster pinch-roll drives generate intense electromagnetic interference from large variable-frequency drives and DC thyristor converters. The double-braid EMI shielding of the MX8030-080-00-05 maintains signal integrity in these environments, preventing the false readings that could mask genuine bearing-wear progression and lead to unplanned roll-change shutdowns.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover?
The 12-month warranty covers all manufacturing defects, connector integrity, shield continuity, and signal-path electrical performance. Every unit undergoes a 100% pre-shipment electrical test — including insulation resistance, impedance verification, and connector pull-force check — before dispatch. If a unit fails in service within the warranty period due to a manufacturing defect, we provide a free replacement or full refund.

Q2: Is the MX8030-080-00-05 compatible with my existing METRIX proximity system?
Yes. The MX8030-080-00-05 is designed as a direct replacement for the original METRIX extension cable in any system using METRIX MX2032, MX2034, or MX5500 Series probes paired with MX8030 or MX8031 driver/oscillator modules. The cable’s impedance and capacitance are matched to the METRIX eddy-current system specification, ensuring that gap-voltage linearity and sensitivity factor (mV/mil or mV/µm) are preserved without recalibration.

Q3: Can this cable be used in SIL-2 safety instrumented functions?
The MX8030-080-00-05 is a passive interconnect component. Its use in a SIL-rated loop depends on the overall SIL assessment of the complete measurement chain — probe, driver, monitor, and logic solver. The cable’s double-shielded construction, IP67 sealing, and compliance with IEC 60068-2-6 vibration testing support its inclusion in SIL-2 loop designs when the full system is assessed per IEC 61508/61511. Consult your functional safety engineer for loop-level SIL verification.

Q4: What is your long-term supply and replacement support policy?
We maintain dedicated stock of the MX8030-080-00-05 and MX8031-080-00-05 to support planned maintenance, emergency replacement, and capital-project procurement. Orders are typically dispatched within 1–3 business days. For critical-spares programmes requiring guaranteed stock reservation, blanket-order arrangements are available. Our technical team can also assist with cross-referencing obsolete METRIX cable part numbers to current equivalents.
