NIKON 4L990-796 Safety-Enhanced Analog Sensor for Harsh Sites

NIKON 4L990-796 Safety-Enhanced Analog Sensor for Harsh Industrial Sites

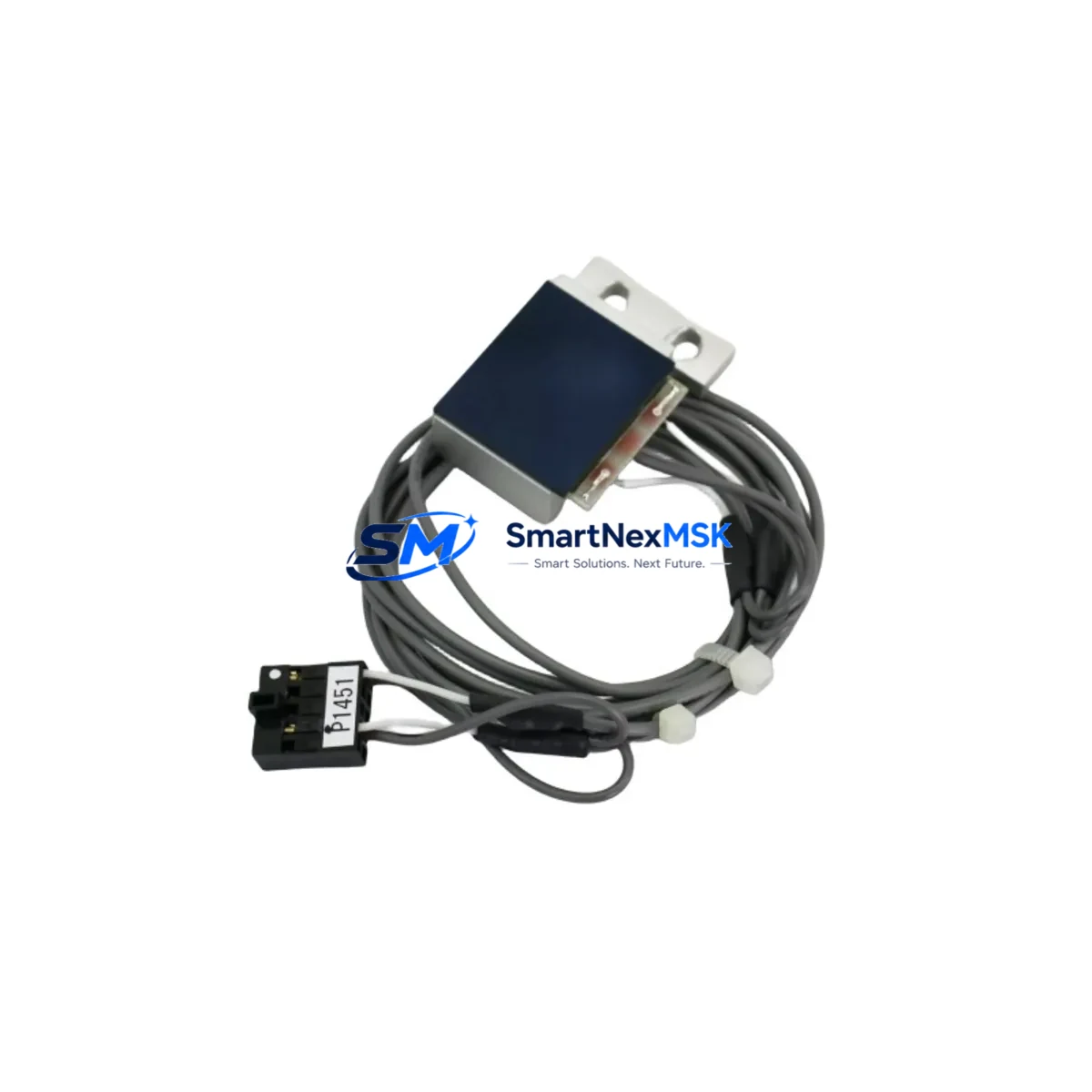

The NIKON 4L990-796 is a ruggedized, safety-grade analog sensor (SPD unit) engineered for continuous, uninterrupted operation in the most demanding industrial environments. Designed to meet the rigorous requirements of heavy-industry control systems, this module delivers stable, high-fidelity signal output even under conditions of extreme electromagnetic interference, voltage fluctuation, mechanical vibration, and thermal stress. Whether deployed in a critical interlock loop, a distributed control system (DCS) rack, or a PLC-based safety instrumented system (SIS), the NIKON 4L990-796 provides the signal integrity and operational resilience that modern industrial safety demands.

In high-load continuous production facilities — including petrochemical plants, power generation stations, metallurgical smelters, mining operations, water treatment infrastructure, and port logistics automation — analog signal accuracy is not merely a performance metric; it is a safety imperative. Signal drift, noise-induced misreads, or sensor dropout in a live control loop can trigger unplanned shutdowns, process upsets, or — in worst-case scenarios — hazardous equipment failures. The NIKON 4L990-796 is purpose-built to eliminate these risks at the hardware level.

Its EMI-shielded analog front-end suppresses common-mode noise and differential interference from adjacent variable-frequency drives (VFDs), high-current bus bars, and switching power supplies — components routinely co-located in industrial control cabinets. The sensor’s wide operating temperature range and sealed construction resist condensation, particulate ingress, and corrosive atmospheres, making it equally suitable for outdoor substations and enclosed process control rooms.

Safety Reliability Table

Control Cabinet Protection Strategy

In a well-engineered industrial control cabinet, the NIKON 4L990-796 analog sensor does not operate in isolation — it functions as a critical node within a layered protection architecture. When integrated alongside a Siemens 6ES7 analog input module or an ABB AI810 analog input card, the 4L990-796 feeds clean, conditioned signals directly into the DCS or PLC backplane, eliminating the need for external signal conditioners in most installations.

For power supply integrity — a foundational requirement for analog accuracy — the sensor is best paired with a Phoenix Contact QUINT-PS/1AC/24DC/10 redundant power supply or equivalent 24 VDC rail-mount PSU with active power factor correction. Voltage ripple and micro-interruptions from inadequately filtered supplies are a leading cause of analog signal drift; a regulated, redundant power rail eliminates this failure mode entirely.

Surge and transient protection at the cabinet entry point is equally critical. Deploying a Weidmüller DEK 1-WB surge protection terminal block or a Phoenix Contact PT 2X2-BE surge arrester upstream of the sensor wiring prevents lightning-induced transients and switching surges from propagating into the analog measurement circuit. The 4L990-796’s internal SPD function provides a secondary layer of protection, but field-level surge arresters remain best practice for IEC 61643-compliant installations.

For communication integrity in hybrid architectures, the sensor’s analog output is typically digitized by a Yokogawa ADMAG AXF electromagnetic flow transmitter or routed through a Pepperl+Fuchs KFD2-STC4-Ex1 signal conditioner / isolator, which provides galvanic isolation between the field device and the control system — a mandatory safeguard in Zone 1 and Zone 2 hazardous area installations. In PROFIBUS or HART-enabled systems, a Siemens ET 200SP distributed I/O station or Emerson HART multiplexer can aggregate multiple analog channels, including the 4L990-796 output, into a single communication trunk, reducing wiring complexity and improving diagnostic coverage.

For safety interlock applications requiring SIL 2 or SIL 3 compliance, the analog signal from the 4L990-796 is typically voted through a Triconex 3700A safety I/O module or a Hima F3 DIO 20/8 01 digital safety output module, ensuring that a single sensor fault does not propagate to a spurious trip or — more critically — a failure to trip. Proper loop documentation, including calibration records and proof-test intervals, should accompany every 4L990-796 installation in a safety instrumented function (SIF).

Critical Industrial Safety Applications

Petrochemical & Refinery: In crude distillation units and catalytic cracking columns, analog sensors must maintain calibration accuracy across wide temperature swings and in the presence of hydrocarbon vapors. The NIKON 4L990-796 is suited for pressure, temperature, and level measurement loops where signal integrity directly governs burner management system (BMS) response and emergency shutdown (ESD) activation.

Power Generation: Thermal and hydroelectric power plants rely on high-reliability analog sensing for turbine speed control, generator excitation feedback, and boiler drum level monitoring. A sensor dropout in any of these loops can initiate an unplanned unit trip, costing operators tens of thousands of dollars per hour in lost generation. The 4L990-796’s robust construction and tested reliability make it a dependable choice for these critical measurement points.

Mining & Mineral Processing: Conveyor load cells, crusher torque sensors, and flotation cell level transmitters operate in environments characterized by extreme vibration, dust, and electrical noise from large motor drives. The 4L990-796’s EMI resistance and ruggedized housing maintain signal fidelity in these conditions, supporting safe overload detection and process optimization.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities require continuous, reliable analog measurement for flow, pH, turbidity, and chlorine dosing control. Sensor failures in these applications can result in regulatory non-compliance or public health risks. The 4L990-796 supports uninterrupted monitoring with its stable analog output and corrosion-resistant design.

Metallurgy & Steel Production: Electric arc furnaces, continuous casting lines, and rolling mills generate intense electromagnetic fields that challenge conventional analog sensors. The 4L990-796’s shielded design and high common-mode rejection ratio (CMRR) ensure accurate measurement even in proximity to high-current bus systems and induction heating equipment.

Port & Heavy Logistics Automation: Container crane load monitoring, ship-to-shore conveyor control, and automated stacking systems depend on precise analog feedback for safe load management. The 4L990-796 provides the measurement stability required for safe crane operation and overload protection in outdoor, salt-air environments.

Safety and Quality FAQ

Q1: What warranty coverage does the NIKON 4L990-796 carry?
Every NIKON 4L990-796 unit supplied by SMARTNEXMSK is covered by a 12-month warranty against functional failure under normal operating conditions. Warranty claims are processed promptly, with replacement units dispatched from in-stock inventory to minimize your downtime. Warranty coverage begins from the date of shipment and applies to defects in materials and workmanship, not damage resulting from incorrect installation or operation outside specified parameters.

Q2: What pre-shipment testing is performed on each unit?
All units undergo 100% functional inspection prior to dispatch. Testing includes analog output verification across the full signal range, insulation resistance check, and visual inspection for physical integrity. A test record is available upon request. Units that do not meet specification are quarantined and not shipped — we do not supply untested or cosmetically refurbished parts as new.

Q3: Is the NIKON 4L990-796 compatible with my existing PLC or DCS platform?
The 4L990-796 produces a standard analog output (4–20 mA or 0–10 V, depending on configuration) compatible with virtually all major PLC and DCS analog input modules, including those from Siemens, ABB, Yokogawa, Honeywell, Emerson, and Rockwell Automation. If you require confirmation of compatibility with a specific I/O card or backplane, contact our technical team with your system details and we will advise before you order.

Q4: Can SMARTNEXMSK guarantee long-term supply for ongoing maintenance and spare parts programs?
Yes. SMARTNEXMSK maintains dedicated stock of the NIKON 4L990-796 and its cross-reference equivalents (4L990-796AN, 0040-61295, 0010-12540, 0010-22700W) to support planned maintenance schedules, emergency replacements, and multi-unit procurement programs. We work with industrial facilities that require predictable spare parts availability and can discuss framework agreements for priority allocation and reserved stock upon request.
