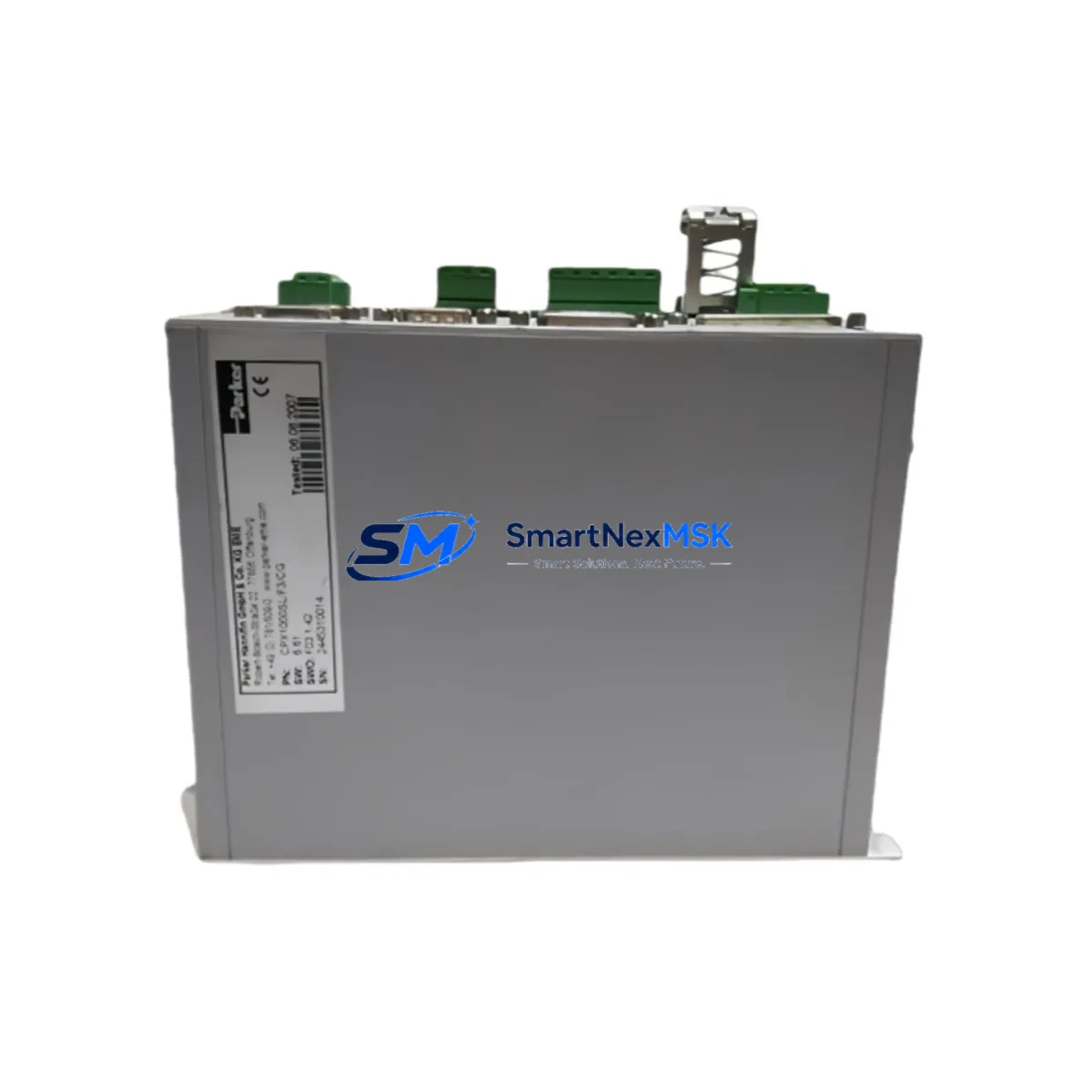

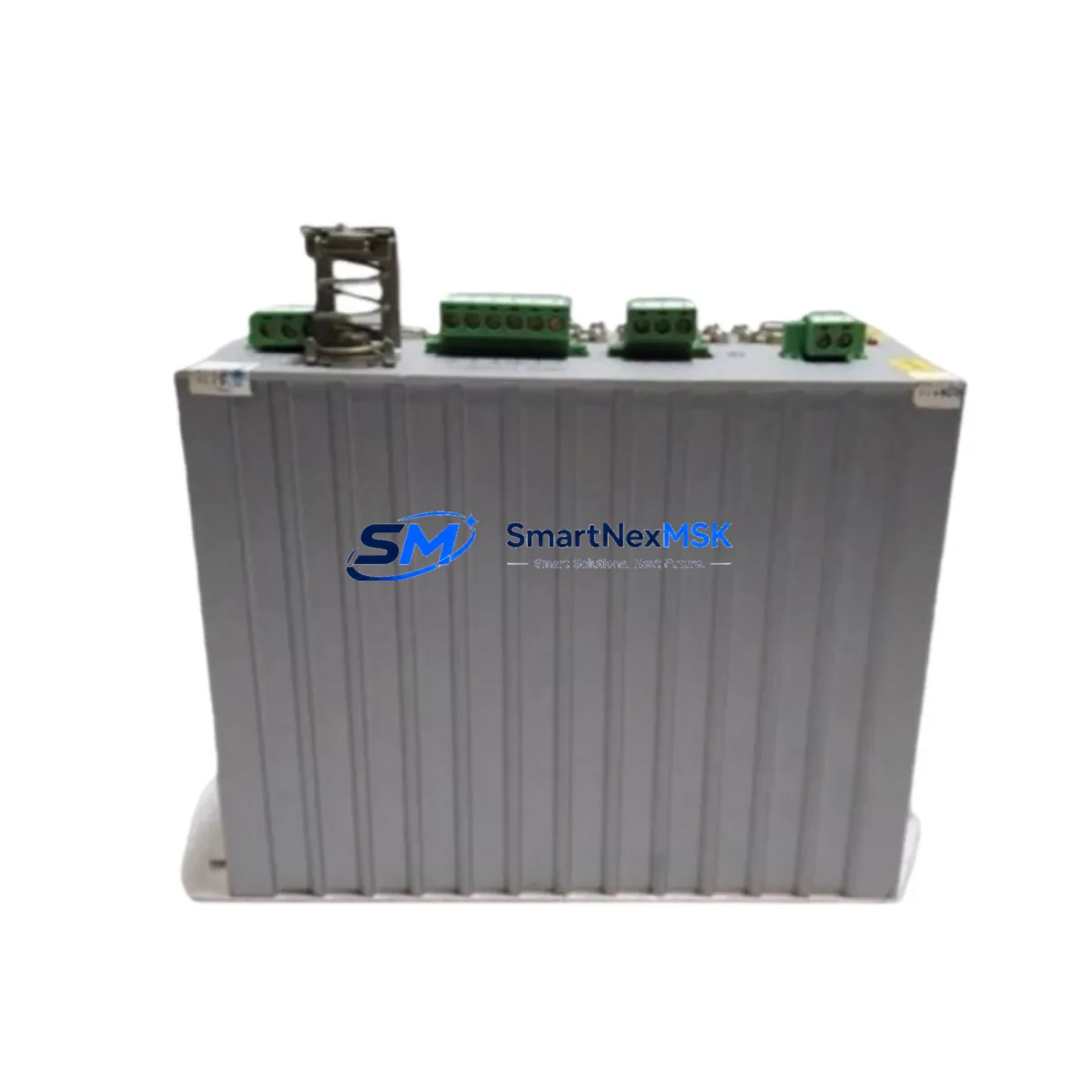

Parker CPX1000SL/F5/CG Retrofit-Ready AC Servo Drive for CPX Series Control Systems
The Parker CPX1000SL/F5/CG is a high-performance AC servo drive engineered for seamless integration into existing CPX Series automation architectures. As legacy Parker CPX drives reach end-of-life and OEM support windows close, plant engineers and system integrators increasingly rely on verified retrofit-ready replacements to sustain production continuity without committing to full platform migrations. This unit is sourced from authorized supply channels, pre-tested prior to shipment, and backed by a 12-month warranty — making it a dependable choice for both emergency breakdown recovery and planned modernization projects.
Whether you are replacing a failed drive in a running production line, upgrading a control cabinet as part of a broader automation refresh, or migrating from an obsolete Parker motion control platform, the CPX1000SL/F5/CG delivers the electrical and mechanical compatibility required to minimize engineering rework. The drive retains the original CPX Series terminal layout, enabling direct re-use of existing field wiring without re-termination in most standard installations. Power input specifications, feedback interface pinouts, and enable/fault logic signals are consistent with the CPX platform baseline, reducing the risk of commissioning errors during swap-out.
Upgrade Compatibility Table
| Parameter | Details |
|---|---|
| Compatible Series | Parker CPX Series AC Servo Drives |
| SKU | CPX1000SL/F5/CG |
| Mounting / Form Factor | Panel-mount, DIN rail compatible — matches original CPX footprint |
| Feedback Interface | Incremental encoder, resolver (series-dependent); verify encoder cable pinout before installation |
| Communication Compatibility | RS-232 / RS-485 serial; verify fieldbus option card (CANopen, PROFIBUS) against original configuration |
| Replacement Recommendation | Direct replacement for CPX1000SL variants; confirm /F5 filter and /CG coating options match site requirements |
| Commissioning Notes | Re-load original parameter file via Parker SSD DSE Lite or equivalent commissioning tool; verify motor nameplate data |
| Warranty | 12 months from date of shipment |
Retrofit Planning for Existing Automation Systems
A successful CPX1000SL/F5/CG retrofit begins well before the drive arrives on site. During the planning phase, engineers should pull the existing drive’s parameter backup — stored via Parker SSD DSE Lite or a compatible HMI parameter upload — and cross-reference motor nameplate data against the replacement unit’s rated output current and voltage envelope. In multi-axis cabinets where the CPX1000SL shares a common DC bus with adjacent Parker CPX400 or CPX750 drives, bus capacitance and regenerative braking load must be recalculated to confirm the replacement unit’s internal braking resistor rating is adequate, or that an external Parker DBR braking resistor is correctly sized.
Terminal wiring should be documented photographically before disconnection. The CPX Series uses a consistent terminal block layout across the power stage (L1, L2, L3 mains input; U, V, W motor output; PE earth) and the control board (enable, fault reset, analog reference, digital I/O). However, installations that have been modified over time — particularly those integrating third-party I/O expansion modules or custom 24 VDC logic supplies — may have non-standard wiring that requires careful mapping before the replacement drive is energized.
Where the original system communicates over RS-485 Modbus RTU to a Siemens S7-300 PLC or an Allen-Bradley ControlLogix controller, the drive node address, baud rate, and parity settings stored in the original unit must be replicated exactly in the replacement. If the installation uses a Parker ACR motion controller or a third-party CNC interpolator, verify that the drive’s position loop gain parameters and velocity feed-forward values are restored from the saved parameter file rather than re-tuned from scratch — this alone can save several hours of commissioning time. Systems that include a Parker or third-party HMI panel should have their drive status screens and alarm pages verified post-swap to confirm that fault code mappings remain consistent with the replacement firmware version.
For installations involving Parker Compax3 or legacy Eurotherm 590 DC drive platforms in the same control cabinet, ensure that the CPX1000SL/F5/CG’s EMC filter (/F5 option) is correctly bonded to the cabinet earth rail to prevent conducted interference from affecting adjacent drives or the PLC backplane. The /CG conformal coating option is particularly important in humid or chemically aggressive environments — confirm that the coating specification matches the original unit if the installation is in a food processing, chemical, or coastal facility.
Downtime Control During System Migration
Minimizing unplanned downtime during a CPX1000SL/F5/CG swap requires a structured pre-outage checklist. Before the maintenance window opens, the original drive’s full parameter set should be uploaded and saved to at least two independent storage locations. The PLC program — whether running on a Siemens S7-400, Mitsubishi Q Series, or Omron NJ/NX controller — should be backed up and the relevant motion function blocks or servo axis objects documented, including any axis homing sequences that depend on drive-side zero-pulse output.
During the outage, the sequence should follow: isolate and lock out mains supply → discharge DC bus (minimum 5 minutes, verify with meter) → disconnect motor and feedback cables → remove original drive → install replacement → reconnect in reverse order → restore parameter file → perform a no-load jog test before reconnecting the mechanical load. This sequence protects both the replacement drive and the connected servo motor from energization errors. If the system uses a Parker or third-party safety relay module for STO (Safe Torque Off), verify that the STO input wiring is correctly reinstated and that the safety function is tested per the site’s functional safety procedure before returning the axis to automatic mode.
Where production schedules do not permit a full commissioning run, a staged approach — replacing the drive during a planned short stop, restoring parameters, and running in manual jog mode to verify basic motion before handing back to automatic — can reduce the critical-path outage to under 60 minutes for experienced technicians familiar with the CPX platform.
Retrofit Support FAQ
Q: Is the CPX1000SL/F5/CG a direct drop-in replacement for my existing Parker CPX1000SL unit?
A: In the majority of standard installations, yes. The /F5 EMC filter and /CG conformal coating are factory-fitted options — confirm that your original unit carried both options before ordering. Terminal layout and control board pinout are consistent across the CPX1000SL family. Parameter files from the original unit are compatible and should be restored via DSE Lite after installation.
Q: What commissioning steps are required after fitting the replacement drive?
A: Restore the saved parameter file, verify motor nameplate data against drive output ratings, confirm communication node address and baud rate, perform a no-load jog test, and validate the STO safety function if applicable. For systems with Parker ACR or third-party motion controllers, verify position loop gains before returning to automatic mode.
Q: How do I verify wiring compatibility before energizing the replacement unit?
A: Compare the terminal wiring diagram of the original CPX1000SL against the replacement unit’s terminal layout using the Parker CPX Series hardware manual. Pay particular attention to the control board connector — especially analog reference scaling, digital input logic levels (sink/source), and any custom 0 V common connections introduced during the original installation.
Q: What does the 12-month warranty cover, and what pre-shipment testing is performed?
A: Every CPX1000SL/F5/CG unit is powered-on tested prior to shipment to verify drive enable, fault-free operation, and output stage integrity. The 12-month warranty covers manufacturing defects and component failures under normal operating conditions. Units are shipped with protective packaging suitable for international freight. Contact sales@smartnexmsk.com for warranty claims or technical pre-sales support.
