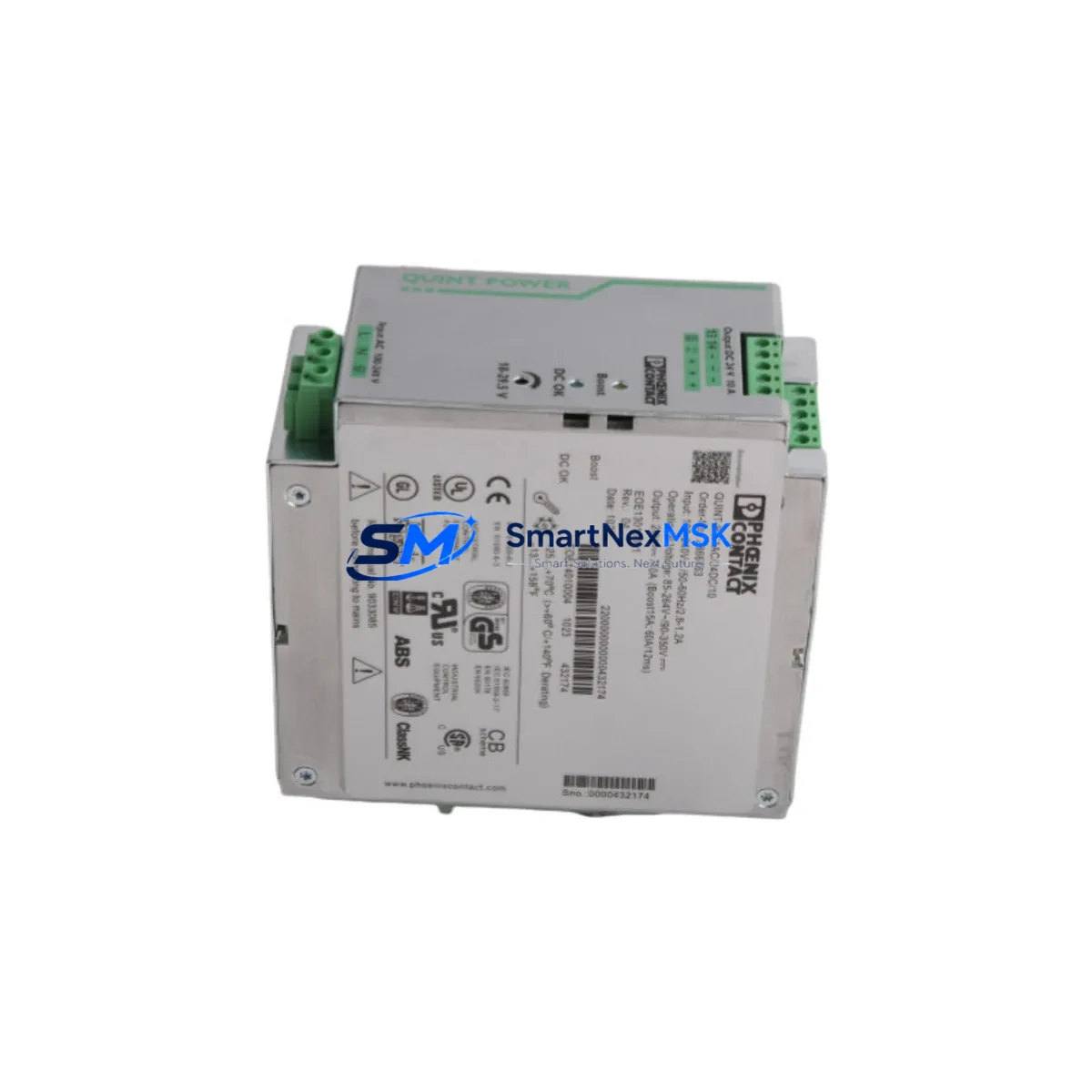

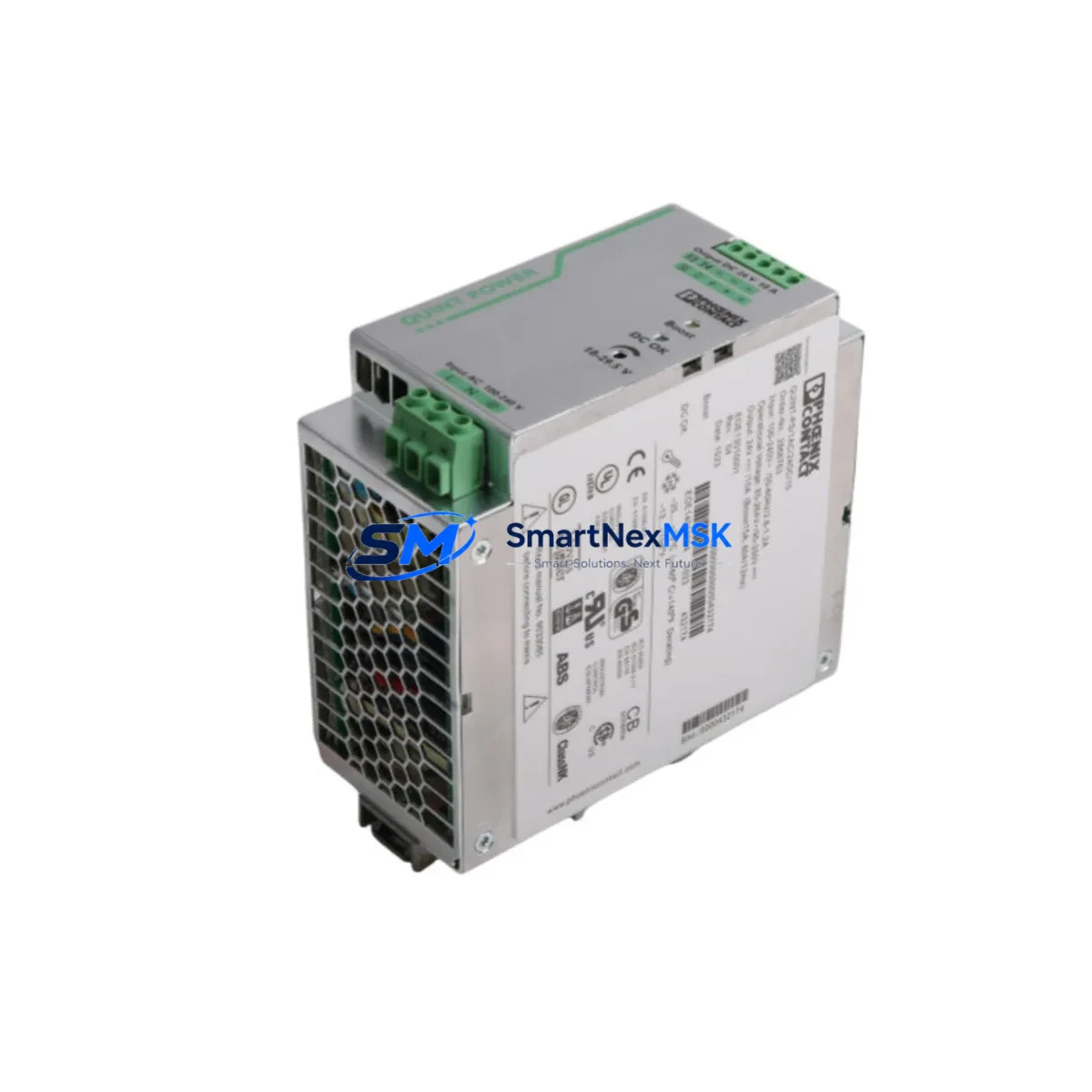

Phoenix Contact 2866763 QUINT-PS/1AC/24DC/10: Safety-Engineered 240W DIN Rail Power Supply for Harsh Industrial Control Systems

In high-demand industrial environments — where continuous production, heavy electrical interference, and unplanned downtime carry serious operational and safety consequences — the power supply unit is the silent backbone of every control cabinet. The Phoenix Contact 2866763 QUINT-PS/1AC/24DC/10 is a 240W, single-phase AC input to 24VDC output DIN rail power supply engineered specifically for these critical conditions. Designed and manufactured in Germany to Phoenix Contact’s exacting QUINT series standards, this PSU delivers stable, regulated 24VDC power to PLCs, safety relays, I/O modules, field instruments, and communication gateways — even under the most demanding load profiles and environmental stresses.

The QUINT-PS series is distinguished by its active SFB (Selective Fuse Breaking) technology, which enables the unit to deliver up to 200% of rated current for 12 milliseconds to reliably blow downstream fuses and isolate faults — a critical safety function in multi-branch control cabinet wiring. This prevents nuisance tripping of the entire power rail and ensures that a single branch fault does not cascade into a full system shutdown. In petrochemical plants, power generation facilities, and continuous process industries, this capability is not a convenience — it is a fundamental safety requirement.

Surge and transient protection is built into the QUINT-PS/1AC/24DC/10 at the input stage, guarding against voltage spikes common in heavy industrial sites where large motor drives, welding equipment, and high-inductive loads share the same electrical infrastructure. The unit maintains output stability across an input voltage range of 85–264VAC, making it resilient to grid fluctuations and brownout conditions without requiring external voltage conditioning. This wide input tolerance is particularly valuable in mining operations, port crane systems, and water treatment facilities where utility power quality is inconsistent.

The output is precisely regulated at 24VDC with a tight load and line regulation specification, ensuring that sensitive downstream devices — including Phoenix Contact QUINT-DIODE/40AC/2X20/1X40 redundancy modules, TRIO-PS/1AC/24DC/5 auxiliary supply units, and PSI-MOS/RS232/USB communication converters — receive clean, stable power regardless of load variation. When paired with a Phoenix Contact UPS-IQ/24DC/20A uninterruptible power supply module on the same DIN rail, the 2866763 forms the primary charging and distribution source for a fully redundant power architecture — a configuration widely adopted in safety-critical SCADA and DCS panels.

Thermal management is handled through convection cooling with no moving parts, eliminating fan failure as a reliability risk in sealed or dusty enclosures. The unit is rated for operation from -25°C to +70°C, covering the full range of outdoor electrical rooms, unheated substations, and high-ambient process areas. Its compact 45mm DIN rail footprint allows dense panel layouts without sacrificing airflow clearance, and the integrated status LED and relay output provide real-time power-good signaling to the host PLC or safety controller — enabling predictive maintenance workflows and alarm integration without additional monitoring hardware.

In safety instrumented systems (SIS) and emergency shutdown (ESD) circuits, power supply reliability is a direct contributor to SIL (Safety Integrity Level) compliance. The 2866763 QUINT-PS/1AC/24DC/10 supports these architectures by providing a stable, monitored power source for Phoenix Contact PSR safety relay modules, MACX MCR signal conditioners, and Axioline F I/O modules used in interlock and trip circuits. Its signaling relay output can be wired directly into the safety PLC’s digital input to flag power anomalies before they affect process control — a proactive safety measure that reduces the probability of dangerous failure on demand.

For communication-intensive panels incorporating Phoenix Contact FL SWITCH managed Ethernet switches or RAD-ISM-900 wireless I/O modules, the 2866763 provides the stable 24VDC rail that these devices require for deterministic network performance. Voltage sag or ripple on the 24VDC bus is a known cause of Ethernet packet loss and Modbus communication timeouts in industrial networks — issues that the QUINT-PS series is specifically engineered to prevent through its active output regulation and load compensation algorithms.

Every unit supplied by SMARTNEXMSK undergoes pre-shipment functional testing including output voltage verification, load regulation check, and SFB function confirmation. Units are sourced from authorized distribution channels and stored in ESD-safe, climate-controlled conditions. Each 2866763 QUINT-PS/1AC/24DC/10 ships with a 12-month warranty covering manufacturing defects and functional failures, with direct technical support available for installation and compatibility queries.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust industrial control cabinet is only as reliable as its power distribution architecture. The Phoenix Contact 2866763 QUINT-PS/1AC/24DC/10 serves as the primary 24VDC source in multi-tier cabinet designs, feeding downstream branch circuits protected by Phoenix Contact PTCB 1/2 circuit breakers and CLIPLINE complete terminal blocks for organized, fault-isolated wiring. In redundant power configurations, two QUINT-PS units are coupled through a QUINT-DIODE/40AC/2X20/1X40 ORing diode module, ensuring seamless failover with zero output interruption — a standard practice in continuous process control panels where even a 20ms power dip can trigger PLC watchdog resets.

The 24VDC rail supplied by the 2866763 powers Phoenix Contact AXL F BK ETH Axioline bus couplers and their associated I/O modules, which handle digital and analog signals from field sensors, actuators, and transmitters. Signal integrity on these I/O channels is directly dependent on power rail stability; the QUINT-PS’s tight output regulation (±1%) prevents the analog signal drift that can cause false process alarms or missed trip conditions in safety loops. For panels incorporating Phoenix Contact PSR-SCP safety relays in emergency stop and light curtain circuits, the stable 24VDC supply is a prerequisite for maintaining the relay’s self-monitoring diagnostic cycle without spurious de-energization.

Communication infrastructure within the cabinet — including Phoenix Contact FL SWITCH 1008T unmanaged Ethernet switches connecting field devices to the DCS network — relies on the 2866763’s low-ripple output to maintain deterministic Ethernet frame timing. In Modbus RTU and PROFIBUS segments, power supply noise is a primary cause of CRC errors and communication timeouts; the QUINT-PS series’ active filtering and regulation architecture directly mitigates this risk. Where wireless I/O is deployed via Phoenix Contact RAD-900-IFS radio modules, the PSU’s stable output ensures consistent RF transmission power and prevents the packet loss associated with voltage sag during high-load switching events.

Critical Industrial Safety Applications

The Phoenix Contact 2866763 QUINT-PS/1AC/24DC/10 is deployed across the most demanding industrial sectors where control system reliability is directly linked to personnel safety and environmental protection. In petrochemical and refinery facilities, it powers the 24VDC control rail for emergency shutdown (ESD) panels, flame and gas detection systems, and high-integrity pressure protection systems (HIPPS), where SIL 2/3 requirements demand a power source with documented reliability and fault signaling capability. The unit’s relay output is wired to the safety PLC to provide real-time power health monitoring, enabling operators to respond to incipient power failures before they affect the safety function.

In coal and metal mining operations, control panels are exposed to extreme vibration, coal dust ingress, and wide ambient temperature swings. The QUINT-PS/1AC/24DC/10’s fanless design eliminates the primary mechanical failure mode in these environments, while its -25°C cold-start capability ensures reliable operation in unheated surface substations during winter shutdowns. Power generation and substation automation applications leverage the unit’s wide input voltage tolerance to maintain stable 24VDC output during grid switching transients and generator transfer events — conditions that routinely cause failures in standard industrial PSUs.

In municipal water treatment and wastewater facilities, the 2866763 powers SCADA RTU panels controlling pump stations, chemical dosing systems, and UV disinfection equipment. Continuous, uninterrupted 24VDC supply is essential to prevent uncontrolled chemical dosing or pump cavitation events that can result from control system power interruptions. Port and terminal automation systems — including crane PLC panels and automated guided vehicle (AGV) charging infrastructure — rely on the QUINT-PS series for its ability to handle the high inrush currents associated with large contactor switching without output voltage collapse. In steel and aluminum smelting facilities, where electromagnetic interference from arc furnaces and induction heaters is extreme, the unit’s built-in input surge suppression and shielded output regulation protect downstream instrumentation from the conducted and radiated interference that characterizes these environments.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the Phoenix Contact 2866763 QUINT-PS/1AC/24DC/10?
All units supplied by SMARTNEXMSK carry a 12-month warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. Warranty claims are processed directly through SMARTNEXMSK with replacement or repair turnaround support. Extended warranty arrangements are available for large-volume or project-based procurement — contact sales@smartnexmsk.com for details.

Q2: What pre-shipment testing is performed on each unit?
Every 2866763 QUINT-PS/1AC/24DC/10 undergoes a pre-shipment functional test protocol including: output voltage measurement at no-load and full-load conditions, load regulation verification, SFB (Selective Fuse Breaking) function confirmation, and relay output signaling check. Units that do not meet Phoenix Contact’s published specifications are quarantined and not shipped. Test records are available upon request for quality-critical procurement.

Q3: Is the 2866763 compatible with my existing Phoenix Contact QUINT or TRIO series cabinet infrastructure?
Yes. The QUINT-PS/1AC/24DC/10 is fully compatible with Phoenix Contact’s QUINT-DIODE redundancy modules, QUINT-BUFFER capacitor modules, and standard 35mm DIN rail mounting systems used across the QUINT and TRIO product families. It provides the 24VDC rail voltage required by Axioline F, Inline, and MACX MCR series devices. For specific compatibility queries involving non-standard load profiles or mixed-brand cabinet configurations, SMARTNEXMSK’s technical team can provide application support.

Q4: Can long-term supply continuity be guaranteed for ongoing maintenance and spare parts programs?
SMARTNEXMSK maintains stock of the Phoenix Contact 2866763 QUINT-PS/1AC/24DC/10 to support both immediate replacement needs and planned spare parts programs. For facilities operating preventive maintenance schedules or requiring guaranteed availability under a service contract, we offer reserved stock arrangements and priority fulfillment. Contact us at sales@smartnexmsk.com or +86 18259474341 to discuss your long-term supply requirements.
