Phoenix Contact PP-RJ-SCC 2703018 Spare for PP-RJ Automation

Phoenix Contact PP-RJ-SCC 2703018 Maintenance-Ready Spare for PP-RJ Automation

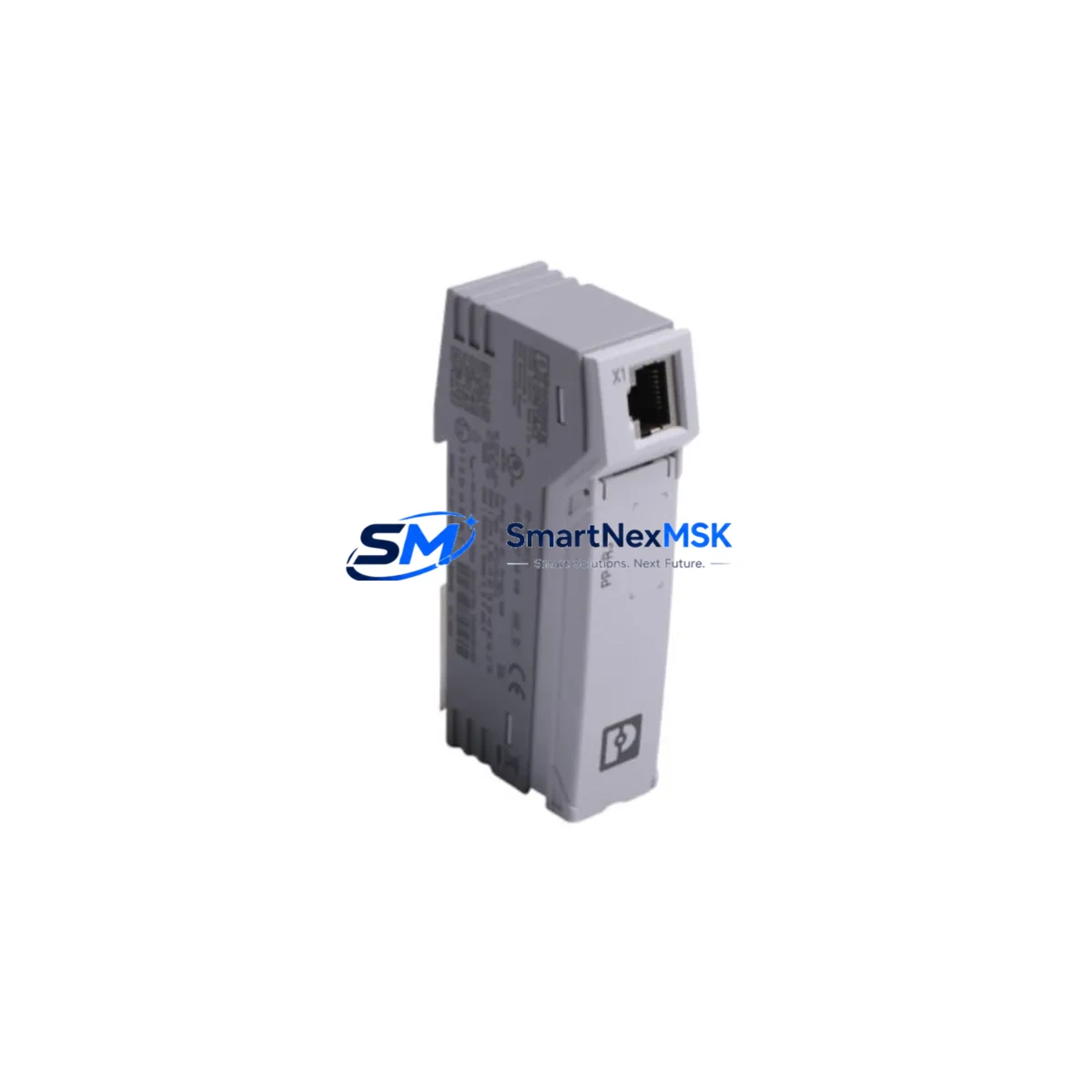

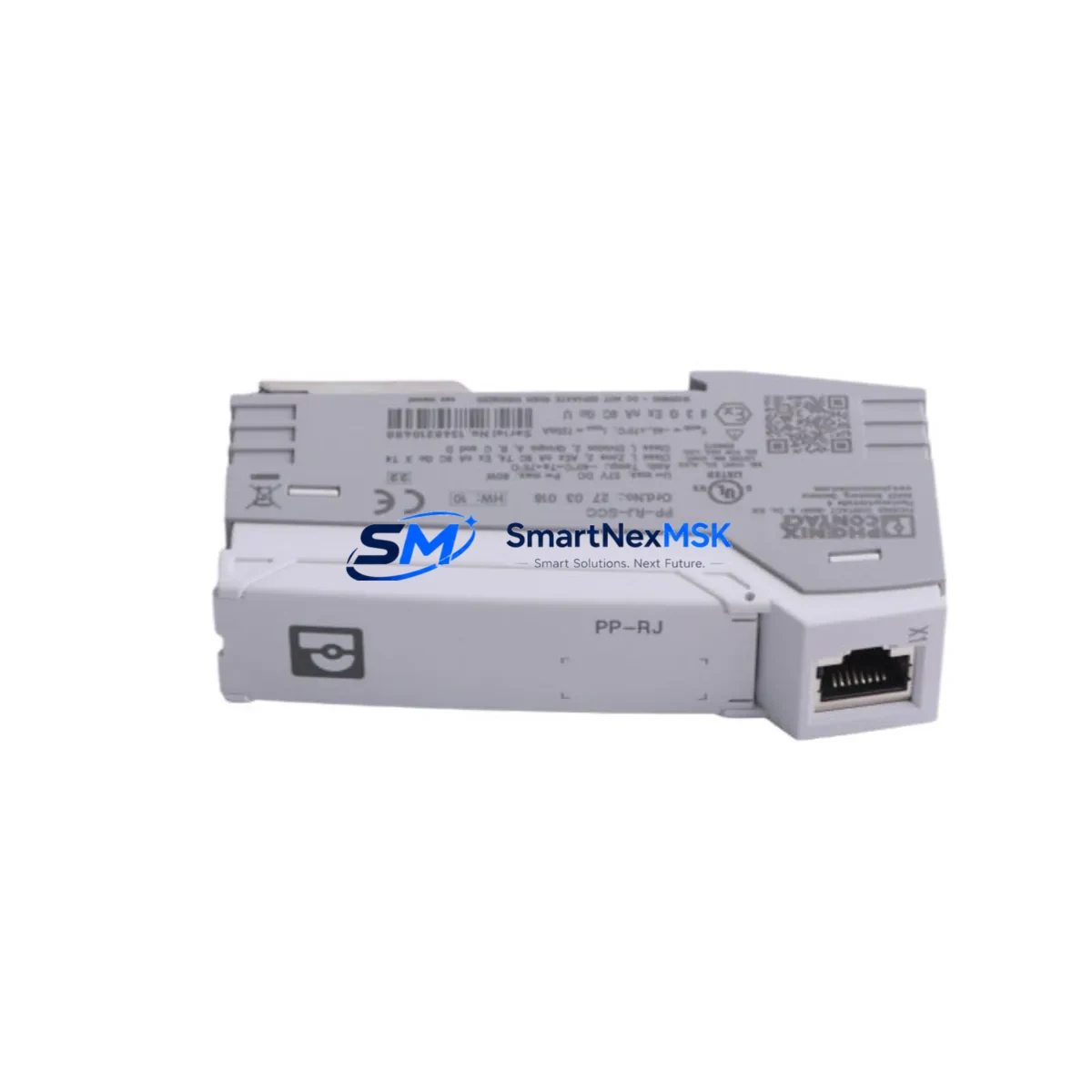

The Phoenix Contact PP-RJ-SCC 2703018 is a push-in spring-cage terminal block engineered for reliable performance in industrial control cabinets, PLC enclosures, and distributed I/O panels. For maintenance engineers managing aging automation infrastructure, sourcing a verified original spare for the PP-RJ series is critical to minimizing unplanned downtime and restoring system continuity. This unit ships tested, fully inspected, and backed by a 12-month warranty — making it a dependable choice for both emergency replacement and planned MRO stock replenishment.

Whether you are responding to a field fault, executing a scheduled cabinet inspection, or building a strategic spare parts inventory for a Phoenix Contact-based control system, the PP-RJ-SCC 2703018 delivers the dimensional accuracy, clamping force consistency, and conductor compatibility required for safe, code-compliant installation in demanding industrial environments.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the PP-RJ-SCC 2703018 in a live control cabinet, a disciplined maintenance engineer will not stop at the terminal block itself. The surrounding electrical circuit deserves equal scrutiny to prevent repeat failures and ensure the restored system operates reliably through the next maintenance interval.

Begin by inspecting the 24 VDC power supply module feeding the terminal rail — voltage sag or ripple at the supply output is a common root cause of intermittent signal faults that are incorrectly attributed to the terminal block. If the cabinet uses a Phoenix Contact QUINT or TRIO power supply, verify the output voltage under load and check the diagnostic LED status before re-energizing the replaced terminal.

Next, audit the I/O wiring harness connected to the terminal. Conductor insulation degradation, loose ferrules, or undersized wire cross-sections can cause recurring contact resistance issues. Confirm that all conductors are terminated with correctly sized AI-series wire ferrules (Phoenix Contact AI 0.5-8 WH or equivalent) to maintain consistent clamping force across the spring-cage contact.

For cabinets integrating Phoenix Contact ILC or RFC series PLC modules, verify that the I/O channel associated with the replaced terminal is reading correctly in the PLC diagnostic interface after reinstatement. A channel that was previously faulted may require a manual reset or firmware acknowledgment before returning to normal scan cycle operation.

If the terminal block is part of a relay output circuit, inspect the associated Phoenix Contact PLC-RSC or REL-MR relay modules for contact wear, coil resistance drift, or arc erosion on the output contacts. Relay modules in high-cycle applications should be treated as consumables and stocked alongside terminal blocks in the cabinet spare parts kit.

Cabinets using PROFIBUS or PROFINET communication backbones should have their bus connectors and network switches inspected for secure seating and correct termination resistor status. A loose bus connector on a Phoenix Contact FL SWITCH or similar managed switch can cause intermittent communication faults that mimic terminal block failures during fault isolation.

For signal integrity in analog I/O loops, check any installed MCR-SL signal isolators or MACX analog signal conditioners in the same terminal rail section. These components are sensitive to supply voltage fluctuations and should be verified for correct zero/span calibration after any power interruption associated with the terminal replacement work.

Finally, review the fuse terminal blocks (such as Phoenix Contact PT 4-HESI or UK 5-HESI series) protecting the circuit. A blown or degraded fuse element that was not the primary fault cause may have been stressed by the original fault event and should be proactively replaced to prevent nuisance tripping after the terminal block is restored.

Site Replacement Workflow

Step 1 — Isolation and Lockout: De-energize the affected terminal rail section following site LOTO procedures. Confirm absence of voltage on all conductors connected to the PP-RJ-SCC 2703018 using a calibrated voltage tester.

Step 2 — Documentation: Photograph the existing wiring layout and label all conductors before removal. Cross-reference with the cabinet wiring diagram to confirm conductor assignments match the as-built documentation.

Step 3 — Removal: Release the push-in spring-cage contacts using the appropriate actuating tool (Phoenix Contact SB series screwdriver or equivalent 3.5 mm blade). Slide the terminal block off the DIN rail after releasing the snap-lock foot.

Step 4 — Inspection of Adjacent Components: Before installing the replacement, inspect the DIN rail section for corrosion, deformation, or loose end brackets. Check neighboring terminal blocks for signs of overheating (discoloration, melted insulation) that may indicate a systemic wiring fault.

Step 5 — Installation: Snap the new PP-RJ-SCC 2703018 onto the DIN rail. Re-terminate all conductors, ensuring each wire is fully inserted until the spring-cage contact engages. Tug-test each conductor to confirm secure seating.

Step 6 — Verification: Re-energize the circuit and verify correct signal state at the PLC I/O channel. Log the replacement in the cabinet maintenance record with date, technician ID, and part number for traceability.

This workflow supports rapid fault recovery while maintaining system compatibility and audit trail integrity — critical for ISO 9001-compliant maintenance operations.

Spare Parts Support FAQ

Q1: Is the PP-RJ-SCC 2703018 compatible with existing PP-RJ series terminal rail assemblies?
Yes. The PP-RJ-SCC 2703018 is designed as a direct fit within the Phoenix Contact PP-RJ CLIPLINE complete system. It maintains dimensional compatibility with standard 35 mm DIN rail installations and is interchangeable with other PP-RJ series terminal blocks of the same pitch and conductor cross-section range. Always verify the conductor cross-section and rated current against your specific circuit requirements before installation.

Q2: What is included in the 12-month warranty and how does it apply to spare parts?
Every PP-RJ-SCC 2703018 unit supplied by SMARTNEXMSK is covered by a 12-month warranty against manufacturing defects and functional failure under normal operating conditions. The warranty covers the terminal block mechanism, insulation integrity, and contact performance. Units that fail within the warranty period are replaced or refunded. Warranty claims require the original order reference and a brief description of the failure mode.

Q3: How should I manage stock levels for PP-RJ-SCC 2703018 in a multi-cabinet facility?
For facilities operating multiple Phoenix Contact PP-RJ series cabinets, we recommend maintaining a minimum buffer of 5–10 units per cabinet type in your on-site spare parts store. Terminal blocks are high-touch consumables in environments with frequent wiring changes or high vibration. Establish a reorder trigger at 50% buffer depletion to avoid stockout risk during peak maintenance periods or extended supplier lead times.

Q4: Can this terminal block replace older or discontinued Phoenix Contact terminal models?
The PP-RJ-SCC 2703018 may serve as a functional replacement for earlier Phoenix Contact spring-cage terminal blocks with equivalent conductor cross-section and pitch specifications. However, dimensional and electrical compatibility must be verified against the original part datasheet before substitution. Contact our technical team at sales@smartnexmsk.com with your original part number for a compatibility assessment prior to ordering.
