Phoenix Contact QUINT-PS/1AC/24DC/5 Spare QUINT POWER

Phoenix Contact QUINT-PS/1AC/24DC/5 Spare QUINT POWER: Industrial Spare Replacement & Downtime Risk Control

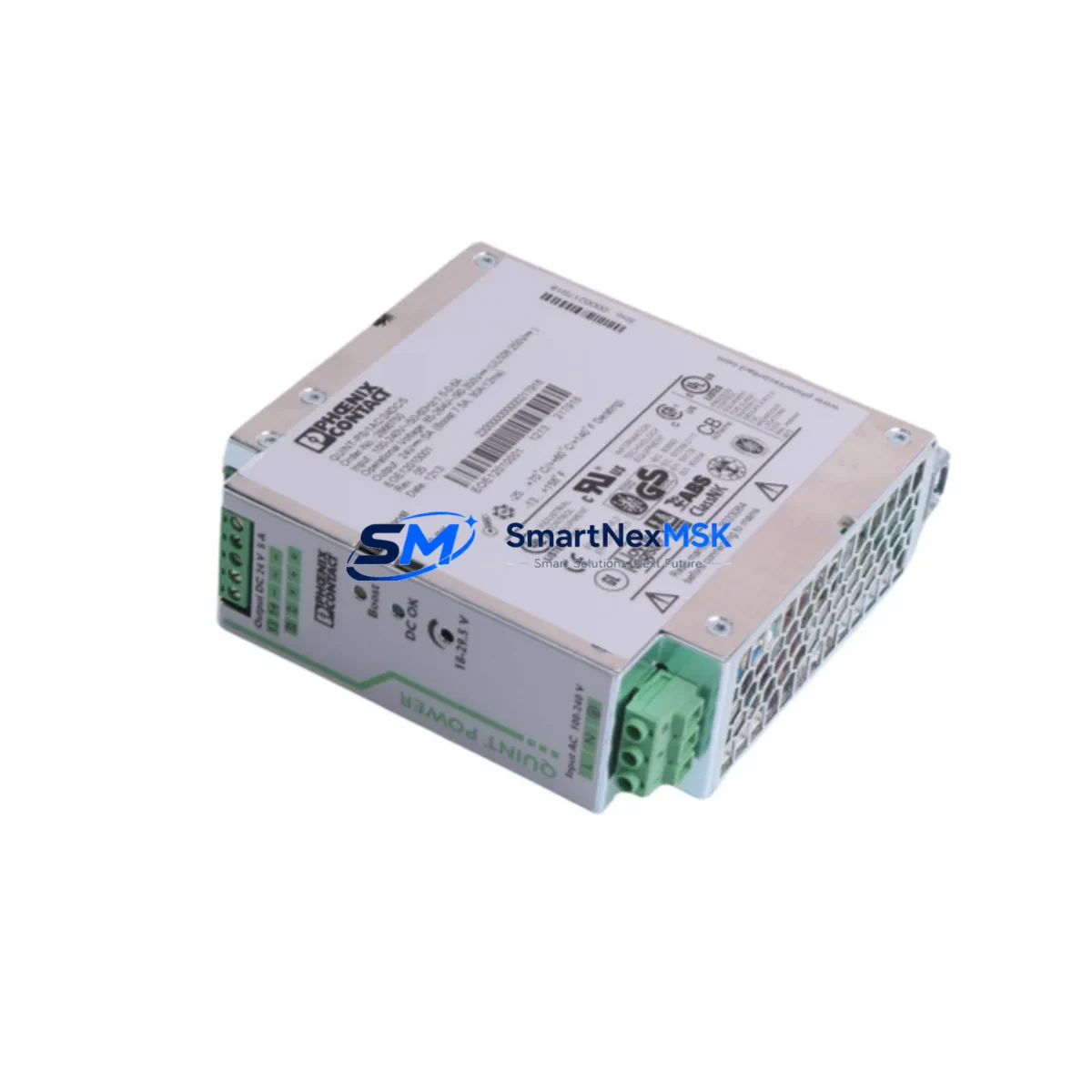

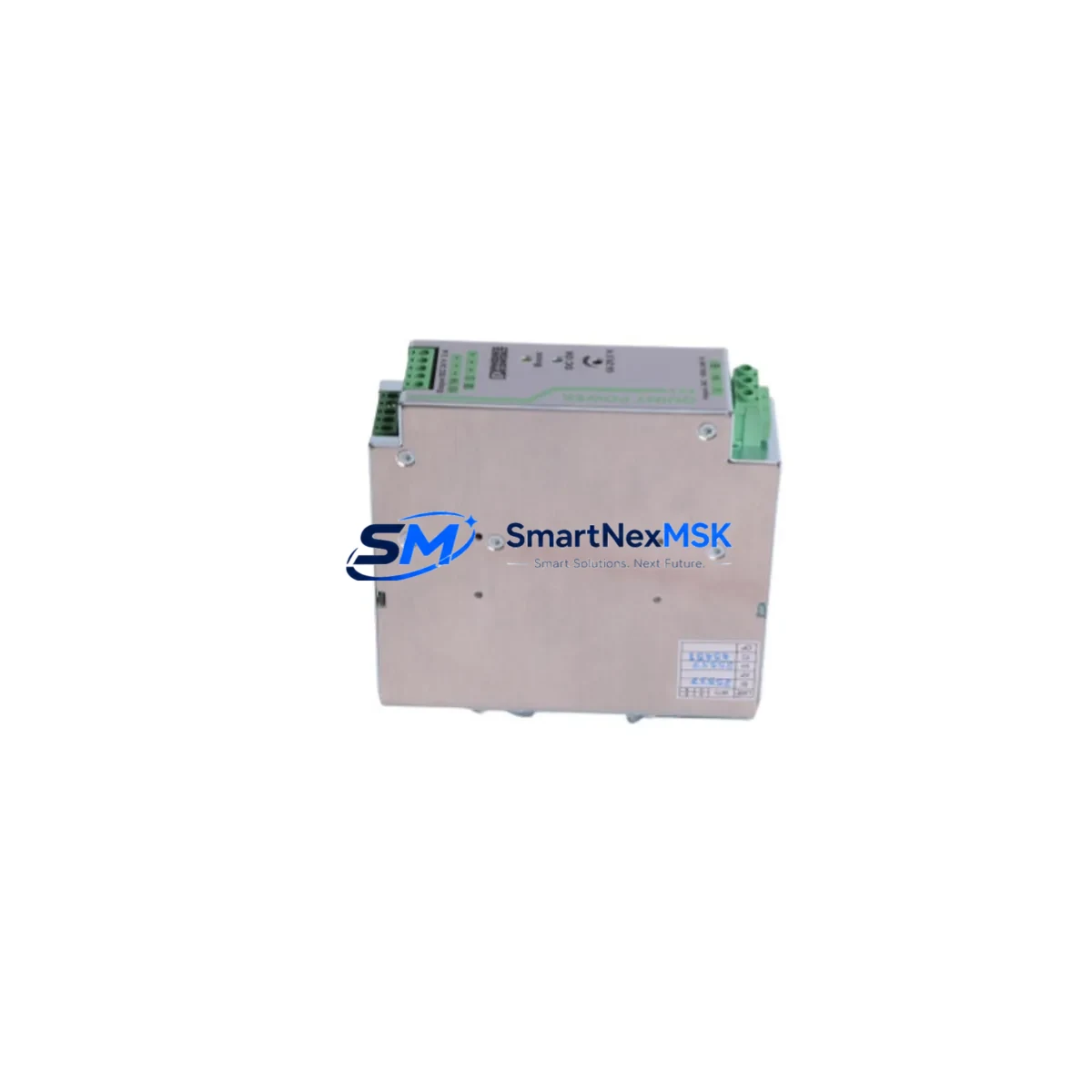

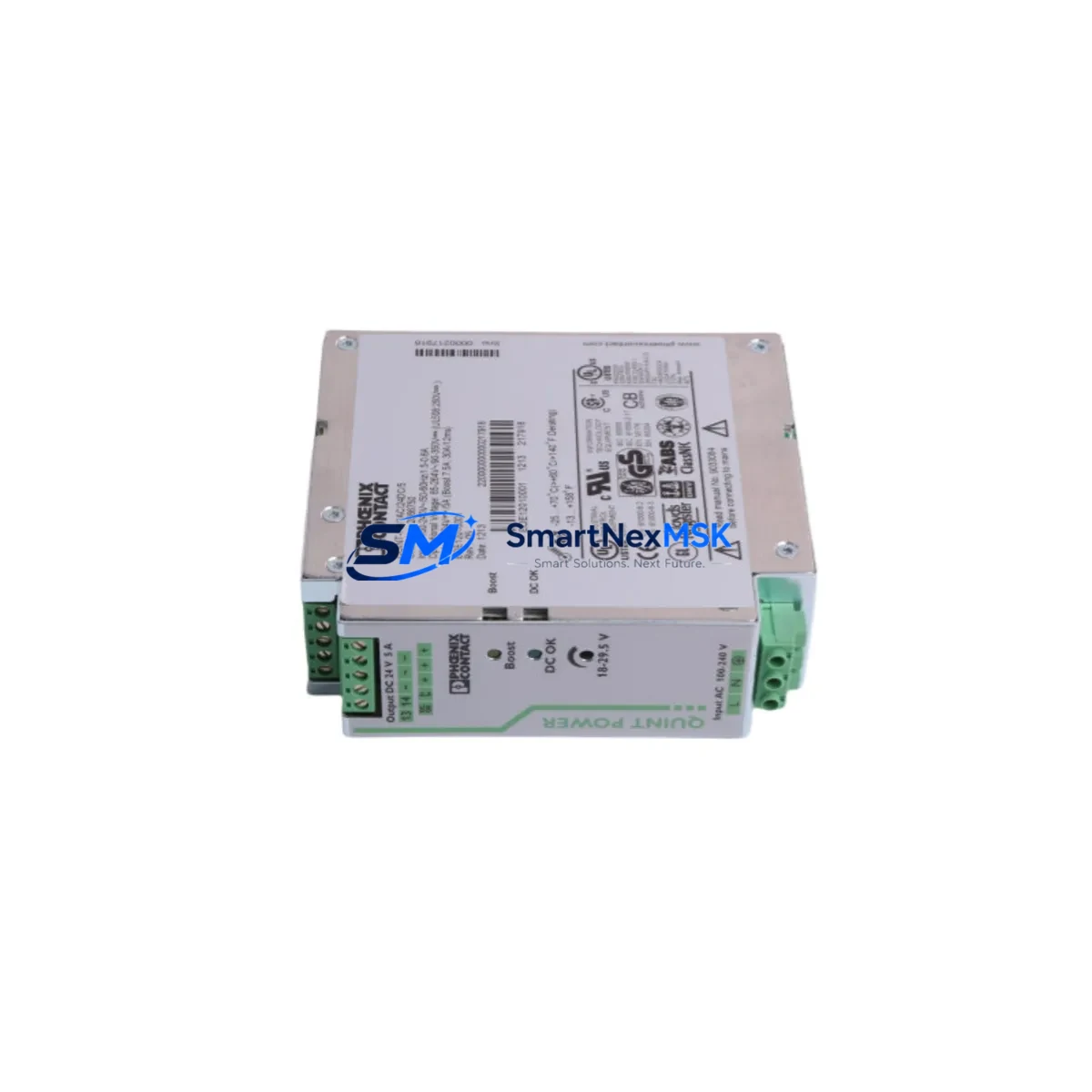

The Phoenix Contact QUINT-PS/1AC/24DC/5 is a high-performance 120W DIN rail power supply from the renowned QUINT POWER series, delivering a stable 24VDC / 5A output from a single-phase 100–240VAC input. Designed for continuous-duty industrial environments, this unit is a critical backbone component in PLC control panels, DCS marshalling cabinets, and distributed I/O enclosures across manufacturing, process automation, and infrastructure sectors.

When a QUINT-PS/1AC/24DC/5 fails or reaches end-of-service life, the downstream impact is immediate: 24VDC bus collapse, I/O module dropout, PLC CPU loss-of-power fault, and full line stoppage. Maintaining a verified original spare on the shelf is the single most effective measure to reduce mean time to repair (MTTR) and protect production continuity. Every unit supplied by SMARTNEXMSK is sourced from authorized channels, tested prior to dispatch, and covered by a 12-month warranty.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A power supply failure rarely occurs in isolation. When replacing the QUINT-PS/1AC/24DC/5, a disciplined maintenance engineer will use the opportunity to inspect the entire 24VDC distribution circuit and adjacent components within the same control cabinet. Begin with the Phoenix Contact QUINT-BUFFER/24DC/40 buffer module if installed — a degraded buffer capacitor bank will fail to bridge even a brief mains interruption, negating the benefit of a new PSU. Check the QUINT-DIODE/40AC/24DC/2X20 redundancy module if the system runs a dual-PSU configuration; a failed diode module can mask a failing primary supply and cause unexpected switchover events.

On the load side, verify the condition of Phoenix Contact CLIPLINE terminal blocks (PT 2.5 or UK 5N series) at the 24VDC distribution bus — loose or corroded terminals are a leading cause of intermittent voltage drops that are often misdiagnosed as PSU faults. Inspect Phoenix Contact MINI MCB circuit breakers (CB TM1 or CB TM2 series) protecting individual 24VDC branch circuits; a nuisance-tripped breaker downstream of a failing PSU may have sustained thermal stress and should be replaced proactively.

For systems using Phoenix Contact ILC or RFC series PLC CPUs powered from this rail, confirm that the CPU’s internal 24VDC input filter capacitors have not been stressed by prior undervoltage events — log the CPU’s diagnostic buffer for power-related fault codes before declaring the system healthy. If the cabinet includes Phoenix Contact PSI-MOS fiber optic repeaters or FL SWITCH managed Ethernet switches on the same 24VDC bus, verify their power LED status and port link states after PSU replacement, as these devices are sensitive to supply transients during hot-swap.

Signal integrity should also be confirmed: Phoenix Contact MCR signal conditioners and isolators (MCR-SL series) powered from the 24VDC rail may exhibit offset drift if they experienced undervoltage during the PSU failure window. Similarly, any Phoenix Contact MACX analog input isolators feeding 4–20mA signals to the DCS should be loop-checked post-replacement. Finally, inspect the 24VDC fuse terminal blocks (PTFIX or ST-QUATTRO series) for blown fuses that may have cleared during the fault event — restoring the PSU without replacing blown fuses will leave I/O channels dark.

Site Replacement Workflow

The QUINT-PS/1AC/24DC/5 is a direct form-fit-function replacement for any 24VDC 5A DIN rail power supply occupying a standard TH35 slot with screw terminal wiring. The replacement procedure is straightforward and can be completed within a planned maintenance window of 30–60 minutes by a qualified electrician or automation technician:

1. Pre-replacement verification: Confirm incoming AC voltage at the PSU input terminals (L, N, PE) is within 100–240VAC ±10%. Measure the existing output voltage under load — if it reads below 22VDC, the unit is in degraded state and replacement is confirmed. Document the output voltage setpoint (factory default 24VDC; field-adjusted units may differ).

2. Safe isolation: Open the upstream AC MCB feeding the PSU. Verify absence of voltage at input terminals with a calibrated multimeter. Allow 30 seconds for internal capacitors to discharge before disconnecting DC output terminals.

3. Mechanical removal: Release the DIN rail locking tab at the base of the unit. Slide the PSU off the rail. Label all wiring before disconnection if terminal markings are not clearly visible.

4. Installation of spare: Snap the new QUINT-PS/1AC/24DC/5 onto the DIN rail. Reconnect AC input (L, N, PE) and DC output (+24V, 0V) terminals. Torque screw terminals to 0.5–0.6 Nm. Verify the output voltage setpoint matches the removed unit before energizing.

5. Commissioning check: Close the AC MCB. Confirm the green OK LED illuminates and the SFB (Static Boost Function) indicator is not latched in fault state. Measure output voltage under full load — should read 24.0VDC ±1%. Restore PLC/DCS to RUN mode and verify all I/O channels are healthy in the diagnostic display.

This workflow minimizes downtime to under one hour and eliminates the risk of compatibility issues, since the QUINT-PS/1AC/24DC/5 is a like-for-like replacement with identical footprint, terminal layout, and electrical ratings.

Spare Parts Support FAQ

Q1: Is this an original Phoenix Contact QUINT-PS/1AC/24DC/5 or a compatible substitute?
This is an original Phoenix Contact unit sourced from authorized supply channels. Every unit carries the genuine Phoenix Contact part number, CE/UL markings, and factory serial number. We do not supply clones, counterfeits, or unbranded equivalents. Authenticity documentation is available upon request.

Q2: What is the recommended spare inventory strategy for QUINT POWER PSUs?
For production-critical systems, we recommend maintaining a minimum of one spare unit per five installed PSUs of the same rating, with a reorder trigger when the spare count drops to zero. For facilities with multiple 24VDC 5A PSUs across different lines, a single pooled spare can cover all installations given the identical form factor. Annual rotation of shelf stock (FIFO) ensures capacitors remain within service life.

Q3: How is each unit tested before shipment?
All QUINT-PS/1AC/24DC/5 units are powered on and load-tested at SMARTNEXMSK prior to dispatch. Output voltage, current delivery at rated load, and SFB indicator function are verified. Units that do not meet Phoenix Contact factory specifications are quarantined and not shipped. A test report is available upon request for critical applications.

Q4: What does the 12-month warranty cover, and what is the RMA process?
The 12-month warranty covers defects in materials and workmanship under normal operating conditions. It does not cover damage from incorrect installation, overvoltage events, or physical impact. To initiate an RMA, contact sales@smartnexmsk.com with the order number, unit serial number, and a brief fault description. Replacement units are dispatched within 3 business days of fault confirmation. Return shipping for confirmed warranty claims is covered by SMARTNEXMSK.
