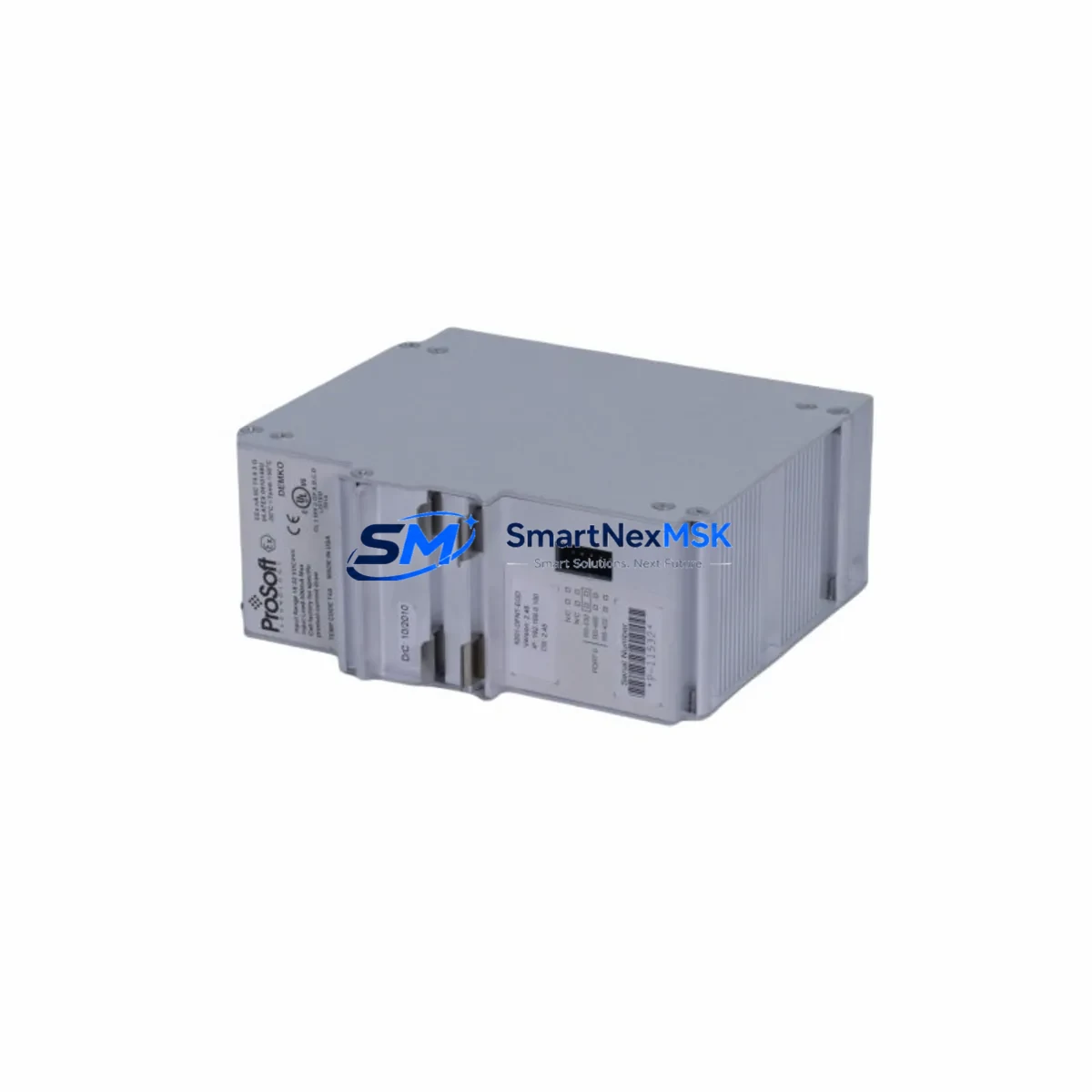

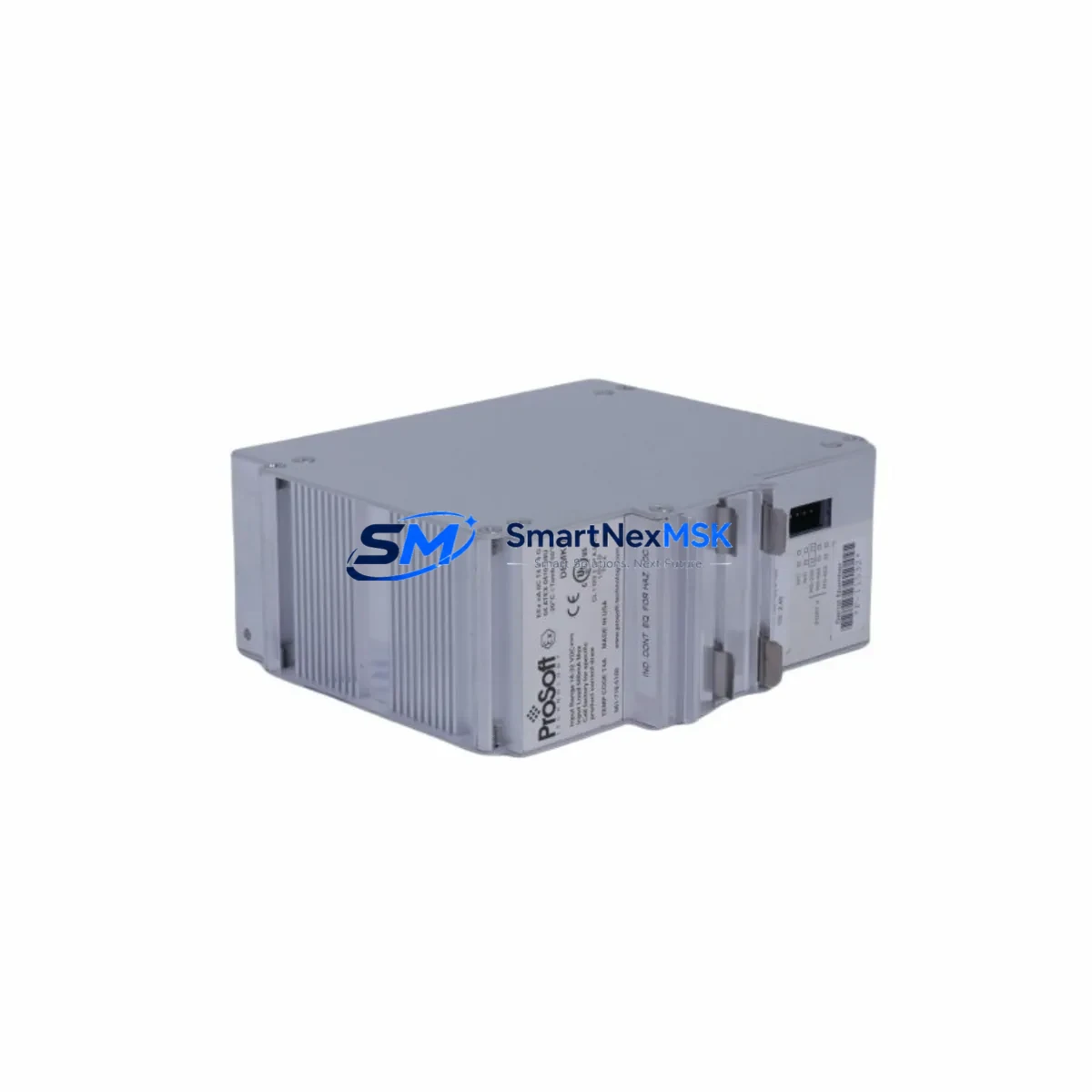

ProSoft 5201-DFNT-EGD Safety-Enhanced EtherNet/IP Gateway

ProSoft 5201-DFNT-EGD Safety-Enhanced EtherNet/IP Gateway: Reliable Control for Harsh Industrial Sites

In high-stakes industrial environments — from petrochemical processing plants and power generation facilities to underground mining operations and continuous steel production lines — communication integrity between control systems is not a convenience; it is a safety imperative. The ProSoft Technology 5201-DFNT-EGD is a ruggedized, in-chassis EtherNet/IP to GE EGD (Ethernet Global Data) gateway module engineered specifically to maintain deterministic, fault-tolerant data exchange in the most demanding field conditions. Where signal drift, electrical surges, electromagnetic interference, and thermal stress routinely compromise lesser hardware, the 5201-DFNT-EGD delivers consistent, verified communication that keeps critical control loops intact and production running safely.

Designed for direct installation into Allen-Bradley ControlLogix and CompactLogix chassis, the 5201-DFNT-EGD eliminates the need for external protocol converters or standalone gateways that introduce additional failure points into the control cabinet. By residing in-chassis alongside the primary PLC processor — such as the Allen-Bradley 1756-L73 or 1756-L74 ControlLogix controllers — the module benefits from the same backplane power distribution, reducing exposure to external power fluctuation and surge events that can disrupt standalone devices. This architecture is particularly valuable in control cabinets serving critical interlock circuits, where any communication interruption could trigger unplanned shutdowns or, worse, unsafe process states.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust industrial control cabinet serving a critical process — whether a water treatment SCADA node, a port crane PLC panel, or a refinery DCS marshalling cabinet — depends on the coordinated reliability of every installed component. The ProSoft 5201-DFNT-EGD is most effective when deployed as part of a layered protection strategy that addresses power quality, signal integrity, and communication redundancy simultaneously.

On the power side, pairing the host ControlLogix chassis with a high-quality Allen-Bradley 1756-PA75 or 1756-PB75 chassis power supply ensures that backplane voltage remains stable even during upstream grid disturbances — a common cause of module resets and communication faults in heavy industrial facilities. For sites with particularly unstable utility power, an upstream Phoenix Contact QUINT UPS or equivalent DC UPS module provides ride-through capability during brief outages, preventing the 5201-DFNT-EGD and its host processor from losing state during power dips.

On the network side, the EtherNet/IP port of the 5201-DFNT-EGD should be connected through an industrial-grade managed Ethernet switch — such as the Hirschmann RS20 or Cisco IE-2000 series — rather than commercial-grade switches that lack the temperature tolerance and EMI hardening required in control room environments. Proper network segmentation using VLANs isolates the EtherNet/IP traffic from general IT traffic, reducing the risk of communication timeouts caused by network congestion or broadcast storms.

For the GE EGD side of the communication path, ensuring that the connected GE PACSystems RX3i or legacy GE Series 90-30 PLC is running a compatible firmware revision is critical. Mismatched EGD exchange configurations — particularly incorrect producer/consumer ID assignments or exchange period mismatches — are a leading cause of intermittent data loss that can be mistaken for hardware faults. ProSoft’s configuration software allows engineers to define precise exchange parameters, watchdog timeouts, and fault-state data values, ensuring that the receiving controller enters a known safe state if communication is interrupted rather than holding stale process values.

In safety interlock applications — such as emergency shutdown (ESD) systems in oil and gas facilities or turbine protection circuits in power plants — the 5201-DFNT-EGD’s configurable watchdog output can be mapped to a discrete output module, such as the Allen-Bradley 1756-OB16I, to drive a hardwired safety relay if the communication link fails. This provides a hardware-level failsafe that operates independently of the PLC program scan, adding a critical layer of protection that pure software-based fault handling cannot guarantee. Complementing this with a Pilz PNOZ or Schneider Electric Preventa safety relay in the interlock circuit ensures that the overall safety function meets the required SIL or PLe performance level even in the event of a gateway communication fault.

Critical Industrial Safety Applications

Petrochemical and Refinery Operations: In continuous process plants where GE-based DCS systems manage legacy unit operations while newer Allen-Bradley ControlLogix PLCs handle safety instrumented functions, the 5201-DFNT-EGD provides the critical data bridge that allows both systems to share process variables — flow rates, pressure readings, valve positions — without manual data entry or OPC server dependencies that introduce latency and single points of failure. Reliable real-time data exchange between the two platforms supports accurate alarm management and reduces the risk of operators acting on stale or incorrect process data.

Power Generation and Substation Automation: Power plants operating mixed-vendor control architectures — GE turbine control systems alongside Rockwell Automation PLC-based balance-of-plant controls — rely on deterministic communication to coordinate load dispatch, protection relay status, and auxiliary system interlocks. The 5201-DFNT-EGD’s EGD protocol support enables direct integration with GE Mark VI or Mark VIe turbine controllers, eliminating the need for intermediate protocol converters that add latency and maintenance overhead to the communication path.

Mining and Mineral Processing: Underground and surface mining operations subject control hardware to extreme vibration, dust ingress, and wide temperature swings. The in-chassis design of the 5201-DFNT-EGD, protected within a sealed ControlLogix chassis, provides significantly better environmental protection than external gateway devices mounted on DIN rails in open enclosures. In conveyor control systems, crusher automation, and ventilation fan control — where communication loss can result in unsafe equipment states — the module’s watchdog and fault-state configuration capabilities are essential safety features.

Water and Wastewater Treatment: Municipal water treatment facilities operating GE-based SCADA systems alongside modern Allen-Bradley PLCs for pump station and chemical dosing control benefit from the 5201-DFNT-EGD’s ability to pass real-time process data between platforms without custom software development. In facilities subject to EPA regulatory oversight, maintaining continuous, auditable data exchange between control systems supports compliance reporting and reduces the risk of process upsets caused by communication failures.

Metallurgy and Steel Production: Continuous casting lines, rolling mills, and electric arc furnace controls operate under extreme electromagnetic interference conditions generated by high-current drives and induction heating equipment. The 5201-DFNT-EGD, installed in a properly grounded ControlLogix chassis with shielded Ethernet cabling and ferrite suppression on cable runs, maintains reliable communication in these high-EMI environments where unshielded or poorly installed communication hardware routinely fails.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the ProSoft 5201-DFNT-EGD?
The 12-month warranty covers manufacturing defects and functional failures occurring under normal operating conditions within the specified environmental and electrical ratings. Units that fail within the warranty period are repaired or replaced at no charge. All units shipped by SMARTNEXMSK are pre-shipment tested to verify basic communication functionality and module initialization before dispatch.

Q2: How is the 5201-DFNT-EGD tested before shipment?
Each unit undergoes a pre-shipment inspection that includes visual examination for physical damage, power-on initialization verification, and firmware version confirmation. Where test equipment is available, basic communication port functionality is verified. Units that do not pass inspection are quarantined and not shipped. This process ensures that customers receive hardware in confirmed working condition, reducing the risk of installation delays caused by DOA (dead-on-arrival) units.

Q3: Is the 5201-DFNT-EGD compatible with both ControlLogix and CompactLogix chassis?
Yes. The 5201-DFNT-EGD is compatible with Allen-Bradley ControlLogix 1756 series chassis and CompactLogix 1769 series chassis. On the GE side, it supports GE PACSystems RX3i, RX7i, and legacy GE Series 90 PLCs that implement the EGD (Ethernet Global Data) protocol. Customers should verify the specific firmware revision of their GE controller against ProSoft’s compatibility matrix prior to installation to ensure full protocol compatibility.

Q4: Can SMARTNEXMSK guarantee long-term supply of the 5201-DFNT-EGD for ongoing maintenance and spare parts programs?
SMARTNEXMSK maintains stock of the ProSoft 5201-DFNT-EGD to support both immediate replacement needs and planned spare parts programs for industrial facilities. For customers managing critical infrastructure with long equipment lifecycles, we recommend establishing a standing spare parts agreement to ensure availability. Contact our sales team to discuss volume pricing, reserved stock arrangements, and lead time commitments for your facility’s maintenance program.
