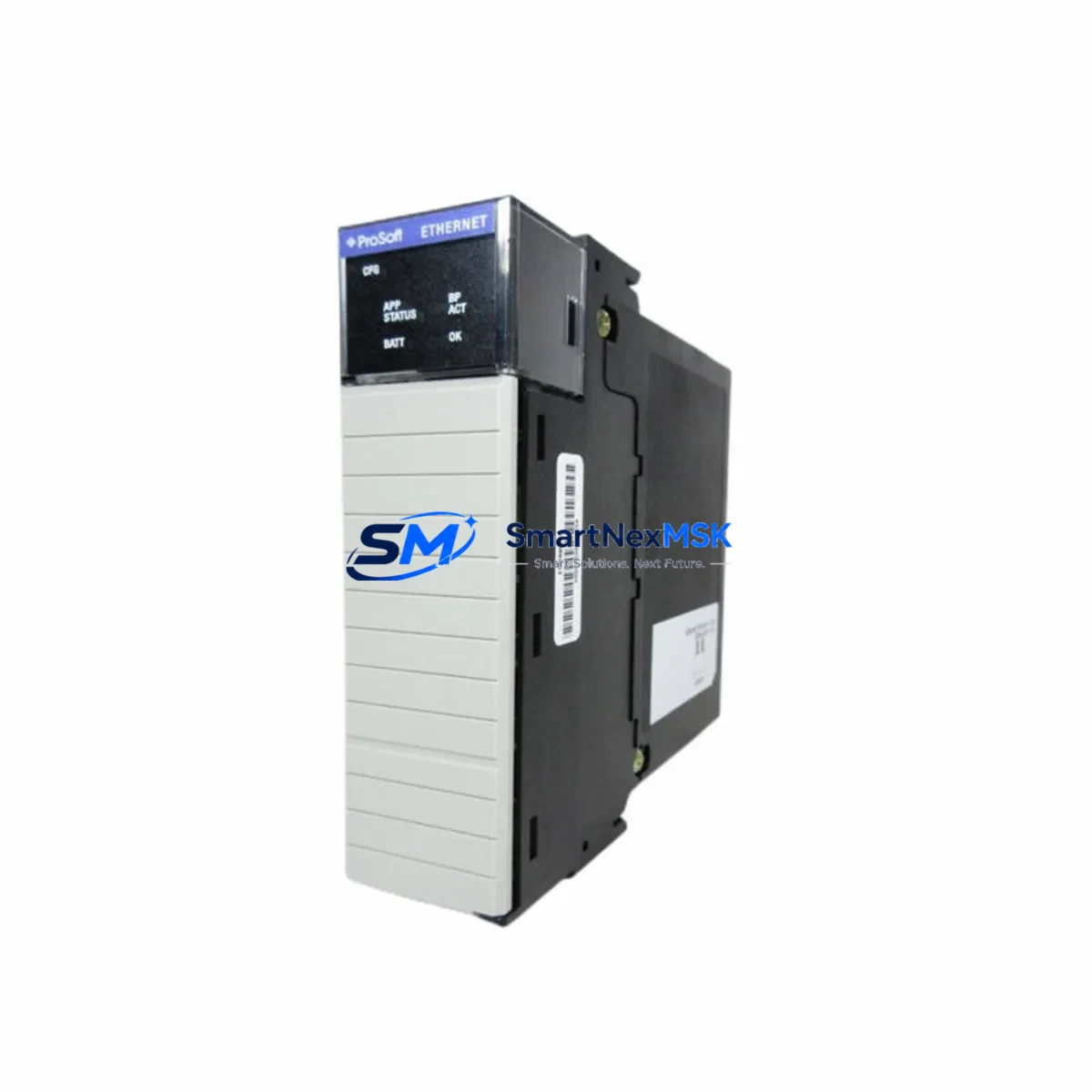

Prosoft MVI56-MNET Safety-Enhanced Modbus TCP/IP Module

Prosoft MVI56-MNET Safety-Enhanced Modbus TCP/IP Module: Reliable Control in Harsh Industrial Sites

The Prosoft MVI56-MNET is a high-performance Modbus TCP/IP communication module engineered for Allen-Bradley ControlLogix backplane environments. Designed to meet the demanding requirements of continuous production facilities, hazardous-area control cabinets, and safety-critical interlock loops, the MVI56-MNET delivers deterministic, low-latency data exchange between ControlLogix PLCs and Modbus TCP/IP-compliant field devices — even under severe electromagnetic interference, power fluctuations, and thermal stress.

In industries where a single communication dropout can trigger unplanned shutdowns, equipment damage, or personnel safety incidents, the MVI56-MNET provides the protocol gateway reliability that process engineers and safety system integrators depend on. Its robust firmware architecture actively monitors connection health, automatically re-establishes dropped sessions, and isolates faults without propagating errors to the ControlLogix backplane — protecting the integrity of the broader control loop.

Safety Reliability Table

Control Cabinet Protection Strategy

Deploying the MVI56-MNET within a ControlLogix control cabinet demands a holistic approach to signal integrity and power quality. In high-load environments — such as variable frequency drive (VFD) panels, motor control centers, or high-current switchgear rooms — the module’s optical isolation and shielded Ethernet port design prevent ground loops and common-mode noise from corrupting Modbus TCP/IP transactions.

For optimal cabinet-level protection, the MVI56-MNET is commonly deployed alongside the Allen-Bradley 1756-PA75 power supply, which provides stable, regulated 5 VDC and 24 VDC backplane power even during upstream voltage sags. Pairing the module with a 1756-EN2T EtherNet/IP bridge module in the same chassis enables seamless integration of Modbus TCP/IP field devices into the plant-wide EtherNet/IP network without protocol conversion bottlenecks.

Surge and transient protection at the cabinet entry point is critical. Industrial-grade surge protective devices (SPDs) — such as the Phoenix Contact TRABTECH PT 2X2-BE/S-24DC-ST series — should be installed on all incoming 24 VDC field wiring to prevent surge energy from reaching the MVI56-MNET’s communication interfaces. For Ethernet network protection, DIN-rail-mounted Ethernet surge arrestors rated for IEC 61643-21 are recommended upstream of the module’s RJ45 port.

In safety interlock architectures, the MVI56-MNET is often used to bridge legacy Modbus RTU field instruments — such as pressure transmitters, flow meters, and temperature sensors — into the ControlLogix safety PLC environment via a Prosoft MVI56-MCM Modbus serial communication module for serial-to-TCP gateway functions. This dual-module strategy ensures that both serial and Ethernet Modbus devices are represented in the same ControlLogix tag database, simplifying safety logic programming and reducing the risk of data mapping errors.

For redundant communication architectures in critical process units, the MVI56-MNET can be paired with a secondary 1756-RM2 ControlLogix redundancy module to enable chassis-level redundancy, ensuring that a single module failure does not interrupt the safety interlock loop. Additionally, managed industrial Ethernet switches — such as the Hirschmann MACH 100 series or Cisco IE-2000 series — with RSTP/MSTP ring topology support provide network-level redundancy for the Modbus TCP/IP communication path.

Proper cable management, including the use of shielded Cat6 Ethernet cables with drain wires terminated at a single grounding point, further reduces susceptibility to radiated EMI from nearby VFDs, contactors, and high-current bus bars — a common source of communication anomalies in heavy industrial control cabinets.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In continuous process units such as distillation columns, reactor feed systems, and flare gas recovery units, the MVI56-MNET enables reliable Modbus TCP/IP communication between ControlLogix PLCs and HART-enabled field transmitters, emergency shutdown (ESD) valve positioners, and distributed control system (DCS) OPC servers. Its ability to maintain stable TCP/IP sessions under high-temperature, high-vibration cabinet conditions makes it a preferred gateway module for safety instrumented system (SIS) boundary interfaces.

Electric Power Generation & Transmission: Substation automation and turbine control systems rely on deterministic communication between protection relays, energy meters, and the plant DCS. The MVI56-MNET’s support for multiple simultaneous Modbus TCP/IP client and server connections allows a single module to poll multiple IEDs (Intelligent Electronic Devices) while simultaneously serving data to the SCADA historian — reducing hardware count and cabinet footprint in space-constrained relay panels.

Mining & Mineral Processing: Conveyor drive systems, crusher controls, and slurry pump stations in underground and open-pit mining environments expose control hardware to extreme dust, vibration, and electrical noise. The MVI56-MNET’s wide operating temperature range and EMI-hardened design ensure continuous Modbus TCP/IP data exchange between ControlLogix PLCs and variable speed drives, soft starters, and weighbelt feeders — even in the presence of high-power blasting circuits and diesel generator interference.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities require uninterrupted communication between SCADA systems and field PLCs controlling pumping stations, chemical dosing systems, and UV disinfection units. The MVI56-MNET’s automatic session recovery feature ensures that temporary network interruptions — caused by cable faults or switch reboots — do not require manual PLC restart, maintaining continuous process control and regulatory compliance.

Metallurgy & Steel Production: Electric arc furnace (EAF) controls, rolling mill automation, and ladle metallurgy systems generate extreme electromagnetic interference from high-current bus systems and thyristor drives. The MVI56-MNET’s optical isolation and robust TCP/IP stack prevent communication errors from propagating into the ControlLogix safety logic, protecting both equipment and personnel in these high-energy environments.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the MVI56-MNET?
The 12-month warranty covers all manufacturing defects, component failures, and functional malfunctions occurring under normal operating conditions as specified in the product datasheet. It includes free repair or replacement at our discretion. Damage caused by incorrect installation, overvoltage events beyond rated limits, or unauthorized modification is excluded. Warranty claims are processed within 5–7 business days upon receipt of the returned unit.

Q2: What pre-shipment testing is performed on each MVI56-MNET unit?
Every MVI56-MNET unit undergoes functional verification testing prior to shipment, including backplane communication integrity checks, Modbus TCP/IP client and server session establishment tests, Ethernet port continuity verification, and firmware version confirmation. Units sourced from authorized distribution channels are tested to confirm they match the original Prosoft Technology factory specifications. A test report is available upon request for critical safety applications.

Q3: Is the MVI56-MNET compatible with all ControlLogix chassis and firmware versions?
The MVI56-MNET is compatible with all standard Allen-Bradley 1756 ControlLogix chassis, including the 1756-A4, 1756-A7, 1756-A10, 1756-A13, and 1756-A17 series. It is compatible with RSLogix 5000 and Studio 5000 Logix Designer programming environments. Firmware compatibility is confirmed for Logix firmware v16 through v35. For GuardLogix safety controller applications, consult the application note for safety task integration guidelines.

Q4: Can long-term supply and replacement support be guaranteed for the MVI56-MNET?
Yes. We maintain dedicated safety stock of the MVI56-MNET to support long-term plant maintenance programs, scheduled turnarounds, and emergency replacement requirements. For facilities with critical uptime requirements, we recommend establishing a consignment or blanket purchase order arrangement to ensure immediate availability. Our team can provide lead time commitments and multi-year supply agreements for large-scale industrial accounts.
