ProSoft MVI69-MNETC Spare for MVI69 Series Automation

ProSoft MVI69-MNETC Spare for MVI69 Series Automation: Minimizing Downtime in Modbus TCP/IP Communication Systems

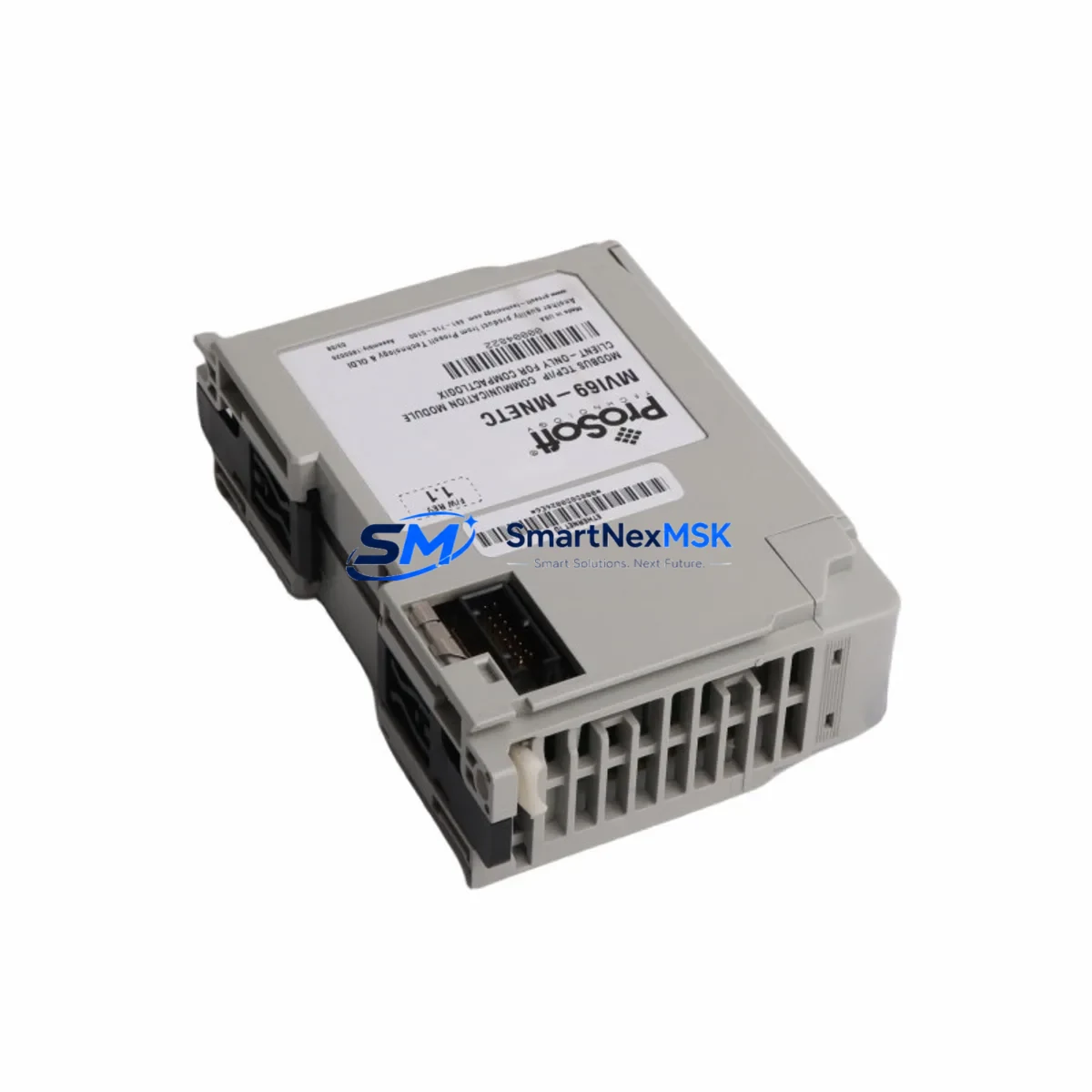

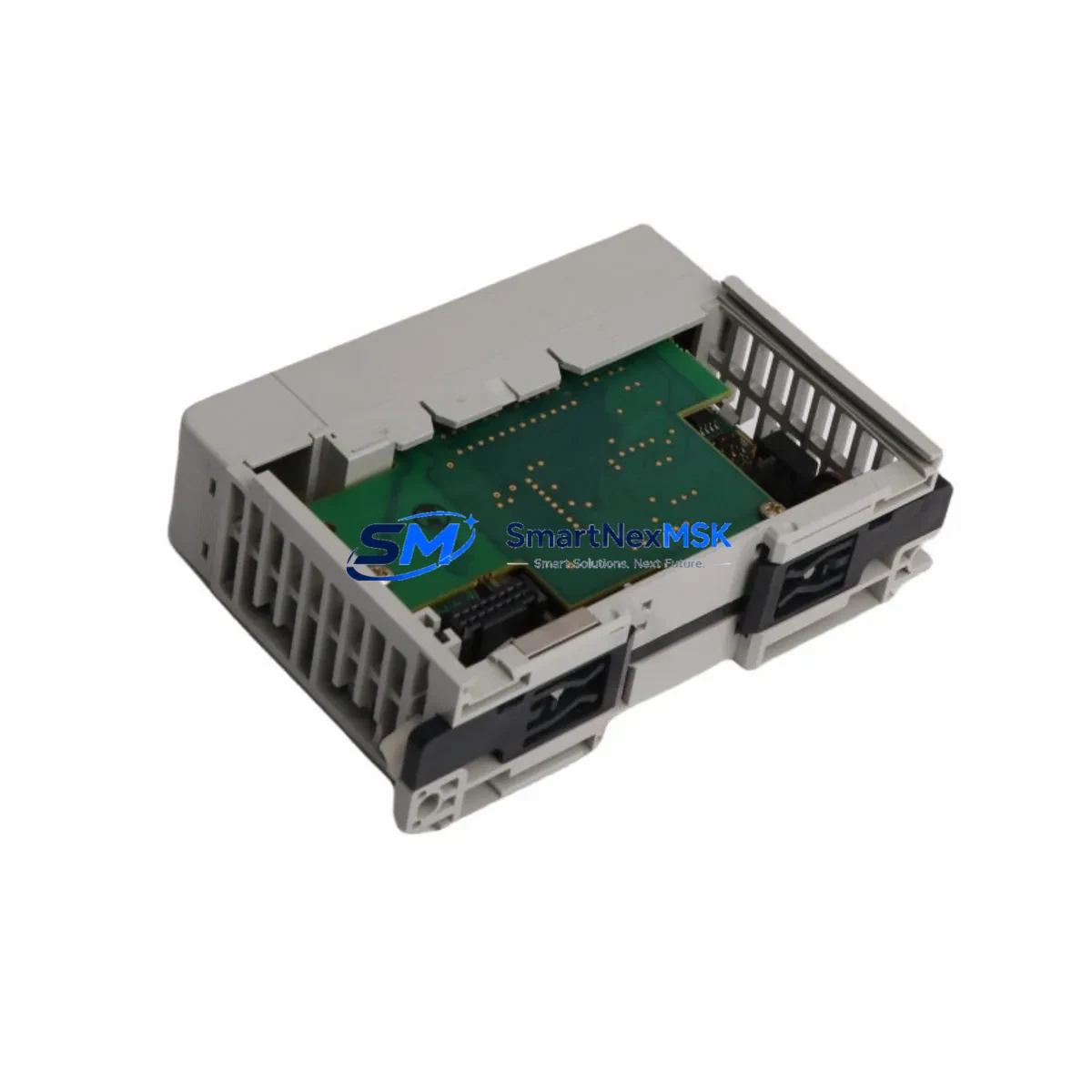

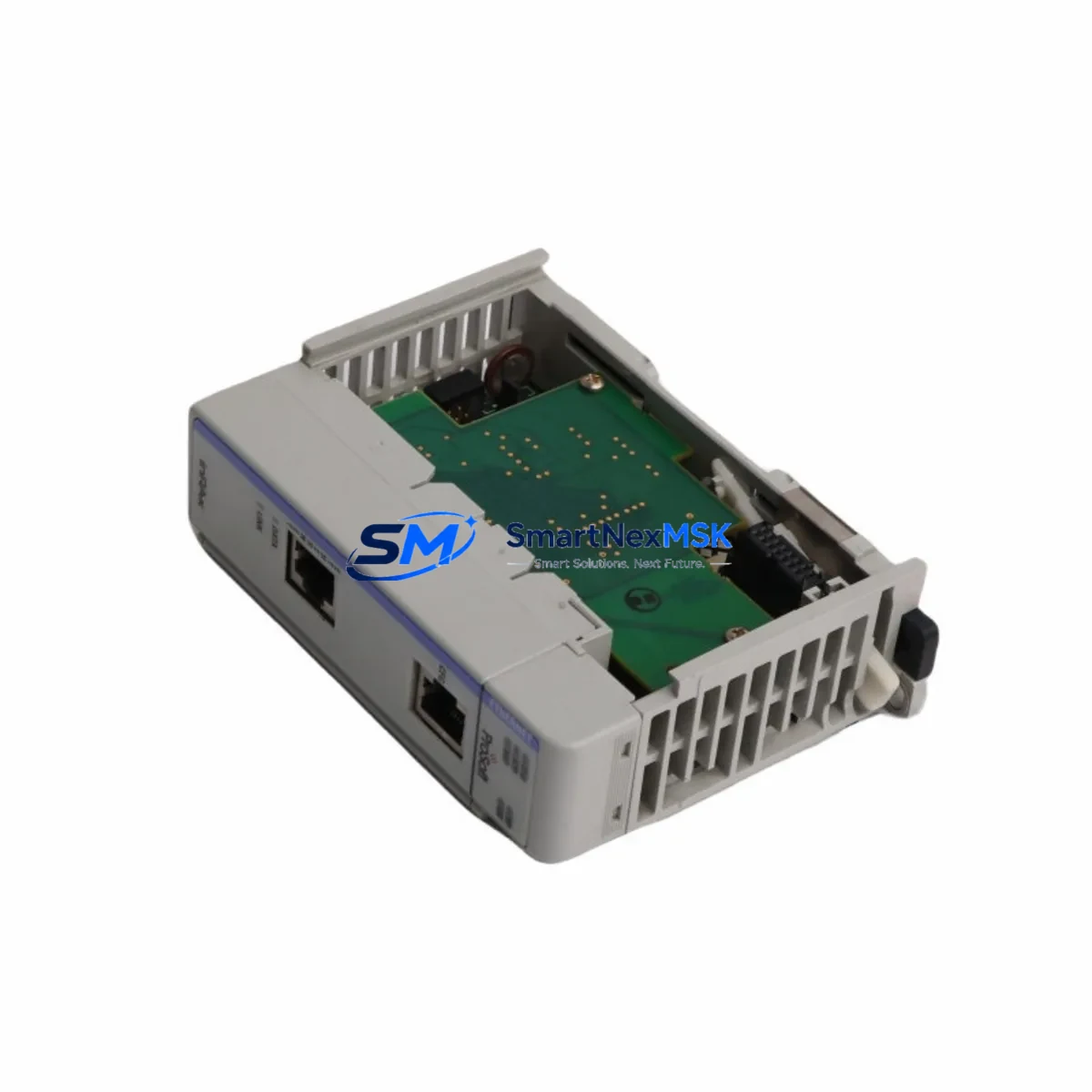

The ProSoft MVI69-MNETC is a Modbus TCP/IP Multi-Client/Server communication module designed for Allen-Bradley CompactLogix 1769 backplane systems. As a maintenance-ready original spare, the MVI69-MNETC enables maintenance engineers and procurement teams to restore Modbus TCP/IP communication links rapidly — eliminating extended unplanned downtime caused by communication module failures in production-critical automation environments.

Whether you are managing a scheduled overhaul, responding to an emergency fault, or building a strategic spare parts inventory for aging CompactLogix-based control systems, the MVI69-MNETC provides a direct, configuration-compatible replacement that preserves your existing ladder logic, MSG instructions, and network topology without requiring system redesign.

Every unit shipped by SMARTNEXMSK undergoes pre-shipment functional testing and is covered by a 12-month warranty, giving procurement engineers confidence in long-term supply continuity and field reliability.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a Modbus TCP/IP communication fault is traced to the MVI69-MNETC, experienced maintenance engineers know that the module itself is rarely the only component requiring attention. A thorough site inspection and spare parts review should accompany any MVI69-MNETC replacement to prevent repeat failures and ensure full system restoration.

Begin by verifying the CompactLogix 1769-L3x or 1769-L4x processor firmware version, as MVI69-MNETC configuration files are version-sensitive. Inspect the 1769-PA2 or 1769-PB2 power supply module for output voltage stability — an under-voltage condition on the backplane 5 VDC rail is a common root cause of intermittent communication module faults that are misdiagnosed as module failures.

Check the 1769-ECR or 1769-ECL end cap seating on both ends of the CompactLogix backplane. A loose end cap disrupts backplane communication and can cause the MVI69-MNETC to report persistent fault codes even after replacement. If the system uses expansion backplanes, inspect the 1769-CRR1 or 1769-CRR3 right-to-right expansion cable for physical damage or corrosion at the connectors.

For systems where the MVI69-MNETC interfaces with field devices via Modbus TCP/IP, verify the managed Ethernet switch port configuration — duplex mismatch and VLAN misconfiguration are frequent causes of Modbus TCP/IP timeout faults that appear as module errors. If the control cabinet includes a ProSoft MVI69-MNET (the server-only variant) in an adjacent slot or parallel cabinet, confirm that IP address conflicts are not present on the network segment.

Inspect 1769-IQ16 or 1769-OW16 digital I/O modules in the same chassis for backplane error indicators, as a failing I/O module can generate backplane faults that cascade to communication modules. If the system uses 1769-IF4 or 1769-OF4 analog I/O modules for process variable feedback, verify their calibration status during the same maintenance window to avoid a second unplanned outage.

For cabinets with legacy ProSoft MVI69-DFNT (EtherNet/IP) or MVI69-PDPMV1 (PROFIBUS DP) modules installed alongside the MVI69-MNETC, review the backplane slot power budget — exceeding the 1769 backplane current limit is a known cause of intermittent multi-module faults. Finally, check terminal block wiring and DIN rail grounding within the control cabinet; poor grounding is a persistent source of Ethernet communication noise in industrial environments.

Maintaining a minimum stock of one MVI69-MNETC spare per production line, alongside a matched ProSoft Configuration Builder project file backup, is the recommended strategy for facilities operating 24/7 continuous processes where Modbus TCP/IP communication loss directly impacts production output.

Site Replacement Workflow

Step 1 — Pre-Replacement Preparation: Export the current MVI69-MNETC configuration from ProSoft Configuration Builder and save the RSLogix 5000 / Studio 5000 project file. Document the module’s IP address, subnet mask, gateway, and all client command block settings before powering down.

Step 2 — Safe Power-Down: Place the CompactLogix processor in Program mode via RSLogix 5000 / Studio 5000. Confirm all controlled outputs are in a safe state before removing backplane power. Follow your site’s LOTO (Lockout/Tagout) procedure before opening the control cabinet.

Step 3 — Module Swap: Remove the faulty MVI69-MNETC from its backplane slot. Insert the replacement MVI69-MNETC into the same slot position. Verify the end cap is properly reseated. Restore backplane power.

Step 4 — Configuration Restore: Using ProSoft Configuration Builder, download the saved configuration to the replacement module via the Ethernet port. Confirm the module IP address, client command blocks, and server register mapping match the original settings.

Step 5 — Functional Verification: Return the processor to Run mode. Monitor the MVI69-MNETC status LEDs (APP, BP ACT, OK) and verify Modbus TCP/IP client connections are established. Confirm data exchange in the RSLogix 5000 / Studio 5000 controller tags mapped to the MVI69-MNETC data file.

Step 6 — Documentation Update: Record the replacement date, new module serial number, and configuration file version in your maintenance log. Update your spare parts inventory to reorder the consumed MVI69-MNETC unit.

This workflow is compatible with all MVI69-MNETC firmware revisions and supports direct replacement of legacy MVI69-MNETC units without PLC program modification, preserving system compatibility and minimizing total downtime to under 60 minutes for prepared maintenance teams.

Spare Parts Support FAQ

Q1: Is this MVI69-MNETC spare compatible with all CompactLogix 1769 processor revisions?
The MVI69-MNETC is compatible with the full CompactLogix 1769 backplane family, including 1769-L31, 1769-L32E, 1769-L35E, and 1769-L43/L45 processors. Compatibility is determined by the ProSoft Configuration Builder version and the RSLogix 5000 / Studio 5000 Add-On Instruction (AOI) revision used in your project. We recommend confirming your PCB version before installation. Our technical team can assist with compatibility verification prior to shipment.

Q2: How is the MVI69-MNETC tested before shipment?
Every MVI69-MNETC unit undergoes a pre-shipment functional test that includes backplane communication verification, Ethernet port integrity check, Modbus TCP/IP client connection establishment, and firmware version confirmation. A test report is available upon request. All units are covered by a 12-month warranty from the date of shipment.

Q3: Can I use this spare to replace an older MVI69-MNETC with a different firmware version?
Yes. The MVI69-MNETC hardware is backward-compatible across firmware revisions. If your existing configuration file was created with an older PCB version, ProSoft Configuration Builder will prompt you to migrate the project file to the current firmware format. This process preserves all command block settings and register mappings. We recommend testing the configuration in a non-production environment before live deployment if firmware versions differ significantly.

Q4: What is your long-term supply commitment for MVI69-MNETC spares?
SMARTNEXMSK maintains dedicated stock of MVI69-MNETC units to support facilities operating legacy CompactLogix systems beyond the standard product lifecycle. We provide long-term spare parts supply with consistent lead times, supporting both emergency single-unit orders and planned bulk procurement for multi-site maintenance programs. Contact our team to discuss consignment stock or annual supply agreements tailored to your facility’s maintenance schedule.
