ProSoft PLX31-EIP-PND Safety-Enhanced Protocol Gateway

ProSoft PLX31-EIP-PND Safety-Enhanced Protocol Gateway: Reliable Control in Harsh Industrial Sites

The ProSoft PLX31-EIP-PND is a standalone, safety-enhanced protocol gateway engineered to bridge EtherNet/IP and PROFINET IO networks in the most demanding industrial environments. Designed for continuous-duty operation in high-load, high-interference, and hazardous-area control systems, the PLX31-EIP-PND delivers deterministic, low-latency data exchange between Allen-Bradley PLCs, Siemens PROFINET IO devices, and distributed field instrumentation — without compromising signal integrity or control loop availability.

In critical industrial facilities — including petrochemical plants, power generation stations, mining operations, water treatment infrastructure, metallurgical processing lines, and port automation systems — communication failures between heterogeneous control networks represent one of the highest-risk failure modes. Signal drift, protocol mismatch, electromagnetic interference, and power transients can cascade into unplanned shutdowns, safety interlock failures, and costly production losses. The PLX31-EIP-PND is purpose-built to eliminate these risks at the network boundary layer.

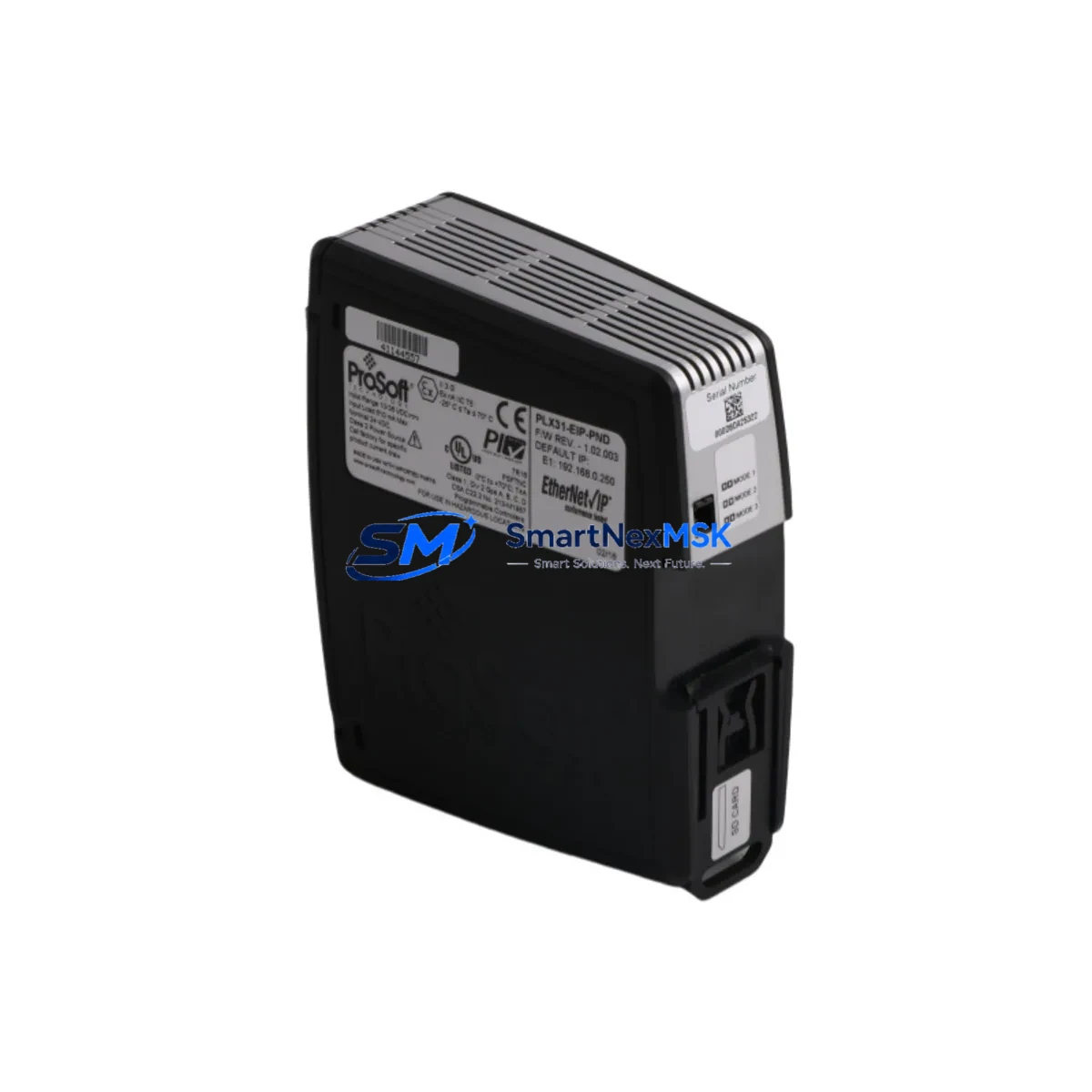

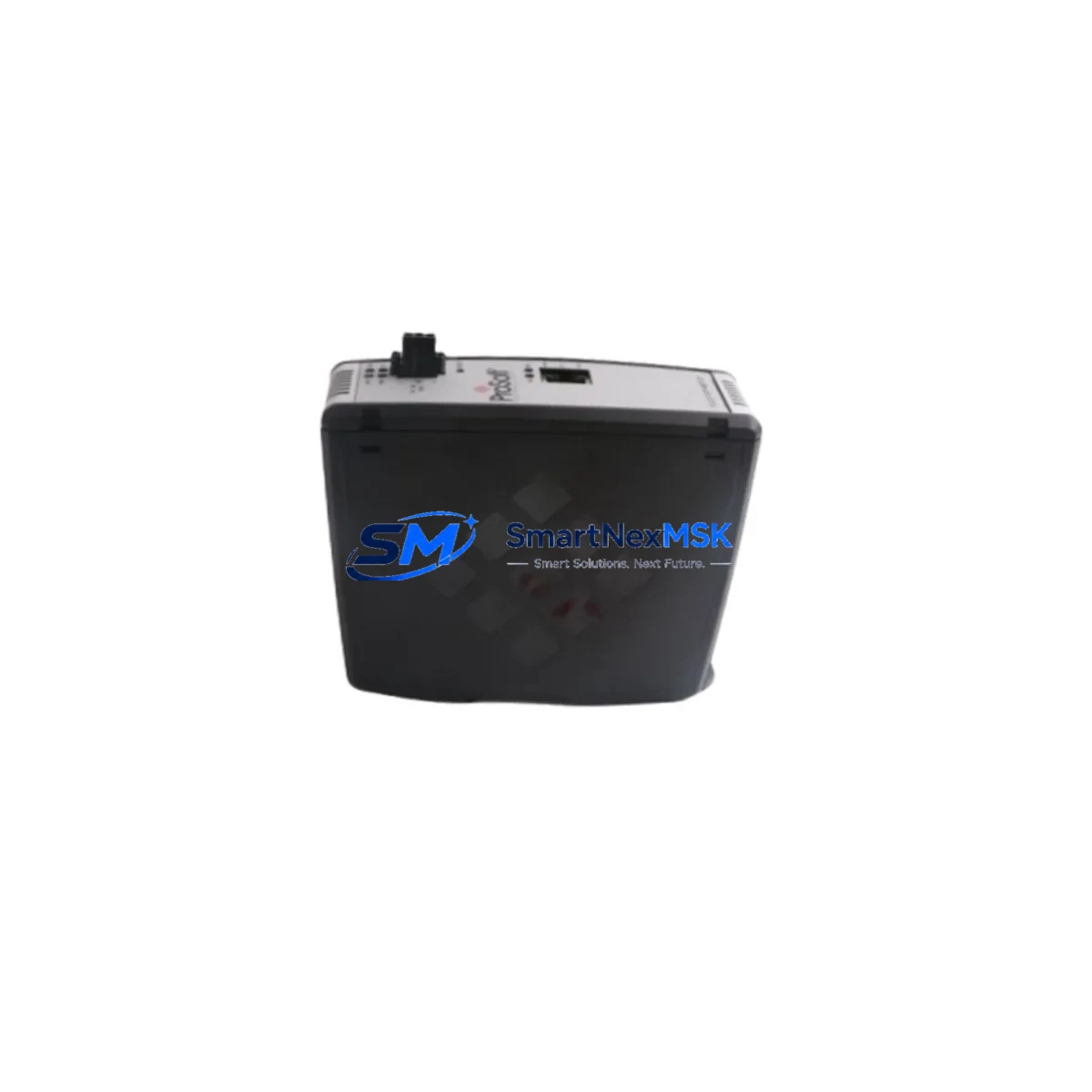

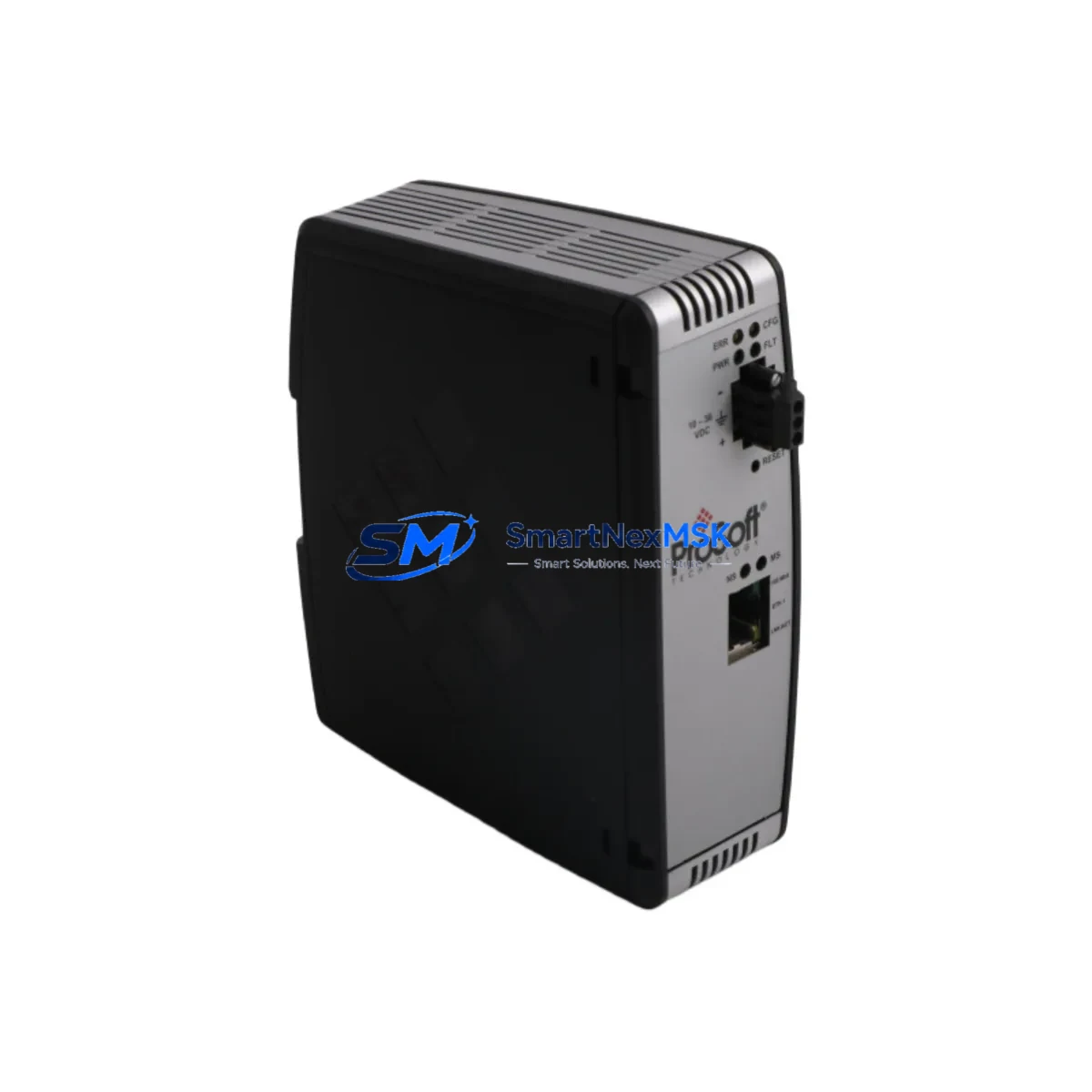

Housed in a compact DIN-rail-mounted enclosure rated for wide-temperature operation, the PLX31-EIP-PND integrates directly into control cabinets alongside Allen-Bradley ControlLogix and CompactLogix PLCs, Siemens S7-300/S7-400 controllers, and third-party PROFINET IO devices. Its isolated dual-port Ethernet architecture prevents ground loops and surge propagation between network segments — a critical protection feature in environments where variable-frequency drives, high-current motor starters, and arc furnaces generate severe conducted and radiated EMI.

The gateway’s internal watchdog and heartbeat monitoring continuously verify the health of both EtherNet/IP and PROFINET IO connections. Upon detection of a communication anomaly — whether caused by cable fault, switch failure, or network congestion — the PLX31-EIP-PND executes configurable fault-state output logic, ensuring that connected actuators, safety relays, and interlock circuits default to a known safe state rather than holding last-value or entering an undefined condition. This behavior is essential in safety instrumented systems (SIS) and emergency shutdown (ESD) loops where undefined gateway states can mask hazardous process conditions.

For control cabinet designers specifying complete protection architectures, the PLX31-EIP-PND is commonly deployed alongside ProSoft’s PLX31-EIP-MBS (EtherNet/IP to Modbus Serial gateway) and PLX31-MNET-MBS (Modbus TCP to Modbus Serial gateway) to create multi-protocol translation layers within a single cabinet. Power supply redundancy for the gateway and its associated network switches is typically provided by Phoenix Contact QUINT-PS or Siemens SITOP PSU8200 24 VDC DIN-rail power supplies, which offer active current limiting and diagnostic signaling to prevent brownout-induced gateway resets. Surge protection on the Ethernet ports is reinforced with Phoenix Contact TRABTECH or Weidmuller VSSC4 surge protective devices installed at cabinet entry points.

In PROFINET IO segments connecting remote I/O stations — such as Siemens ET 200SP or Beckhoff EK1100 EtherCAT couplers bridged via the PLX31-EIP-PND — the gateway’s PROFINET controller/device dual-role capability allows it to act as both a PROFINET IO controller (scanning field devices) and a PROFINET IO device (reporting to an upstream PLC), eliminating the need for additional hardware in complex multi-master topologies. Managed industrial Ethernet switches such as the Hirschmann SPIDER or Moxa EDS-408A series provide the VLAN segmentation and port mirroring required to isolate safety-critical PROFINET traffic from general plant LAN traffic when deployed alongside the PLX31-EIP-PND.

Every PLX31-EIP-PND unit shipped by SMARTNEXMSK undergoes pre-shipment functional verification, including protocol handshake testing on both EtherNet/IP and PROFINET IO ports, power-cycle stability checks, and visual inspection of all connectors and DIN-rail mounting hardware. Units are supplied with original ProSoft Technology firmware, configuration software license, and full documentation. Stock is maintained for immediate dispatch, supporting both planned capital projects and urgent spare-parts replacement requirements.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust control cabinet integrating the PLX31-EIP-PND requires a layered protection strategy across power, communication, and I/O domains. At the power layer, a Phoenix Contact QUINT-PS 24VDC/10A or equivalent redundant DIN-rail power supply with active current limiting prevents voltage sag from propagating to the gateway during motor start transients. A Siemens SITOP PSU8200 with buffer module provides ride-through capability during brief mains interruptions — critical in continuous-process facilities where even a 20 ms gateway reset can trigger PROFINET IO watchdog faults and cause distributed I/O stations to enter safe state.

At the network layer, Ethernet surge protective devices such as the Phoenix Contact TRABTECH PT-IQ-1X2-BE-24DC-ST or Weidmuller VSSC4 RJ45 should be installed on all external Ethernet cable entries into the cabinet, protecting the PLX31-EIP-PND’s isolated ports from lightning-induced surges and ground potential differences between buildings. A managed industrial switch — such as the Moxa EDS-408A or Hirschmann SPIDER 8-port — provides VLAN segmentation to isolate PROFINET IO real-time traffic from standard EtherNet/IP messaging, reducing jitter and preventing non-deterministic traffic from disrupting safety-critical I/O update cycles.

For I/O expansion within the same cabinet, Siemens ET 200SP remote I/O stations connected via PROFINET IO to the PLX31-EIP-PND provide modular digital and analog I/O with integrated channel-level diagnostics. On the EtherNet/IP side, Allen-Bradley 1734 POINT I/O adapters extend the control reach to field instruments while maintaining a single unified tag database in the ControlLogix PLC. Where legacy Modbus RTU devices — such as older flow computers, motor protection relays, or energy meters — must be integrated into the same control architecture, a companion ProSoft PLX31-EIP-MBS gateway handles the serial protocol conversion, keeping the PLX31-EIP-PND dedicated to the high-speed PROFINET IO scan cycle.

Critical Industrial Safety Applications

In petrochemical and refinery environments, the PLX31-EIP-PND bridges Allen-Bradley ControlLogix safety PLCs with Siemens PROFINET IO field devices in emergency shutdown (ESD) and fire-and-gas (F&G) systems. Its configurable fault-state logic ensures that on communication loss, all connected output modules default to de-energized (safe) state, satisfying IEC 61511 functional safety requirements for SIL-rated interlock loops.

In power generation and substation applications, the gateway enables real-time data exchange between EtherNet/IP-based SCADA systems and PROFINET IO-connected protection relays, bay controllers, and transformer monitoring units. The isolated Ethernet port architecture is essential in high-voltage substations where ground potential differences between control room and switchyard can exceed several volts, creating common-mode noise that destroys non-isolated network interfaces.

In mining and mineral processing operations, the PLX31-EIP-PND connects crusher control systems, conveyor drive networks, and slurry pump stations across heterogeneous PLC platforms. Its wide operating temperature range (-40°C to +70°C) and DIN-rail form factor allow installation in outdoor electrical houses and mobile plant control cabinets subject to extreme thermal cycling.

In water and wastewater treatment facilities, the gateway integrates PROFINET IO-based dosing pump controllers, flow meters, and valve actuators with EtherNet/IP SCADA platforms, enabling centralized alarm management and remote diagnostics without requiring protocol-specific engineering workstations at each field panel.

In metallurgical and steel mill environments — where arc furnaces, induction heaters, and large DC drives generate extreme electromagnetic interference — the PLX31-EIP-PND’s isolated port design and CE/FCC Class A EMC certification provide the noise immunity required for reliable protocol translation in close proximity to high-power electrical equipment.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the PLX31-EIP-PND?
The 12-month warranty covers all manufacturing defects and functional failures occurring under normal operating conditions within the specified environmental and electrical ratings. It includes replacement or repair of the unit at no additional cost. Warranty claims are processed promptly with priority handling to minimize control system downtime.

Q2: What pre-shipment testing is performed on each PLX31-EIP-PND unit?
Each unit undergoes functional verification including EtherNet/IP and PROFINET IO protocol handshake testing, power-cycle stability checks across the full input voltage range, and physical inspection of all RJ45 ports, DIN-rail clips, and terminal connectors. Units are shipped with original ProSoft Technology firmware pre-loaded and verified.

Q3: Is the PLX31-EIP-PND compatible with my existing Allen-Bradley ControlLogix and Siemens S7-1500 systems?
Yes. The PLX31-EIP-PND is fully compatible with Allen-Bradley ControlLogix (L6x, L7x, L8x), CompactLogix (L1x–L3x), and Siemens S7-300, S7-400, and S7-1500 series controllers. Configuration is performed via ProSoft Configuration Builder (PCB) software, which provides pre-built Add-On Instructions (AOIs) for ControlLogix integration and GSDML device description files for PROFINET IO engineering tools including Siemens TIA Portal and Step 7.

Q4: Can you guarantee long-term supply and replacement support for the PLX31-EIP-PND?
Yes. SMARTNEXMSK maintains dedicated stock of PLX31-EIP-PND units to support both planned maintenance schedules and emergency spare-parts replacement. For critical infrastructure operators requiring guaranteed availability, we recommend establishing a standing spare-parts agreement. Our team provides technical pre-sales support to confirm compatibility and assist with replacement unit commissioning.
