Reliance Electric 57C404B Retrofit-Ready Card for AutoMax DCS

Reliance Electric 57C404B Retrofit-Ready Card for AutoMax DCS

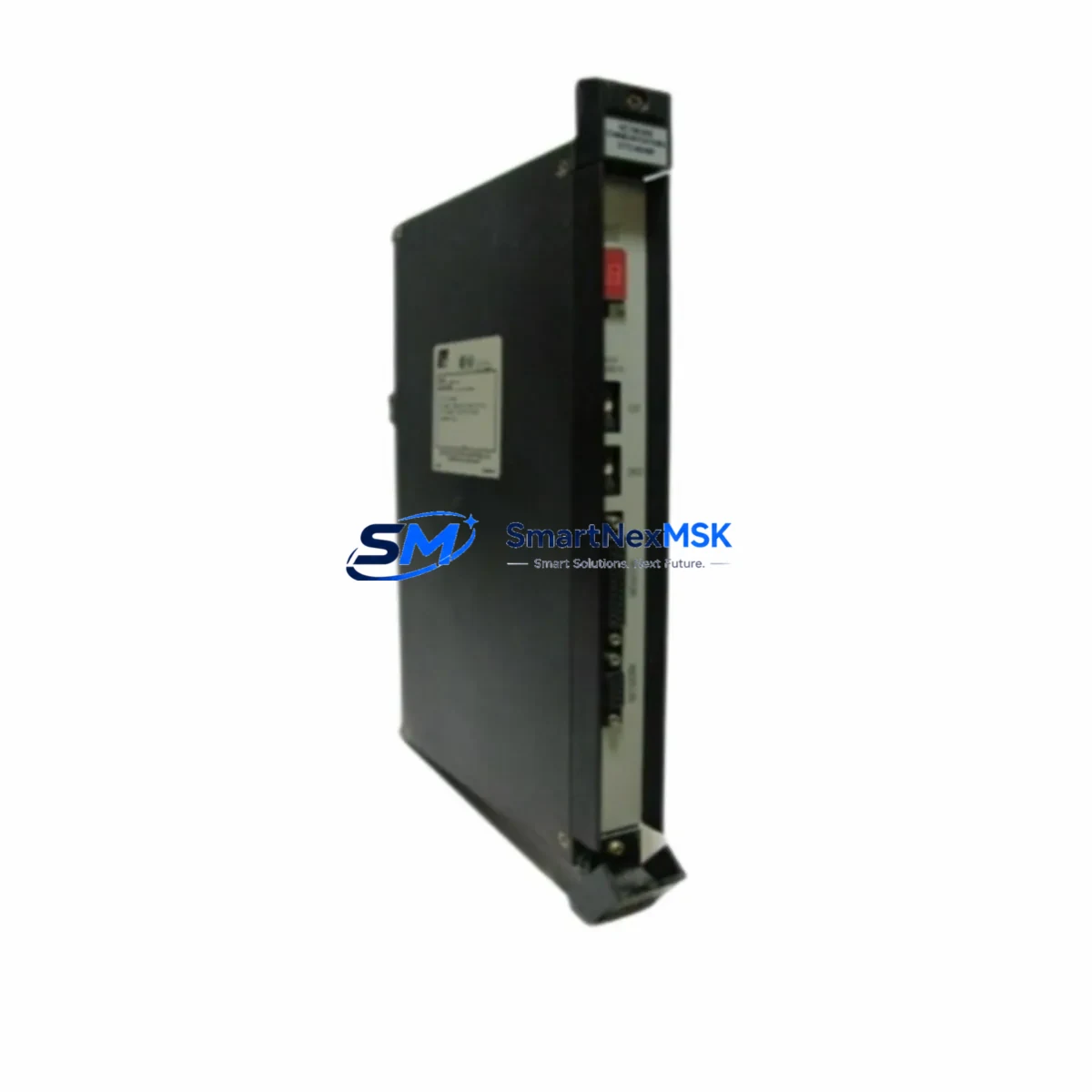

The Reliance Electric 57C404B is a network communication card designed for the AutoMax Distributed Control System (DCS) platform — one of the most widely deployed process automation architectures in heavy industry, power generation, and continuous manufacturing. As the AutoMax platform has reached end-of-life status with the original manufacturer, the 57C404B has become a critical retrofit component for facilities that must maintain operational continuity without undertaking a full control system replacement. SMARTNEXMSK maintains verified stock of the 57C404B to support both emergency replacement and planned upgrade programs, with each unit tested prior to shipment and backed by a 12-month warranty.

For maintenance engineers managing aging AutoMax installations, the 57C404B occupies a central role in the communication architecture. It handles network data exchange between the AutoMax controller backplane and the plant-wide DCS network, enabling real-time process variable transmission, alarm routing, and supervisory command execution. When this card fails or degrades, the consequences extend beyond a single loop — entire process segments can lose visibility, forcing operators into manual control or emergency shutdown. Having a verified replacement unit available in the spare parts cabinet is not optional; it is a fundamental risk management requirement for any facility still running AutoMax.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful 57C404B retrofit begins well before the card is physically removed from the rack. Maintenance and procurement engineers should treat this replacement as a system-level event, not a simple module swap. The following planning steps and associated components are essential to a controlled, low-risk upgrade.

Start with the rack infrastructure. The 57C404B is housed in an AutoMax rack assembly — typically a 57C300-series or compatible chassis. Before ordering a replacement card, confirm the rack’s physical slot count, the current slot assignment of the 57C404B, and whether adjacent slots are occupied by I/O modules or other communication cards. Rack backplane integrity should be inspected at the same time; a degraded backplane connector can cause intermittent faults that are incorrectly attributed to the communication card itself.

Next, audit the power supply feeding the rack. The AutoMax rack power module — often a 57C301 or equivalent — must deliver stable, within-spec DC voltage to all installed modules. A power module operating near its rated capacity or showing output ripple can cause communication card resets that mimic hardware failure. Replacing the 57C404B without verifying power supply health is a common source of repeat failures in aging AutoMax installations.

On the network side, document the existing node address and network segment configuration of the 57C404B before removal. AutoMax DCS networks use fixed node addressing, and an incorrectly configured replacement card will fail to join the network or will cause address conflicts that disrupt other nodes. If the facility uses a 57C410 or similar network interface module elsewhere in the system, cross-reference the addressing scheme to ensure consistency.

I/O integrity is the next checkpoint. The 57C404B communicates process data from field I/O — analog input cards, digital output modules, and thermocouple input assemblies — to the DCS supervisory layer. After card replacement, verify that all I/O channels are reporting correctly in the AutoMax programming environment. Pay particular attention to analog signal scaling and digital status bits, which can be affected by configuration differences between card revisions.

For facilities that use an HMI or SCADA layer connected to the AutoMax system, confirm that the HMI communication link — whether via a dedicated AutoMax HMI interface card or a third-party OPC gateway — re-establishes correctly after the 57C404B is replaced. HMI tag databases sometimes contain hardcoded node references that require updating when a communication card is swapped.

Terminal wiring at the rack I/O modules should also be inspected during the retrofit window. Loose or corroded terminal connections on adjacent 57C-series I/O cards can introduce signal noise that is difficult to diagnose after the communication card has been replaced. A systematic terminal torque check and visual inspection of wiring insulation is a low-cost step that significantly reduces post-retrofit troubleshooting time.

Finally, if the facility is using the retrofit as an opportunity to migrate toward a more modern control platform, the 57C404B replacement can serve as a bridge phase. Some integrators use this window to install protocol converters or gateway modules that allow the AutoMax network to communicate with newer PLC or DCS platforms, extending the useful life of the existing field wiring and I/O infrastructure while the full migration is planned and budgeted.

Downtime Control During System Migration

Minimizing downtime during a 57C404B replacement requires a structured approach that protects the original program logic, maintains field control continuity, and compresses the commissioning window to the shortest possible duration.

Before any physical work begins, create a full backup of the AutoMax controller program and configuration database. This backup should include the network configuration file, I/O mapping tables, and any custom function block libraries used in the application. Store the backup on an isolated engineering workstation — not on the controller itself — so it remains accessible even if the controller enters a fault state during the card swap.

Schedule the replacement during a planned maintenance window, ideally aligned with a process shutdown or reduced-load period. Communicate the expected outage duration to operations and confirm that all field devices connected to the affected I/O modules are in a safe state before power is removed from the rack. For continuous processes where a full shutdown is not possible, work with the control system integrator to identify which loops can be placed in manual mode and held at a safe setpoint for the duration of the swap.

During the physical replacement, handle the 57C404B using proper ESD precautions. AutoMax communication cards are sensitive to electrostatic discharge, and damage from improper handling can cause latent failures that appear days or weeks after installation. Use a grounded wrist strap and place the removed card in an anti-static bag immediately upon extraction.

After the new card is seated and the rack is powered, allow the AutoMax system to complete its self-diagnostic cycle before attempting to re-establish network communication. Monitor the card’s status indicators and compare them against the expected state documented in the pre-replacement baseline. If the card fails to join the network within the expected timeframe, recheck the node address configuration before assuming a hardware fault.

Once network communication is confirmed, perform a structured I/O verification — check each analog and digital channel against a known reference value before returning the system to automatic control. Document the post-replacement verification results and retain them as part of the maintenance record for the installation.

Retrofit Support FAQ

Q: Is the 57C404B a direct drop-in replacement for the original AutoMax network communication card?
A: Yes, the 57C404B is a direct replacement for the original factory-installed card in compatible AutoMax DCS racks. Physical dimensions, backplane connector pinout, and communication protocol are identical. Node address configuration must be verified and matched to the original card’s settings before the system is returned to service.

Q: How is the 57C404B tested before shipment?
A: Every 57C404B unit supplied by SMARTNEXMSK undergoes functional testing prior to shipment, including power-on self-test verification and communication interface checks. A test report is available upon request. All units are covered by a 12-month warranty from the date of shipment.

Q: What should I verify regarding wiring and terminal connections during the replacement?
A: The 57C404B itself does not have direct field wiring — it communicates via the rack backplane. However, during the replacement window, inspect all terminal connections on adjacent I/O modules in the same rack. Verify that network cable connections to the AutoMax communication bus are secure and that cable shielding is properly grounded at the panel entry point.

Q: Can SMARTNEXMSK support long-term supply of the 57C404B for multi-site AutoMax installations?
A: Yes. SMARTNEXMSK maintains ongoing inventory of the 57C404B and other AutoMax DCS components to support multi-site maintenance programs and long-term spare parts agreements. Contact our team to discuss volume pricing, reserved stock arrangements, and lead time commitments for your facility’s requirements.
