Schneider 140CRP93100 Spare for Quantum Automation

Schneider 140CRP93100 Spare for Quantum Automation: Spare Replacement & Industrial Downtime Risk Control

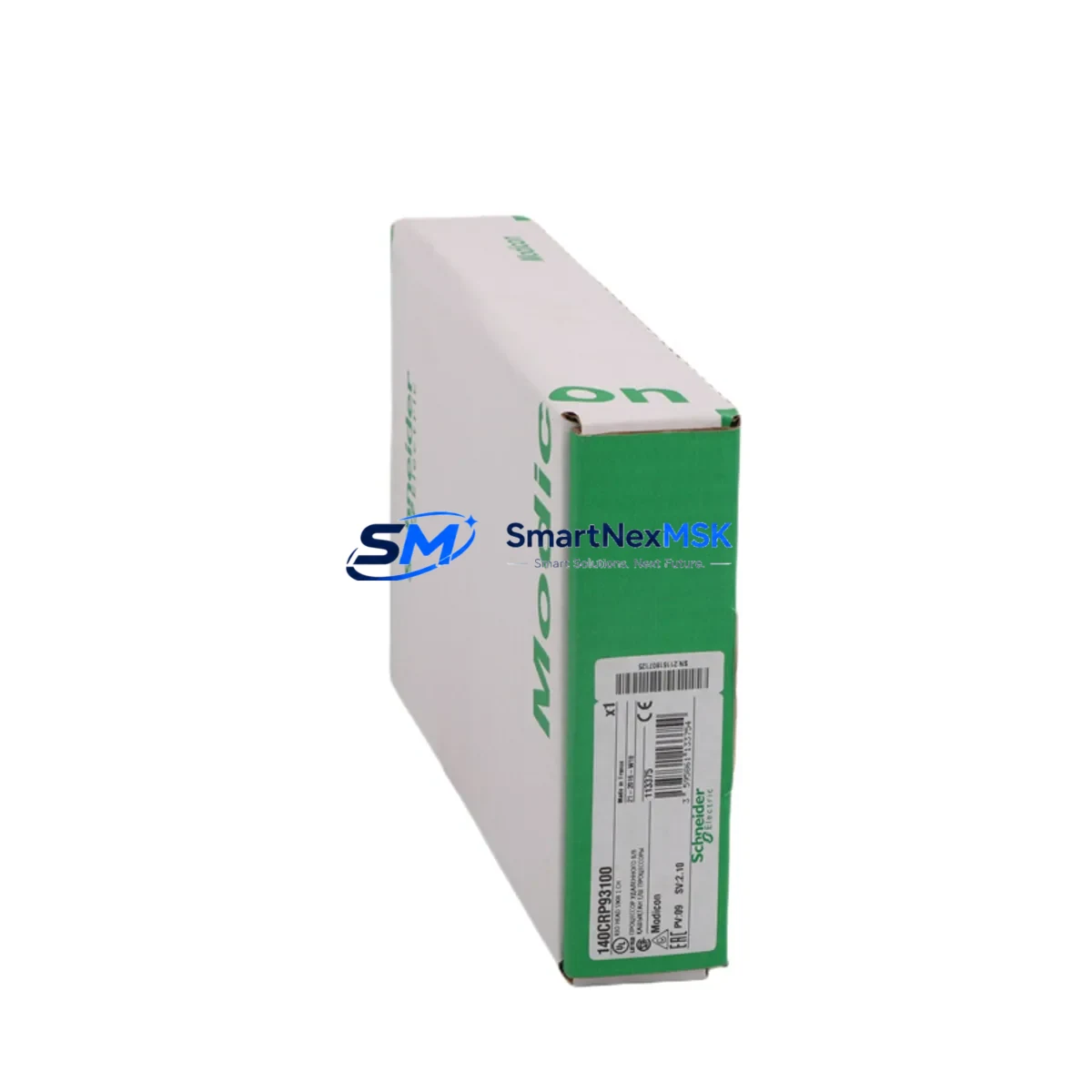

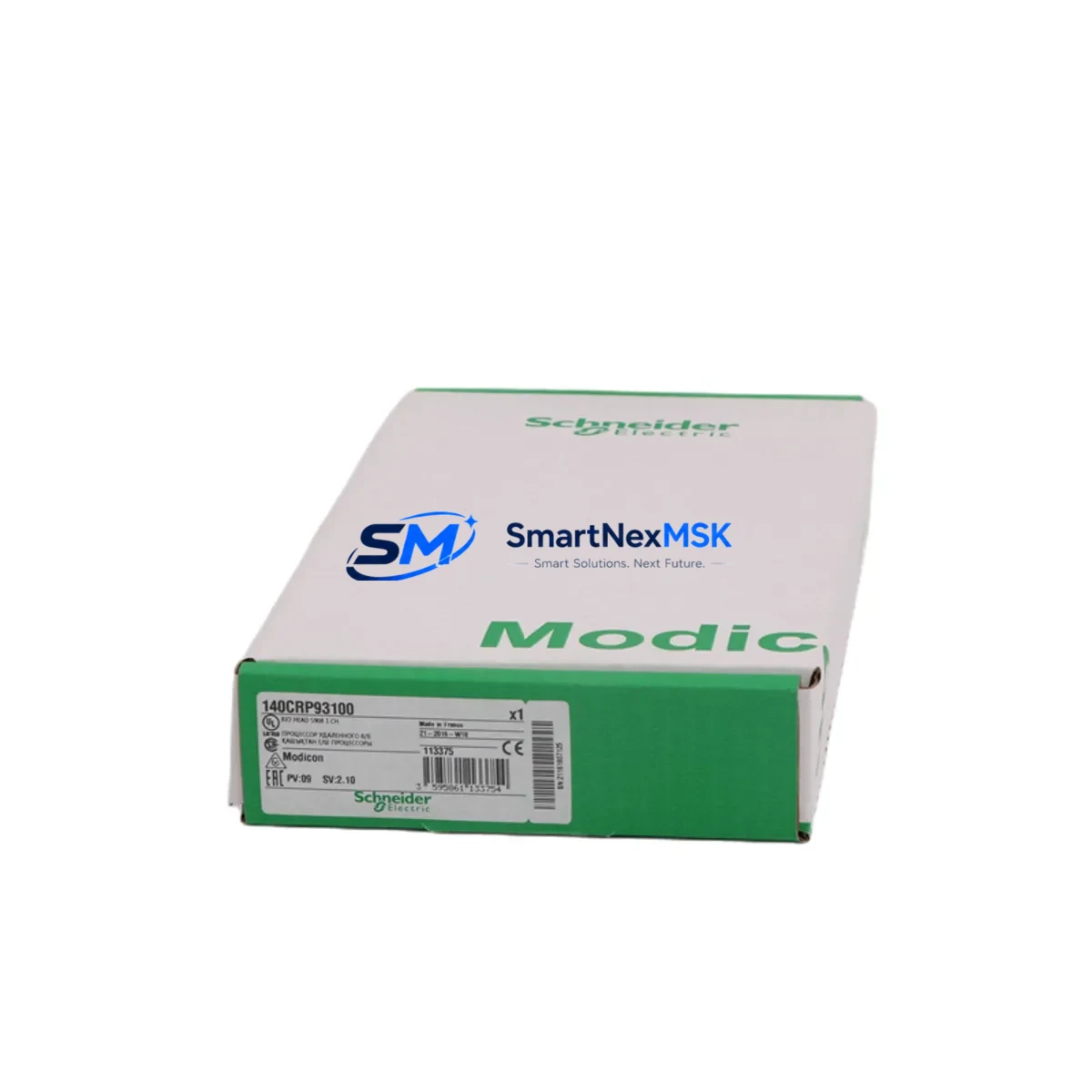

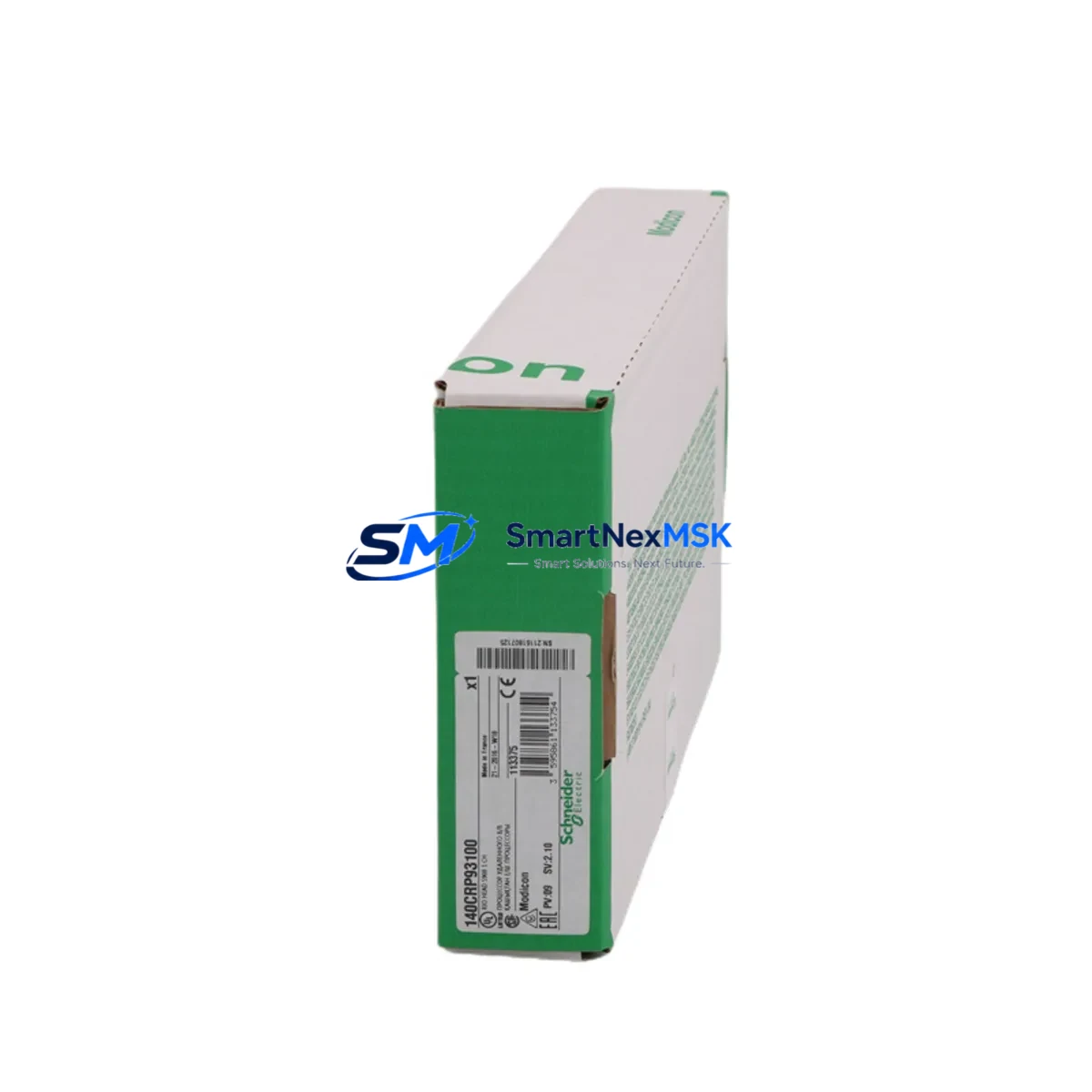

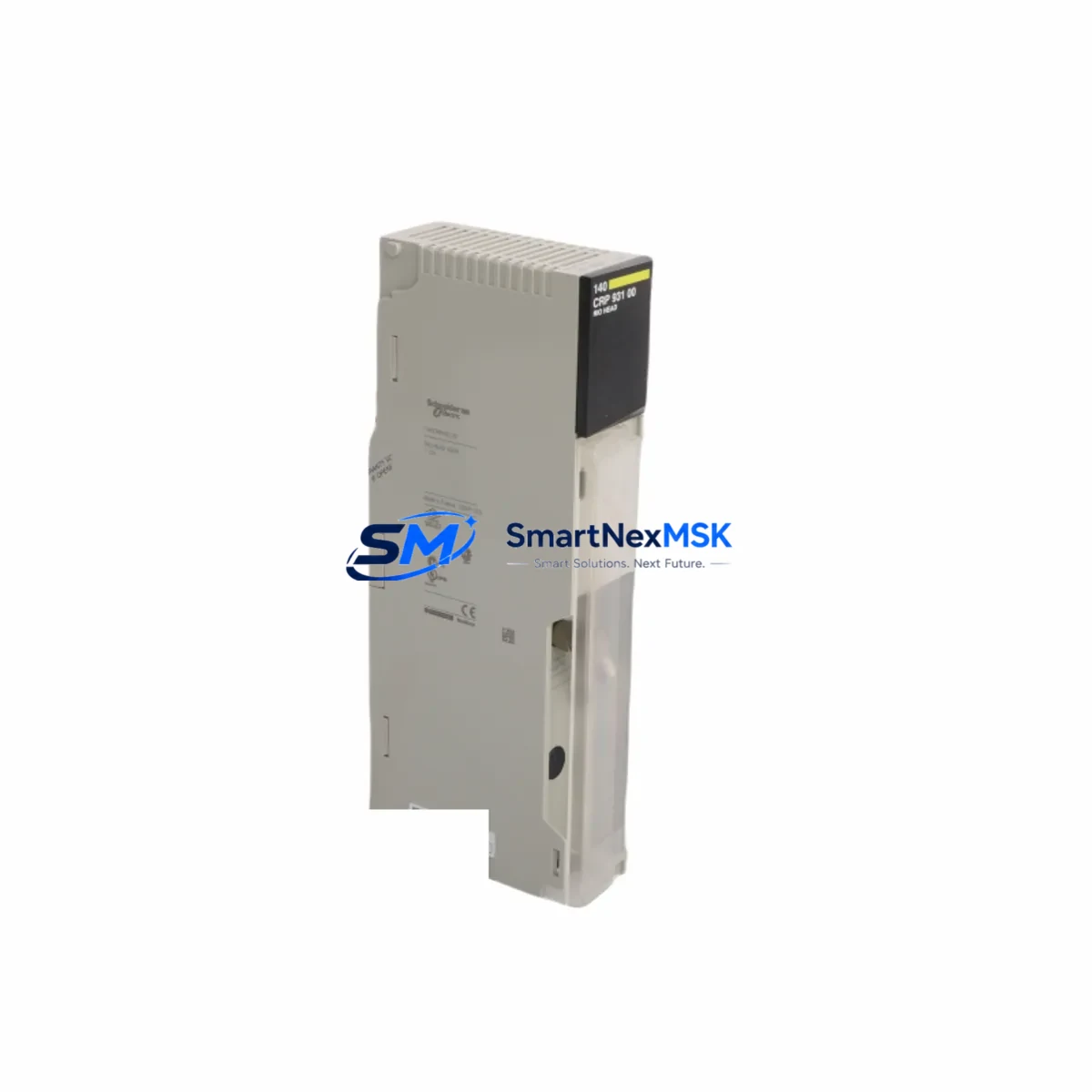

The Schneider Electric 140CRP93100 is an original S908 single-channel Remote I/O (RIO) Head Module designed for the Modicon Quantum automation platform. As a critical communication bridge between the Quantum CPU rack and distributed I/O drops, this module governs the integrity of the entire remote I/O network. When the 140CRP93100 fails or degrades, the result is immediate loss of field I/O visibility — triggering unplanned shutdowns, process interruptions, and costly emergency maintenance windows. Stocking a verified original spare is the most effective strategy to minimize mean time to repair (MTTR) and protect continuous operation in demanding industrial environments.

This unit ships tested, inspected, and backed by a 12-month warranty. Each module undergoes functional verification prior to dispatch to ensure it meets original Schneider Electric performance specifications. Whether you are managing a petrochemical plant, a water treatment facility, a discrete manufacturing line, or a power distribution substation, the 140CRP93100 is a foundational component in your Quantum-based control architecture that demands proactive spare parts coverage.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 140CRP93100 RIO Head Module is rarely an isolated task. In a Quantum-based control cabinet, the S908 RIO bus connects the CPU rack to multiple remote I/O drops, each of which may house analog input modules such as the 140AII33000, discrete output modules like the 140DDO35300, or mixed I/O adapters. When a RIO head module fault is diagnosed, maintenance engineers should simultaneously inspect the 140CPS11420 or 140CPS21400 power supply modules feeding the remote drops, as voltage instability is a common root cause of RIO communication errors that are misattributed to the head module itself.

The RIO coaxial cable and BNC termination resistors (typically 75-ohm terminators at each end of the S908 bus) should be tested for continuity and impedance mismatch before the replacement module is commissioned. A faulty terminator or a degraded RIO cable segment can cause the new 140CRP93100 to report the same fault codes as the failed unit, leading to repeat downtime. Alongside the head module, engineers should verify the condition of the 140XBP01600 or 140XBP00600 backplane rack in the remote drop, as cracked backplane connectors can cause intermittent I/O loss that mimics a head module failure.

For sites running Quantum Hot Standby configurations, the 140CHS11000 Hot Standby module and its associated fiber-optic synchronization cable should be inspected during the same maintenance window. A degraded Hot Standby link can prevent automatic failover, negating the redundancy investment. Communication integrity between the primary and standby CPUs — typically the 140CPU67160 or 140CPU65160 — should be confirmed via Unity Pro or EcoStruxure Control Expert diagnostics before returning the system to production.

Procurement engineers building a Quantum spare parts kit should consider stocking the 140CRP93100 alongside the 140NOE77101 Ethernet communication module, which handles SCADA and HMI connectivity on the same rack. A failure of either the RIO head or the Ethernet module can isolate the control system from both field devices and the supervisory layer simultaneously. Fuse holders and 24 VDC field power distribution terminal blocks within the control cabinet should also be part of the periodic inspection checklist, as blown fuses in the I/O field power circuit can produce symptoms identical to a failed RIO drop.

Site Replacement Workflow

Step 1 — Fault Confirmation: Use Unity Pro / EcoStruxure Control Expert to read the RIO bus status. Confirm that the fault is isolated to the head module slot and not to a downstream drop adapter or field wiring issue. Document the current RIO drop configuration and I/O map before powering down.

Step 2 — Safe Isolation: Follow your site’s Lockout/Tagout (LOTO) procedure. De-energize the Quantum rack. Disconnect the S908 RIO coaxial cable from the 140CRP93100 front connector. Remove the module from the rack slot by releasing the top and bottom locking levers.

Step 3 — Spare Installation: Insert the replacement 140CRP93100 into the same rack slot. Reconnect the RIO coaxial cable. Verify that the 75-ohm bus terminator is correctly installed at the far end of the RIO segment. Re-energize the rack.

Step 4 — Commissioning Verification: Power on and observe the module LED indicators. The RIO ACTIVE LED should illuminate green within 30 seconds of power-up as the module scans and re-establishes communication with all configured remote drops. Use the PLC diagnostic screen to confirm that all I/O drops are back online and that no residual fault codes remain.

Step 5 — System Return to Service: Perform a controlled I/O scan verification — confirm that all analog and discrete signals are reading correctly before releasing the system to automatic control. Log the replacement in your CMMS with the module serial number, installation date, and technician ID to support future lifecycle tracking.

This workflow is compatible with legacy Quantum installations running Modsoft, Concept, or Unity Pro programming environments, making the 140CRP93100 a reliable drop-in replacement that requires no firmware reconfiguration in standard single-channel RIO configurations.

Spare Parts Support FAQ

Q1: Is the 140CRP93100 compatible with all Modicon Quantum rack sizes?
Yes. The 140CRP93100 is designed for the standard Quantum I/O rack backplane and is compatible with all 140-series rack sizes, including the 140XBP00400, 140XBP00600, 140XBP01000, and 140XBP01600. It occupies a single rack slot and does not require adjacent slot clearance. Confirm your rack revision level against the Schneider Electric compatibility matrix if your installation predates 1998.

Q2: What pre-shipment testing is performed on this module?
Each 140CRP93100 unit is powered up and tested for RIO bus communication, LED indicator function, and backplane interface integrity before dispatch. Units that fail any test parameter are quarantined and not shipped. A test report is available upon request for quality-critical procurement processes.

Q3: How should I manage 140CRP93100 inventory for a multi-site Quantum installation?
For installations with three or more Quantum systems sharing the S908 RIO architecture, we recommend maintaining a minimum of one 140CRP93100 spare per site, with a centralized regional buffer stock of two additional units. Given that Schneider Electric has transitioned the Quantum platform to legacy support status, lead times for new production units are unpredictable. Securing original spare stock now is the most reliable strategy for long-term system continuity.

Q4: What is covered under the 12-month warranty?
The 12-month warranty covers manufacturing defects, component failure under normal operating conditions, and any fault attributable to the module itself rather than external wiring or power supply issues. Warranty claims are processed with a replacement-first policy — a verified replacement unit is dispatched before the failed module is returned for analysis, minimizing your downtime exposure. Contact our technical team with the module serial number and fault description to initiate a warranty claim.
