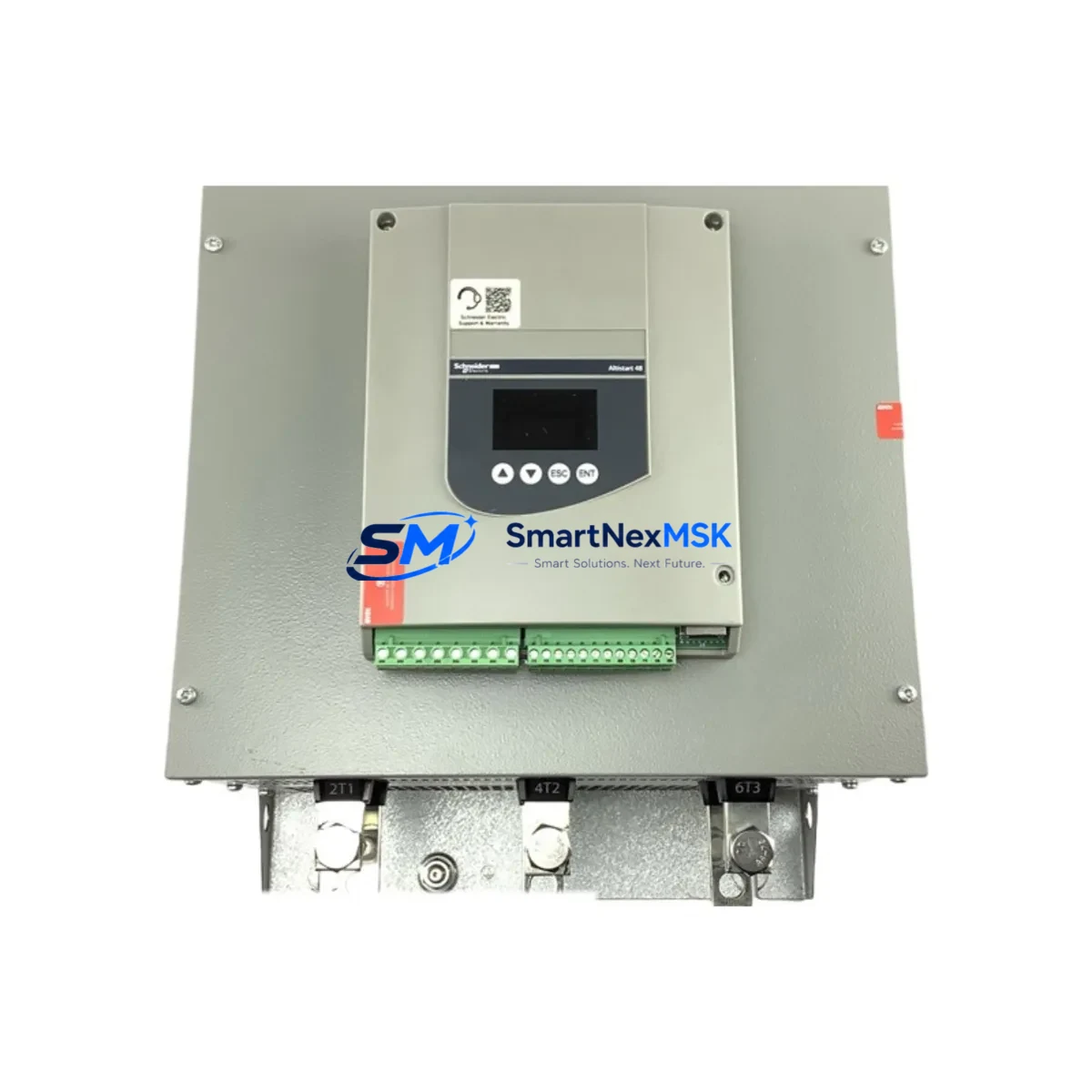

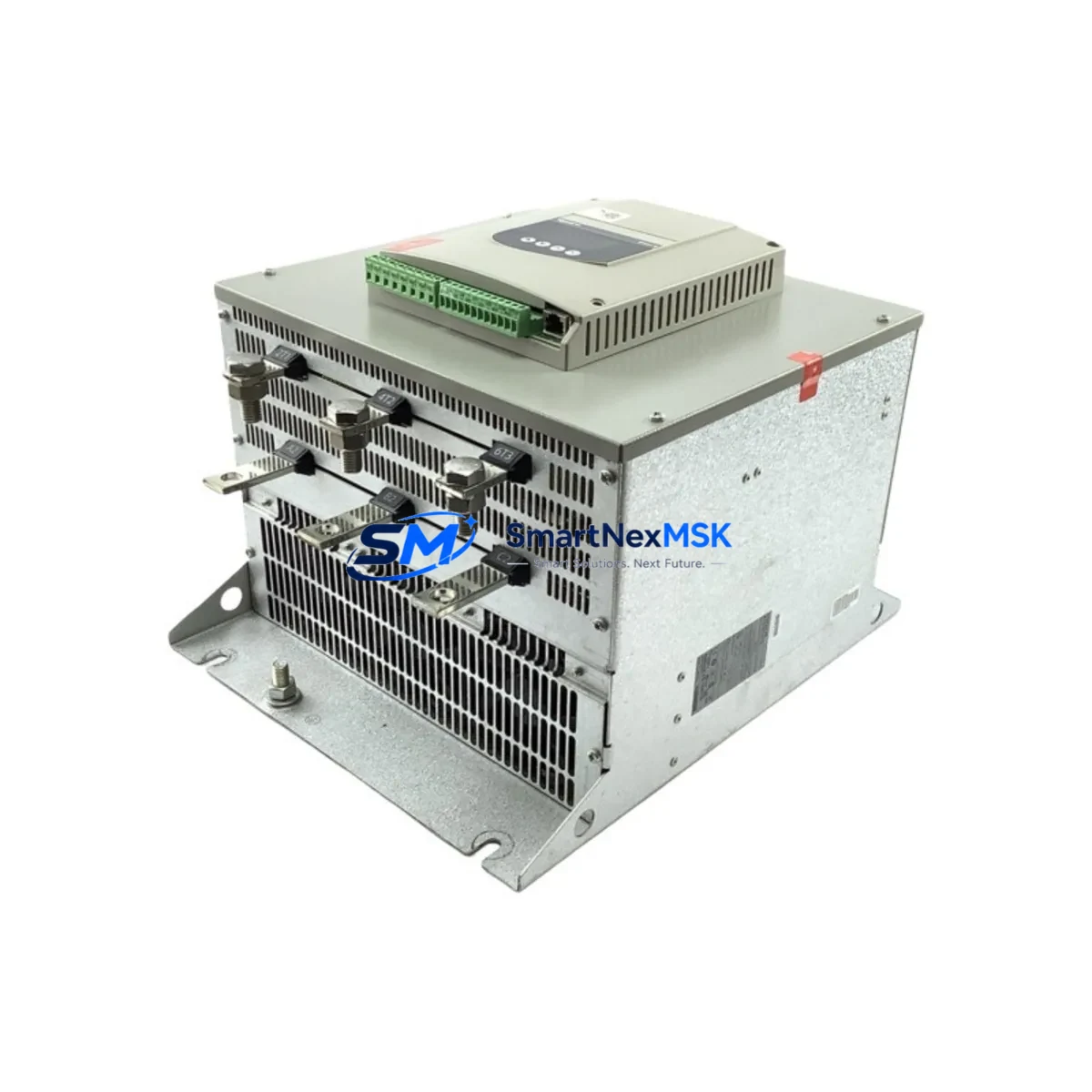

The Schneider Electric ATS48C21Q is a high-capacity soft starter rated at 210A for three-phase AC induction motors, belonging to the proven ATS48 series. In industrial maintenance environments — from water treatment plants and compressor stations to conveyor systems and pump arrays — unplanned downtime caused by a failed soft starter can cascade into hours of lost production. Stocking a verified original ATS48C21Q spare is the most direct strategy for rapid fault recovery and controlled restart.

This unit is sourced as an original Schneider Electric component, fully tested prior to dispatch, and backed by a 12-month warranty. It is suitable for direct replacement of any in-service ATS48C21Q unit without firmware reconfiguration in standard ATS48 deployments. Maintenance engineers and procurement teams can rely on this spare to restore motor control circuits quickly, minimizing mean time to repair (MTTR) and protecting production continuity.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or procurement engineer schedules replacement of an ATS48C21Q, the soft starter is rarely the only component that warrants inspection. A comprehensive site review should cover the full motor control circuit to prevent repeat failures and ensure system stability after restart.

Begin with the incoming power supply: verify that the upstream circuit breaker or fused disconnect — typically a Schneider Electric GV2 or GV3 motor circuit breaker — is within its rated interrupting capacity and shows no signs of thermal stress. Check the input power cables and terminal connections at both the soft starter and the motor terminal box; loose or corroded connections are a leading cause of premature soft starter failure at high current ratings like 210A.

Inspect the bypass contactor if the installation uses one — the LC1D or LC1F series contactors from Schneider Electric are common in ATS48 bypass configurations. Contact wear or coil degradation in the bypass contactor can cause the soft starter to absorb fault currents it was not designed to handle continuously. Similarly, review any line-side or load-side fuses (DF2 or DF6 series) for signs of partial blow or discoloration.

On the control side, check the 24VDC or 110VAC control power supply feeding the ATS48 logic inputs. A marginal control supply can cause erratic run/stop behavior that mimics a soft starter fault. If the installation includes a Modbus RTU communication link, verify the RS-485 wiring integrity and termination resistors — communication faults can prevent remote start commands from reaching the ATS48C21Q after replacement.

For installations integrated into a broader PLC or DCS architecture, confirm that the digital output signals from the ATS48 (fault relay, run relay) are correctly mapped in the controller logic. Schneider Electric Modicon M340 or M580 PLC I/O modules connected to the ATS48 should be tested for correct signal levels after the replacement unit is powered up. If the control cabinet includes signal isolators between the soft starter and the PLC analog inputs (for current monitoring), verify isolator calibration and output range.

Finally, check the motor thermistor or PTC probe wiring connected to the ATS48C21Q thermal protection input. A broken or shorted thermistor circuit will trigger immediate thermal fault on the new unit. Replacing the ATS48C21Q without verifying the thermistor circuit is a common cause of repeat fault calls within hours of restart.

Site Replacement Workflow

Step 1 — Isolation and lockout: Isolate the motor circuit at the upstream breaker and apply LOTO (lockout/tagout) per site safety procedures. Confirm zero voltage at the ATS48 input terminals L1, L2, L3 using a calibrated voltage tester.

Step 2 — Parameter backup: If the existing ATS48C21Q is still partially functional, use the SoMove configuration software or the ATS48 keypad to export current parameter settings (acceleration time, deceleration time, current limit, motor thermal class) before removal. This eliminates manual reconfiguration on the replacement unit.

Step 3 — Mechanical removal: Disconnect all power and control wiring, labeling each conductor. Remove the unit from the panel mounting rails. Note the torque values for terminal screws (refer to the ATS48 installation guide for terminal torque specifications at 210A rating).

Step 4 — Replacement unit installation: Mount the ATS48C21Q replacement unit, reconnect all labeled conductors, and torque all terminals to specification. Verify that the bypass contactor wiring and control circuit connections match the original schematic.

Step 5 — Parameter restore and commissioning: Power up the control circuit only (without enabling the motor run command). Restore saved parameters via SoMove or keypad entry. Verify communication link status on the Modbus network. Perform a no-load test start to confirm correct ramp-up behavior before returning the motor to full load.

Step 6 — Return to service: Document the replacement in the site maintenance log, update the spare parts inventory, and order a replacement ATS48C21Q to restore buffer stock. A minimum of one unit on-site is recommended for installations where the ATS48 controls critical process motors.

Spare Parts Support FAQ

Q1: Is this ATS48C21Q an original Schneider Electric component or a compatible substitute?
This is an original Schneider Electric ATS48C21Q unit. It is not a third-party compatible or remanufactured substitute. Each unit undergoes functional testing prior to shipment to verify correct operation across all rated parameters.

Q2: What is the warranty coverage and what does it include?
All units are covered by a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or operation outside rated parameters. Warranty claims are supported with replacement or repair at no additional cost.

Q3: Can this unit replace an ATS48C21Q that was installed in a Modbus-networked system without reconfiguration?
Yes, provided the replacement unit is configured with the same Modbus node address and communication parameters as the original. The ATS48C21Q stores its Modbus address and baud rate in non-volatile memory. These settings must be re-entered on the replacement unit before connecting it to the RS-485 network. All other factory default parameters should be verified against the site-specific parameter record before enabling motor run commands.

Q4: How quickly can this spare be shipped, and is long-term supply availability guaranteed?
In-stock units are dispatched within 1–3 business days. For procurement engineers managing multi-year maintenance contracts, we support scheduled blanket orders and reserved stock arrangements to ensure supply continuity for critical ATS48 installations. Contact our sales team to discuss long-term supply agreements for ATS48 series components.
