Schneider ATV21HD18N4 Retrofit-Ready VFD for Altivar 21

Schneider ATV21HD18N4 Retrofit-Ready VFD for Altivar 21 Control Systems

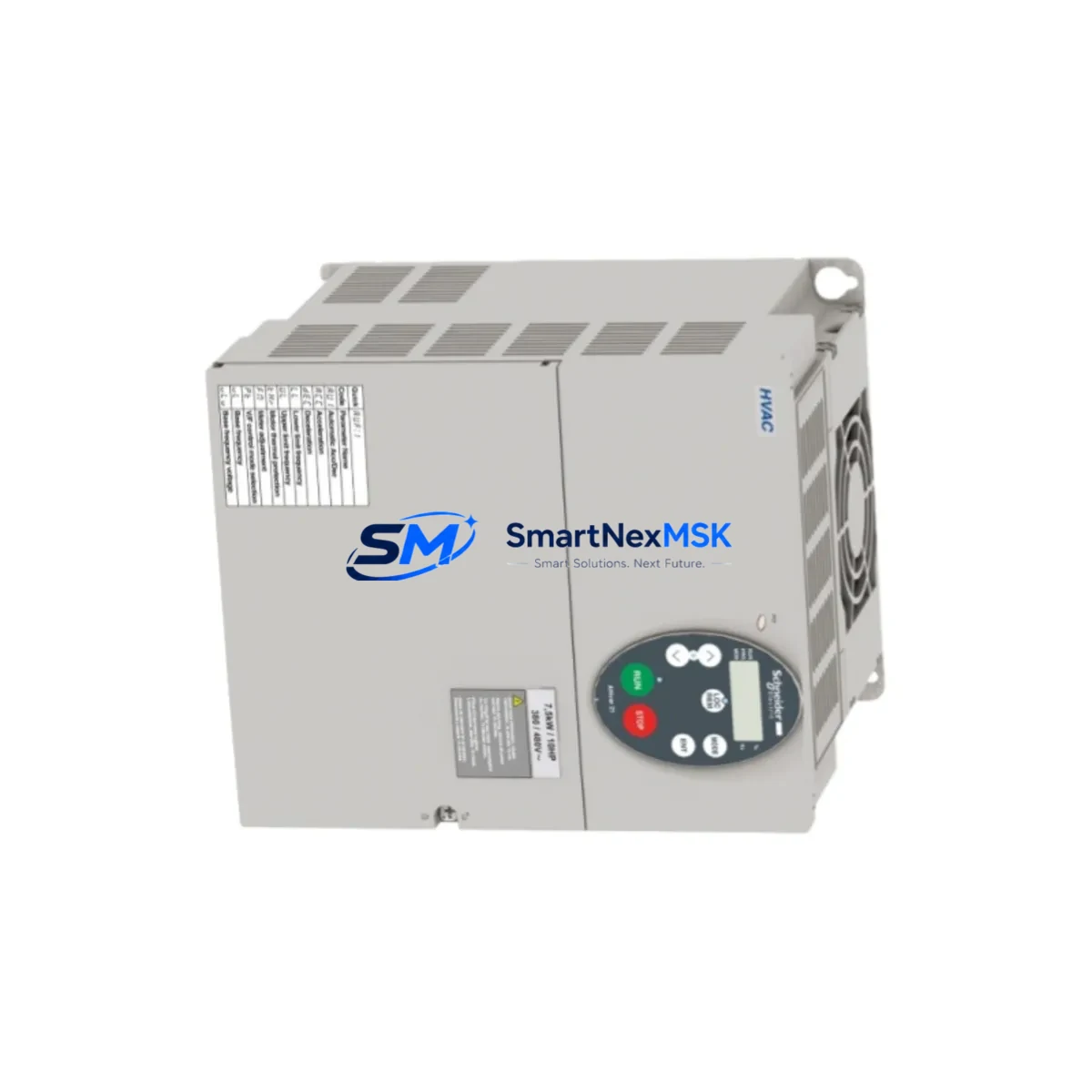

The Schneider Electric ATV21HD18N4 is an 18.5 kW (25 HP), 400 V three-phase variable frequency drive from the Altivar 21 series, engineered for HVAC and pump applications in commercial and light industrial environments. As the Altivar 21 platform approaches end-of-life in many installed bases, the ATV21HD18N4 remains one of the most sought-after retrofit and replacement units for aging control systems that were originally built around this drive family. Whether you are replacing a failed unit on a chiller plant, upgrading a legacy air-handling unit (AHU) control cabinet, or migrating a pump station from an older Telemecanique or early Schneider drive platform, the ATV21HD18N4 provides a verified drop-in upgrade path with minimal re-engineering.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful ATV21HD18N4 retrofit begins well before the drive arrives on site. The first step is a thorough audit of the existing control cabinet. Most Altivar 21 installations share a common cabinet architecture: the drive is mounted on the back panel alongside a 24 V DC power supply module, a set of terminal blocks for field I/O, and in networked installations, a Modbus RTU or BACnet MS/TP communication adapter. Before removing the old drive, engineers should photograph all terminal wiring, record the existing parameter set using Schneider’s SoMove software, and note the drive’s node address and baud rate configuration on the RS-485 network.

Power supply capacity is a critical checkpoint. The ATV21HD18N4 draws up to 44 A on the output side, and the upstream circuit breaker, contactor, and cable sizing must be verified against this rating. In older installations, the 24 V DC auxiliary supply — often shared with the control relay coils and the drive’s own logic board — should be checked for adequate current headroom, particularly if additional I/O expansion modules or a new HMI panel are being added as part of the upgrade.

Terminal block wiring on the ATV21HD18N4 follows the standard Altivar 21 layout, which means that in most cases the existing wiring harness can be transferred directly. However, engineers should pay close attention to the analog input configuration: AI1 and AI2 can be configured for either 0–10 V or 4–20 mA signals, and the jumper or parameter setting must match the field sensor output. Speed reference signals from a building management system (BMS) or a programmable logic controller — such as a Modicon M340 or a Modicon M580 — are typically delivered via the analog input or over Modbus RTU, and both paths must be verified during commissioning.

For sites running a Modbus RTU network, the ATV21HD18N4 integrates directly into the existing RS-485 bus. The drive’s node address, baud rate (typically 19200 bps), and parity settings must be programmed to match the network configuration before the drive is powered up. In installations where a Modbus-to-BACnet gateway — such as a third-party protocol converter — is used to interface the drive with a building automation system, the gateway’s register map should be verified against the ATV21HD18N4 communication object list to ensure that speed reference, run/stop commands, and fault status registers are correctly mapped.

Backplane and rack considerations are less common in Altivar 21 installations than in PLC-based systems, but in integrated motor control centers (MCCs) where the drive shares a chassis with other Schneider components — such as a TeSys D contactor assembly, a Zelio Logic smart relay, or a Magelis HMI panel — the mechanical fit and cable routing should be confirmed before ordering. The ATV21HD18N4’s weight of approximately 11.65 kg must also be accounted for in the cabinet’s structural load calculation.

Where the retrofit scope extends beyond a simple drive swap — for example, when upgrading from a legacy Altivar 28 or Altivar 31 platform to the Altivar 21 architecture — additional engineering steps are required. The motor cable length, shielding requirements, and output filter selection (such as a dV/dt filter or a sine filter) must be reviewed to protect the motor insulation and minimize EMI on the existing cable infrastructure. In these cases, a Schneider Electric VW3A9525 output filter or equivalent may be required.

Downtime Control During System Migration

Minimizing production or facility downtime during an ATV21HD18N4 swap requires a structured pre-commissioning approach. The recommended sequence is: (1) back up the existing drive’s parameter set to a laptop running SoMove or to the keypad memory; (2) de-energize and lock out the cabinet following LOTO procedures; (3) photograph and label all terminal connections before disconnection; (4) install the replacement ATV21HD18N4 and reconnect all terminals in reverse order; (5) restore the saved parameter set to the new drive; (6) perform a no-load power-up test to verify control voltage, display function, and communication link; (7) run the motor at low speed (5–10 Hz) under manual control to confirm rotation direction and analog feedback; (8) return the system to automatic BMS or PLC control and monitor for fault codes during the first operational cycle.

In critical HVAC applications — such as primary chilled water pumps or supply air fans serving occupied spaces — a hot-standby strategy using a pre-configured spare ATV21HD18N4 with the parameter set pre-loaded can reduce the actual switchover time to under 30 minutes. All units supplied by SMARTNEXMSK are pre-tested for basic power-up and communication function before shipment, reducing the risk of commissioning delays caused by transit damage or latent manufacturing defects.

For sites where the original program logic resides in a Modicon M340 or similar PLC and the drive is controlled via Modbus function codes, the PLC program itself does not require modification — only the drive’s internal parameters and network address need to be verified. This preserves the existing ladder logic, HMI screen layouts on any connected Magelis XBTGT or XBTGK panel, and the BMS trend data continuity, which is particularly important for facilities with energy reporting obligations.

Retrofit Support FAQ

Q1: Is the ATV21HD18N4 a direct drop-in replacement for a failed ATV21HD18N4 or an adjacent Altivar 21 model?
Yes. The ATV21HD18N4 is a direct replacement for any unit of the same model number. For adjacent ratings such as the ATV21HD15N4 (15 kW) or ATV21HD22N4 (22 kW), a motor load assessment is required to confirm the replacement drive’s output current rating is adequate. Terminal wiring, mounting dimensions, and communication interfaces are identical across the Altivar 21 N4 range.

Q2: Can I reuse the existing wiring and control terminals from the old drive?
In most cases, yes. The ATV21HD18N4 uses the same terminal block layout as all Altivar 21 series drives. Power terminals (R/L1, S/L2, T/L3, U/V1, V/V2, W/V3) and control terminals (AI1, AI2, AO1, DI1–DI6, DO1, R1A/R1B/R1C) are pin-compatible. Always verify the analog input signal type (voltage vs. current) and the digital input logic (source vs. sink) before energizing.

Q3: How do I transfer parameters from the old drive to the new unit?
Use Schneider Electric’s SoMove software (free download) connected via a VW3A8106 USB-RJ45 programming cable to upload the parameter set from the old drive before removal. The saved .scs file can then be downloaded to the new ATV21HD18N4 in minutes. Alternatively, if the old drive’s keypad is functional, use the keypad’s parameter copy function to store the configuration in keypad memory and restore it to the new unit.

Q4: What does the 12-month warranty cover, and what pre-shipment testing is performed?
All ATV21HD18N4 units supplied by SMARTNEXMSK carry a 12-month warranty covering manufacturing defects in materials and workmanship from the date of shipment. Prior to dispatch, each unit undergoes a functional power-up test to verify display operation, control terminal response, and communication port integrity. Units showing any fault code or abnormal behavior during testing are quarantined and not shipped. Warranty claims are processed via sales@smartnexmsk.com with a fault description and photographic evidence of the installation.
