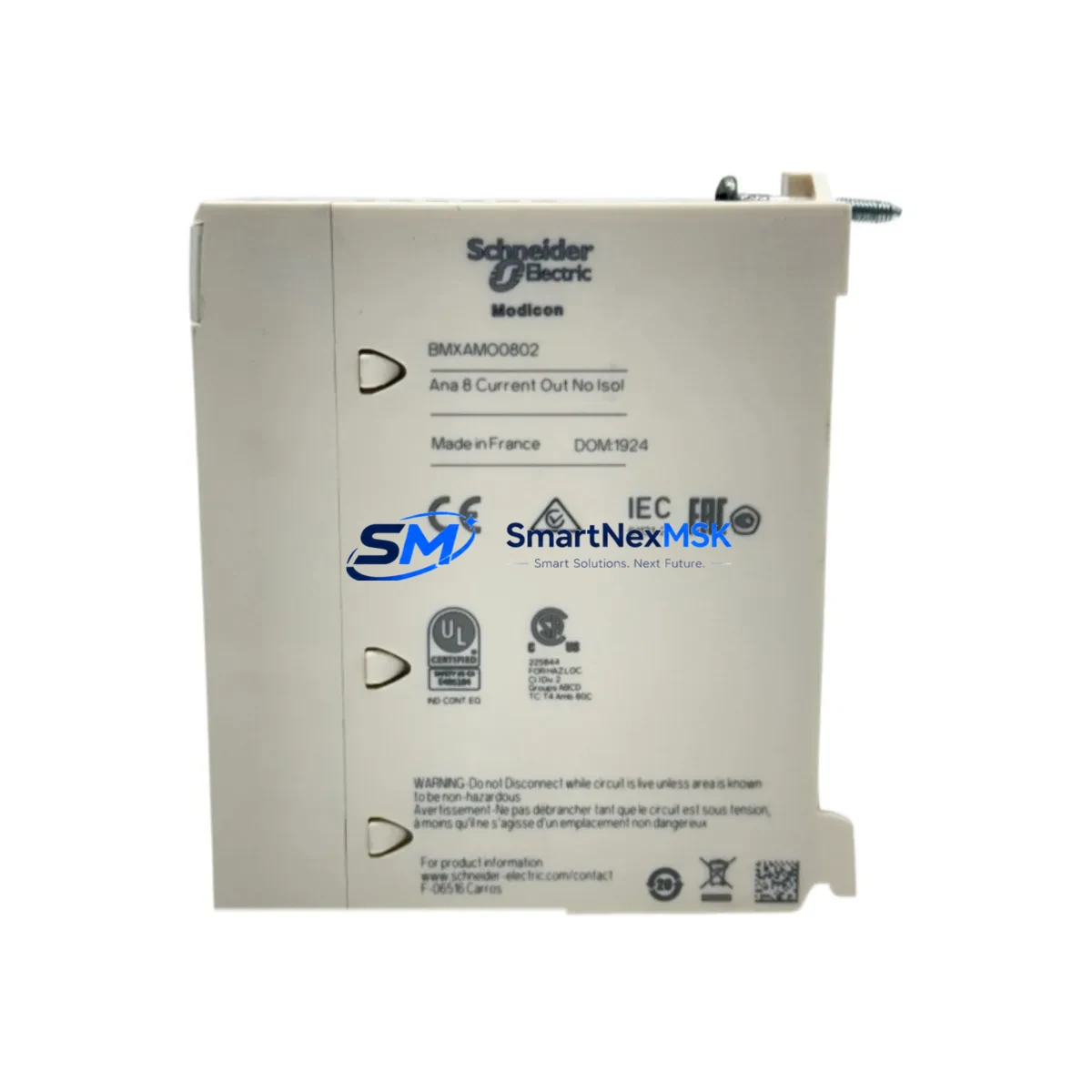

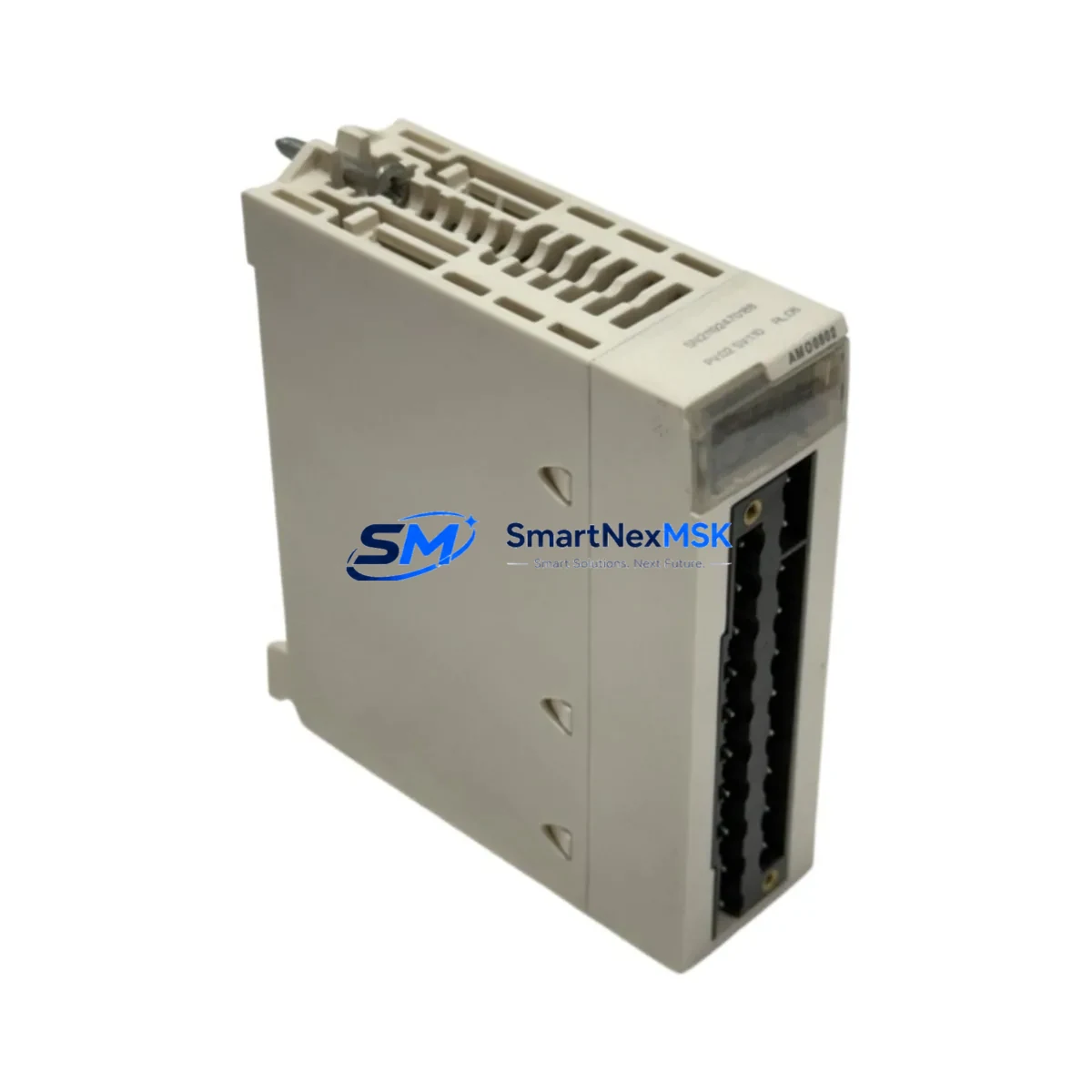

Schneider BMXAMO0802 Retrofit-Ready Analog Output Module

Schneider BMXAMO0802 Retrofit-Ready Analog Output Module for Modicon M340 Control Systems

The Schneider Electric BMXAMO0802 is an 8-channel analog output module engineered for the Modicon M340 automation platform. Designed to deliver precise 0–10 V and 4–20 mA output signals across eight independently configurable channels, this module is the preferred drop-in replacement for aging or discontinued analog output hardware in legacy M340 control cabinets. Whether you are executing a planned system upgrade, recovering from an unplanned module failure, or modernizing a production line that has been running on end-of-life components, the BMXAMO0802 provides a verified, field-tested migration path with minimal engineering overhead.

Industrial facilities operating Modicon M340 PLCs frequently encounter the challenge of sourcing compatible analog output modules as original hardware reaches end-of-life. The BMXAMO0802 slots directly into the BMX backplane rack, occupying a standard X-Bus slot without requiring mechanical modification to the control cabinet. Power draw is sourced from the backplane bus, so existing BMX CPS power supply modules — such as the BMXCPS2000 or BMXCPS3500 — do not require upsizing in most standard configurations. Engineers should verify total rack power budget before installation, particularly in high-density racks where multiple I/O modules share a single power supply.

Terminal wiring follows the standard M340 analog output pinout. Field wiring connected to the original module can typically be re-terminated to the BMXAMO0802 connector block without rewiring the field side, provided the original installation used the standard Schneider terminal block format. Confirm channel-to-terminal mapping against the original wiring diagram before energizing the replacement module, as channel numbering conventions may differ between firmware revisions.

Module addressing is configured through Unity Pro or EcoStruxure Control Expert software. The BMXAMO0802 is recognized automatically by the M340 CPU — including the BMXP342020, BMXP342030, and BMXP3420302 processor modules — upon rack scan. No manual address switch setting is required. The existing application program referencing the original analog output module’s I/O addresses will remain valid without modification, provided the replacement module occupies the same rack slot position. This is a critical advantage during emergency replacement scenarios where minimizing downtime is the primary objective.

For facilities migrating from older BMX analog output variants or from third-party analog output modules previously installed in M340 racks, a full I/O mapping review is recommended. The BMXAMO0802 supports both voltage and current output modes, selectable per channel via software configuration in Control Expert. If the legacy module used hardware jumpers for mode selection, the migration to software-defined channel configuration should be documented and verified against the HMI screen tag database to ensure process variable displays remain accurate after cutover.

Communication integrity between the BMXAMO0802 and upstream SCADA or DCS systems depends on the M340 CPU’s Ethernet or serial communication modules. Systems using the BMXNOE0100 or BMXNOE0110 Ethernet communication modules for Modbus TCP or EtherNet/IP connectivity are unaffected by the analog output module replacement, as the communication path is independent of the I/O module layer. However, if the control system includes a BMXEIA0100 serial link module for legacy Modbus RTU communication to field instruments, verify that the communication schedule and polling intervals remain within tolerance after the module swap.

I/O expansion configurations using BMXDDI or BMXDDO discrete I/O modules installed in adjacent rack slots should be inspected for any shared grounding or shielding arrangements that may have been field-modified over the system’s operational life. Proper analog signal shielding termination at the BMXAMO0802 connector is essential for maintaining signal quality, particularly in environments with high electromagnetic interference from variable frequency drives or large motor starters.

HMI screens built on Magelis or SCADA platforms referencing analog output setpoint tags should be validated after module replacement. Tag addresses bound to the original module’s I/O map will continue to function correctly if the replacement module occupies the same slot, but a functional test of each HMI faceplate controlling an analog output channel is recommended as part of the commissioning checklist. This is especially important for PID loop output channels where incorrect scaling or offset could result in process upsets during the first production run after restart.

All BMXAMO0802 units supplied by SMARTNEXMSK are sourced from verified supply channels, functionally tested prior to shipment, and covered by a 12-month warranty against manufacturing defects and operational failure. Units are shipped with original packaging where available, and each shipment includes a test report confirming channel-level output verification across the full 0–10 V and 4–20 mA output ranges.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful BMXAMO0802 retrofit begins with a thorough audit of the existing control cabinet. Start by documenting the current rack layout, noting the slot positions of all installed modules including the BMXP342020 or BMXP342030 CPU, any BMXCPS power supply modules, BMXDDI and BMXDDO discrete I/O modules, and any BMXNOE Ethernet communication modules. Photograph the existing terminal wiring before disconnection. Confirm that the BMX backplane rack has no physical damage to the X-Bus connector in the target slot.

For systems that include a BMXFTB2800 or similar terminal block assembly connected to the analog output module, verify that the terminal block is compatible with the BMXAMO0802 connector format. In some legacy installations, field engineers may have used non-standard terminal adaptors that require replacement during the retrofit. Sourcing a matched BMXFTB terminal block in advance will prevent delays during the physical installation phase.

If the control system includes a BMXNOM0200 or BMXNOM0200H serial communication module for legacy device integration, confirm that the analog output module replacement does not affect the rack’s communication slot assignments. Serial communication modules occupy dedicated slots in some M340 rack configurations, and slot renumbering after a module swap can cause address conflicts in the application program if not managed carefully in Control Expert.

For facilities running parallel control architectures with redundant M340 CPUs or hot-standby configurations, the BMXAMO0802 replacement should be planned during a scheduled maintenance window. Coordinate with the process control team to ensure that the analog output channels being replaced are placed in manual mode at the DCS or SCADA level before the module is removed, preventing uncontrolled process variable changes during the swap interval.

Downtime Control During System Migration

Minimizing production downtime during an analog output module replacement requires a structured pre-outage preparation protocol. Before the maintenance window opens, export the full application program from the M340 CPU using EcoStruxure Control Expert and store a timestamped backup on a secure engineering workstation. Verify that the backup file opens correctly and that all I/O configuration data, including the analog output channel scaling parameters and PID tuning values, is intact.

During the physical swap, power down the rack using the correct sequence: disable field power to analog output loads first, then remove rack power via the BMXCPS power supply module. Insert the BMXAMO0802 into the vacated slot, reconnect the terminal block, and restore rack power. The M340 CPU will perform an automatic rack scan and recognize the new module within seconds of power restoration. If the CPU enters a configuration mismatch fault state, use Control Expert to perform a configuration download that includes the updated rack topology.

After power restoration, perform a channel-by-channel output verification test before returning the system to automatic control mode. Command each of the eight analog output channels to a known setpoint from the Control Expert animation table and verify the corresponding field signal at the terminal block using a calibrated process meter. This step confirms that wiring continuity and channel scaling are correct before the process is handed back to automatic control. Total verified swap time for a single BMXAMO0802 module in a prepared environment is typically under 45 minutes, including functional testing.

Original program logic, PID function blocks, and HMI tag bindings are preserved throughout this process because the replacement module occupies the same rack slot and presents an identical I/O address map to the CPU. No program modification is required in standard same-slot replacement scenarios, which is the primary factor in achieving rapid, low-risk system restoration.

Retrofit Support FAQ

Q: Is the BMXAMO0802 a direct drop-in replacement for the module currently installed in my M340 rack?
A: Yes, provided the replacement module is installed in the same rack slot as the original. The BMXAMO0802 presents an identical I/O address map to the M340 CPU, so no application program changes are required. Verify that the terminal block connector format matches before installation.

Q: Do I need to modify my Unity Pro or Control Expert application program after installing the BMXAMO0802?
A: In a same-slot replacement scenario, no program modification is required. The CPU recognizes the module automatically during rack scan. If the module is installed in a different slot, I/O address references in the application program must be updated accordingly in Control Expert.

Q: What pre-shipment testing is performed on each BMXAMO0802 unit?
A: Each unit undergoes channel-level functional testing across the full 0–10 V and 4–20 mA output ranges prior to shipment. A test report is included with each unit. All units are covered by a 12-month warranty from the shipment date.

Q: Can the BMXAMO0802 be used in M340 racks with mixed discrete and analog I/O modules?
A: Yes. The BMXAMO0802 is fully compatible with mixed-module M340 racks containing BMXDDI discrete input, BMXDDO discrete output, BMXAMI analog input, and communication modules. Verify total rack power consumption against the installed BMXCPS power supply rating before adding modules to a high-density rack.
