Schneider Electric 170ADI35000 Spare for Momentum Automation: Spare Replacement & Industrial Downtime Risk Control

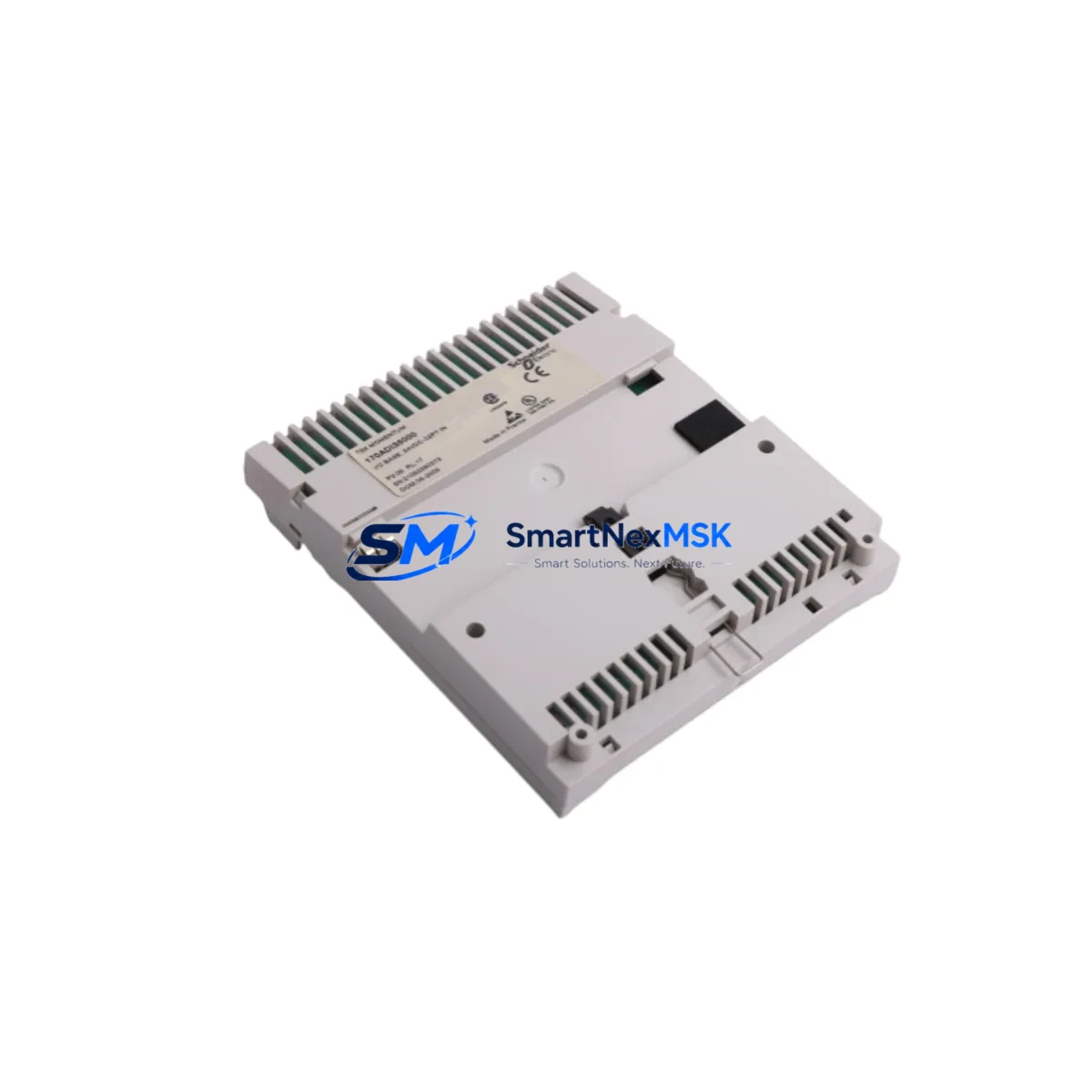

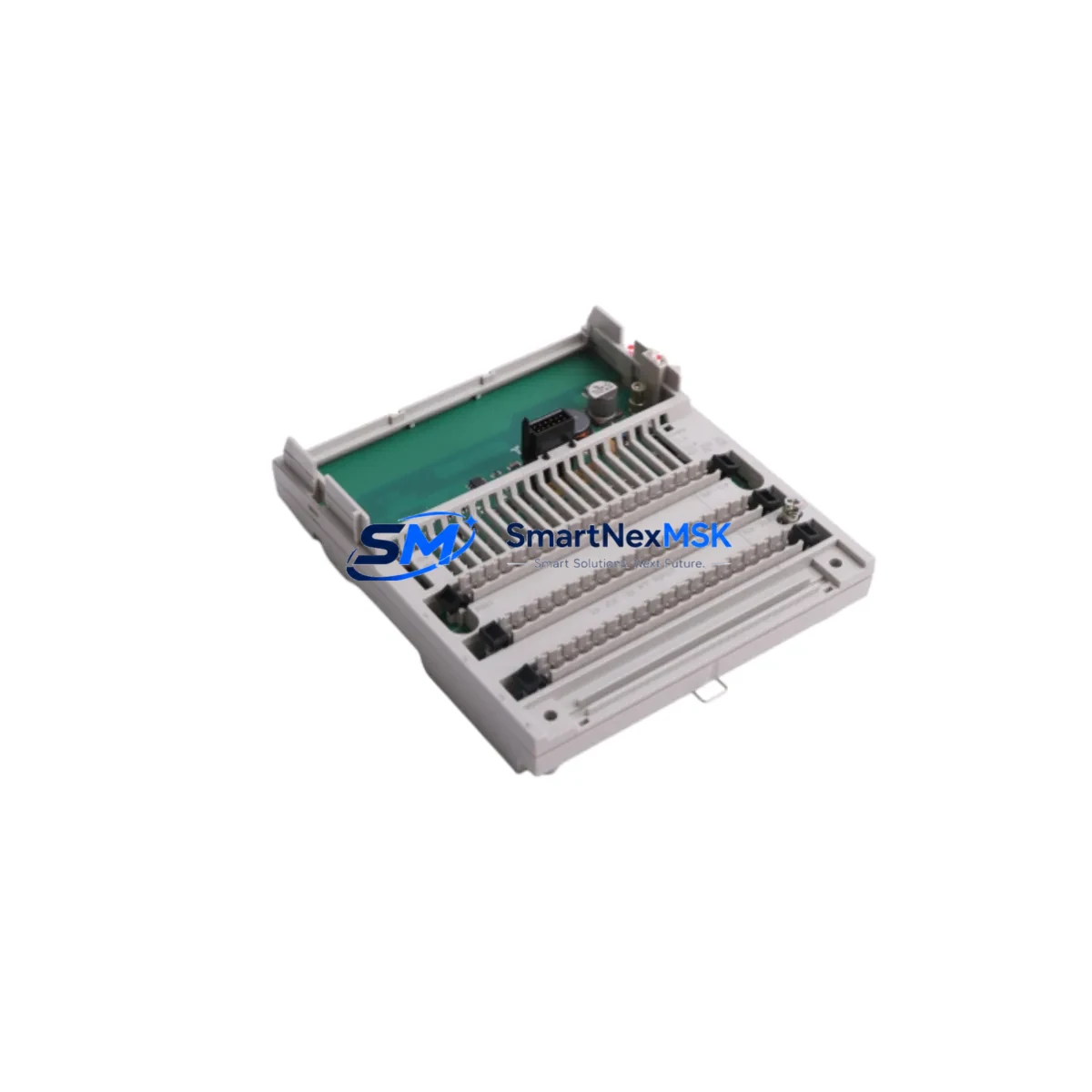

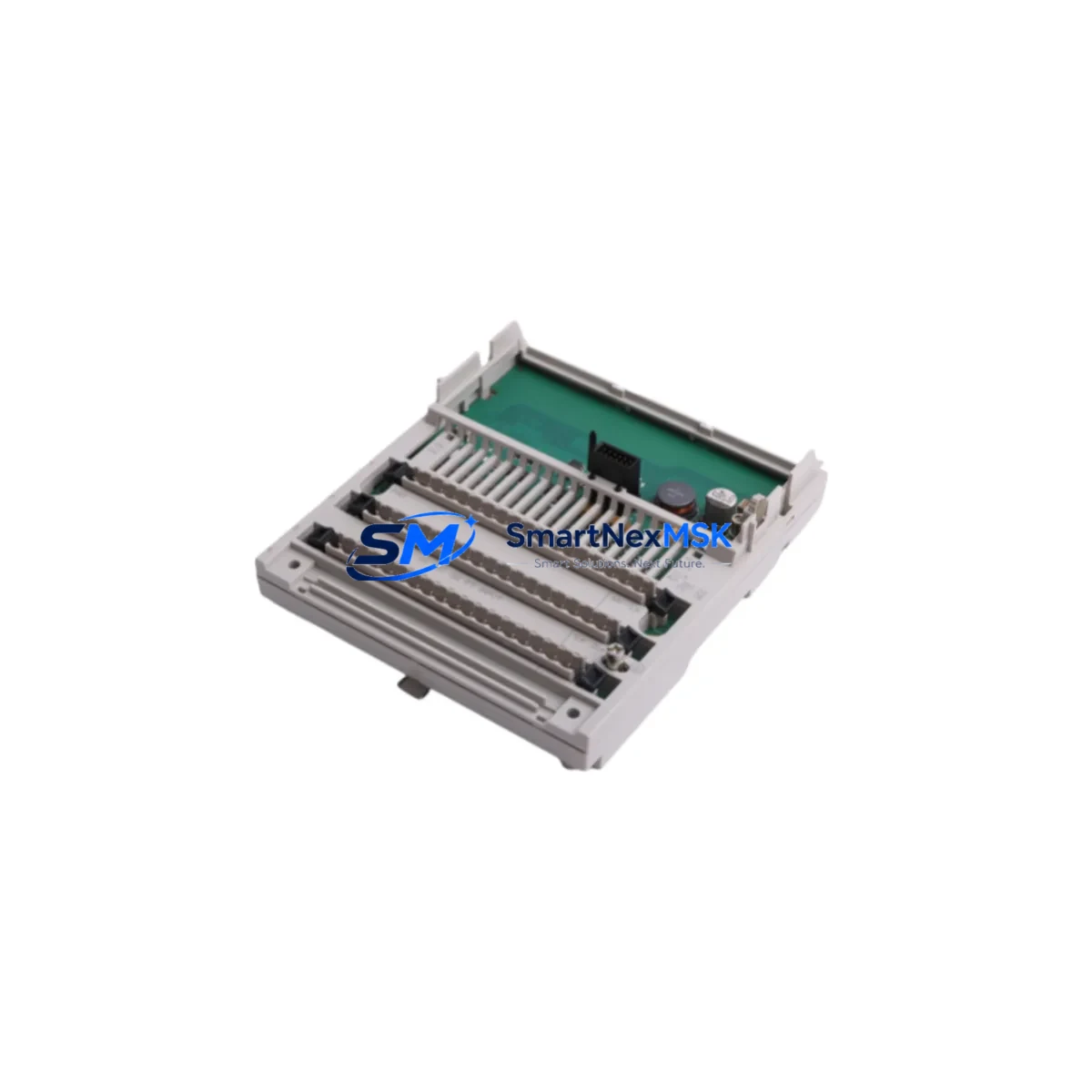

The Schneider Electric 170ADI35000 is a 32-point 24VDC discrete input module designed for the Modicon Momentum distributed I/O platform. As a maintenance-ready original spare, it supports rapid field replacement in manufacturing lines, process control panels, and legacy automation systems where unplanned downtime carries significant operational cost. Whether you are executing a planned shutdown inspection, responding to a fault alarm, or building a strategic spare parts inventory, the 170ADI35000 delivers verified compatibility and reliable signal acquisition for 24VDC field devices including proximity sensors, limit switches, and pushbutton stations.

Each unit is sourced from authorized supply channels, individually tested prior to shipment, and backed by a 12-month warranty. Fast dispatch and long-term stock availability make this module a dependable choice for maintenance engineers and procurement teams managing Momentum-based control architectures.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 170ADI35000 in a Modicon Momentum system, a thorough site inspection extends beyond the module itself. Maintenance engineers should treat this replacement as an opportunity to audit the surrounding control architecture and prevent secondary failures.

Begin by verifying the Momentum adapter module — such as the 170ANR12090 (Ethernet TCP/IP adapter) or 170ANR23090 (Modbus Plus adapter) — for firmware currency and connector integrity. A degraded adapter can cause intermittent communication faults that mimic I/O module failures. Inspect the 24VDC power supply module feeding the Momentum base; voltage sag or ripple above specification will cause false input reads on the 170ADI35000 and should be measured under load before the new module is commissioned.

Check all field wiring terminals and terminal blocks connected to the 32 input channels. Loose or corroded terminations on the I/O connector are a common root cause of intermittent discrete input faults. If the panel uses Phoenix Contact or Weidmüller terminal strips, inspect for discoloration or thermal stress marks indicating overload events.

Review the status of any signal isolators or signal conditioners in the input loop, particularly where field devices operate in high-noise environments such as variable frequency drive (VFD) enclosures. Replacing the input module without addressing upstream signal quality issues will result in repeat failures. Similarly, inspect surge protection devices (SPDs) on the 24VDC input lines — these are consumable components that degrade silently after transient events.

If the Momentum system communicates via Modbus Plus, verify the network cable continuity and termination resistors. A failing 170MCI01600 Modbus Plus communication module or degraded coaxial tap can cause the entire I/O drop to go offline, which may be misdiagnosed as an input module fault. For Ethernet-connected Momentum drops, check the 170ENT11001 Ethernet adapter’s link status and IP configuration.

Where the 170ADI35000 interfaces with relay output modules such as the 170ADO35000 or 170ADO54050 in the same control cabinet, inspect relay contact wear and coil resistance. Relay chatter caused by marginal coil voltage can generate spurious input signals that stress the discrete input module. Finally, confirm that the Modicon Momentum backplane connector pins are clean and free of oxidation before seating the replacement module.

Building a minimum viable spare kit around the 170ADI35000 for a Momentum-based panel should include at least one spare adapter module, a replacement 24VDC power supply, a set of I/O connector plugs, and a spare 170ADO35000 discrete output module to cover the most common field-replaceable components in a single maintenance event.

Site Replacement Workflow

Step 1 — Isolate and document: Before removing the 170ADI35000, record the current I/O map and channel assignments from the PLC program or I/O configuration file. Photograph the wiring connector orientation. Power down the 24VDC field supply to the module’s input channels — the Momentum backplane may remain energized if the adapter supports hot-swap, but confirm this in the system documentation before proceeding.

Step 2 — Remove and inspect: Disconnect the 40-pin I/O connector from the module face. Slide the 170ADI35000 out of the adapter base. Inspect the adapter connector pins for damage or contamination. If the adapter shows signs of wear or the locking mechanism is degraded, replace the adapter simultaneously to avoid a repeat service call.

Step 3 — Install replacement: Seat the new 170ADI35000 firmly into the adapter base until the locking tabs engage. Reconnect the I/O wiring connector, verifying pin alignment against the documented channel map. Restore 24VDC field power.

Step 4 — Verify and commission: From the PLC programming terminal or HMI, force each input channel and confirm correct state reporting. Check the adapter’s diagnostic LEDs for normal run status. Log the replacement in the maintenance record with the new module’s serial number and installation date.

Step 5 — Update spare inventory: Reorder a replacement 170ADI35000 to restore the spare parts buffer. For sites with multiple Momentum drops, maintaining a minimum of two spare input modules and one spare adapter per system reduces mean time to repair (MTTR) to under two hours for most fault scenarios.

This workflow applies equally to planned maintenance windows and emergency breakdown recovery, and is compatible with both legacy Modicon Momentum installations and hybrid architectures where Momentum I/O drops are integrated with newer Modicon M340 or M580 controllers via Ethernet I/O scanning.

Spare Parts Support FAQ

Q1: Is the 170ADI35000 still available as a new original part, or only as tested surplus?
We supply both new original and tested surplus units depending on current stock. All units — regardless of condition classification — undergo functional verification before shipment. The 12-month warranty applies to both categories. Contact us with your required quantity and lead time, and we will confirm availability and condition at the time of order.

Q2: How do I confirm compatibility between the 170ADI35000 and my existing Momentum adapter?
The 170ADI35000 is mechanically and electrically compatible with all standard Modicon Momentum adapter modules in the 170ANR, 170ENT, 170FNT, and 170PNT families. Compatibility is determined by the adapter’s I/O bus interface, not by the communication protocol. If you are unsure of your adapter model, provide the full part number from the adapter label and we will confirm compatibility before shipment.

Q3: What pre-shipment testing is performed on each unit?
Each 170ADI35000 is tested for power-on initialization, backplane communication handshake, and per-channel input signal response using a Momentum adapter test fixture. Units that fail any stage of testing are quarantined and not shipped. A test report is available upon request for critical spare applications.

Q4: What is the recommended spare parts strategy for a site with 10 or more Momentum I/O drops?
For sites with 10 or more Momentum drops, we recommend maintaining a minimum of 2 spare 170ADI35000 input modules, 1 spare discrete output module, and 1 spare adapter module per communication type in use. For sites with legacy Modbus Plus infrastructure, an additional spare 170MCI01600 communication module is advisable given the age of the platform and the difficulty of sourcing replacements under emergency conditions. We offer volume pricing and consignment stock arrangements for large installed bases — contact our sales team to discuss a site-specific spare parts program.
