Schneider Electric LC1D12BDC Spare for TeSys D Automation

Schneider Electric LC1D12BDC Maintenance-Ready Spare for TeSys D Automation

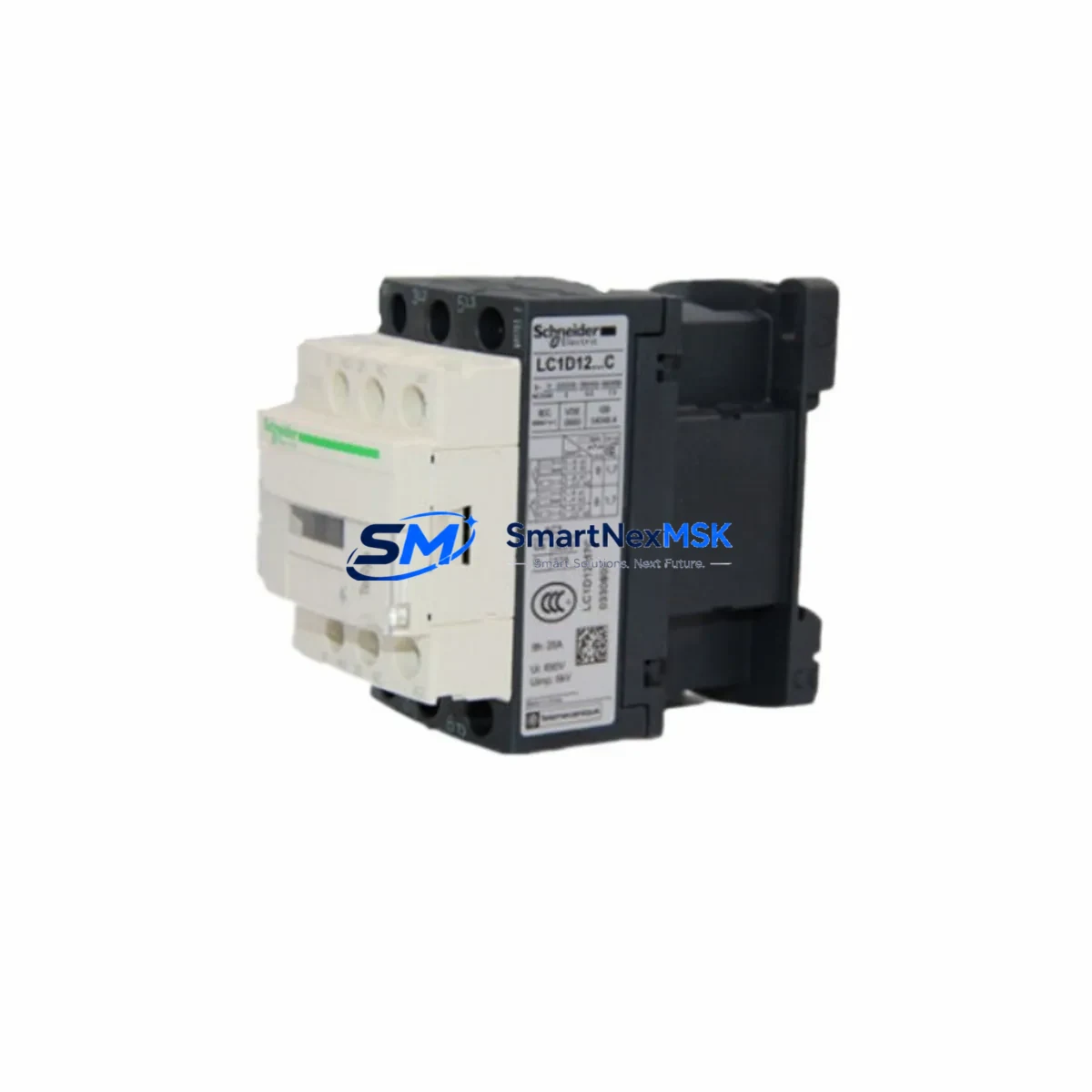

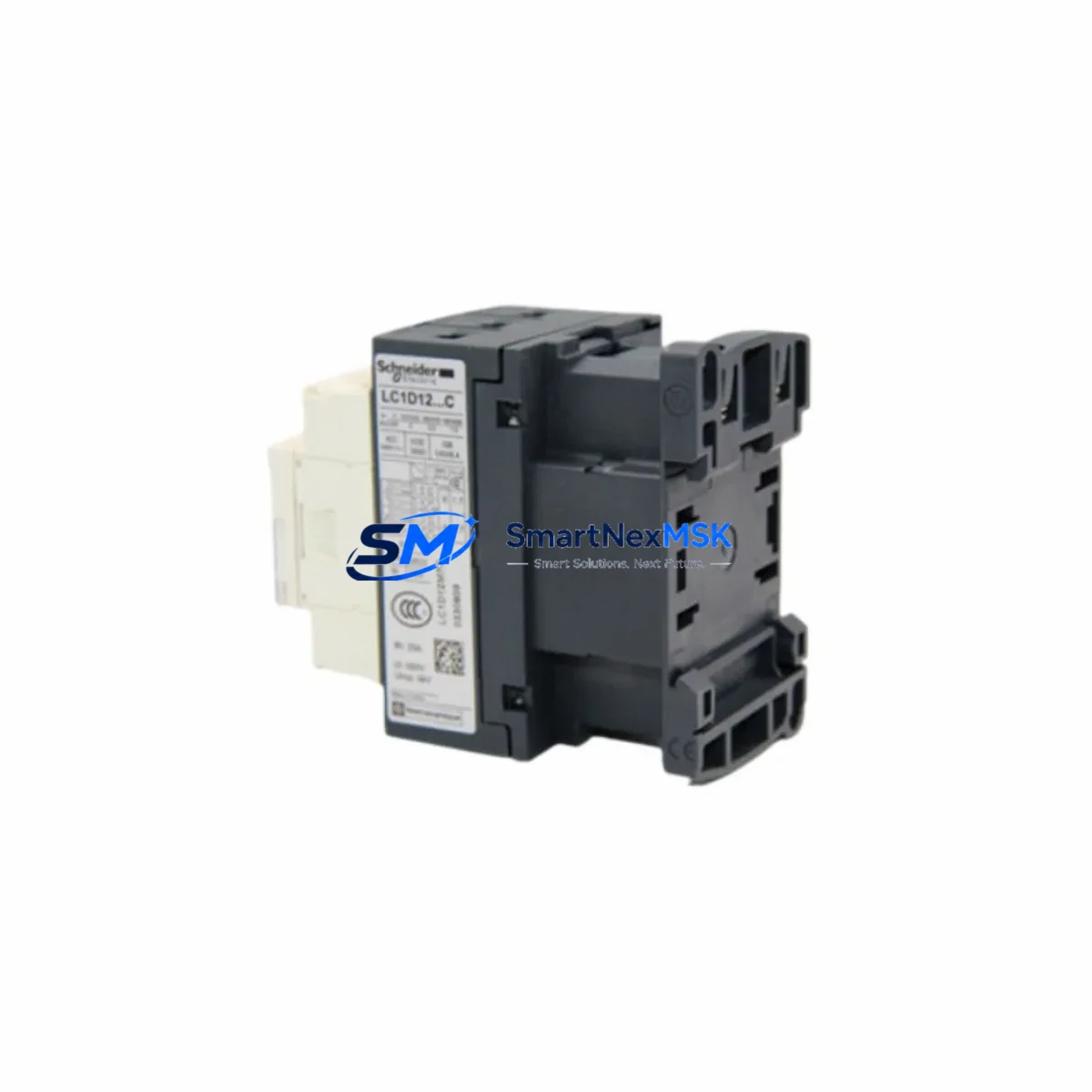

The Schneider Electric LC1D12BDC is a 24VDC replacement coil designed for the TeSys D series contactor platform — one of the most widely deployed motor control components in industrial automation worldwide. Rated at 12A AC-3 and engineered for continuous-duty motor switching applications, this coil is a critical maintenance spare for any facility running Schneider Electric motor control centers (MCCs), control panels, or distributed automation cabinets.

For maintenance engineers managing aging TeSys D installations, coil failure is one of the most common causes of unplanned motor circuit downtime. A failed LC1D12BDC coil typically presents as a contactor that fails to energize, chatters under load, or trips the associated protection relay without a clear fault. Keeping a verified original spare on the shelf eliminates the diagnostic delay and allows same-shift restoration of the affected circuit.

This unit ships fully tested, individually packaged, and covered by a 12-month warranty from date of dispatch. Each unit undergoes coil resistance verification and insulation integrity checks prior to shipment to ensure field-ready condition.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a LC1D12BDC coil fails in service, the root cause is rarely isolated to the coil alone. A thorough maintenance response requires inspecting the full motor control circuit to prevent repeat failures and ensure system integrity before returning the circuit to service.

Start with the 24VDC control power supply feeding the coil circuit — voltage ripple, undersized PSU capacity, or loose terminal connections on the DC bus are frequent contributors to premature coil burnout. Verify the supply voltage is stable under load using a calibrated multimeter before installing the replacement coil.

Inspect the LC1D12 contactor body itself for arc erosion on the main contacts and worn auxiliary contact blocks. If the contactor has been in service for more than five years or has accumulated high switching cycles, replacing the full contactor assembly — rather than the coil alone — is the more cost-effective long-term decision. The LC1D12BDC complete contactor is the natural companion spare to stock alongside the replacement coil.

Check the associated LRD thermal overload relay (typically LRD14 or LRD16 for 12A applications) for correct trip class setting and reset condition. A nuisance-tripped overload that was reset without investigation may indicate a motor winding issue that will re-stress the new coil immediately upon restart.

For panels using GV2 or GV3 series motor circuit breakers upstream of the contactor, verify the magnetic trip threshold is correctly set for the motor FLA. An incorrectly set breaker can allow fault currents that damage the coil before the protection operates.

Review the control wiring terminal block connections at the coil terminals A1 and A2. Loose ferrules, corroded terminals, or undersized wire cross-sections are a common source of intermittent coil energization and accelerated coil wear. Re-terminate with correctly sized bootlace ferrules and torque to the manufacturer’s specification.

If the panel includes a Zelio Logic smart relay or Modicon M221/M241 PLC providing the coil drive signal via a digital output, verify the DO module output current capacity is sufficient to drive the coil inrush. Some older DO cards with degraded output transistors may fail to provide adequate pull-in current, causing the contactor to chatter rather than seat cleanly.

For systems with XPSAF or Preventa safety relay modules in the control circuit, confirm the safety relay output contacts are within their rated switching life and that the feedback loop monitoring the LC1D contactor auxiliary contacts is functioning correctly. A worn safety relay output can cause erratic contactor behavior that mimics a coil fault.

Finally, inspect the Acti9 or Multi9 miniature circuit breakers protecting the 24VDC control circuit for correct rating and trip-free condition. An undersized MCB in the control supply can cause voltage dips during coil energization that result in contactor chatter and accelerated coil degradation.

Site Replacement Workflow

Step 1 — Isolation and lockout: De-energize the motor circuit at the upstream MCC or distribution board. Apply LOTO (Lockout/Tagout) to the isolator. Verify absence of voltage on the main contactor terminals using an approved voltage tester.

Step 2 — Control circuit isolation: Isolate the 24VDC control supply to the coil circuit. Photograph or sketch the existing control wiring at terminals A1 and A2 before disconnection.

Step 3 — Coil removal: On TeSys D frames, the coil module is retained by a snap-fit latch. Press the latch tab and slide the coil module downward to release. No tools are required for standard coil replacement on LC1D09–LC1D18 frames.

Step 4 — Inspection: With the coil removed, inspect the contactor body for contact wear, arc deposits, and mechanical damage. Clean the contact chamber with dry compressed air if contamination is present.

Step 5 — Installation: Align the LC1D12BDC replacement coil with the frame guide rails and press firmly until the snap-fit latch engages. Reconnect control wiring to A1 and A2, torquing terminals to 1.2 Nm.

Step 6 — Functional test: Restore control power and apply a test energization signal. Confirm the contactor closes cleanly without chatter and that all auxiliary contacts switch correctly. Restore main power and verify motor operation under load.

This workflow supports rapid same-shift restoration, minimizing production downtime while maintaining full compliance with IEC 60947-4-1 maintenance requirements.

Spare Parts Support FAQ

Q1: Is the LC1D12BDC a direct drop-in replacement for the original coil in my TeSys D contactor?
Yes. The LC1D12BDC is the OEM-specified 24VDC coil for TeSys D frame contactors rated 9A–18A (LC1D09, LC1D12, LC1D18). It is a tool-free snap-fit replacement that requires no modification to the contactor body or control wiring, provided the existing control circuit is rated for 24VDC DC coil operation.

Q2: How do you verify compatibility before shipment?
Each unit is cross-referenced against the Schneider Electric TeSys D compatibility matrix prior to dispatch. Coil resistance and insulation resistance are verified on a calibrated test bench. The part number, date code, and test result are recorded on the packing slip accompanying each shipment.

Q3: What does the 12-month warranty cover, and how is a warranty claim handled?
The 12-month warranty covers manufacturing defects and premature failure under normal operating conditions within the rated electrical and environmental parameters. To initiate a warranty claim, contact our technical support team with the order reference, installation date, and a brief description of the failure mode. Replacement units are dispatched within 3 business days of claim approval, with no requirement to return the failed unit for claims under standard value thresholds.

Q4: Can you supply LC1D12BDC in quantity for a planned maintenance shutdown or annual spare parts budget?
Yes. We maintain standing stock of LC1D12BDC and related TeSys D spare components to support planned shutdown procurement and annual MRO budgets. Volume pricing is available for orders of 5 units or more. Contact our sales team with your required quantity and delivery schedule for a formal quotation with lead time confirmation.
