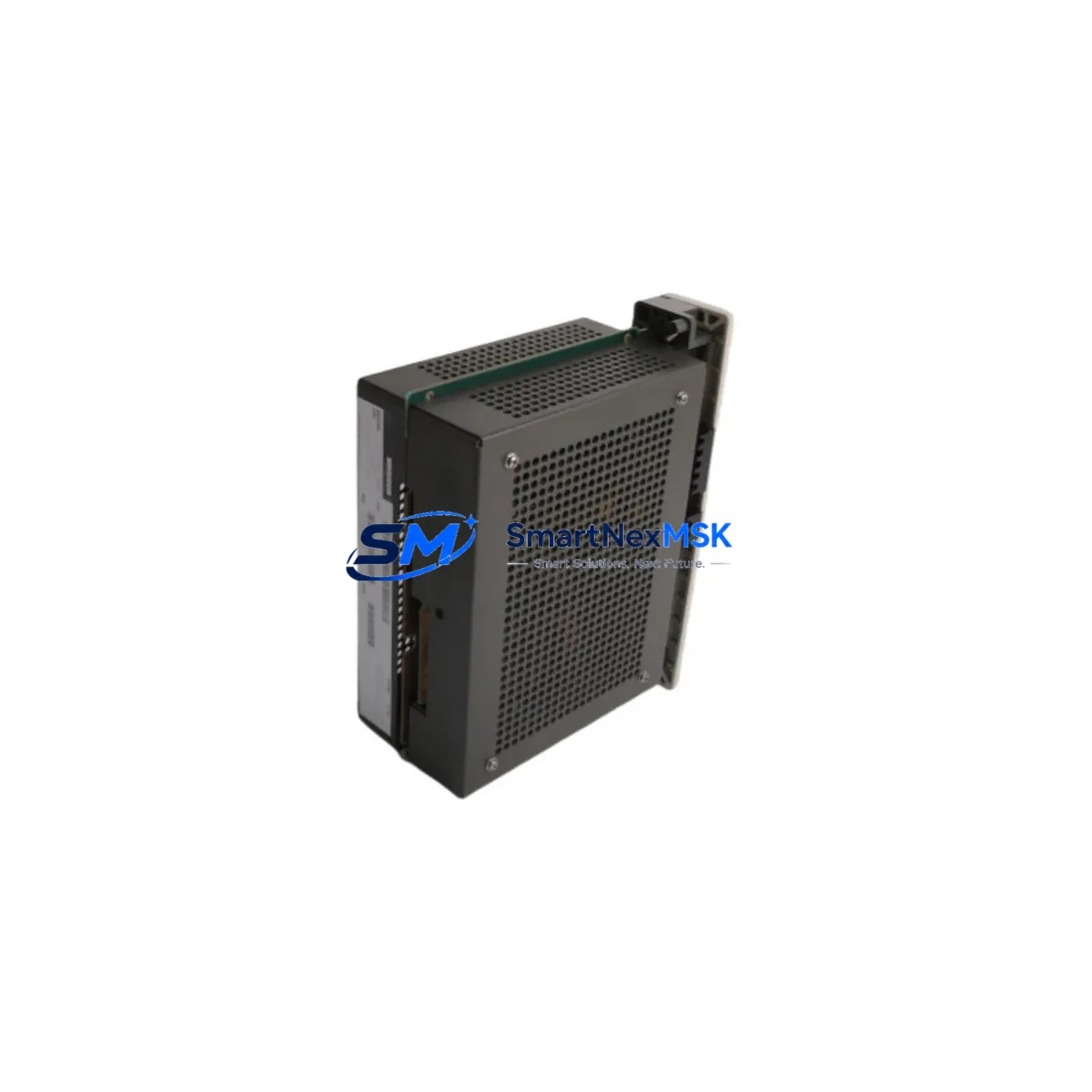

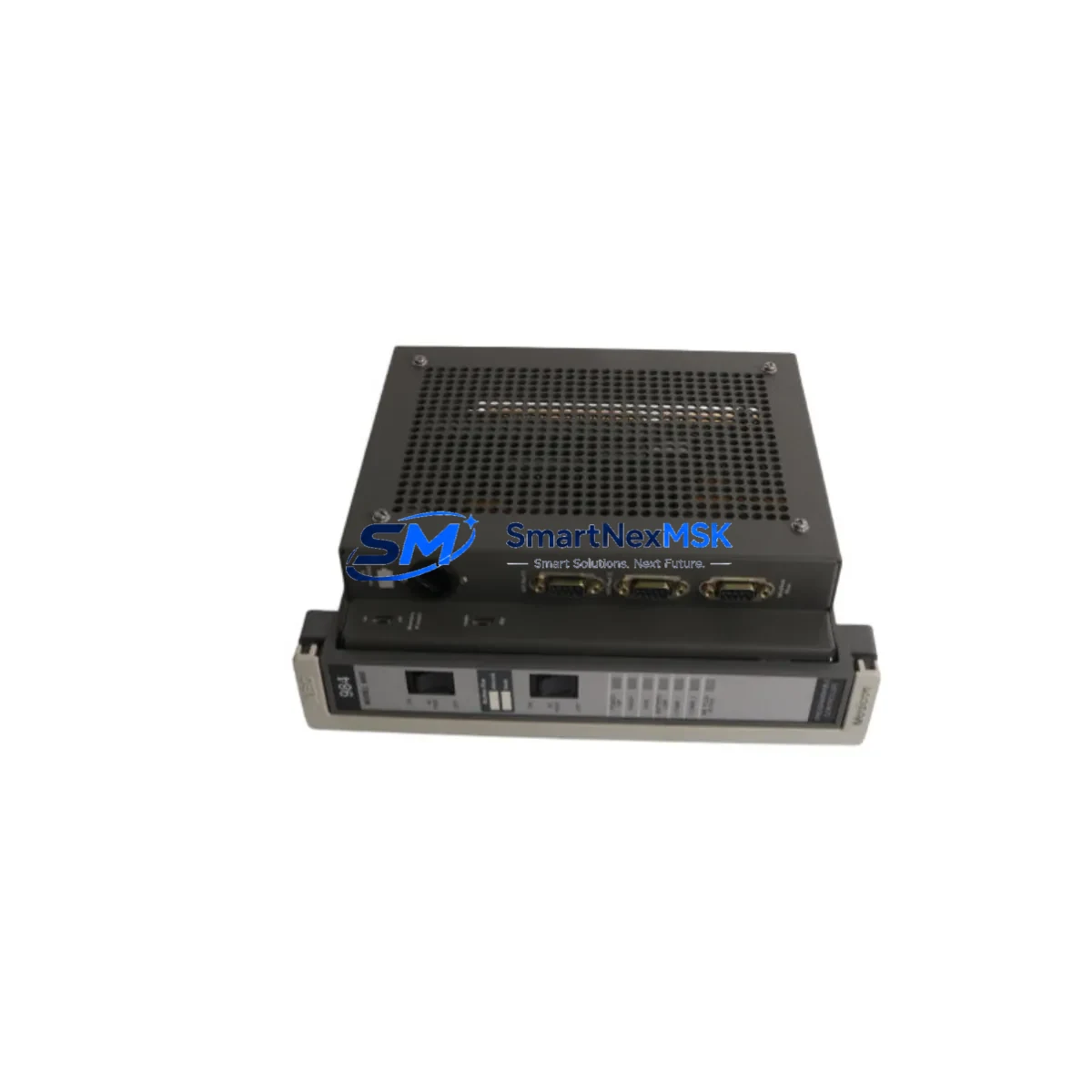

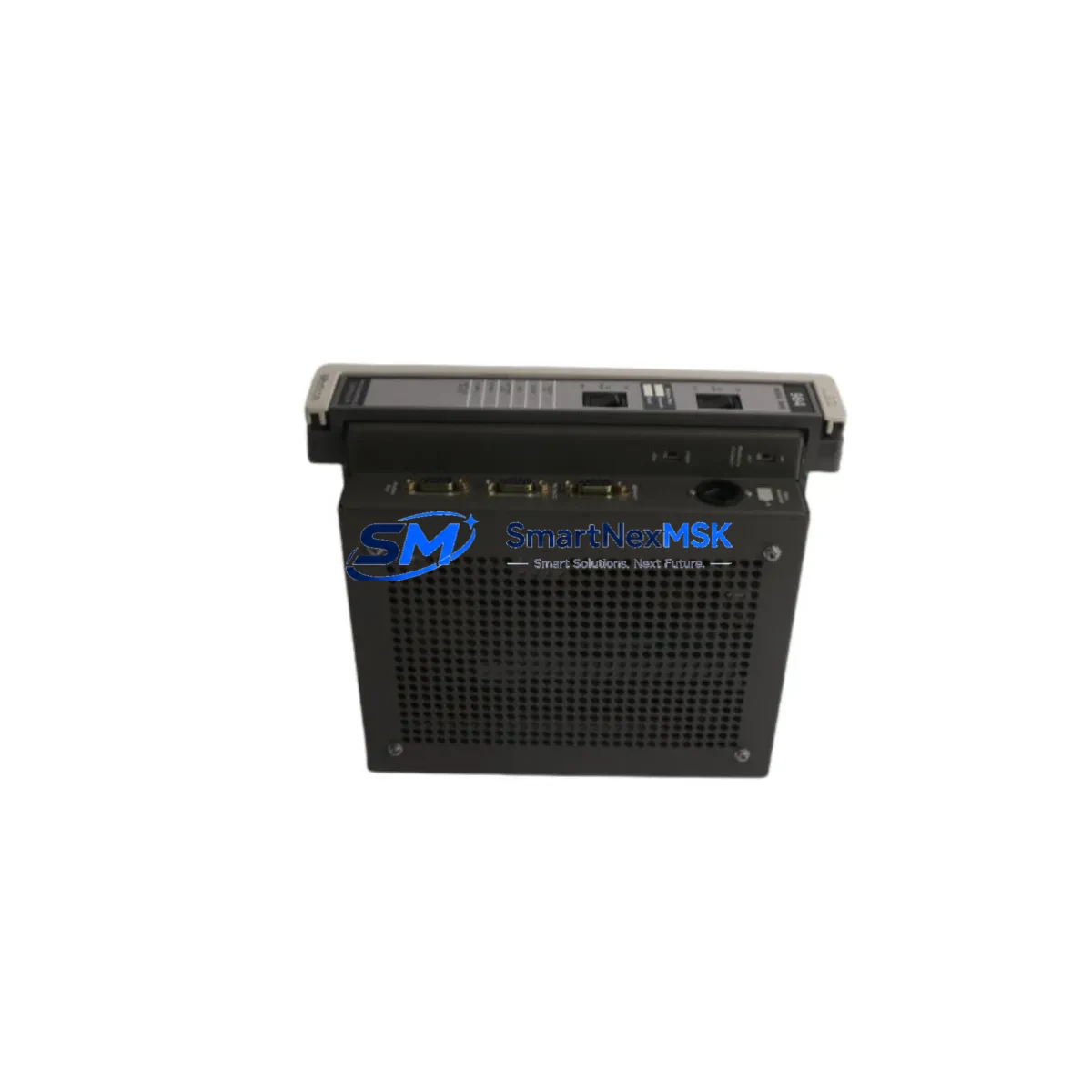

The Schneider Electric PC-E984-685 is an original CPU module designed for the MODICON 984 series programmable logic controller platform — one of the most widely deployed legacy automation architectures in process manufacturing, utilities, and heavy industry. When this module fails or degrades, the consequences extend far beyond a single cabinet: entire production lines, pump stations, or batch processes can halt within minutes. Sourcing a verified, tested replacement is the fastest path to restoring normal operation and protecting your maintenance KPIs.

At SMARTNEXMSK, every PC-E984-685 unit is inspected, function-tested, and shipped with a 12-month warranty. Our inventory is maintained specifically to support maintenance engineers and procurement teams managing aging MODICON 984 installations where OEM lead times are no longer viable. Whether you are executing a planned overhaul, responding to an unscheduled fault, or building a strategic spare parts buffer, this module ships ready for immediate installation.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the PC-E984-685 CPU is rarely an isolated task. Experienced maintenance engineers know that a CPU fault often signals stress across adjacent components in the same control cabinet. Before returning the system to service, a thorough inspection of the surrounding hardware is essential to prevent repeat failures and unplanned downtime.

Begin with the MODICON 984 power supply module — CPU instability is frequently caused by voltage ripple or insufficient current capacity from an aging PSU rather than a true CPU failure. Verify output voltages under load before commissioning the replacement CPU. Next, inspect the backplane bus connectors for oxidation, bent pins, or heat damage; a compromised backplane can corrupt communications between the CPU and I/O racks even after a CPU swap.

Review all MODICON 984 discrete input and output modules seated in the local rack. I/O modules with intermittent channel faults can generate spurious interrupts that overload the CPU scan cycle. Similarly, check any installed Modbus Plus (MB+) network adapter modules or Modbus RTU communication cards — a network storm or CRC error flood from a failing comm module is a known cause of CPU watchdog trips in the 984 series.

For systems using analog I/O modules in the same rack, confirm signal integrity on 4–20 mA loops and verify that signal isolators between field instruments and the PLC are functioning correctly. Degraded isolation can introduce ground loops that affect CPU stability. If the installation includes a Magelis or legacy MODICON HMI panel communicating over Modbus, test the HMI communication link independently to rule out polling conflicts.

Do not overlook terminal blocks and field wiring terminations in the cabinet. Loose or corroded terminals on 24 VDC control circuits are a leading cause of intermittent I/O faults that are misdiagnosed as CPU failures. Finally, inspect cabinet fuses and miniature circuit breakers protecting the PLC power rail — a marginal fuse that has not yet blown can cause voltage sags under load that destabilize the CPU.

Building a structured spare parts kit around the PC-E984-685 — including at minimum one spare power supply module, a set of high-wear I/O modules, and critical communication adapters — is the most effective strategy for reducing mean time to repair (MTTR) on MODICON 984 installations that are not yet scheduled for migration.

Site Replacement Workflow

Step 1 — Pre-replacement documentation: Before powering down, upload or print the current PLC program from the CPU using Modsoft, Concept, or your site’s backup utility. Confirm the program version matches your validated backup. Record all Modbus node addresses and MB+ network settings configured on the existing CPU.

Step 2 — Safe isolation: Follow your site’s lockout/tagout (LOTO) procedure. Remove AC power to the MODICON 984 power supply. Allow capacitors to discharge for a minimum of 60 seconds before handling the CPU module.

Step 3 — Module extraction: Release the CPU module retaining latch and slide the PC-E984-685 straight out of the backplane slot. Avoid rocking the module, as this can damage backplane connector pins. Place the removed module in an anti-static bag for return or failure analysis.

Step 4 — Replacement installation: Align the replacement PC-E984-685 with the backplane slot guides and slide it firmly into position until the latch engages. Confirm the module is fully seated — partial seating is a common cause of post-replacement communication faults.

Step 5 — Program restore and commissioning: Restore power and download the validated program to the new CPU. Verify all I/O status indicators, confirm Modbus Plus network participation, and perform a controlled I/O scan before releasing the system to automatic operation. Document the replacement in your maintenance management system (CMMS) with the new module serial number and warranty expiry date.

This workflow minimizes downtime, preserves system compatibility, and ensures the replacement is traceable for future audits — critical for ISO 9001 and IEC 62443 compliance environments.

Spare Parts Support FAQ

Q1: Is the PC-E984-685 still available as a new original part, or is it a refurbished unit?
All PC-E984-685 units supplied by SMARTNEXMSK are original Schneider Electric / MODICON components. Units are sourced from authorized channels and verified production stock. Each module undergoes functional testing prior to shipment. A 12-month warranty is provided on every unit regardless of production date.

Q2: How do I confirm compatibility with my existing MODICON 984 installation before ordering?
The PC-E984-685 is designed for direct installation in MODICON 984 series backplanes. To confirm compatibility, provide your existing CPU part number, backplane model, and firmware version to our technical team at sales@smartnexmsk.com. We will cross-reference against our compatibility database and confirm fit before shipment.

Q3: What is your recommended inventory strategy for sites running legacy MODICON 984 systems?
For critical production environments, we recommend maintaining a minimum of one CPU spare (PC-E984-685) on-site, supplemented by spares for the power supply module and the highest-density I/O modules in your rack. For multi-cabinet installations or sites with extended OEM lead times, a two-unit CPU buffer is advisable. SMARTNEXMSK can support blanket order agreements for long-term supply continuity.

Q4: What pre-shipment checks are performed, and what documentation is included?
Every PC-E984-685 is powered on, subjected to a functional self-test, and verified for communication port integrity before packaging. Shipments include a test report, warranty certificate, and packing declaration. Express shipping with tracking is available to all major industrial regions. For urgent breakdown orders, same-day dispatch is available on confirmed stock.
