Schneider Electric XS4P30NA340 Spare OsiSense XS4 Automation: Precision Spare for Industrial Downtime Control

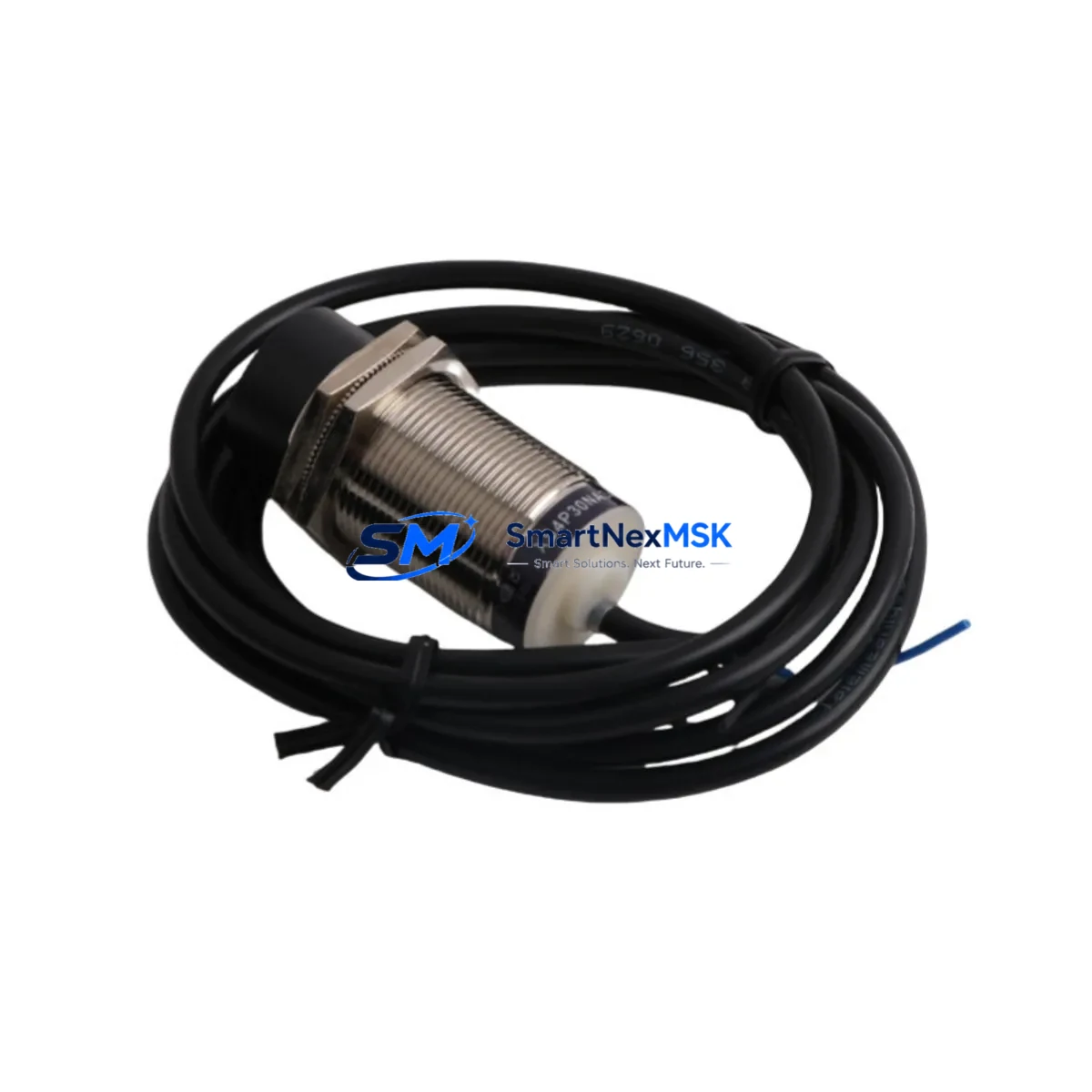

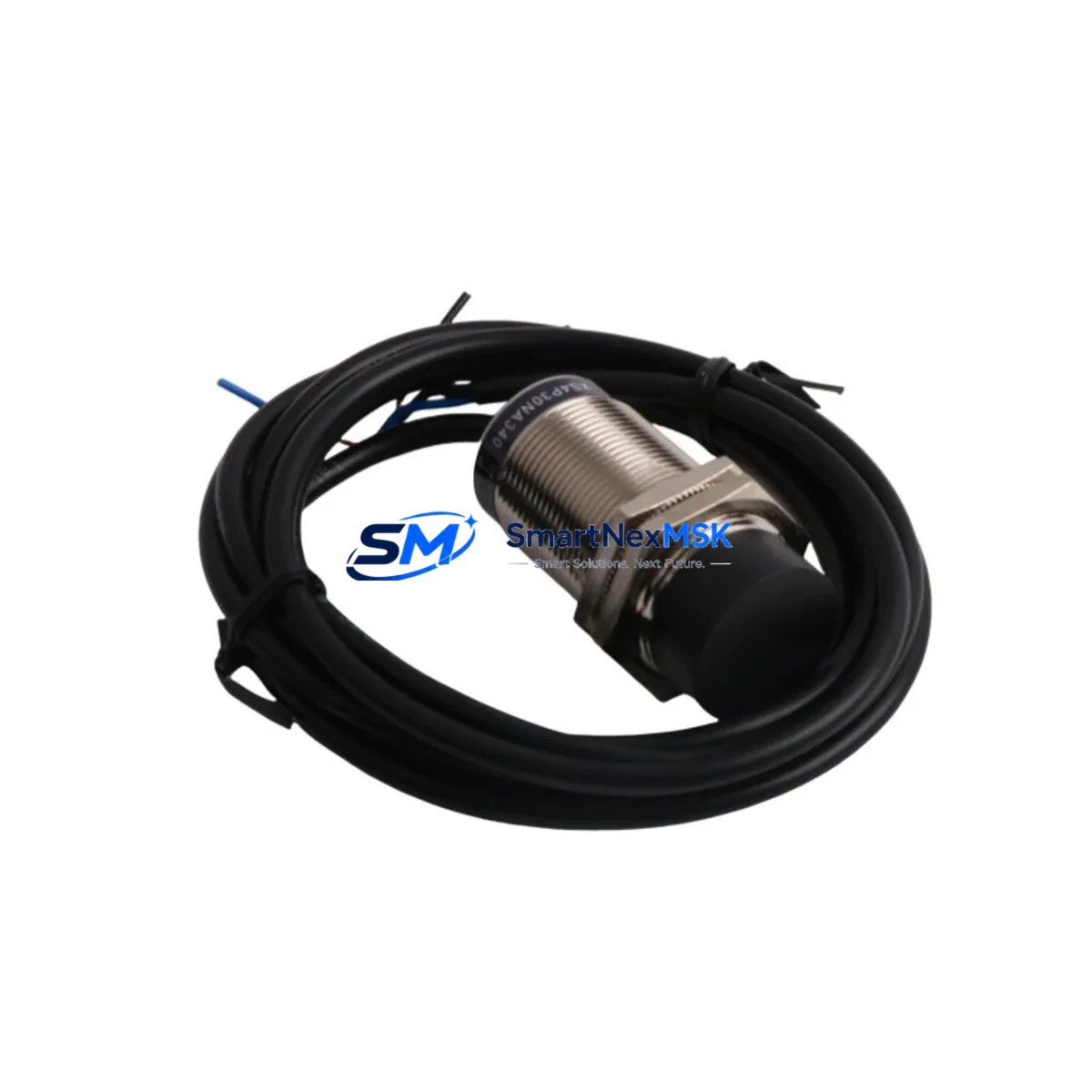

The Schneider Electric XS4P30NA340 is an original OsiSense XS4 series M30 inductive proximity sensor rated for PNP-NO output, 40 mm nominal sensing distance, and 12–24V DC operating voltage. As a maintenance-ready spare, it is engineered for direct drop-in replacement in automated production lines, conveyor systems, packaging machinery, and PLC-controlled motion detection circuits. Sourced from authorized supply channels, each unit undergoes pre-shipment electrical verification to confirm output switching accuracy, insulation integrity, and connector compatibility before dispatch.

For maintenance engineers managing aging Schneider Electric control architectures, the XS4P30NA340 represents a critical field-replaceable unit (FRU). Its M30 threaded barrel form factor and standard M12 4-pin connector interface ensure compatibility with existing cable harnesses and mounting brackets without mechanical modification. Holding this part in your on-site spare parts inventory eliminates the risk of extended downtime caused by sensor drift, cable fatigue, or vibration-induced failure — all common failure modes in high-cycle industrial environments.

Procurement engineers sourcing for planned maintenance shutdowns or emergency breakdown kits will find the XS4P30NA340 suitable for multi-unit stocking. Its compact design, IP67 ingress protection rating, and wide operating temperature range make it appropriate for both indoor control cabinets and exposed field installations. A 12-month warranty is included with every unit, covering manufacturing defects and functional failures under normal operating conditions.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the XS4P30NA340 during a planned maintenance window or emergency breakdown response, a thorough inspection of the surrounding electrical circuit is essential to prevent repeat failures and ensure system stability. Begin by verifying the M12 sensor cable assembly (typically a 2m or 5m shielded 4-wire cable) for insulation damage, connector pin corrosion, or intermittent continuity — cable degradation is frequently the root cause of apparent sensor failure.

At the PLC input module level, confirm that the corresponding Modicon TM3DI16 or TM2DI16 digital input module is reading the correct logic state after sensor replacement. If the input channel shows erratic behavior post-swap, inspect the 24V DC power supply module (such as the Schneider Electric ABLS1A24031 or Phaseo ABL8 series) for output voltage stability and ripple — a degraded power supply can cause false triggering or missed detection events on PNP sensors.

For control cabinets housing multiple proximity sensors on a shared I/O bus, check the terminal block wiring (Linergy or equivalent DIN-rail terminal strips) for loose connections, oxidation, or overheating marks at the sensor signal and 0V common terminals. Inspect any signal isolator or surge protection module installed between the field sensor and the PLC input — devices such as the Schneider Electric XMLA or third-party DIN-rail surge arrestors can degrade over time and introduce signal attenuation.

If the XS4P30NA340 is part of a safety-rated detection circuit, verify the associated Preventa XPSAF or XPSMF safety relay module for correct reset behavior and output contact integrity after sensor replacement. For systems using Harmony XKJM or XKJN junction boxes to consolidate multiple sensor cables, inspect the junction box terminal connections and confirm correct cable routing to avoid cross-wiring after maintenance.

In older Schneider Electric installations where the XS4P30NA340 replaces a legacy XS4 variant with a different cable length or connector type, use a Telemecanique XZ-series adapter cable to bridge connector format differences without rewiring the control cabinet. Document the replacement in the site maintenance log and update the spare parts BOM to reflect the current active part number for future procurement cycles.

Site Replacement Workflow

Step 1 — Isolation & Lockout: De-energize the 24V DC sensor supply circuit at the cabinet breaker or fuse holder. Apply LOTO (Lockout/Tagout) per site safety procedure before accessing the sensor mounting location.

Step 2 — Physical Removal: Disconnect the M12 connector from the existing sensor. Unscrew the M30 lock nut and withdraw the sensor from its mounting bracket. Note the flush or non-flush mounting depth for correct reinstallation.

Step 3 — Inspection: Inspect the mounting bracket, cable connector, and adjacent wiring for damage. Clean the mounting bore of any metal swarf or contamination that could affect sensing distance accuracy.

Step 4 — Installation: Thread the XS4P30NA340 into the mounting bracket to the same depth as the removed unit. Secure with the M30 lock nut. Reconnect the M12 cable connector and verify pin alignment (Brown = +24V, Blue = 0V, Black = Output, White = NC for standard PNP wiring).

Step 5 — Functional Verification: Re-energize the circuit. Introduce a ferrous metal target at the rated sensing distance and confirm the PLC input channel transitions from 0 to 1. Verify the output LED indicator on the sensor body illuminates correctly. Log the replacement date, part number, and technician ID in the site CMMS.

This workflow supports direct replacement of legacy XS4 M30 variants including XS4P30NA340D, XS4P30PA340, and equivalent third-party M30 PNP-NO sensors, maintaining full system compatibility without PLC program modification.

Spare Parts Support FAQ

Q1: Is the XS4P30NA340 a direct replacement for older OsiSense XS4 M30 variants?
Yes. The XS4P30NA340 is dimensionally and electrically compatible with earlier OsiSense XS4 M30 PNP-NO variants. The M30 thread, M12 4-pin connector, and PNP-NO output logic are consistent across the XS4 series generation. No PLC program changes are required for direct substitution in most applications.

Q2: What pre-shipment testing is performed on each unit?
Each XS4P30NA340 unit is tested for output switching accuracy at rated voltage, insulation resistance between circuit conductors and housing, and M12 connector pin continuity before dispatch. A test report is available upon request for quality-critical procurement.

Q3: How should this spare be stored in a maintenance inventory?
Store in original packaging in a dry, temperature-controlled environment (0°C to +40°C) away from strong magnetic fields and corrosive atmospheres. Recommended shelf life in sealed packaging is 3–5 years. Label with receipt date and part number for FIFO rotation.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions from the date of shipment. It does not cover damage caused by incorrect wiring, overvoltage, mechanical impact, or installation outside the rated specification. Warranty claims are processed via RMA with pre-authorization from our technical team.
