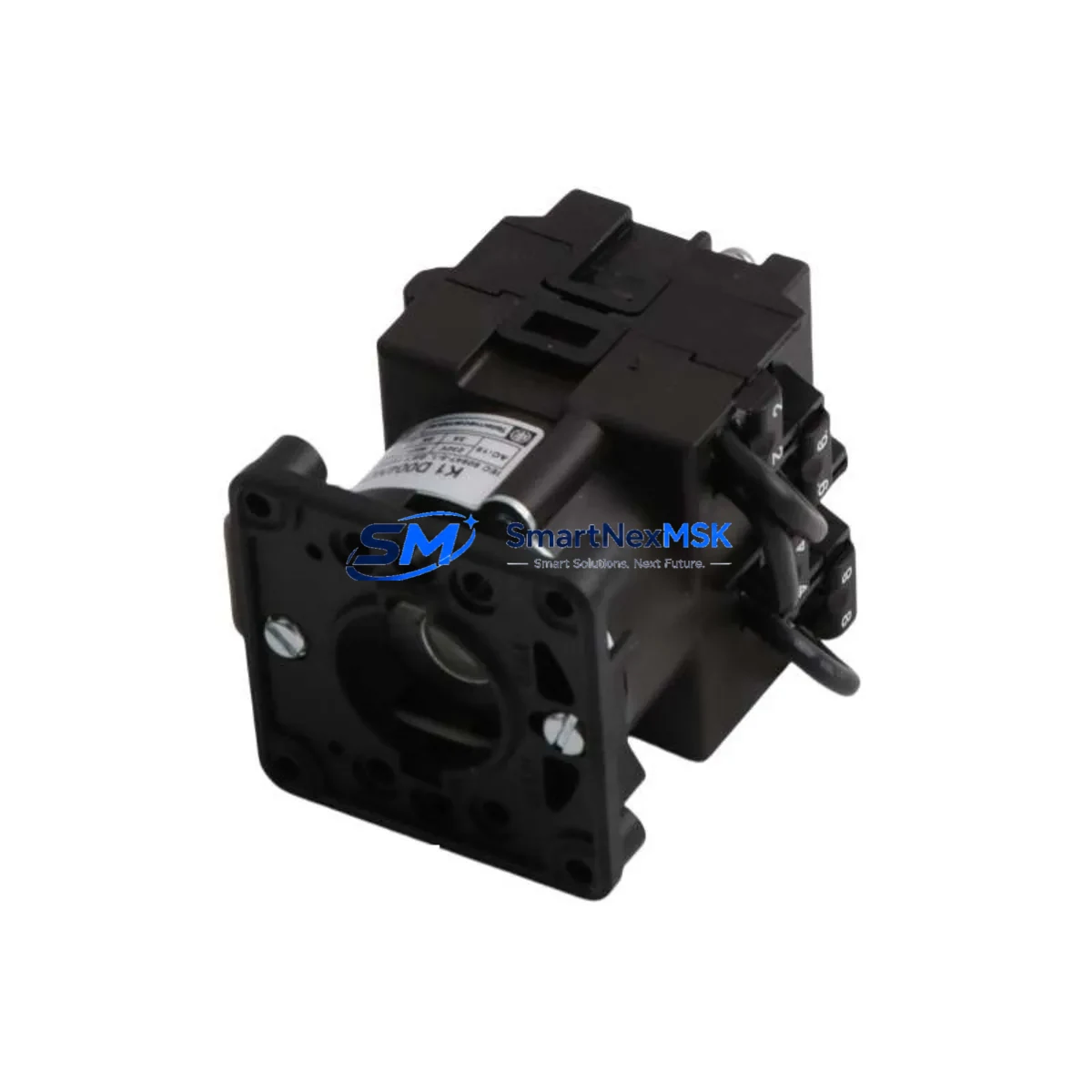

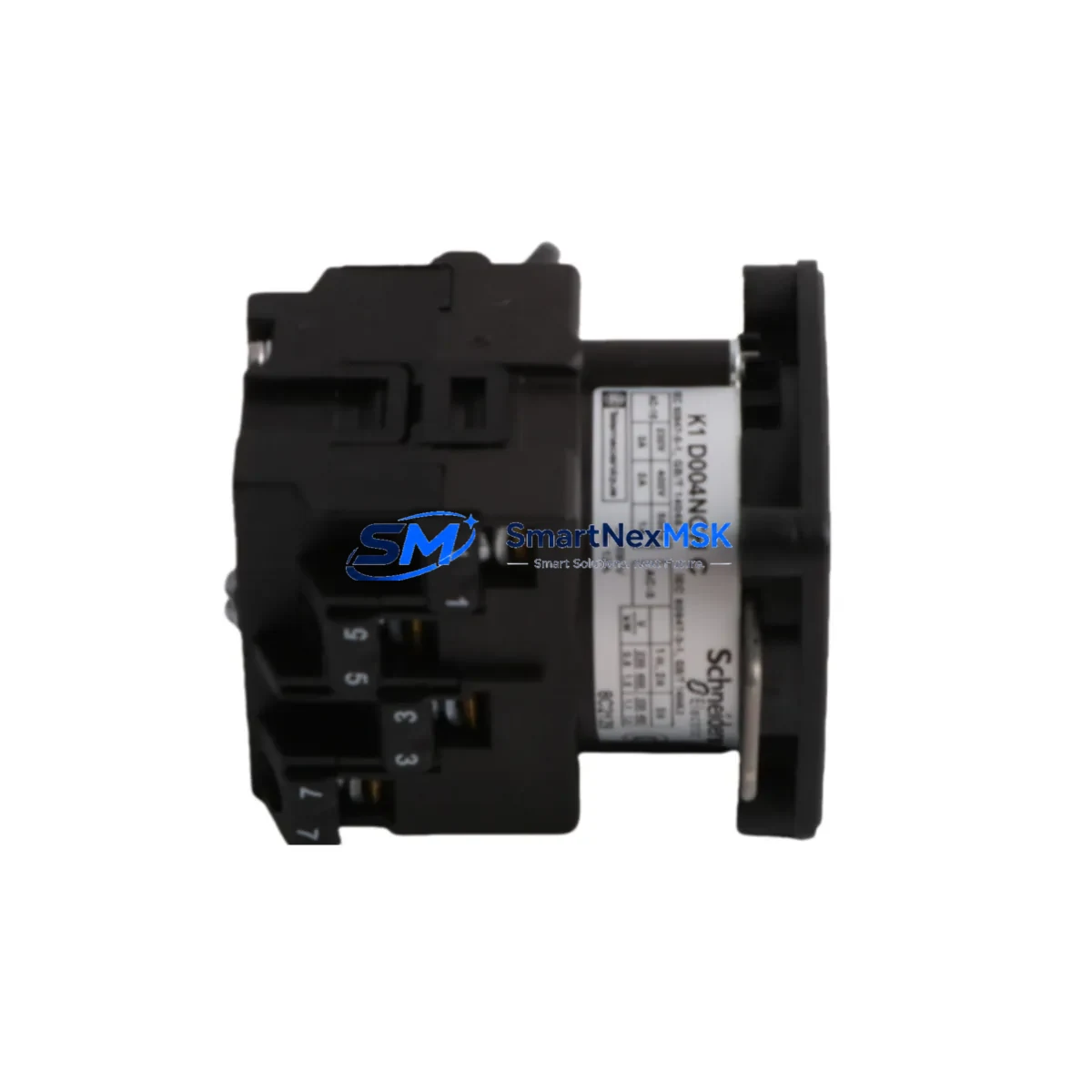

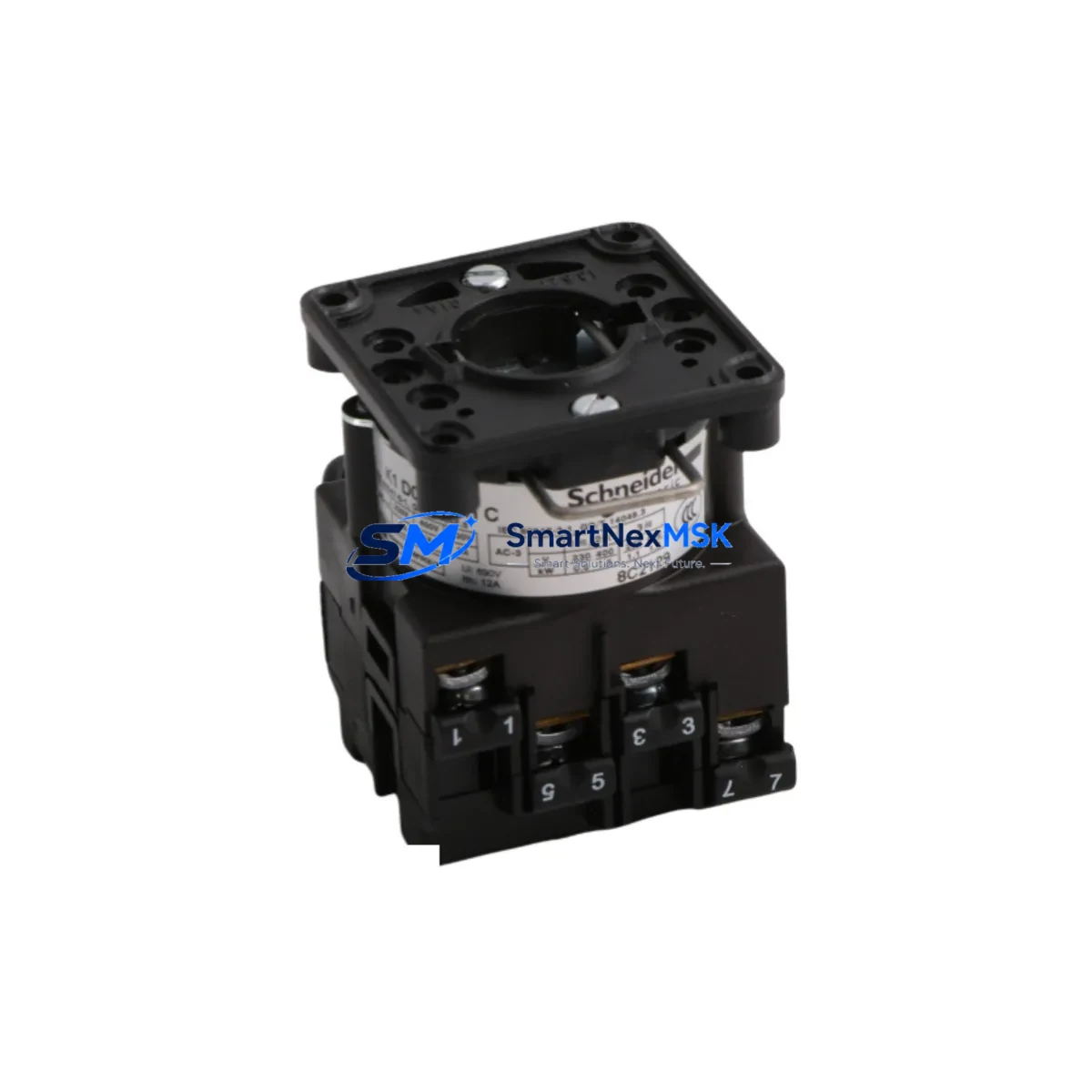

Schneider K1D004NCHC Retrofit-Ready Cam Switch for Harmony K Control Systems
The Schneider Electric K1D004NCHC is a 4-position cam changeover switch from the Harmony K series, engineered for panel-mount control applications in industrial automation environments. As legacy control cabinets age and original components reach end-of-life, the K1D004NCHC serves as a verified retrofit-ready replacement for discontinued or hard-to-source Harmony K variants. Whether you are upgrading a motor starter panel, replacing a worn selector switch in a machine control cabinet, or modernizing a legacy MCC (Motor Control Center), this unit delivers direct mechanical and electrical compatibility with existing Harmony K mounting cutouts and terminal layouts.
Sourced from authorized supply channels and subject to pre-shipment functional testing, each K1D004NCHC unit ships with a 12-month warranty covering manufacturing defects and operational failures under normal service conditions. Stock is maintained for immediate dispatch to support urgent retrofit and breakdown-recovery scenarios.
Upgrade Compatibility Table
| Parameter | K1D004NCHC (This Unit) | Retrofit Notes |
|---|---|---|
| Series | Harmony K | Direct replacement within Harmony K family |
| Switch Type | 4-Position Cam Changeover | Verify position count matches original wiring diagram |
| Mounting | Panel-mount, 22mm cutout | Compatible with standard Harmony K panel cutout; no re-drilling required |
| Terminal Interface | Screw-clamp terminals | Re-use existing wire ferrules; confirm torque spec (typically 1.2 Nm) |
| Contact Configuration | NO/NC per cam position | Map contact sequence against original ladder logic before wiring |
| Communication Compatibility | Hardwired discrete I/O | No protocol migration required; integrates with any PLC discrete input module |
| Replacement Suitability | Discontinued Harmony K variants | Confirm original part number against Schneider cross-reference table |
| Commissioning Focus | Contact sequence, cam timing, terminal torque | Test each position under no-load before energizing control circuit |
| Warranty | 12 Months | Covers manufacturing defects; excludes physical damage post-installation |
Retrofit Planning for Existing Automation Systems
Integrating the K1D004NCHC into an existing control system requires a structured approach to avoid introducing faults during the changeover. Begin by documenting the original wiring diagram and confirming the cam switch position sequence against the PLC program logic — particularly if the control system uses a Modicon M340 or Modicon M580 CPU with discrete input modules such as the BMX DDI 1602 or BMX DDI 3202K. These modules accept 24 VDC discrete signals and will interface directly with the K1D004NCHC contact outputs without any signal conditioning.
For older systems built around the Modicon TSX Micro or TSX Premium platform, verify that the input voltage range of the installed I/O modules matches the control voltage of the cam switch circuit. In many legacy MCC retrofits, the control transformer and fuse block remain serviceable and can be retained; only the switching element — the cam switch itself — requires replacement.
If the control cabinet includes a Zelio Logic SR3B261BD smart relay or a Harmony XB4 pushbutton station wired in series with the cam switch, confirm that the contact rating of the K1D004NCHC is compatible with the coil current of any downstream contactors, such as the TeSys D LC1D series. In most 24 VDC or 110 VAC control circuits, the K1D004NCHC contact rating is well within the operating envelope of standard TeSys contactors.
For systems that include a Magelis HMIGTO or Magelis STO HMI panel, no screen modifications are typically required when replacing a like-for-like cam switch, as the HMI reads process state from PLC data registers rather than directly from the switch. However, if the original switch position was mapped to a discrete input address that has been reassigned during a prior upgrade, update the PLC variable table and HMI tag binding accordingly before commissioning.
Where the retrofit involves a Canopen or Modbus RTU communication backbone, the K1D004NCHC itself requires no protocol configuration — it is a purely hardwired device. Its outputs feed into the discrete input module of the local PLC node, which then reports state over the fieldbus. Ensure the CANopen node address and baud rate of the associated I/O module remain unchanged during the swap to avoid network disruption.
Finally, if the panel includes a Harmony XCKJ limit switch or OsiSense XS proximity sensor wired in the same control loop, verify that the cam switch replacement does not alter the logic sequence that these sensors depend on for safe machine state transitions.
Downtime Control During System Migration
Minimizing production downtime during a cam switch replacement requires preparation before the maintenance window opens. Prior to shutdown, photograph the existing terminal wiring and label each conductor with its circuit reference. Export and back up the current PLC program from the controller — whether a Modicon M340, M580, or legacy TSX Premium — using Unity Pro or EcoStruxure Control Expert to ensure the original logic is preserved and can be restored if needed.
During the physical swap, work systematically: remove one wire at a time, transfer it to the corresponding terminal on the K1D004NCHC, and verify continuity before proceeding to the next. Use a multimeter to confirm contact state at each cam position before re-energizing the control circuit. This step-by-step approach protects the original program logic and prevents miswiring that could cause unintended machine motion on startup.
Once wiring is complete, perform a cold-start test with the machine in a safe, de-energized state. Cycle through each cam position manually and verify that the PLC input register reflects the correct state in the EcoStruxure Control Expert online monitoring view. Only after all positions are confirmed should the control circuit be re-energized and the machine returned to automatic mode. This structured commissioning sequence typically allows a skilled technician to complete the full replacement — including testing — within a single planned maintenance shift, keeping unplanned downtime to a minimum.
Retrofit Support FAQ
Q1: Is the K1D004NCHC a direct drop-in replacement for discontinued Harmony K cam switches?
In most cases, yes. The K1D004NCHC shares the standard Harmony K 22mm panel-mount footprint and screw-clamp terminal layout. Confirm the original part number against Schneider Electric’s cross-reference documentation to verify contact configuration and position count before ordering.
Q2: What wiring checks are required before commissioning?
Verify terminal torque (typically 1.2 Nm), confirm wire ferrule condition, and test each cam position for correct NO/NC contact state using a multimeter before energizing the control circuit. Cross-reference the wiring against the original ladder diagram to ensure the contact sequence matches the PLC input mapping.
Q3: Is the unit tested before shipment?
Yes. Each K1D004NCHC unit undergoes pre-shipment functional testing to verify mechanical operation and contact continuity across all cam positions. Units are shipped in original or equivalent protective packaging to prevent transit damage.
Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and operational failures under normal service conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage, physical impact, or use outside the rated specification. Warranty claims are processed via our sales team with proof of purchase.
