Schneider TSXMFPP224K Maintenance-Ready Spare for TSX Premium Automation

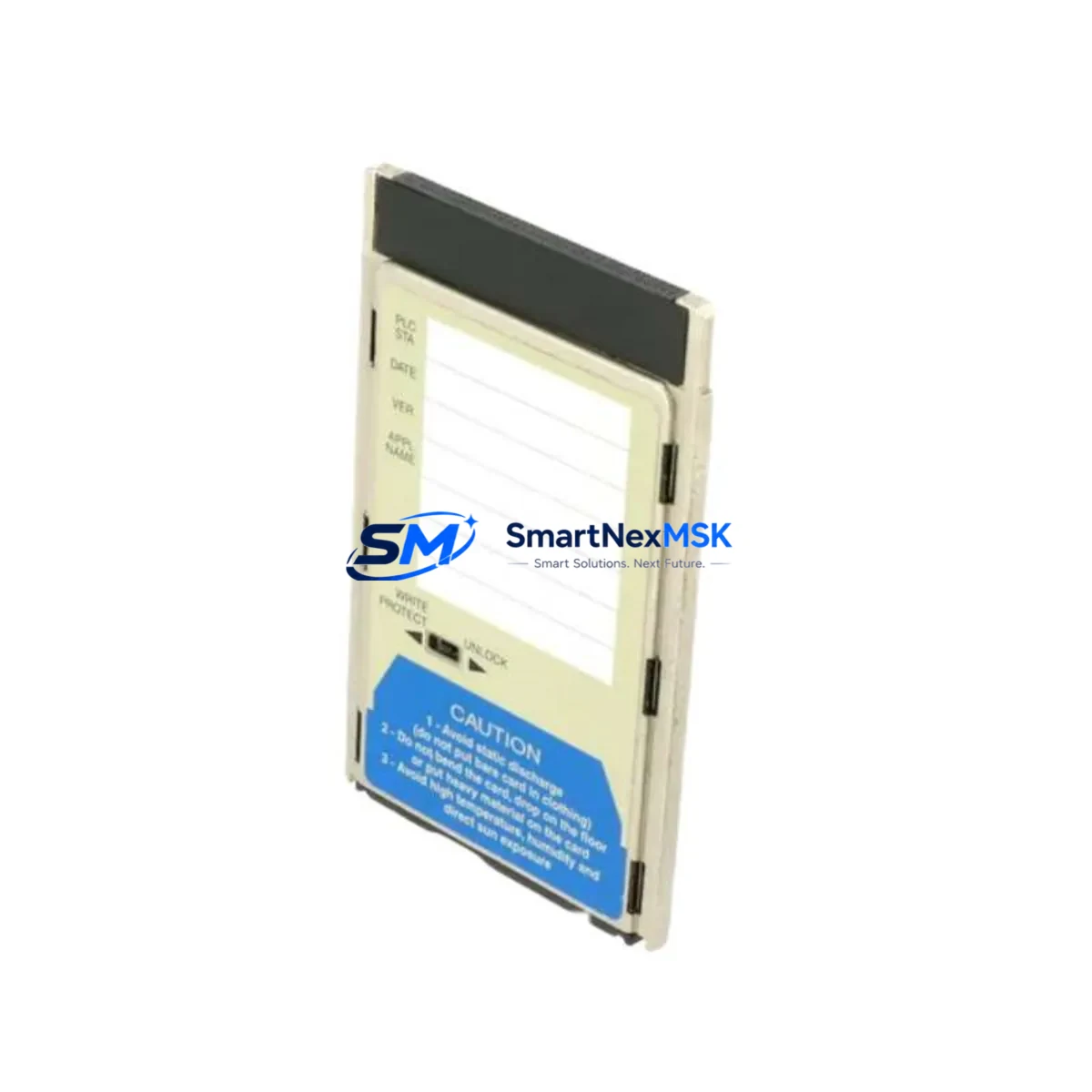

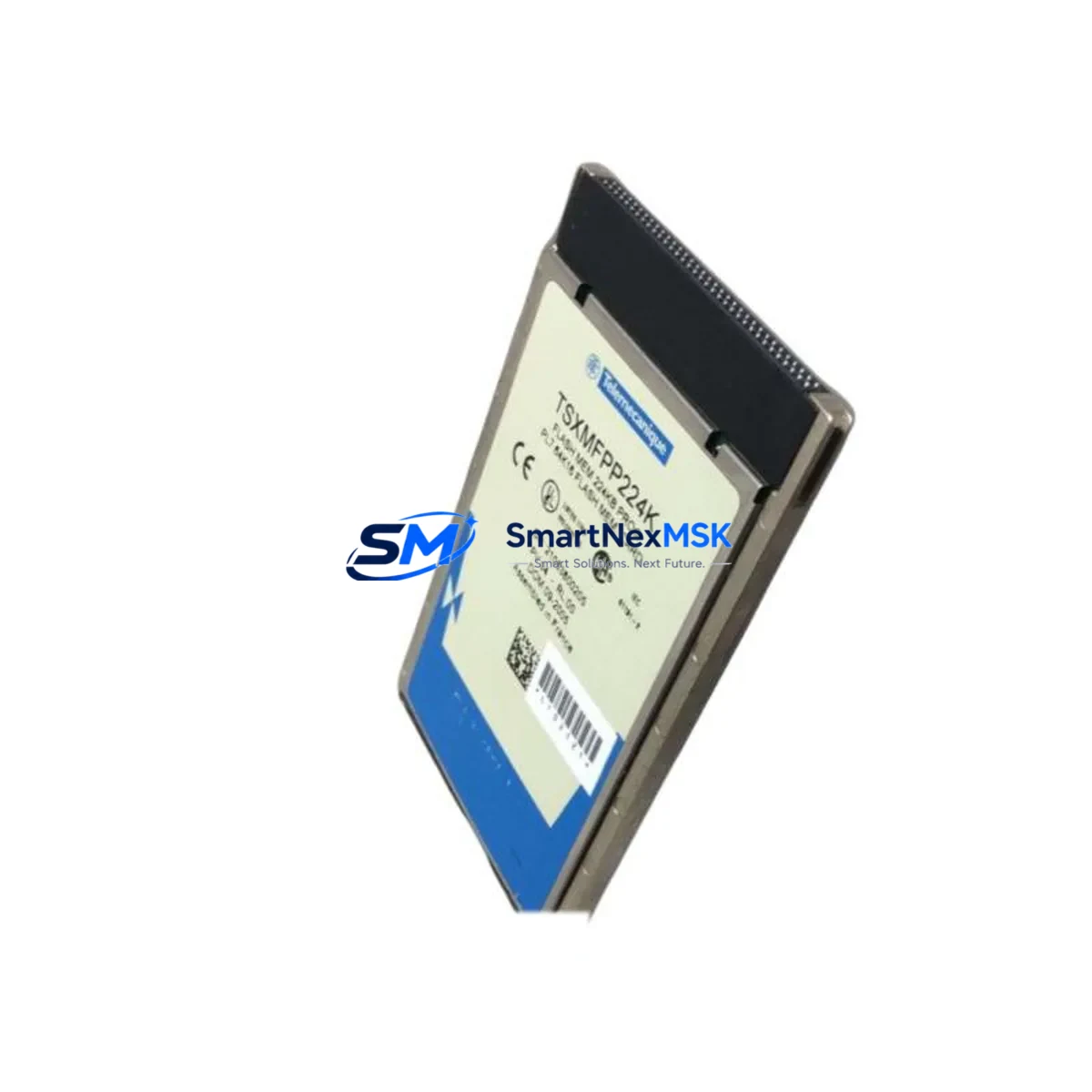

The Schneider Electric TSXMFPP224K is a 224KB Flash EPROM program memory card designed for the TSX Premium PLC series. For maintenance engineers managing aging automation infrastructure, this module represents a critical spare that directly determines whether a production line resumes within minutes or remains offline for days. Stocking a verified replacement of the TSXMFPP224K eliminates the most common cause of extended downtime in TSX Premium-based control systems: unplanned memory card failure during continuous operation.
In industrial environments where TSX Premium PLCs govern conveyor sequencing, press control, packaging lines, or process automation, the memory card is the single point that holds the entire application program. A corrupted or failed TSXMFPP224K means the CPU module — whether a TSXP571634M, TSXP572634M, or TSXP573634M — cannot execute any logic until a replacement card with a valid program image is installed and verified. Procurement engineers sourcing this part should confirm compatibility with the specific CPU rack and firmware revision before dispatch.
Our TSXMFPP224K units are sourced as original Schneider Electric components, individually inspected, and pre-shipment tested to confirm read/write integrity and correct capacity identification. Each unit ships with a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions.
Spare Maintenance Table
| Parameter | Specification |
|---|---|
| Part Number | TSXMFPP224K |
| Memory Type | Flash EPROM (Non-volatile) |
| Capacity | 224 KB |
| Compatible Series | Schneider Electric TSX Premium PLC |
| Compatible CPUs | TSXP571634M, TSXP572634M, TSXP573634M (and compatible variants) |
| Origin | France (Original Schneider Electric) |
| Operating Temperature | 0°C to +60°C (standard industrial range) |
| Installation | Direct card slot insertion — no tools required |
| Program Retention | Non-volatile; retains program without power |
| Pre-Shipment Test | Read/write integrity verified, capacity confirmed |
| Warranty | 12 Months — manufacturing defects and functional failure |
| Condition | Original / New |
| Dispatch | Same-day or next business day (subject to stock confirmation) |
Maintenance Planning for Continuous Operation
When a TSXMFPP224K failure is identified during a fault-isolation routine, the replacement workflow rarely ends with the memory card alone. Experienced maintenance engineers treat this event as a trigger for a broader control cabinet inspection. The TSX Premium rack that houses the memory card also contains components that share the same operational age and thermal stress history.
Begin by verifying the TSX Premium CPU module itself — a TSXP57 series processor — for any fault LEDs, battery backup status, and internal diagnostics accessible via PL7 Pro or Unity Pro software. The TSXPSY2600M or TSXPSY5000M rack power supply should be load-tested; a degraded power supply is a common secondary cause of memory card read errors and program corruption. Check output voltage stability under full rack load before reinstalling the replacement card.
Inspect all TSX Premium I/O modules in the rack — discrete input modules such as the TSXDEY16D2 and output modules such as the TSXDSY16T2 — for channel faults, blown fuses, or wiring terminal corrosion. A memory card replacement performed without verifying I/O integrity risks immediate re-faulting once the program resumes execution. Similarly, any TSX Premium communication modules — including Modbus, Ethernet, or Profibus adapters — should be confirmed online before the system is returned to automatic mode.
For systems with TSXETY110 or TSXETY410 Ethernet communication modules, verify IP configuration and network connectivity post-restart, as some firmware versions require a cold-start sequence after memory card replacement. If the control cabinet includes signal isolators or analog input conditioners on 4–20 mA loops feeding the TSX Premium analog I/O modules (such as the TSXAEY414), confirm signal integrity before releasing the process to automatic control.
Relay output modules — particularly the TSXDSY08R5 — should be inspected for contact wear if the system has been in service for more than three years. Terminal blocks and cable ferrules throughout the cabinet should be re-torqued as part of any planned maintenance event that involves card removal. Maintaining a minimum spare inventory of one TSXMFPP224K per TSX Premium system, alongside a spare CPU battery (TSXPLP01) and a spare power supply fuse set, is the baseline recommendation for facilities operating these systems beyond their original design life.
Site Replacement Workflow
Step 1 — Backup: Before removing the existing TSXMFPP224K, use PL7 Pro or Unity Pro to upload and save the current application program to a PC. Confirm the backup file is complete and readable.
Step 2 — Safe Shutdown: Place the PLC in STOP mode via the software or the physical RUN/STOP switch on the CPU. Confirm all outputs are de-energized and the process is in a safe state before proceeding.
Step 3 — Card Removal: Power down the rack if required by site safety procedures. Remove the existing TSXMFPP224K from the card slot. Inspect the slot connector for debris or corrosion.
Step 4 — Replacement Installation: Insert the new TSXMFPP224K firmly into the card slot. Power up the rack and confirm the CPU recognizes the card without fault indication.
Step 5 — Program Download: Using PL7 Pro or Unity Pro, download the saved application program to the new memory card. Verify the transfer completes without errors and the program checksum matches the backup.
Step 6 — Functional Test: Place the CPU in RUN mode. Confirm all I/O modules report correctly, communication links are active, and the process resumes normal operation. Document the replacement in the site maintenance log.
This workflow minimizes downtime to under 30 minutes for a prepared maintenance team and ensures system compatibility is maintained without requiring firmware changes or hardware reconfiguration.
Spare Parts Support FAQ
Q: Is the TSXMFPP224K compatible with all TSX Premium CPU models?
A: The TSXMFPP224K is compatible with the TSX Premium CPU series including TSXP571634M, TSXP572634M, and TSXP573634M variants. Compatibility depends on the CPU firmware version and rack configuration. We recommend confirming your exact CPU reference before ordering. Our technical team can assist with compatibility verification.
Q: What does the 12-month warranty cover?
A: The warranty covers manufacturing defects and functional failure under normal industrial operating conditions for 12 months from the date of dispatch. Each unit is pre-shipment tested for read/write integrity and correct capacity identification. Units showing physical damage from incorrect installation or electrical overstress are not covered.
Q: Can I order multiple units for spare parts inventory?
A: Yes. We support both single-unit emergency orders and multi-unit inventory stocking orders. For facilities operating multiple TSX Premium systems, we recommend maintaining at least one TSXMFPP224K per system as a minimum spare holding. Volume pricing is available — contact us for a quotation.
Q: How quickly can the TSXMFPP224K be dispatched?
A: In-stock units are dispatched same-day or next business day following order confirmation and payment. We provide tracking information upon dispatch. For urgent downtime recovery situations, contact us directly to confirm stock availability and expedited shipping options.
