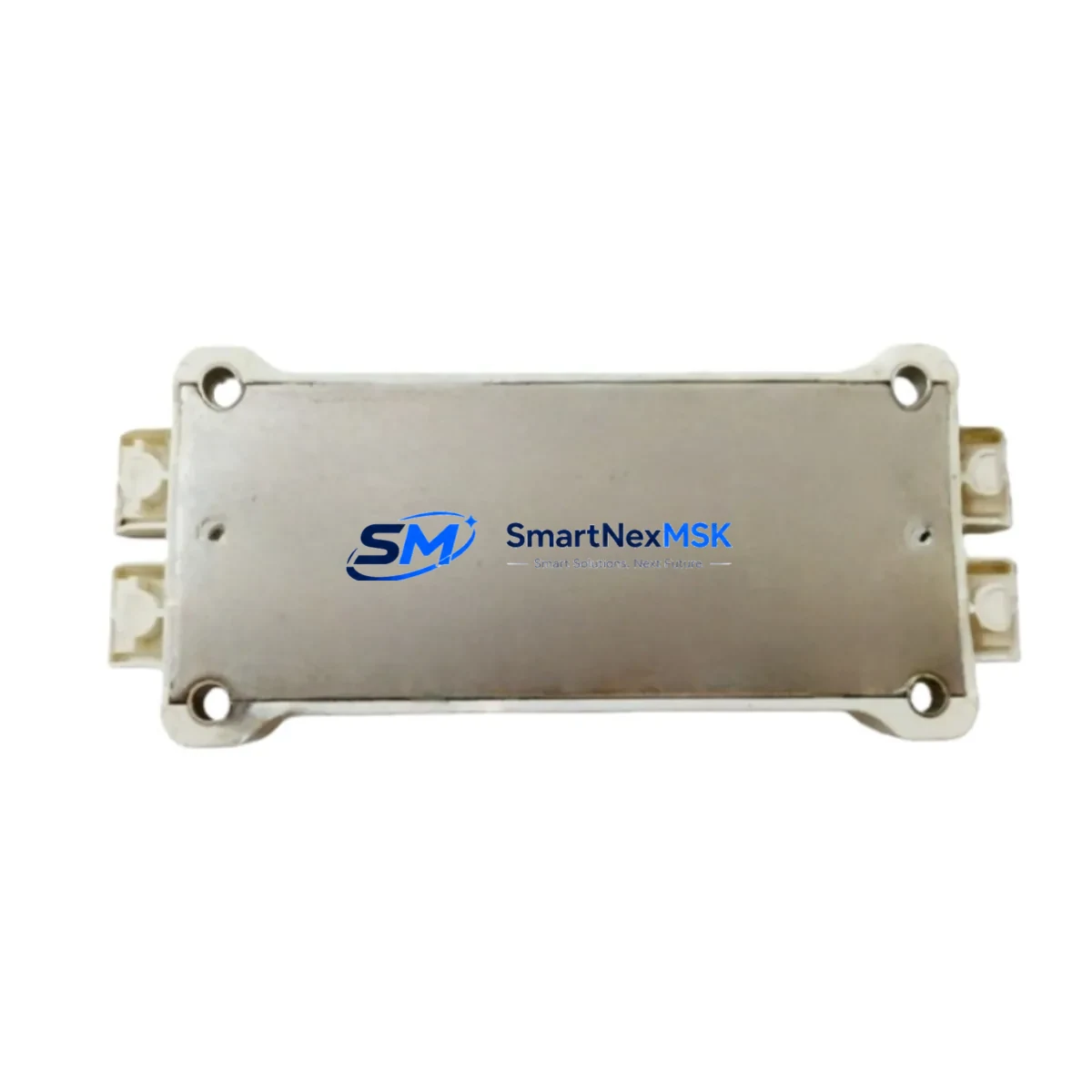

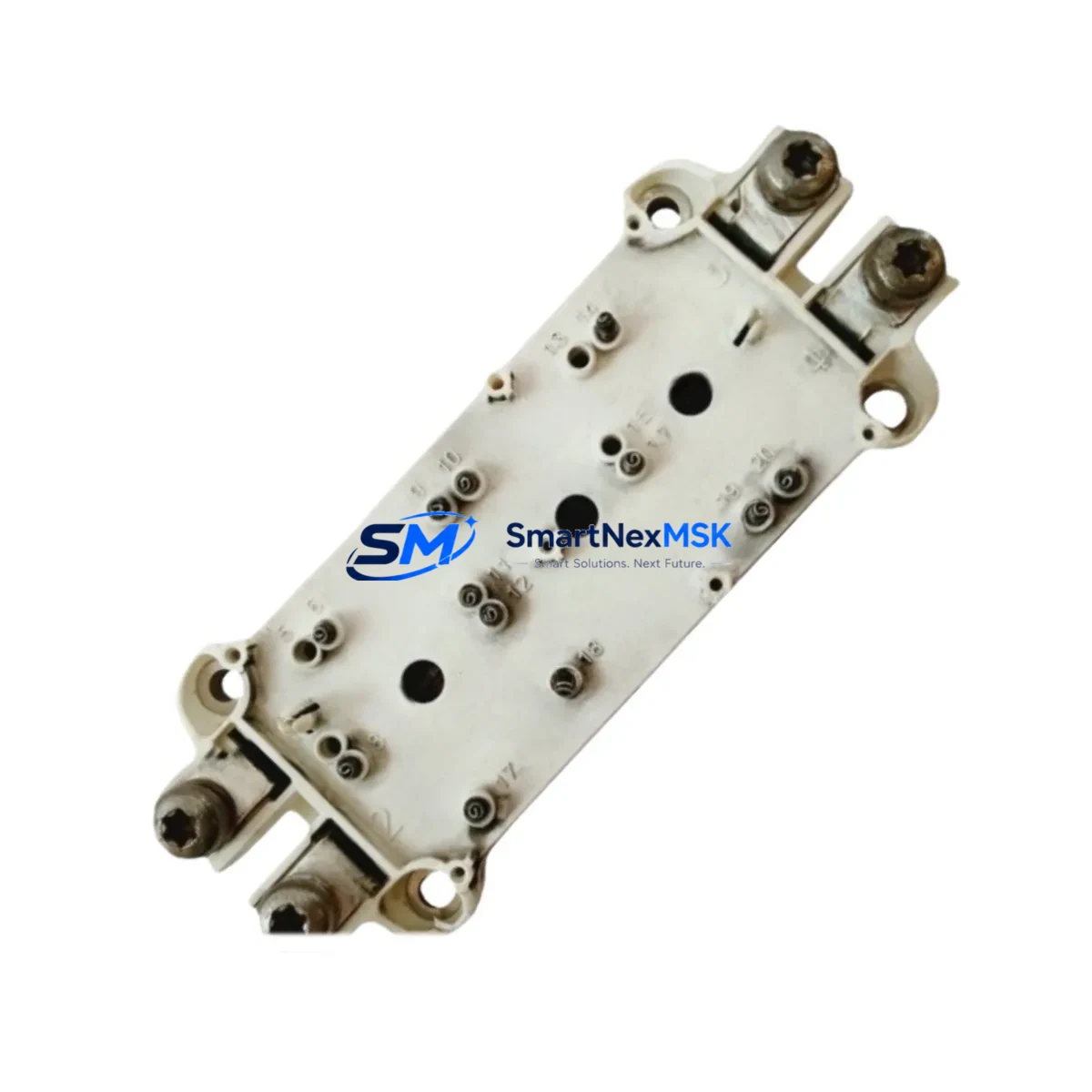

SEMIKRON SEMIX353GB126V1 Safety-Enhanced IGBT Module: Reliable Control for Harsh Industrial Sites
The SEMIKRON SEMIX353GB126V1 is a high-performance dual IGBT half-bridge power module from SEMIKRON’s proven SEMiX series, rated at 1200V / 353A. Engineered for continuous operation in demanding industrial environments, this module delivers exceptional switching precision, thermal stability, and fault tolerance — making it a cornerstone component in safety-critical control cabinets, motor drive systems, and high-power inverter platforms across heavy industry.
In high-load, high-interference production environments — such as steel rolling mills, mining hoists, chemical process lines, and port crane drives — control interruptions caused by power surges, signal drift, or module misfiring can result in catastrophic downtime and safety incidents. The SEMIX353GB126V1 addresses these risks directly through its robust NPC topology, low saturation voltage (VCE(sat)), and integrated NTC thermistor for real-time junction temperature monitoring. These features collectively reduce the risk of thermal runaway, overcurrent misfiring, and uncontrolled switching events that compromise both equipment integrity and personnel safety.
When deployed alongside SEMIKRON’s SKHI22A gate driver or the SKHI61 dual-channel driver, the SEMIX353GB126V1 achieves tightly controlled switching transitions that minimize EMI generation — a critical factor in environments where variable frequency drives, arc furnaces, or high-current bus bars create intense electromagnetic interference. Pairing this module with a SEMIKRON SKKD81/16 fast recovery diode module in the DC link further suppresses voltage spikes and protects the entire inverter stack from surge-induced damage.
For control cabinet designers working on redundant safety architectures, the SEMIX353GB126V1 integrates cleanly into systems using SEMIKRON SKiiP 1814 GB17E4-3DUL intelligent power modules or alongside SEMIKRON SEMIPACK thyristor modules in hybrid AC/DC drive topologies. Its standardized SEMiX footprint ensures mechanical and electrical compatibility with existing PCB layouts and heatsink assemblies, reducing redesign risk during spare-part replacement or system upgrades.
In power supply and bus protection circuits, the module works in conjunction with DC bus capacitor banks, pre-charge resistor assemblies, and SEMIKRON SKT thyristor modules to form a complete, surge-protected power conversion chain. This layered protection strategy is essential in petrochemical plants and water treatment facilities where power quality is inconsistent and ground fault events must be contained without tripping the entire production line.
Communication integrity between the SEMIX353GB126V1 and the supervisory control system is maintained through isolated gate drive signals, typically sourced from fiber-optic IGBT driver boards or SEMIKRON SKYPER 32 PRO R gate driver cores. These drivers provide galvanic isolation, short-circuit protection (DESAT detection), and active clamping — all of which are mandatory in IEC 61508-compliant safety instrumented systems (SIS) and emergency shutdown (ESD) loops.
Every SEMIX353GB126V1 unit supplied by SMARTNEXMSK undergoes pre-shipment functional testing, including static VCE(sat) verification, gate threshold voltage check, and NTC thermistor continuity confirmation. Units are shipped in original or equivalent anti-static packaging with full traceability documentation, supporting your incoming inspection and quality control procedures.
Safety Reliability Table
| Parameter | Specification |
|---|---|
| Part Number / SKU | SEMIX353GB126V1 |
| Brand / Manufacturer | SEMIKRON (Germany) |
| Series | SEMiX |
| Module Type | Dual IGBT Half-Bridge |
| Collector-Emitter Voltage (VCE) | 1200 V |
| Continuous Collector Current (IC) | 353 A |
| Gate-Emitter Voltage (VGE) | ±20 V |
| Saturation Voltage VCE(sat) | Typ. 2.0 V @ 25°C |
| Junction Temperature (Tj) | -40°C to +150°C |
| Storage Temperature (Tstg) | -40°C to +125°C |
| Thermal Resistance Rth(j-c) | Per IGBT: Typ. 0.09 K/W |
| NTC Thermistor | Integrated (real-time thermal monitoring) |
| Isolation Voltage (Visol) | 4000 V AC (1 min) |
| Mounting / Footprint | SEMiX standard (screw-mount baseplate) |
| Protection Class | IP00 (module); heatsink-dependent enclosure rating |
| Applicable Standards | IEC 60747, RoHS compliant |
| Origin | Germany |
| Weight | Approx. 900 g |
| Warranty | 12 Months — covers manufacturing defects and functional failure under rated conditions |
Control Cabinet Protection Strategy
A robust industrial control cabinet built around the SEMIX353GB126V1 demands a coordinated protection architecture. At the gate drive layer, the SEMIKRON SKYPER 32 PRO R provides active short-circuit protection via DESAT detection, clamping the gate voltage within microseconds of a fault event — preventing destructive overcurrent from propagating through the DC bus. For multi-axis drive systems, the SKHI22A dual-channel gate driver offers synchronized switching control across both IGBT channels, reducing dead-time errors that can cause shoot-through faults in half-bridge configurations.
On the DC bus, film capacitor banks rated for 1200V DC service absorb switching transients and decouple the inverter from upstream supply disturbances. A SEMIKRON SKKD81/16 fast recovery rectifier module placed at the rectifier stage clamps reverse recovery spikes, protecting the SEMIX353GB126V1 from voltage overshoots during regenerative braking cycles — a common failure mode in crane and hoist applications.
For systems requiring soft-start and inrush current limitation, a pre-charge circuit using NTC inrush limiters or a dedicated pre-charge relay and resistor assembly prevents capacitor bank charging surges from stressing the IGBT module at power-up. In high-availability systems, a SEMIKRON SKT 340 thyristor module can be integrated into the bypass circuit to maintain load continuity during scheduled IGBT maintenance windows.
Communication between the drive controller and the SEMIX353GB126V1 gate driver is best routed via fiber-optic signal cables to eliminate ground loop interference in environments with heavy motor loads or welding equipment nearby. Supplementing this with a 24V DC UPS module on the control power rail ensures that gate driver logic and safety relay circuits remain energized during brief main power interruptions, preventing uncontrolled IGBT turn-off events that could damage the load.
Critical Industrial Safety Applications
Petrochemical & Refinery Plants: In hazardous area motor control centers (MCC), the SEMIX353GB126V1 drives variable speed pumps and compressors in Zone 2 classified environments. Its high isolation voltage (4000V AC) and stable switching behavior under fluctuating grid conditions reduce the risk of insulation breakdown and unplanned process shutdowns that could trigger flammable atmosphere ignition risks.
Electric Power Generation & Grid Tie: In medium-voltage inverter systems for distributed generation and reactive power compensation (SVG/STATCOM), the module’s low switching losses and precise gate control enable high-efficiency energy conversion while maintaining grid synchronization stability — critical for preventing frequency deviation events in islanded microgrids.
Mining Hoists & Winders: Underground mine hoists demand absolute braking reliability. The SEMIX353GB126V1, integrated into regenerative drive systems, ensures controlled deceleration and energy recovery during descent cycles. Its thermal monitoring via NTC thermistor allows the drive controller to initiate protective derating before junction temperatures reach critical thresholds — preventing hoist runaway scenarios.
Water & Wastewater Treatment: Municipal water treatment facilities rely on continuous pump operation. IGBT modules in VFD systems controlling high-capacity centrifugal pumps must withstand 24/7 duty cycles and occasional voltage sags from utility switching. The SEMIX353GB126V1’s robust thermal design and high surge current capability (ICRM) ensure uninterrupted pump operation even during grid disturbance events.
Metallurgy & Steel Rolling Mills: Rolling mill main drives operate under extreme load cycling, with frequent acceleration and deceleration demands. The SEMIX353GB126V1’s low VCE(sat) minimizes conduction losses during high-current phases, reducing heatsink thermal load and extending the service interval between preventive maintenance cycles in these high-throughput production environments.
Port Crane & Container Handling: Port cranes require precise torque control and regenerative braking across wide speed ranges. The SEMIX353GB126V1 in a four-quadrant drive configuration delivers smooth, jerk-free load handling while feeding regenerated energy back to the DC bus — reducing energy consumption and mechanical stress on crane structural components.
Safety and Quality FAQ
Q1: What does the 12-month warranty cover?
The 12-month warranty covers all manufacturing defects and functional failures occurring under rated operating conditions (voltage, current, temperature, and gate drive parameters as specified in the SEMIKRON datasheet). Warranty claims are supported with replacement or equivalent substitution. Units damaged by incorrect gate drive voltage, over-voltage beyond VCE rating, or improper mounting are excluded from warranty coverage.
Q2: What pre-shipment testing is performed on each unit?
Every SEMIX353GB126V1 unit undergoes a multi-point functional inspection prior to dispatch, including collector-emitter saturation voltage (VCE(sat)) measurement, gate threshold voltage (VGE(th)) verification, NTC thermistor resistance check, and visual inspection for baseplate flatness and terminal integrity. Test records are available upon request for quality-critical procurement processes.
Q3: Is the SEMIX353GB126V1 compatible with third-party gate drivers and heatsinks?
Yes. The SEMiX standard footprint is compatible with a wide range of third-party heatsink assemblies and gate driver boards that support 1200V-class IGBT modules with standard gate resistor configurations (RG(on) / RG(off) per datasheet recommendation). We recommend verifying gate drive output voltage (typically +15V / -8V) and short-circuit protection response time against SEMIKRON’s application notes before commissioning.
Q4: Can long-term supply continuity be guaranteed for this module?
SMARTNEXMSK maintains dedicated stock of the SEMIX353GB126V1 and its functional equivalents to support ongoing MRO (Maintenance, Repair & Operations) procurement. For OEM customers requiring scheduled delivery programs or consignment stock arrangements, please contact our sales team to discuss framework agreements that ensure uninterrupted supply for your production or service operations.
