Semikron SKKT106/16E Spare for SEMIPACK 2 Automation: Spare Replacement & Industrial Downtime Risk Control

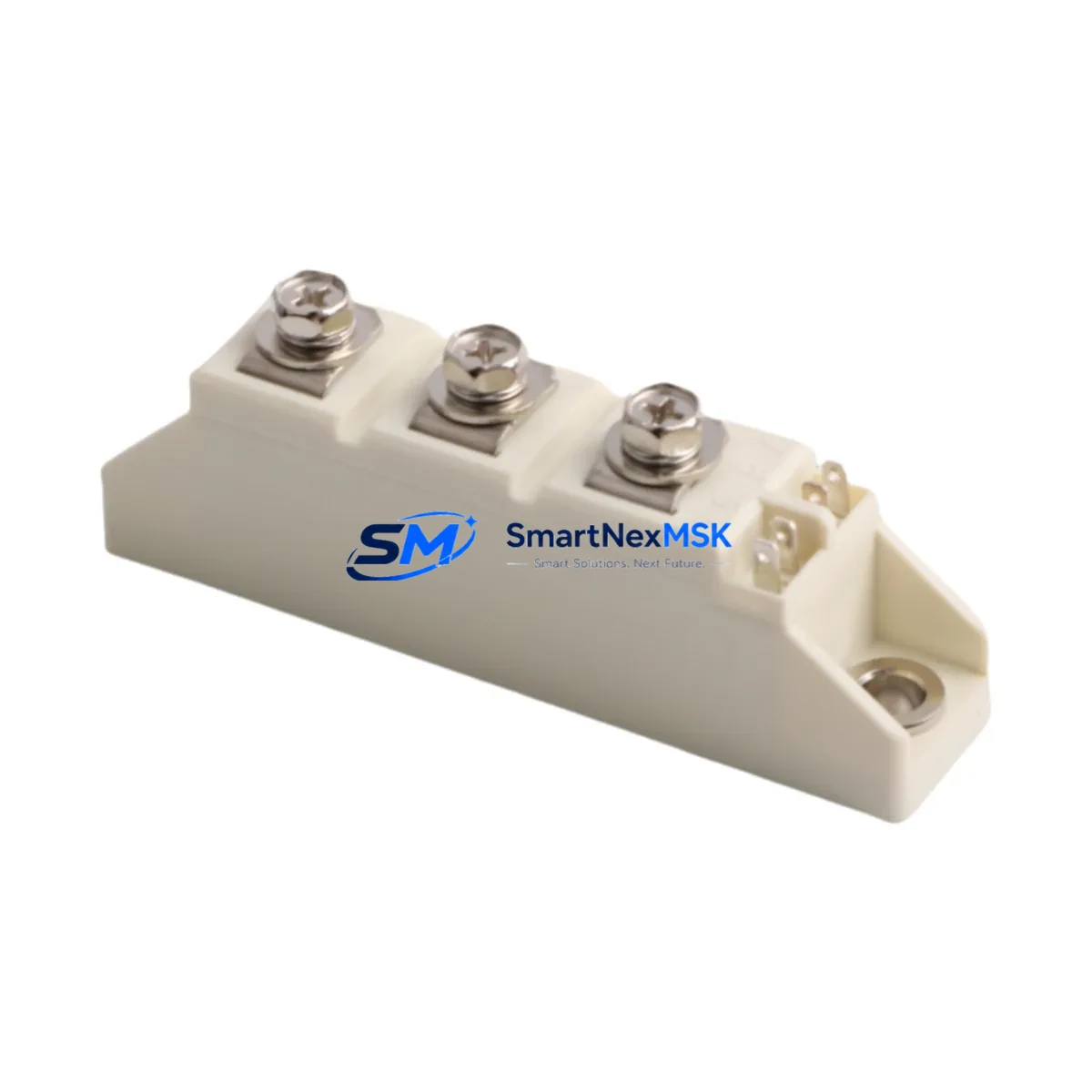

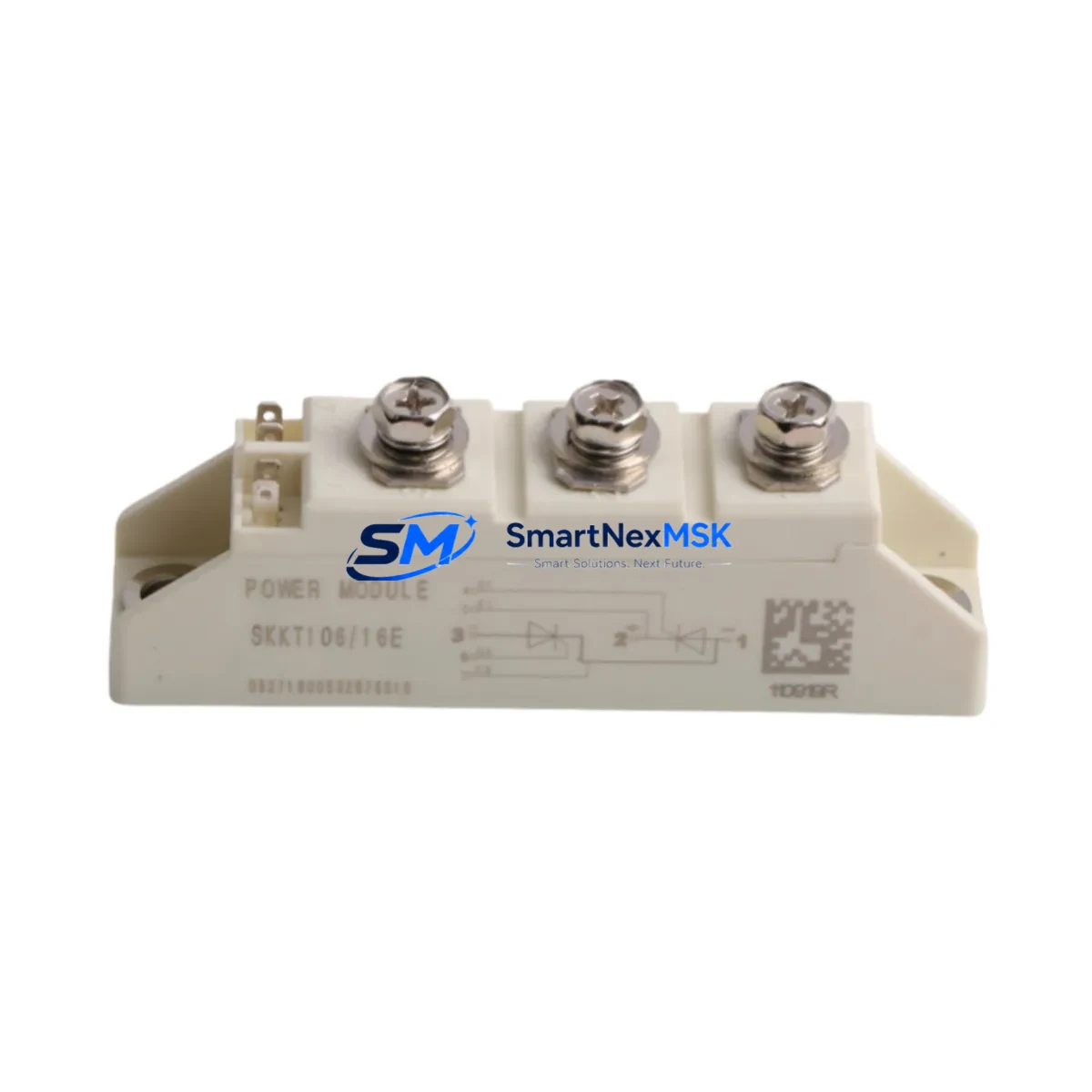

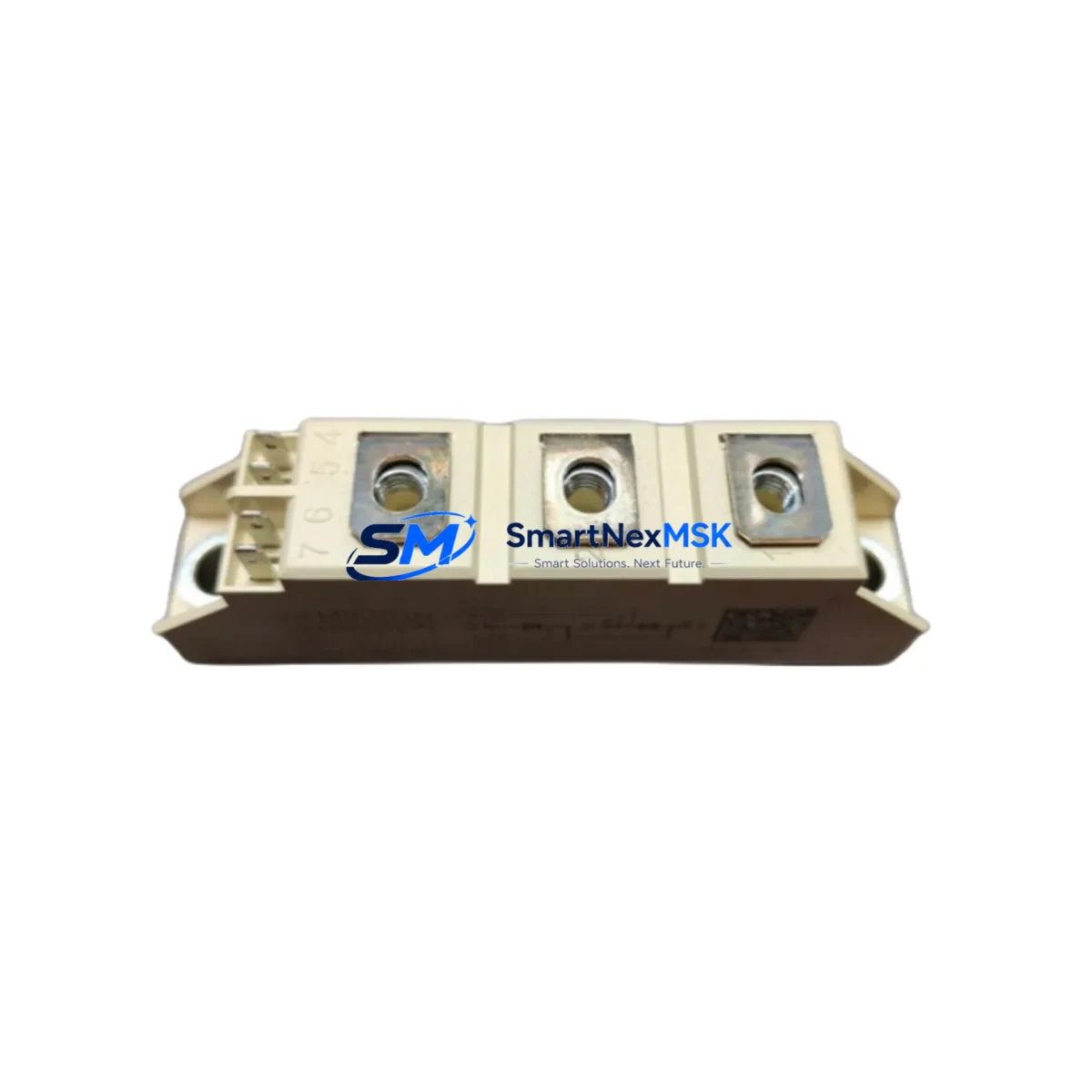

The Semikron SKKT106/16E is a SEMIPACK 2 format SCR-Diode thyristor power module rated at 1600V repetitive peak reverse voltage and 106A average on-state current. Designed for demanding industrial AC/DC converter, soft-starter, and drive rectifier applications, this module is a critical component in aging power conversion systems where unplanned downtime carries significant operational cost. Sourced as an original Semikron spare, each SKKT106/16E unit is tested prior to dispatch and backed by a 12-month warranty, ensuring maintenance engineers and procurement teams can stock with confidence.

For maintenance engineers managing legacy drive cabinets, the SKKT106/16E is frequently found in three-phase bridge rectifier assemblies alongside companion modules such as the SKKT57/16E and SKKT92/16E — all sharing the SEMIPACK 2 footprint and compatible mounting geometry. When replacing the SKKT106/16E, it is best practice to simultaneously inspect the full rectifier bridge, including any parallel or series-connected thyristor-diode pairs, gate trigger boards, and snubber RC networks mounted on the same heatsink assembly.

Procurement engineers sourcing this module for planned maintenance or emergency replacement should note that the SKKT106/16E is interchangeable with equivalent SEMIPACK 2 modules from the same current class, provided gate trigger compatibility and thermal interface specifications are verified. Stocking one or two units per drive cabinet in the spare parts inventory is a widely adopted strategy in continuous-process industries where a single rectifier failure can halt an entire production line.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A structured maintenance plan for systems using the SKKT106/16E should extend beyond the module itself. During scheduled cabinet inspections or following a rectifier fault, maintenance engineers should evaluate the following associated components to prevent repeat failures and ensure full system restoration:

Gate Trigger and Control Circuit: The gate pulse board or firing card driving the SKKT106/16E — often a Semikron SKGE or equivalent trigger unit — should be checked for output pulse integrity. A degraded trigger card can cause asymmetric firing and accelerate thyristor wear even after a new module is installed.

DC Bus Fuses and AC Input Fuses: Semiconductor fuses rated for the SKKT106/16E’s current class (typically gR or aR type, 125–160A) should be inspected and replaced if there is any evidence of thermal stress or prior overcurrent event. Fuse holders and busbars should also be checked for contact resistance.

Snubber Networks: RC snubber circuits mounted across each thyristor position protect against dV/dt-induced false triggering. Capacitor ESR and resistor values should be verified, particularly in systems with high switching transients.

Heatsink and Thermal Interface: The SEMIPACK 2 heatsink must be cleaned and re-coated with fresh thermal compound when the SKKT106/16E is replaced. Heatsink fin condition and cooling fan operation (if forced-air cooled) should be confirmed before recommissioning.

Current Transformers and Feedback Sensors: Hall-effect current sensors or wound CTs monitoring DC output current should be calibrated and verified. Incorrect current feedback can cause the control system to misinterpret load conditions post-replacement.

Terminal Blocks and Power Wiring: Inspect all power terminals on the rectifier assembly — including AC input lugs, DC output busbars, and gate/cathode signal wiring — for signs of overheating, loose connections, or insulation degradation. Torque all connections to specification after module replacement.

Soft-Starter or Drive Control Board: In soft-starter applications, the main control PCB should be checked for fault history logs. If the SKKT106/16E failed due to an overvoltage or overcurrent event, the root cause may lie in the control board’s protection response time or parameter settings.

Varistors and Overvoltage Protection: MOV varistors or TVS devices on the AC input side should be inspected for physical damage. These components absorb voltage spikes that would otherwise stress the thyristor module and are often overlooked during reactive maintenance.

Site Replacement Workflow

Step 1 — Isolation and Lockout/Tagout: De-energize the drive or converter cabinet, apply LOTO, and verify zero voltage on DC bus capacitors using a calibrated meter before opening the rectifier assembly.

Step 2 — Module Removal: Disconnect gate and cathode signal leads, remove AC and DC power connections, and unbolt the SKKT106/16E from the heatsink. Note the torque marks and wiring positions for reference during reinstallation.

Step 3 — Heatsink Preparation: Clean the heatsink contact surface, remove old thermal compound, and inspect for warping or corrosion. Apply a thin, even layer of fresh thermal interface material.

Step 4 — New Module Installation: Mount the replacement SKKT106/16E to the heatsink, torque M6 bolts to the manufacturer’s specification (typically 3–4 Nm), and reconnect all power and signal leads in the correct polarity and sequence.

Step 5 — Pre-Power Verification: Before energizing, perform a continuity check on gate-cathode connections, verify fuse integrity, and confirm snubber circuit connections. Use a thyristor tester or curve tracer if available.

Step 6 — Commissioning and Load Test: Energize the system under no-load conditions first, monitor DC output voltage waveform for symmetry across all six pulses (in a three-phase bridge), then gradually apply load while monitoring module temperature and current balance.

This workflow minimizes recommissioning risk and ensures the replacement SKKT106/16E is operating within its rated parameters before returning the system to full production duty.

Spare Parts Support FAQ

Q1: Is the SKKT106/16E still in production, and can I source it for long-term maintenance contracts?
The SKKT106/16E is a mature Semikron SEMIPACK 2 product. While production status may vary, we maintain stock of original units to support long-term maintenance contracts and aging system life extension programs. Contact us to discuss volume availability and scheduled delivery arrangements.

Q2: How do I verify compatibility before installing the replacement module?
Confirm that the replacement SKKT106/16E matches the original in voltage class (1600V), current rating (106A), package format (SEMIPACK 2), and gate trigger requirements. Cross-reference the existing module’s datasheet markings and verify gate driver output current against the IGT specification. If the original module has a different suffix or date code, contact our technical team for compatibility confirmation before installation.

Q3: What pre-shipment testing is performed on each SKKT106/16E unit?
Each unit undergoes forward voltage drop measurement, gate trigger current verification, and reverse leakage current testing prior to dispatch. Units that do not meet Semikron datasheet parameters are rejected. A test report is available upon request for critical applications.

Q4: What does the 12-month warranty cover, and how is a warranty claim handled?
The 12-month warranty covers manufacturing defects and parametric failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events beyond rated VRRM, or operation outside specified thermal limits. To initiate a warranty claim, contact our support team with the order reference, installation date, and a description of the failure mode. Replacement or credit will be arranged promptly upon verification.
