SICK LMS511-10100 1046135 Retrofit-Ready 2D LiDAR for LMS5xx

SICK LMS511-10100 1046135 Retrofit-Ready 2D LiDAR for LMS5xx Control Systems

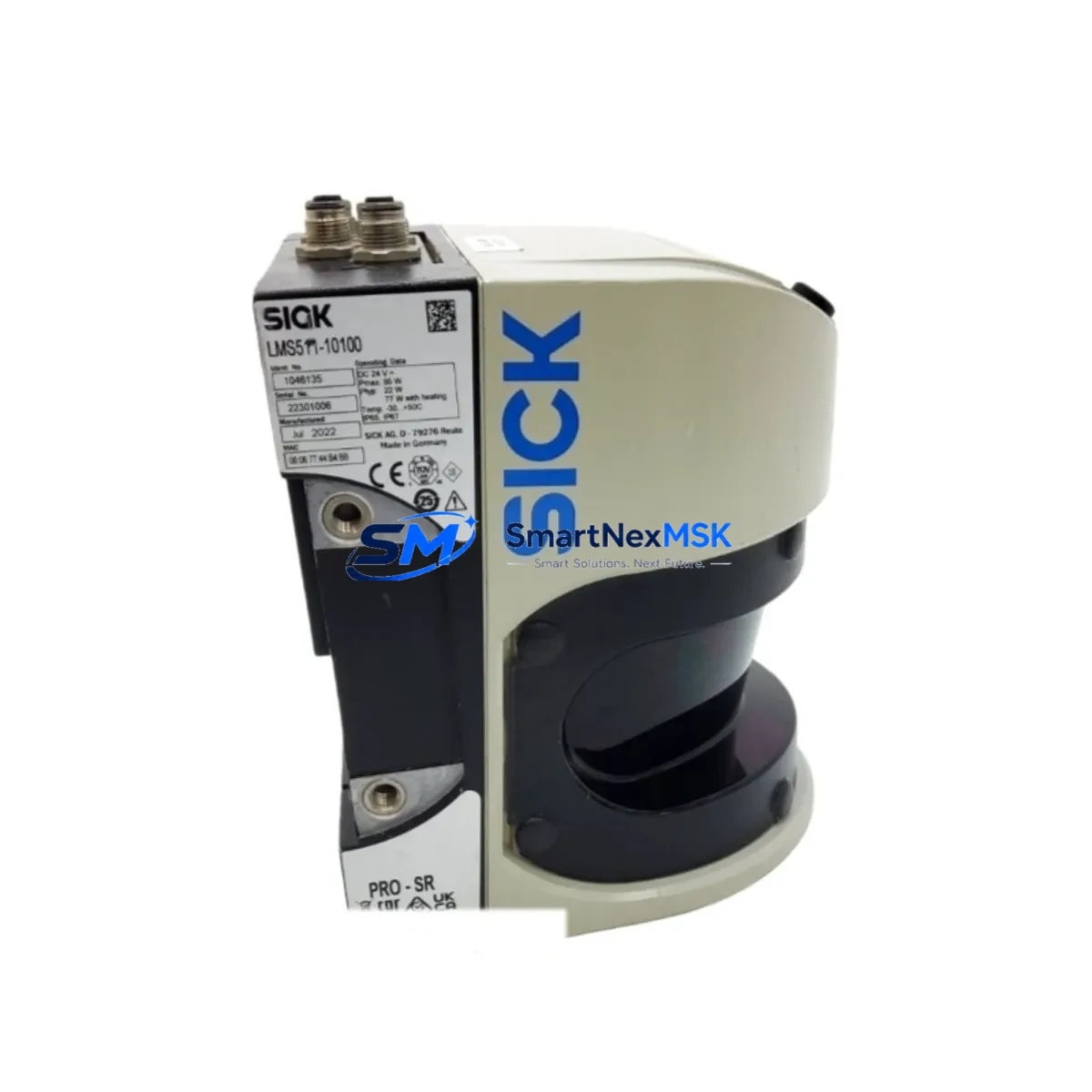

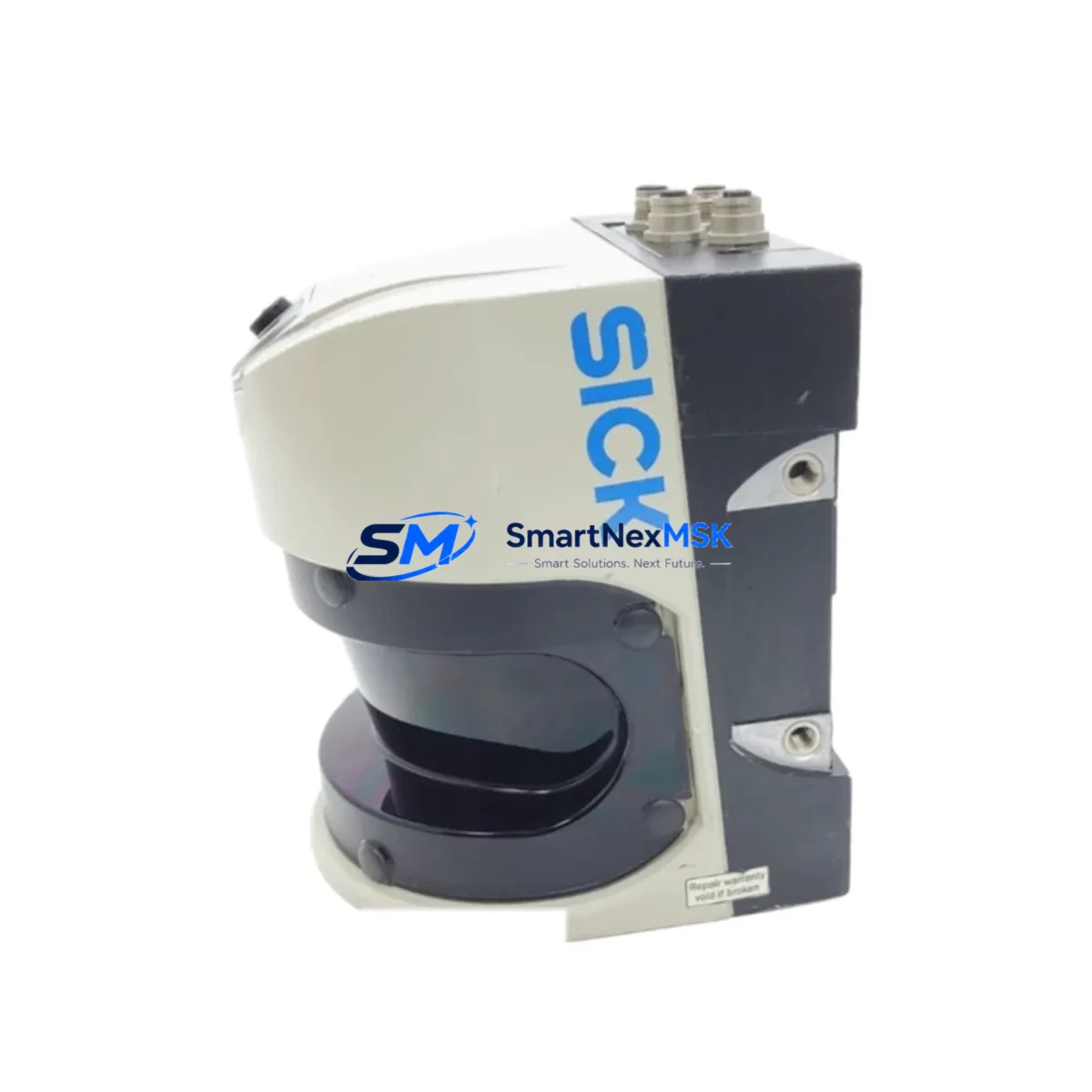

The SICK LMS511-10100 (Part No. 1046135) is a high-performance 2D LiDAR scanning sensor engineered for seamless retrofit into existing LMS5xx-series automation environments. With a 190° scanning angle, 80-meter detection range, and IP67-rated enclosure, this unit is purpose-built for demanding industrial applications including automated guided vehicles (AGVs), perimeter monitoring, collision avoidance, and process control in harsh factory or logistics environments.

For maintenance engineers and procurement teams managing aging LMS5xx installations, the LMS511-10100 represents the most direct upgrade path — preserving existing mounting geometry, Ethernet/EtherNet IP communication interfaces, and SOPAS ET configuration compatibility. Whether you are replacing a failed LMS511-10100 PRO, retiring an end-of-life LMS500-13000, or modernizing a legacy scanning zone layout, this unit delivers a validated drop-in solution with minimal re-engineering overhead.

Every unit shipped by SMARTNEXMSK undergoes pre-delivery functional testing covering laser output verification, angular resolution calibration, communication link establishment, and IP67 seal integrity. A 12-month warranty is included as standard, with documented test records available upon request.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful LMS511-10100 retrofit begins well before the unit arrives on site. Maintenance engineers should audit the existing control cabinet and sensor wiring harness to confirm that the M12 8-pin connector pinout matches the replacement unit — SICK’s standard LMS5xx cable assembly (e.g., the SICK DOL-1204-G02M cable) is typically reusable, but connector condition and shielding integrity should be verified, particularly in high-vibration or high-humidity environments.

Power supply capacity is a critical checkpoint. The LMS511-10100 draws up to 30 W at startup; confirm that the 24 VDC rail — often sourced from a SICK PLS or a third-party DIN-rail power supply such as a Phoenix Contact QUINT or WAGO 787 series — can sustain this load without voltage sag that could trigger false resets. If the cabinet also powers a SICK S3000 safety laser scanner or a Pepperl+Fuchs RL31 photoelectric sensor on the same rail, load balancing should be recalculated.

On the communication side, the LMS511-10100 connects via Ethernet. If the existing system routes sensor data through a managed switch — such as a Hirschmann SPIDER or a Cisco IE series — verify that the port is configured for the correct VLAN and that the IP address scheme does not conflict with other devices on the network. For systems using RS-232 legacy links to a Siemens S7-300 or S7-400 PLC, a protocol bridge or updated communication module may be required before migration to Ethernet-native operation.

Where the LMS511-10100 feeds zone data into a safety PLC or a Pilz PNOZ safety relay, the zone configuration file must be re-validated after replacement. SOPAS ET allows export and re-import of zone sets, which significantly reduces re-commissioning time. Engineers should also confirm that any connected HMI panel — such as a Siemens TP700 Comfort or a Weintek MT8000 series — correctly reflects the updated sensor status tags after the swap.

For AGV or conveyor applications where the scanner integrates with a B&R Automation PC or a Beckhoff CX series controller via EtherNet/IP, the EDS file for the LMS511-10100 should be pre-loaded into the controller’s I/O configuration before the physical swap to minimize downtime during cutover.

Downtime Control During System Migration

Minimizing production downtime during an LMS511-10100 replacement requires a structured pre-swap preparation protocol. Before powering down the existing scanner, use SOPAS ET to export the full device configuration — including scan frequency, angular resolution, filter settings, and all defined measurement fields and zone sets. Store this configuration file in a version-controlled location accessible to the commissioning engineer on site.

During the physical swap, label all cable connections before disconnection. The M12 connector on the LMS511-10100 is keyed, but documenting the cable routing and any cable management clips prevents reassembly errors that extend downtime. If the unit is mounted at height or in a confined cabinet, pre-stage the replacement unit with its IP address pre-configured via a laptop running SOPAS ET before installation.

After mechanical installation and cable reconnection, power up the unit and verify the Ethernet link LED before launching SOPAS ET. Import the saved configuration file, confirm that all zone sets are correctly loaded, and run a live scan verification against known reference targets in the field of view. For safety-rated applications, a formal zone re-validation and sign-off procedure is required before returning the system to automatic operation.

Where the LMS511-10100 is part of a redundant scanning architecture — common in high-throughput logistics sortation systems — the secondary scanner can maintain coverage during the swap, reducing the effective downtime window to the re-commissioning and validation phase only. This approach is strongly recommended for 24/7 operations where even brief scanning gaps carry production risk.

Retrofit Support FAQ

Q1: Is the LMS511-10100 (1046135) a direct drop-in replacement for the LMS511-10100 PRO or LMS500-13000?
A: The LMS511-10100 shares the same mounting footprint and M12 connector standard as other LMS5xx-series units, making it mechanically compatible in most installations. However, firmware version and zone configuration must be re-validated using SOPAS ET after installation. Communication protocol settings (CoLa A/B, Ethernet IP address) must also be reconfigured to match the existing system. SMARTNEXMSK can provide pre-configuration support upon request.

Q2: What pre-shipment testing does SMARTNEXMSK perform on the LMS511-10100?
A: Every unit undergoes functional testing covering laser output, angular scan verification, Ethernet communication link establishment, and IP67 enclosure integrity. Test records are available upon request. Units are shipped with protective packaging to prevent transit damage to the optical window.

Q3: Can the existing SOPAS ET zone configuration be reused after replacement?
A: Yes. SOPAS ET supports full configuration export and import between compatible LMS5xx devices. Export the configuration from the outgoing unit before removal, then import it to the replacement LMS511-10100 after installation. Minor parameter adjustments may be required if the firmware version differs. SMARTNEXMSK recommends testing all zone outputs against reference targets before returning the system to production.

Q4: What is the warranty coverage and what does it include?
A: All LMS511-10100 units supplied by SMARTNEXMSK carry a 12-month warranty from the date of shipment. Coverage includes defects in materials and workmanship under normal operating conditions. Warranty claims are supported with replacement or repair, subject to inspection. Extended support and long-term supply agreements are available for fleet operators and OEM integrators managing multiple LMS5xx installations.
