Westinghouse 5X00062G01 Spare for Ovation Automation

Westinghouse 5X00062G01 Spare for Ovation Automation: Spare Replacement & Industrial Downtime Risk Control

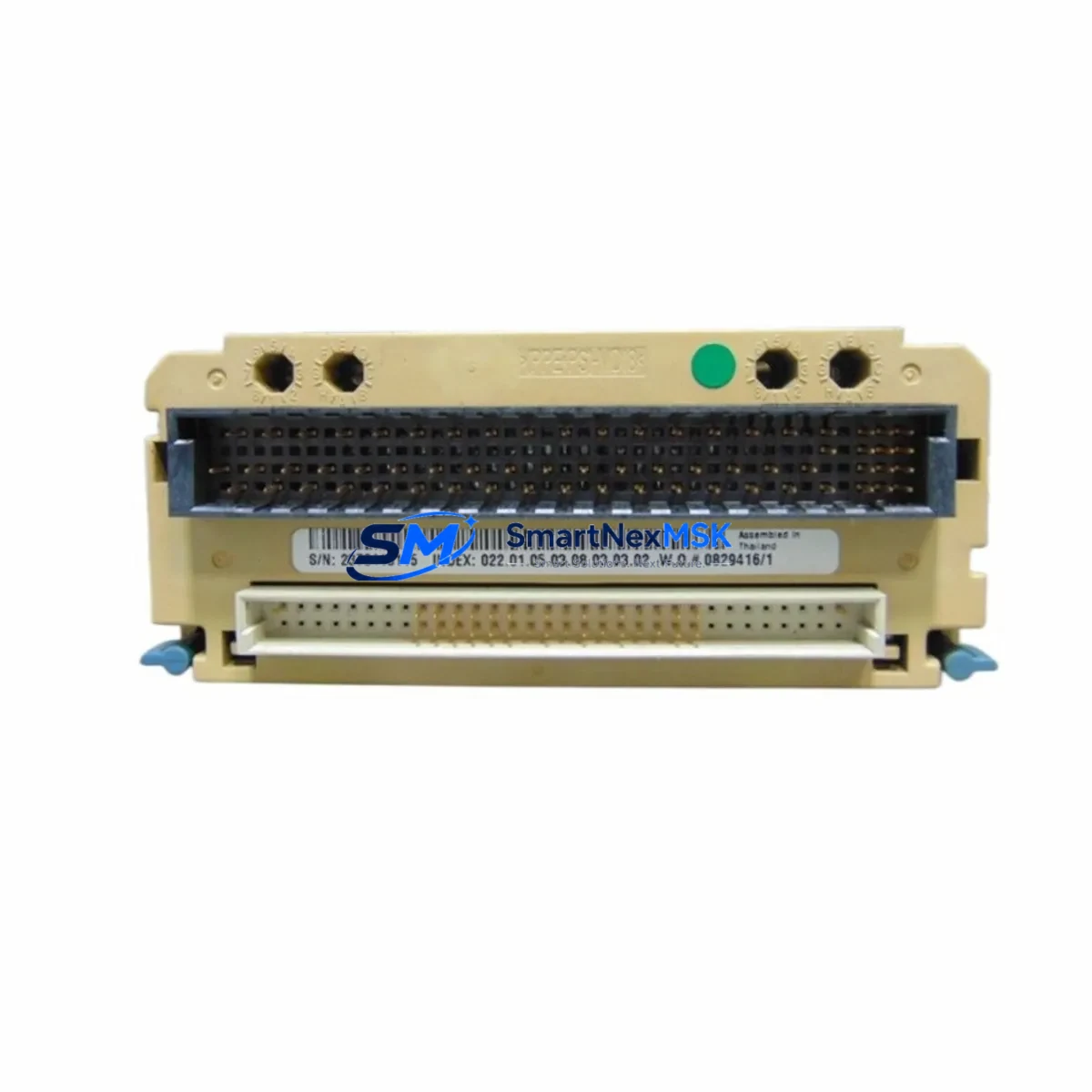

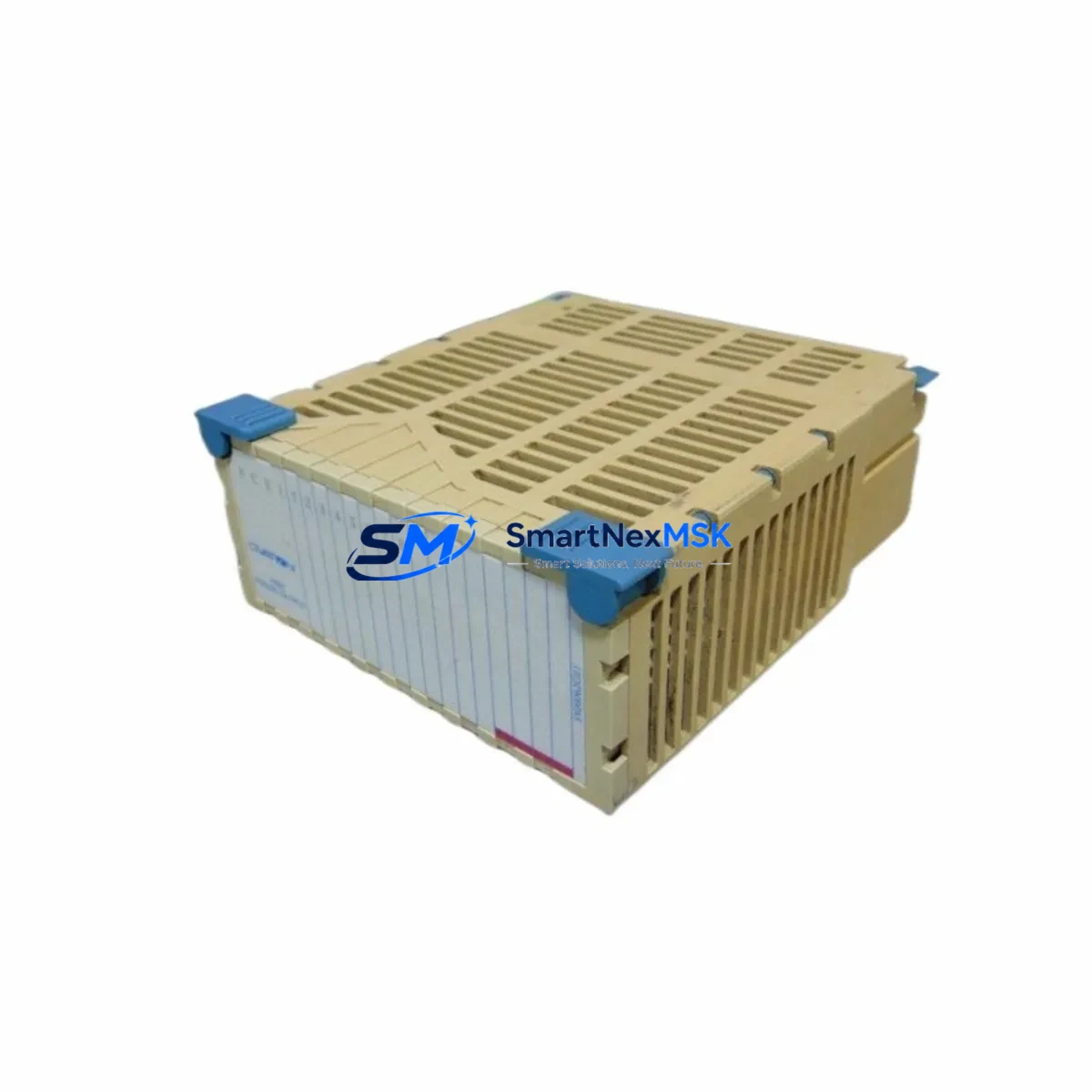

The Westinghouse 5X00062G01 is an original HART-compatible Analog Output Module designed for the Ovation Distributed Control System (DCS) platform. As a critical I/O component in continuous process control environments — including power generation, chemical processing, and heavy industrial facilities — this module governs 4–20 mA analog output signals to field devices such as control valves, positioners, and variable frequency drives. When this module fails or degrades, the consequences extend beyond a single loop: entire control strategies can be disrupted, leading to unplanned shutdowns, process deviations, and costly emergency procurement.

Sourced directly from authorized supply chains and tested prior to dispatch, the 5X00062G01 offered by SMARTNEXMSK is an original-grade spare backed by a 12-month warranty. Each unit undergoes pre-shipment functional verification to confirm signal integrity, channel isolation, and HART communication compliance before leaving our facility.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 5X00062G01 in an Ovation DCS cabinet is rarely an isolated task. Maintenance engineers and procurement specialists working on Ovation-based systems should treat this module replacement as an opportunity to audit the surrounding electrical and control infrastructure. A systematic inspection during planned or emergency maintenance significantly reduces the risk of repeat failures and secondary faults.

Begin with the Ovation I/O backplane and chassis slot connectors. Oxidized or loose backplane contacts are a common root cause of intermittent analog output faults that are misdiagnosed as module failures. Inspect the Ovation Controller Module (such as the OCR400 or OCR1100 series) for firmware currency and communication health — a degraded controller can cause erratic behavior across all connected I/O modules, including the 5X00062G01.

Check the 24 VDC power supply module feeding the I/O subsystem. Voltage ripple or marginal output from an aging power supply can corrupt HART communication frames and cause false diagnostics on analog output channels. If the cabinet houses a redundant power supply pair, verify automatic switchover functionality during this maintenance window.

Inspect all field terminal blocks and marshalling panels connected to the 5X00062G01 output channels. Loose terminations, corroded screw terminals, or undersized cable cross-sections introduce loop resistance that distorts 4–20 mA signals. For HART-enabled loops, verify that HART multiplexers or HART modems in the signal path are functioning correctly and that loop impedance falls within the HART specification (230–1100 Ω).

Review the status of adjacent Analog Input Modules (such as the 5X00063G01 or equivalent Ovation AI modules) that share the same I/O chassis. A failing AI module can generate bus contention that affects neighboring AO modules. Similarly, inspect any Digital Output Modules in the same cabinet for relay contact wear or coil degradation — these often share the same 24 VDC distribution rail as the analog I/O subsystem.

For systems with signal isolators or loop-powered isolators between the DCS output and field devices, confirm that isolator output ranges and burden voltage specifications remain compatible with the 5X00062G01 output drive capability. Aging isolators with drifted calibration are a frequent source of valve positioning errors that are incorrectly attributed to the AO module itself.

Finally, if the Ovation system includes a communication gateway or OPC server for integration with plant historians or SCADA systems, verify that the gateway configuration reflects the correct module slot assignments after replacement. Incorrect slot mapping can cause the historian to log stale or zero values even after a successful module swap.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Confirm the failed module’s slot address in the Ovation Workstation configuration tool. Document all active HART device descriptors and loop calibration data for the affected channels before powering down.

Step 2 — Safe isolation: Place all output loops in manual mode at the DCS operator station. Notify field operators to monitor control valves and actuators during the replacement window. De-energize the I/O chassis slot using the appropriate Ovation hot-swap procedure if supported, or perform a controlled cabinet power-down for non-hot-swap configurations.

Step 3 — Module swap: Remove the 5X00062G01 by releasing the module locking lever and sliding it from the backplane slot. Insert the replacement module, ensuring full backplane connector engagement. The Ovation system will automatically detect the new module and restore configuration from the controller database — no manual re-parameterization is required for standard replacements.

Step 4 — Loop verification: Return each output channel to automatic mode sequentially. Use a HART communicator or the Ovation HART pass-through function to verify device communication on each channel. Confirm 4–20 mA output accuracy against the engineering range using a calibrated loop calibrator.

Step 5 — Documentation: Update the maintenance management system (CMMS) with the replacement date, new module serial number, and post-replacement loop test results. Schedule the next inspection interval based on the site’s preventive maintenance program.

This workflow minimizes downtime to under two hours for a single-module replacement in a well-prepared Ovation cabinet, compared to multi-day delays when sourcing emergency replacements through OEM channels.

Spare Parts Support FAQ

Q1: Is the 5X00062G01 a direct drop-in replacement for all Ovation DCS revisions?
The 5X00062G01 is compatible with standard Ovation I/O subsystem backplanes across multiple Ovation platform generations. However, customers should confirm the Ovation Workstation software version and I/O subsystem hardware revision before ordering, as certain early-generation Ovation cabinets may require a specific module variant. Our technical team can assist with compatibility verification based on your system’s controller model and I/O chassis part number.

Q2: What pre-shipment testing does SMARTNEXMSK perform on the 5X00062G01?
Each 5X00062G01 unit is functionally tested prior to dispatch. Testing includes power-on self-test verification, analog output channel accuracy check across the 4–20 mA range, HART communication protocol handshake confirmation, and channel isolation resistance measurement. A test report is available upon request for quality-critical procurement processes.

Q3: How should the 5X00062G01 be stored as a long-term cabinet spare?
Store the module in its original anti-static packaging in a climate-controlled environment (10°C–40°C, <85% RH non-condensing). Avoid storage near strong electromagnetic fields or corrosive atmospheres. For long-term inventory (12+ months), perform a power-on functional check annually to confirm module health before committing it to a critical spare slot. SMARTNEXMSK recommends maintaining at least one cold spare per Ovation cabinet with active HART AO loops.

Q4: What is covered under the 12-month warranty?
The 12-month warranty covers manufacturing defects, functional failures under normal operating conditions, and HART communication faults attributable to the module itself. It does not cover damage resulting from incorrect installation, overvoltage events, or use outside the specified environmental range. Warranty claims are processed with a target replacement dispatch within 5 business days of fault confirmation. Contact [email protected] with your order number and fault description to initiate a warranty claim.
