WOODWARD 5136-PFB-VME Spare for VME Series Automation

WOODWARD 5136-PFB-VME Maintenance-Ready Spare for VME Series Automation

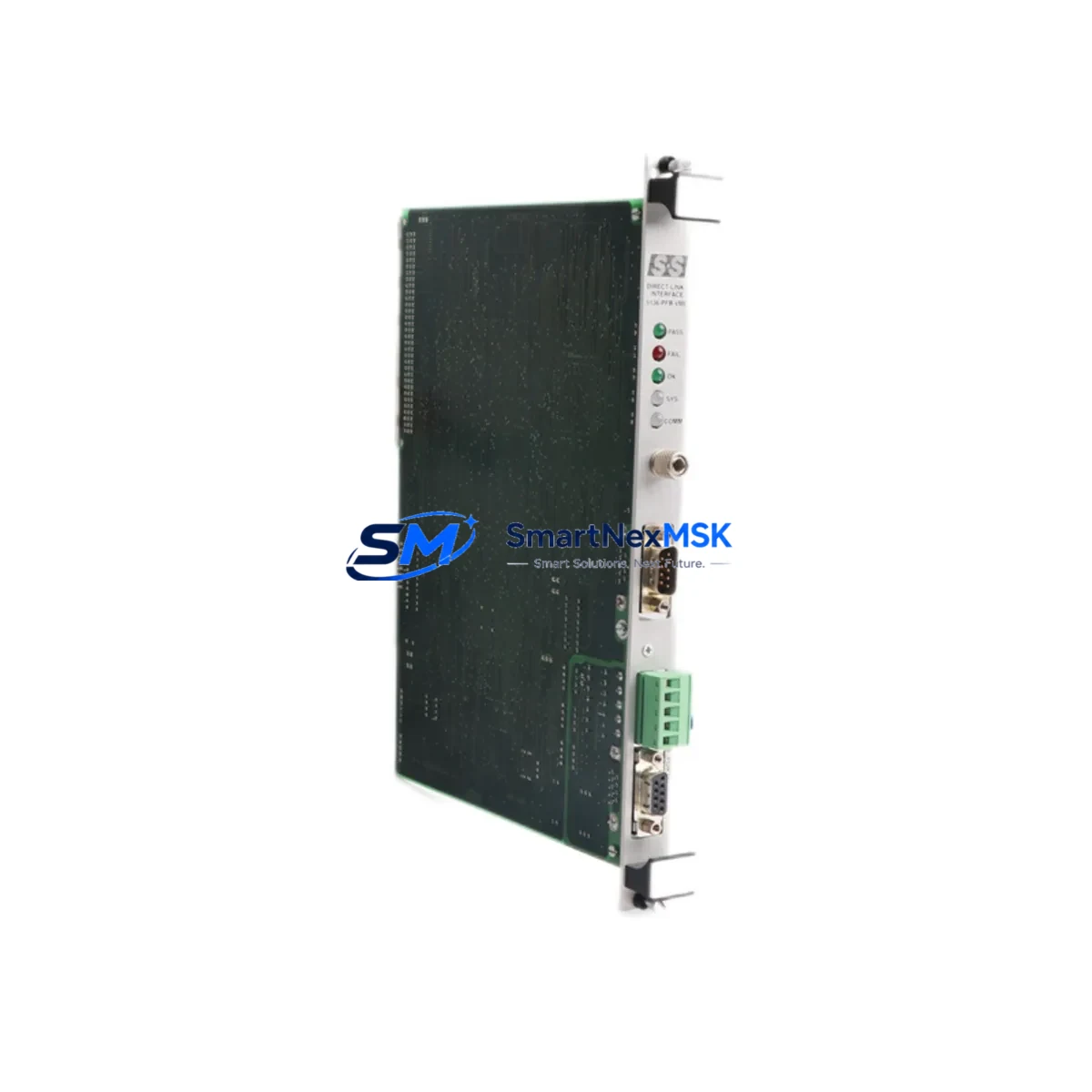

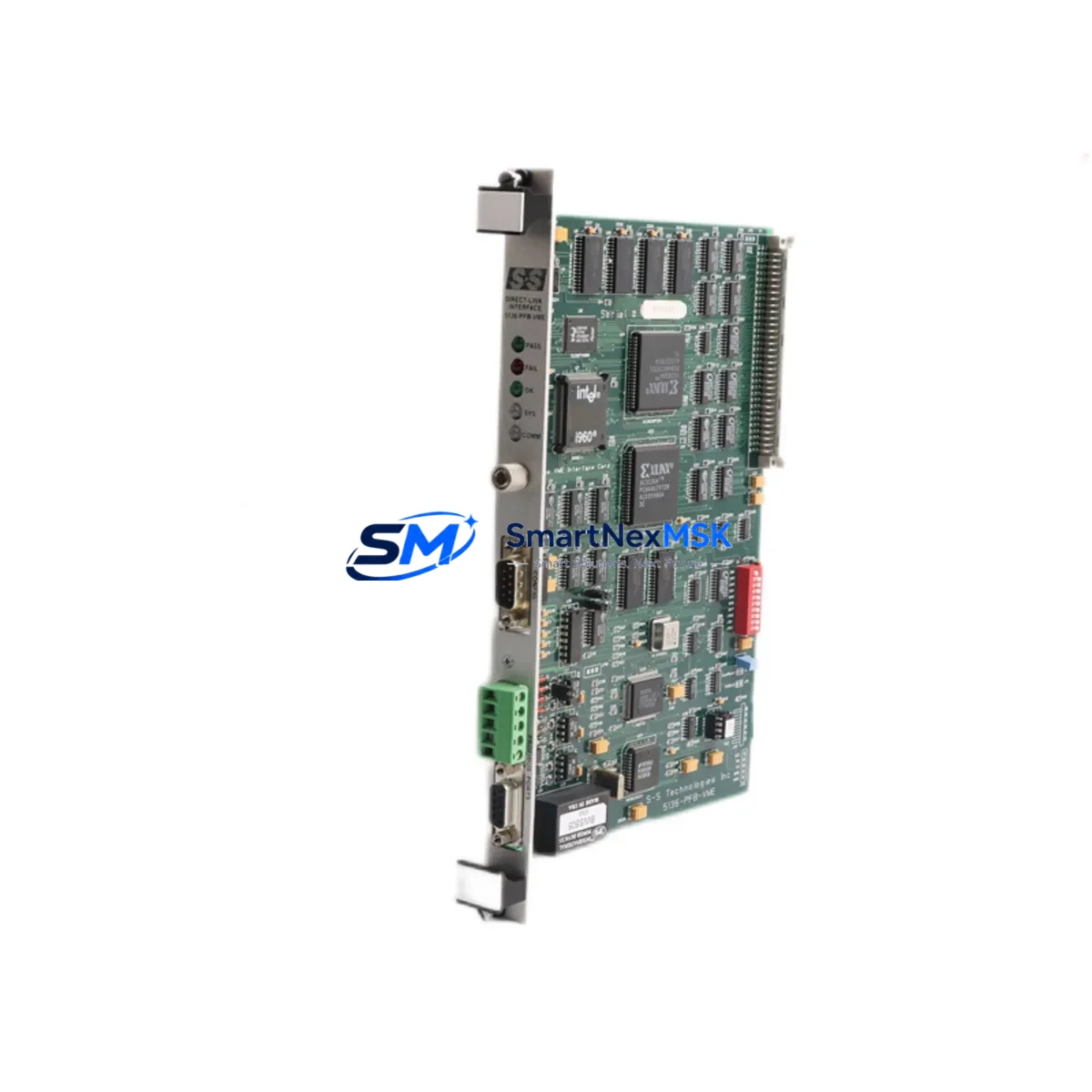

The WOODWARD 5136-PFB-VME is an original Profibus DP interface card designed for VME-bus-based industrial control architectures. In turbine control, power generation, and process automation environments, this card serves as the critical communication bridge between the WOODWARD NetCon or MicroNet control platform and field-level Profibus DP networks. When this card fails or degrades, the entire control loop — including governor response, load sharing, and protective relay coordination — is at risk of interruption. Maintaining a verified spare of the 5136-PFB-VME in your critical spare inventory is a fundamental element of any responsible maintenance strategy for WOODWARD VME-based systems.

For maintenance engineers managing turbine control panels, generator protection cabinets, or compressor automation skids, the 5136-PFB-VME replacement workflow must be executed with precision. Before pulling the card, confirm that the Profibus DP segment is properly terminated and that all slave device addresses are documented. After installation, verify DP baud rate configuration, GSD file compatibility, and master/slave address assignments. A rushed replacement without these checks can introduce communication faults that are harder to diagnose than the original card failure.

Procurement engineers sourcing this card should confirm the firmware revision level against the installed WOODWARD software version. The 5136-PFB-VME has been used across multiple generations of WOODWARD control platforms, and revision mismatches — while rare — can cause initialization failures. Our stock is sourced from verified industrial channels, individually tested prior to shipment, and backed by a 12-month warranty covering functional performance under normal operating conditions.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A structured maintenance plan for any WOODWARD VME-based control system must extend well beyond the 5136-PFB-VME itself. During a planned outage or control cabinet inspection, maintenance teams should simultaneously evaluate the condition of the VME backplane and its power distribution rails, since a degraded backplane can cause intermittent card faults that are misdiagnosed as Profibus communication errors. The WOODWARD 5501-470 or equivalent VME power supply module should be checked for output voltage stability and ripple, as undervoltage conditions are a leading cause of premature interface card failure.

On the Profibus DP segment, inspect the bus termination resistors at both ends of the cable run — improper termination is the most common source of DP communication instability in aging installations. The Profibus cable itself, particularly in high-vibration environments such as turbine enclosures, should be inspected for shield continuity and connector integrity. If the system uses a Profibus repeater to extend segment length, that repeater should be treated as a co-critical spare alongside the 5136-PFB-VME.

Within the same control cabinet, the WOODWARD MicroNet or NetCon CPU module, analog I/O cards, and digital I/O modules should be assessed for signs of capacitor aging, corrosion on edge connectors, or thermal stress marks. Speed and load reference signals passing through signal isolators or signal conditioners between the control system and field transmitters should be verified for accuracy drift. If the installation includes a WOODWARD 2301A or 505 digital governor, the serial communication link between the governor and the VME system should be tested for error counts.

For HMI-connected systems, the operator interface panel — whether a dedicated WOODWARD display or a third-party SCADA terminal — should be confirmed to maintain correct tag mapping after the 5136-PFB-VME is replaced, since Profibus address changes can silently corrupt HMI data bindings. Fuse holders and miniature circuit breakers protecting the 24 VDC control power rail feeding Profibus slave devices should also be inspected and load-tested during the same maintenance window.

Site Replacement Workflow

Step 1 — Pre-replacement documentation: Record all Profibus DP slave addresses, baud rate settings, and GSD file versions currently active on the segment served by the 5136-PFB-VME. Export or photograph the current WOODWARD configuration tool project file.

Step 2 — Safe isolation: Place the turbine or process unit in a safe hold state per your site’s lockout/tagout procedure. De-energize the VME chassis following the WOODWARD system manual sequence to avoid backplane transients.

Step 3 — Card extraction: Remove the 5136-PFB-VME using ESD precautions. Inspect the VME slot connector for bent pins or contamination before inserting the replacement card.

Step 4 — Replacement installation: Insert the new 5136-PFB-VME, confirm firmware revision compatibility, and restore Profibus DP configuration parameters. Re-enable bus termination if the card position is at a segment endpoint.

Step 5 — Commissioning verification: Power up the VME chassis and confirm all Profibus DP slaves return to active status. Verify governor response, I/O scan rates, and HMI data integrity before returning the unit to service.

This workflow minimizes downtime and eliminates the most common post-replacement faults. Systems that follow a documented replacement procedure consistently achieve faster return-to-service times compared to ad hoc replacements.

Spare Parts Support FAQ

Q: What is the warranty coverage for the WOODWARD 5136-PFB-VME supplied by SMARTNEXMSK?
A: All units carry a 12-month warranty covering functional performance under normal industrial operating conditions. Each card is individually tested and inspected before shipment in ESD-safe packaging.

Q: How do I confirm compatibility between the 5136-PFB-VME and my installed WOODWARD control platform?
A: Provide your WOODWARD system model number (e.g., NetCon 5000, MicroNet Plus, 505E) and the existing card’s firmware label. Our technical team will cross-reference against known compatible revisions before shipment.

Q: Can this card replace older or discontinued WOODWARD Profibus VME interface variants?
A: In most cases, yes. The 5136-PFB-VME is the standard Profibus DP VME interface across multiple WOODWARD platform generations. Confirm slot position, backplane revision, and DP configuration before substitution in legacy installations.

Q: What is the recommended spare inventory strategy for critical WOODWARD VME systems?
A: For systems with no redundant communication path, we recommend holding a minimum of one 5136-PFB-VME on-site as a cold spare, with a second unit available through a qualified supplier with a confirmed lead time under 72 hours. Annual functional testing of the on-site spare is advised.
