WOODWARD 5464-414 Maintenance-Ready Spare for DMP Automation

WOODWARD 5464-414 Maintenance-Ready Spare for DMP Automation

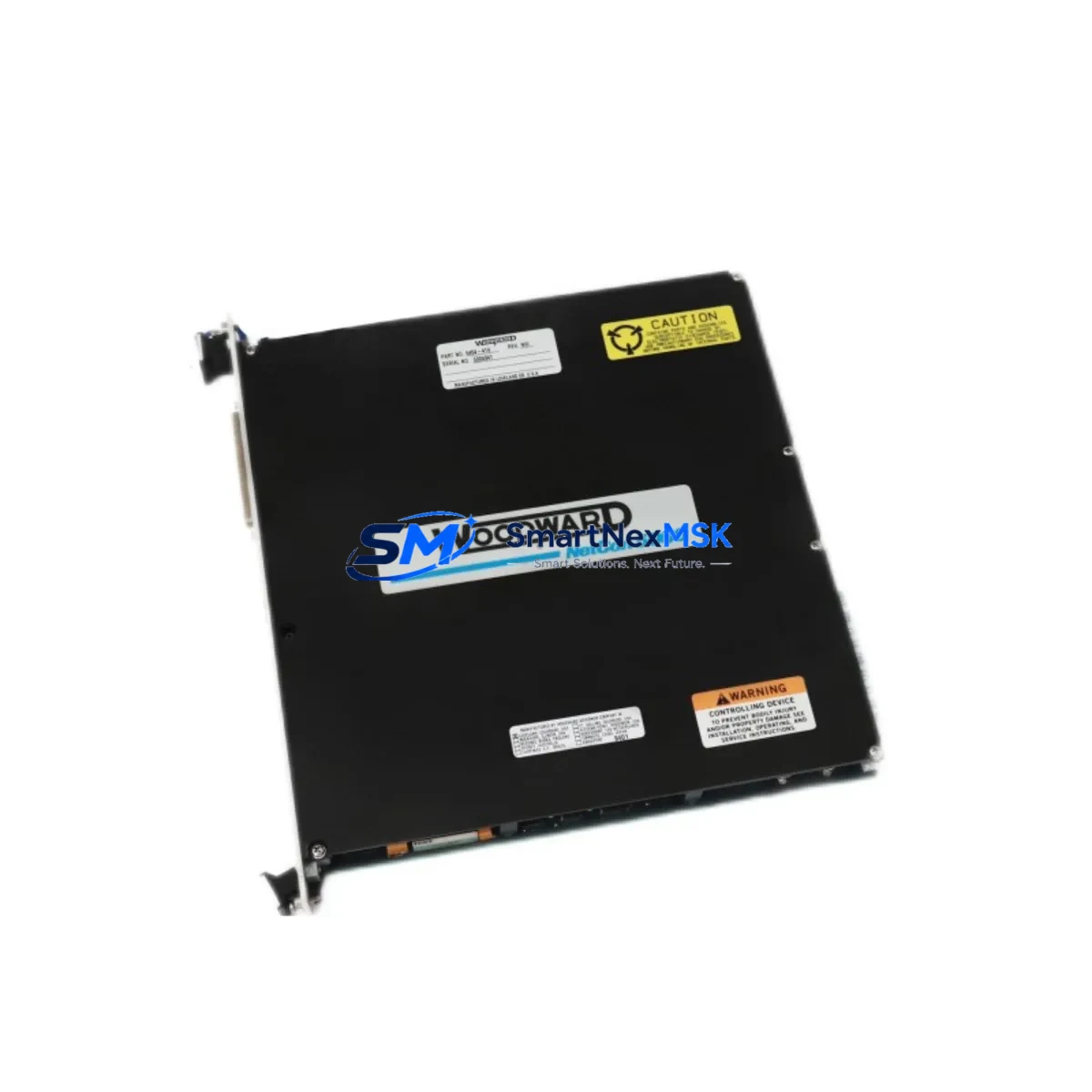

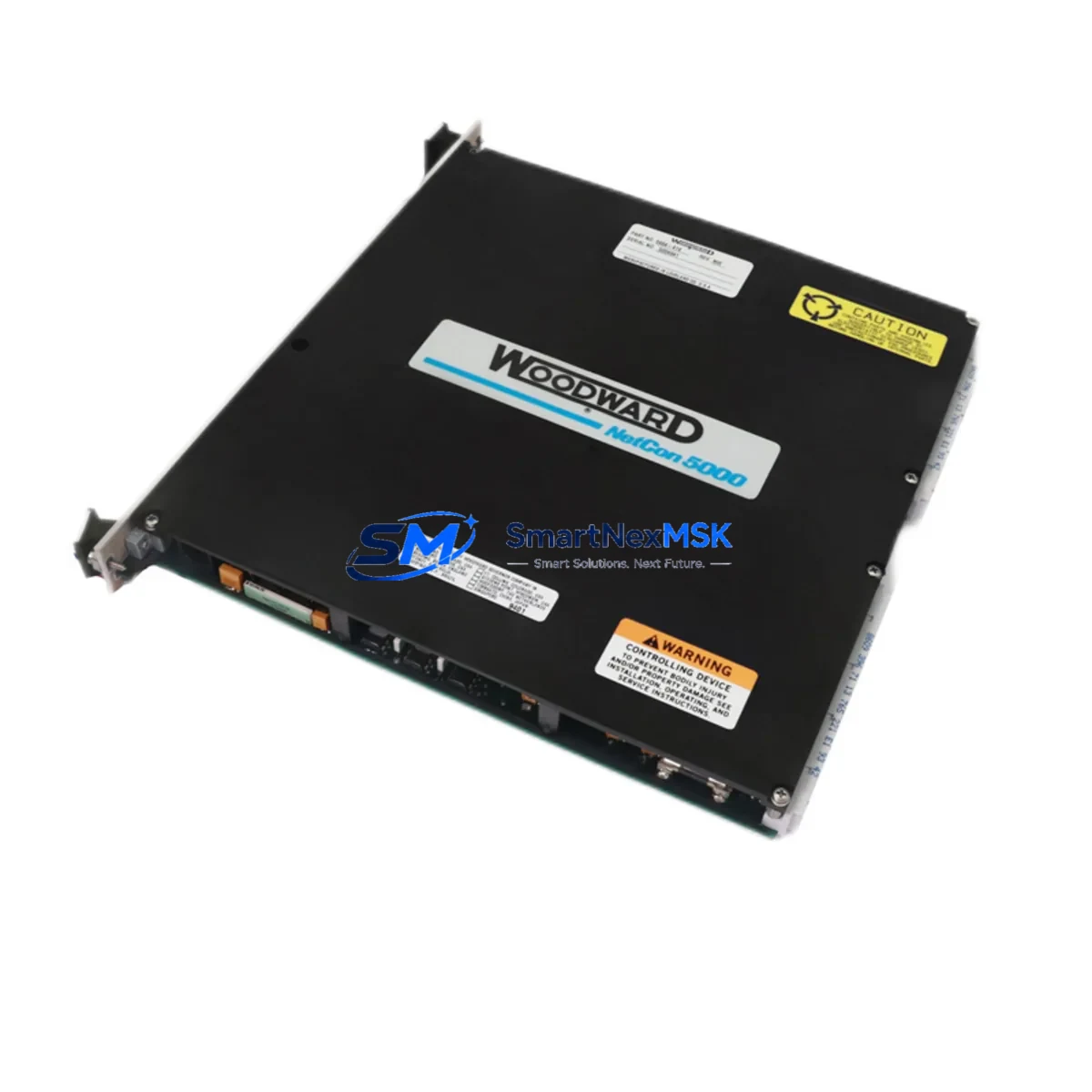

The WOODWARD 5464-414 is an original Digital Micro Process (DMP) speed sensor module engineered for continuous-duty turbine and compressor control applications. In industrial facilities where unplanned downtime translates directly into production loss and safety risk, maintaining a verified spare of the 5464-414 on the shelf is a fundamental element of any responsible maintenance strategy. This module serves as the primary speed-sensing interface within WOODWARD DMP governor and control systems, delivering precise rotational feedback to the control loop that governs fuel metering, load sharing, and overspeed protection.

For maintenance engineers managing aging turbine control cabinets, the 5464-414 is a critical single-point-of-failure component. Its failure mode is typically abrupt — a sudden loss of speed signal that triggers a governor trip or an unsafe runaway condition. Stocking a tested, original-specification replacement eliminates the multi-week lead time associated with emergency procurement and allows site teams to restore operation within a planned maintenance window rather than an uncontrolled emergency shutdown.

Each unit supplied by SMARTNEXMSK is sourced from verified channels, functionally tested prior to dispatch, and covered by a 12-month warranty. Units are shipped with full anti-static packaging and documentation to support incoming inspection and traceability requirements.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 5464-414 speed sensor module is flagged for replacement during a planned outage or emergency shutdown, experienced maintenance engineers know that the speed sensing circuit does not operate in isolation. A thorough site replacement should include inspection of the entire signal chain and associated control infrastructure to prevent repeat failures and ensure a clean return to service.

Begin with the magnetic pickup (MPU) sensor itself — verify the air gap, check for physical damage to the probe tip, and confirm the cable shielding is intact and grounded at one end only. A degraded MPU will produce erratic pulse signals that can cause nuisance trips even after the 5464-414 module is replaced. Next, inspect the MPU signal cable and terminal block connections within the control cabinet; loose or corroded terminals at the input to the speed module are a common source of intermittent faults that are misdiagnosed as module failure.

The WOODWARD DMP power supply module should be checked for output voltage stability under load — an under-voltage condition on the 24 VDC or 5 VDC rail can cause the speed module to produce erroneous readings or fail to initialize. If the DMP system uses a load sharing module or synchronizer module, verify that the speed reference signal fed from the 5464-414 is being received correctly after replacement, as these modules depend on accurate speed data for droop and isochronous control.

For systems with overspeed detection relay modules or dedicated overspeed trip cards, confirm that the trip setpoint and time delay settings are intact after the module swap — some DMP configurations store these parameters locally on the speed module or in adjacent relay logic. Review the I/O terminal assignments on the DMP backplane to confirm correct wiring polarity and that no terminals have been inadvertently swapped during removal of the old module.

If the turbine or compressor control cabinet also houses a WOODWARD 2301 load control module, a 505 digital control, or a MicroNet TMR controller, verify that the speed signal handoff between the DMP speed module and these higher-level controllers is functioning correctly after replacement. Communication faults or signal scaling mismatches at this interface are a known source of post-maintenance instability. Finally, check any signal isolators or signal conditioners in the speed feedback loop — these components age independently and can introduce offset or noise that masks the improvement from a new 5464-414 module.

Site Replacement Workflow

Step 1 — Isolation and documentation: Before removing the 5464-414, photograph the existing wiring layout and record all terminal labels. Confirm the governor is in manual mode or the unit is safely shut down and locked out per site LOTO procedures.

Step 2 — Module removal: Disconnect signal and power terminals in the sequence specified in the WOODWARD DMP wiring diagram. Remove the module from the backplane or DIN rail mounting. Inspect the backplane connector for bent pins or corrosion before installing the replacement.

Step 3 — Replacement installation: Install the new 5464-414 and reconnect all terminals per the documented wiring layout. Torque terminal screws to specification. Verify that the module is fully seated on the backplane.

Step 4 — Pre-start verification: Apply control power and verify that the module initializes without fault indication. Confirm that the speed signal reads zero (or a valid low value) with the prime mover at rest. Check for any diagnostic LEDs or fault codes on adjacent DMP modules.

Step 5 — Functional test and return to service: Bring the unit to minimum governor speed and verify that the speed reading on the operator HMI or WOODWARD service tool matches the expected value. Confirm overspeed trip function per site test procedure before returning the unit to automatic control.

This structured approach minimizes the risk of a repeat trip on restart and provides a documented record for the maintenance management system (CMMS), supporting both regulatory compliance and future spare parts planning.

Spare Parts Support FAQ

Q1: Is the WOODWARD 5464-414 still available as a new original spare, or only as a refurbished unit?
SMARTNEXMSK supplies original WOODWARD 5464-414 modules sourced from verified industrial channels. Each unit undergoes functional testing prior to shipment. Where new old stock (NOS) is available, it is clearly identified. All units are covered by a 12-month warranty regardless of production date.

Q2: How do I confirm compatibility before ordering if my DMP system uses a slightly different cabinet configuration?
Provide your existing module’s full part number, any revision suffix, and the WOODWARD DMP system model number to our technical team at sales@smartnexmsk.com. We will cross-reference against known compatible variants and confirm before shipment. We do not ship unconfirmed substitutions.

Q3: What is the recommended inventory strategy for the 5464-414 in a multi-unit turbine plant?
For plants operating two or more turbines or compressors on WOODWARD DMP governors, we recommend maintaining a minimum of one tested spare 5464-414 per site, with a second unit on order if the installed base exceeds four machines. The module’s role in overspeed protection makes it a Tier-1 critical spare in most plant spare parts classification systems.

Q4: What does the 12-month warranty cover, and what is the return process if a unit fails on arrival?
The 12-month warranty covers functional failure under normal operating conditions. DOA (dead on arrival) units are replaced or refunded within 5 business days of confirmed fault report. Contact sales@smartnexmsk.com with your order number and a description of the fault. We will arrange return shipping and priority replacement dispatch.
